AddOn JW092A-AO 10GBase-LR SFP+ 1310nm 10km LC SM Transceiver Aruba JW092A View larger
Previous Next

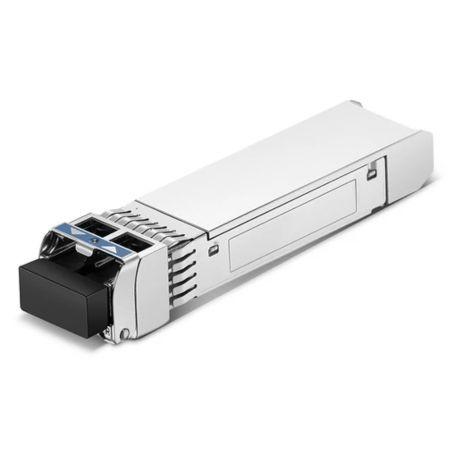

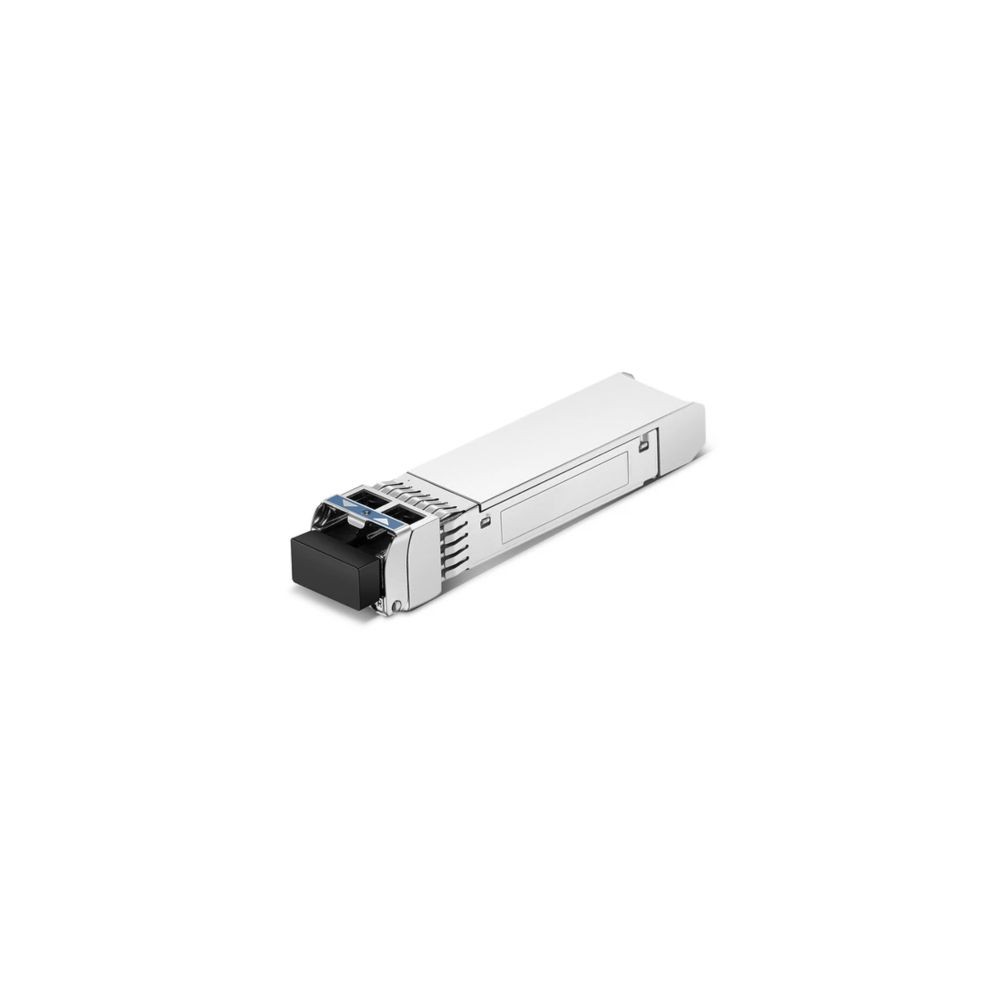

AddOn JW092A-AO 10GBase-LR SFP+ 1310nm 10km LC SM Transceiver Aruba JW092A

JW092A-AO

New

10GBase-SR SFP+ transceiver for 300m multimode fiber
×




Detailed Specifications

AddOn JW092A-AO

Aruba HPE Compatible 10GBase-LR SFP+ Transceiver

A TAA-compliant 10GBase-LR SFP+ transceiver for single-mode fiber, compatible with Aruba Networks.

Overview :

The AddOn JW092A-AO is an Aruba Networks compatible, TAA-compliant 10GBase-LR SFP+ transceiver. It's designed to provide high-speed 10 Gigabit Ethernet connectivity over single-mode fiber optic links up to 10 kilometers. This module is ideal for enterprise and data center environments that need reliable long-distance fiber communication with seamless Aruba integration.

Features :

Compliant with IEEE 802.3ae 10GBase-LR standards, this transceiver operates at a 1310nm wavelength. Its LC duplex connector is standard for secure, low-loss connections in high-performance networks. The hot-swappable SFP+ form factor simplifies installation or replacement without interrupting network operations. It is also equipped with Digital Optical Monitoring (DOM), which provides real-time metrics on critical parameters like temperature and optical power. The JW092A-AO is tested and programmed to perform equivalently to OEM Aruba transceivers, ensuring full compatibility and reliability in mixed network environments.

Product Key Features

  • 10 Gigabit Ethernet: Supports 10GBASE-LR connections.
  • 10km Reach: Ideal for long-distance network links over single-mode fiber.
  • TAA Compliant: Meets federal government procurement standards.
  • Hot-Swappable SFP+: Enables easy and quick maintenance.

Reliability & Performance :

Manufactured with high-quality optics, the AddOn JW092A-AO offers stable signal quality and energy-efficient performance. Its uncooled DFB laser and PIN photodiode minimize power consumption and heat generation. The hot-swap feature allows for rapid module replacement or upgrades, reducing network downtime. Compliance with MSA and TAA standards ensures broad interoperability and regulatory compliance for enterprise and government networks.

Key Features :

  • 10GBase-LR support for 10 Km reach.
  • 1310nm wavelength optimized for single-mode fiber.
  • Hot-swappable SFP+ module with LC duplex connector.
  • Digital Optical Monitoring (DOM) for diagnostics.
  • TAA compliant for enterprise and government use.
  • OEM-equivalent performance and Aruba compatibility.

Specifications :

SpecificationDetails
Model Number JW092A-AO
Product Type 10GBase-LR SFP+ Transceiver
Speed 10 Gigabit Ethernet
Wavelength 1310 nm
Transmission Distance Up to 10 kilometers
Fiber Type Single-mode Fiber (SMF)
Connector LC Duplex
Form Factor SFP+
Compatibility Aruba HPE, TAA-Compliant
Power Consumption Approx. 1.5 Watts
Operating Temperature 0°C to 70°C
Digital Monitoring Supported (DOM)
Compliance TAA, MSA
