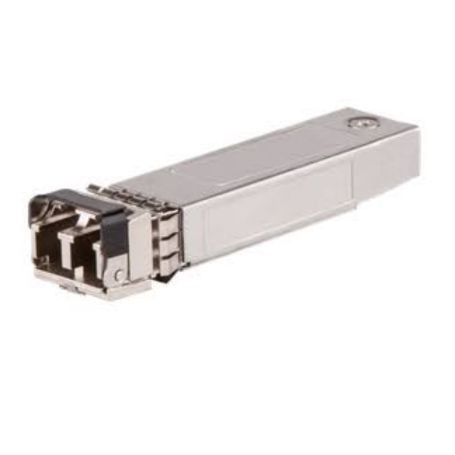

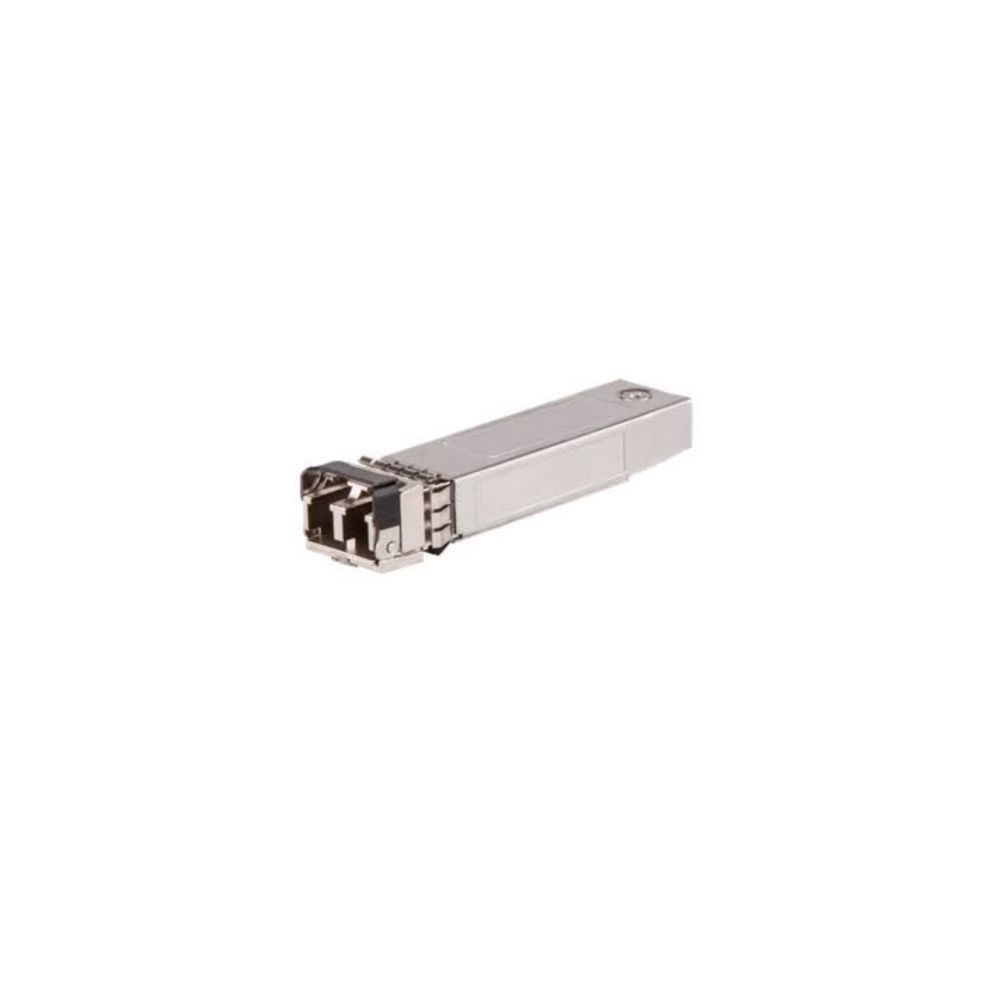

Axiom S3N88A-AX Aruba Compatible 100GBASE-DR QSFP28 500m 1310nm Transceiver

S3N88A-AX

New

100G QSFP28 transceiver for medium-distance single-mode fiber with 500m reach
×




Detailed Specifications

Axiom S3N88A-AX

Aruba Compatible 100GBASE-DR QSFP28 Transceiver

A 100G QSFP28 transceiver for single-mode fiber networks up to 500m.

Overview :

The Axiom S3N88A-AX is a 100GBASE-DR QSFP28 optical transceiver designed for medium-distance 100 Gigabit Ethernet connections over single-mode fiber. Compatible with Aruba network equipment, the module supports reliable data transfer up to 500 meters, suitable for high-performance data center and enterprise applications requiring scalable, high-bandwidth connectivity.

Features :

This transceiver adheres to the 100GBASE-DR standard, operating at 1310nm wavelength optimized for single-mode fiber connectivity. It is equipped with an LC duplex connector, providing standardized compatibility with Aruba and other MSA-compliant QSFP28 ports. The module comes pre-programmed with an application-specific OEM code to ensure seamless integration and plug-and-play deployment on Aruba devices. Its design supports Digital Optical Monitoring (DOM), enabling network administrators to monitor essential performance parameters such as optical power and temperature in real time. The hot-swappable QSFP28 form factor allows for non-disruptive installation and replacement, ideal for maintaining uptime in complex network environments.

Product Key Features

  • Fully Aruba-compatible 100G QSFP28 transceiver.
  • Supports 100 Gigabit Ethernet data rate.
  • Operates at 1310nm wavelength on single-mode fiber.
  • Transmission distance support up to 500 meters.

Reliability & Performance :

Built to meet rigorous quality standards, the Axiom S3N88A-AX transceiver guarantees robust signal integrity and energy-efficient operation. The module performs reliably within typical data center temperature ranges (0°C to 70°C) and is constructed to sustain long-term, high-performance use in enterprise and carrier-grade networks.

Key Features :

  • Aruba-compatible 100G QSFP28 transceiver.
  • 100 Gbps speed with 1310nm wavelength.
  • Medium reach up to 500m on single-mode fiber.
  • LC duplex connector.
  • Pre-configured for OEM compatibility.
  • Supports Digital Optical Monitoring (DOM).
  • Hot-swappable design.

Specifications :

SpecificationDetails
Brand Axiom
Model Number S3N88A-AX
Product Type 100GBASE-DR QSFP28 Transceiver
Compatibility Aruba
Data Rate 100 Gbps
Wavelength 1310 nm
Fiber Type Single-mode fiber (SMF)
Maximum Transmission Distance 500 meters
Connector Type LC Duplex
Digital Optical Monitoring Supported
Power Supply 3.3 V
Form Factor QSFP28
Operating Temperature Range 0°C to 70°C
Compliance RoHS, OEM pre-configured
