Detailed Specifications

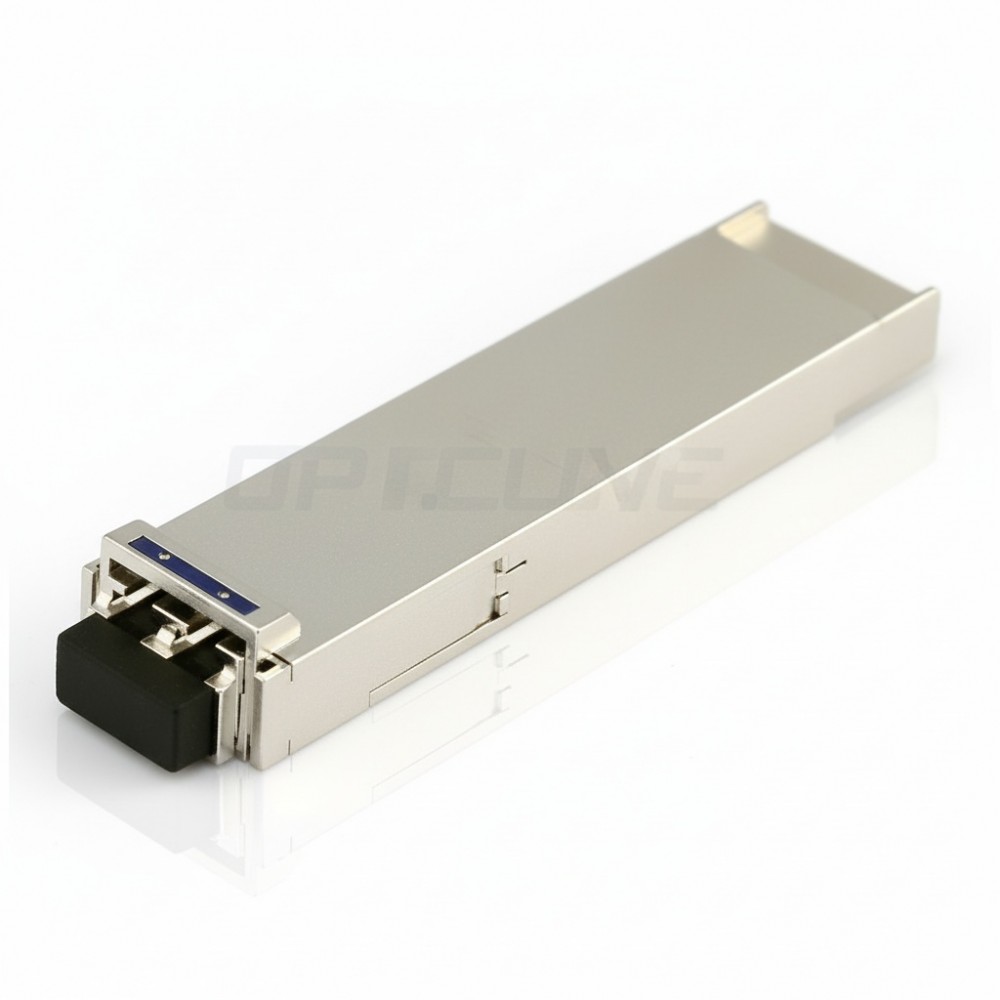

HPE JD108B 10GBASE-LR XFP Transceiver Module
Overview
The HPE JD108B is an XFP form-factor optical transceiver module intended for network infrastructure engineers deploying 10 Gb Ethernet links over single-mode fiber. It supports a wavelength of 1310 nm and a reach up to 10 km on 9/125 µm single-mode fiber, solving the challenge of long-haul server-to-switch or switch-to-switch links without optical regeneration. The module fits into standard XFP slots on compatible HPE networking equipment and integrates with the host's optical diagnostics for monitoring and link health. It is suitable for aggregation or high-speed uplink environments in data-centres, campus backbone fibers or inter-rack high-bandwidth links.
Key Features
10 Gbps line rate with XFP form-factor
1310 nm DFB laser, single-mode fiber support (9/125 µm)
LC duplex connector interface
Certified reach up to 10 km on SMF
Digital Optical Monitoring (DOM) support for real-time diagnostics
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JD108B |
| Product Type | 10 GBASE-LR XFP Transceiver Module |
| Data Rate | 10 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) 9/125 µm |
| Maximum Reach | Up to 10 km |
| Connector Type | LC Duplex |
| Form Factor | XFP |
| Digital Optical Monitoring | Supported |
| Operating Temperature | Typically 0 °C to 70 °C |
| Power Supply | +3.3 V (XFP standard) |
| Transmitter Type | DFB Laser |
| Receiver Sensitivity | ≤ -14.4 dBm |
| Transmit Power Range | -8.2 dBm to +0.5 dBm |
| Compliance Standards | IEEE 802.3ae, XFP MSA |
