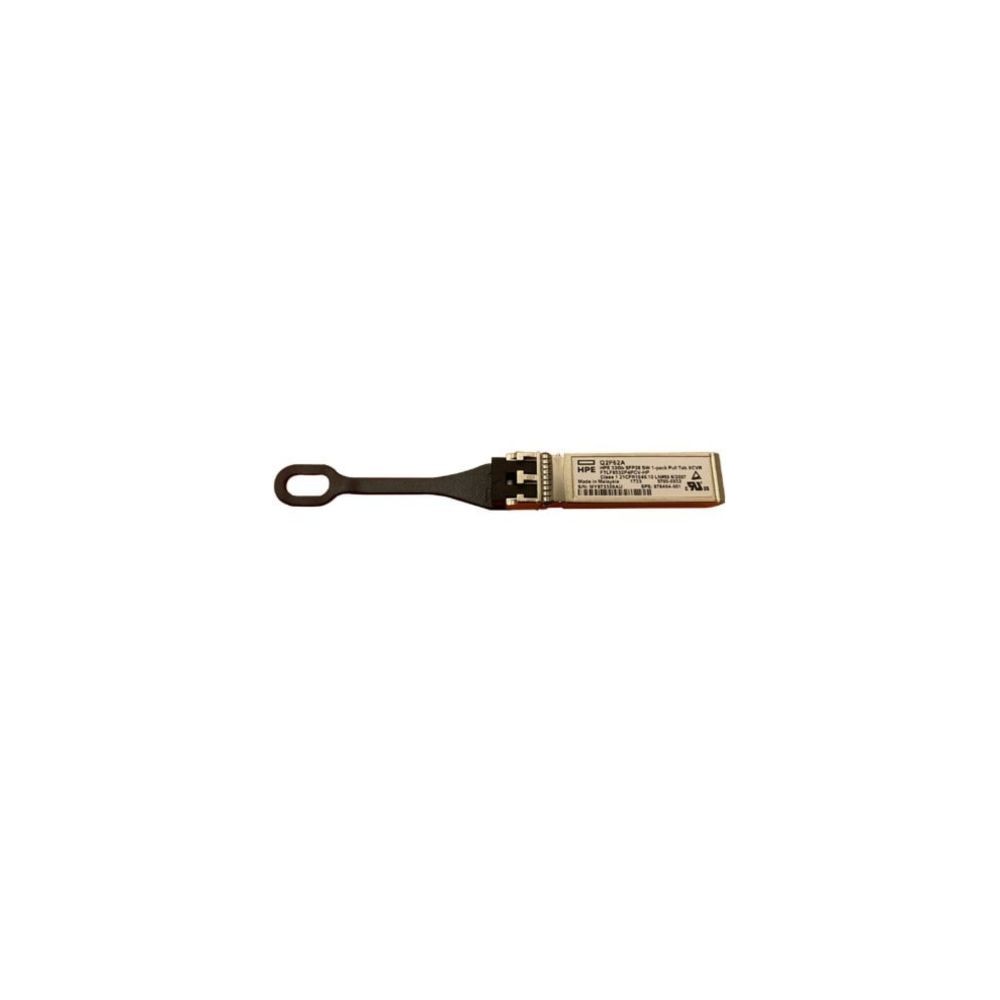

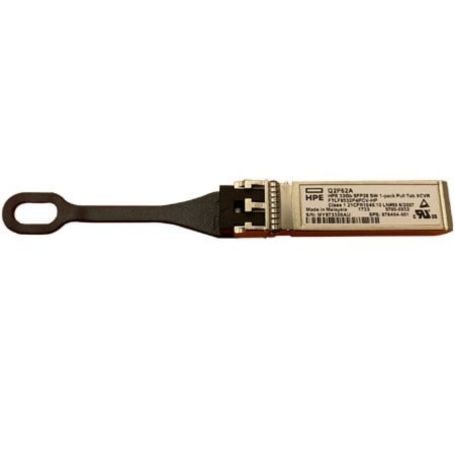

HPEQ2P62A

32 Gb SFP28 Short-Wave Extended-Temp Optical Transceiver Module

The HPEQ2P62A is a high-performance 32 Gb SFP28optical Transceiver Module engineered for short-wave (850 nm) multimode fiber connectivity. Designed to support Fibre Channel networks at speeds up to 32 Gbps (also backwards compatible with 16 Gb and 8 Gb), it offers robust data transfer capability over OM4 and OM3 cabling. With an extended temperature rating and pull-tab design, this module is tailored for demanding data center and storage environments. Ideal for enterprise SANs, server interconnects, and Fibre Channel switch uplinks, it enables reliable, low-latency optical links with digital diagnostics monitoring.

Features

The module uses an SFP28form factor with dual LC optical connectors and operates at an 850 nm VCSEL laser wavelength. It is fully compliant with SFP MSA and Fibre Channel FC-PI-6 specifications, ensuring interoperability across HPESAN hardware and Fibre Channel switches. The extended-temperature capability allows operation in harsher thermal environments. Integrated digital diagnostics monitoring (DDM/DOM) provides real-time optical power and temperature feedback for better link health monitoring.

Advanced Options

With a compact hot-pluggable design, deployment and servicing are simplified. It supports up to 100 m reach on OM4 fiber and around 70 m on OM3, making it perfect for storage backend connections or cross-rack optical links in enterprise environments.

Product Key Features

• 32 Gb Fibre Channel over MMF (also supports 16G/8G)


• Supports OM4 (100 m) and OM3 (70 m) multimode fiber


• Extended operating temperature range


• LC duplex connector with pull-tab design


• Digital diagnostics monitoring (DDM/DOM) enabled


• Compliant with SFP28, SFP MSA, and FC-PI-6 standards

---

Reliability & Performance

Engineered for data center-grade reliability, this SFP28module delivers ultra-reliable Fibre Channel links up to 32 Gbps. Its VCSEL laser and PIN receivers are optimized for signal integrity and low power consumption, and the extended-temperature support ensures consistent performance even under thermal stress. Real-time diagnostic monitoring (DDM/DOM) enables admins to track TX/RX power, temperature, and voltage × helping to anticipate and prevent link degradation. The pull-tab mechanism simplifies hot-swap installation without disturbing adjacent ports. Built to meet strict HPEquality standards, it ensures interoperability and stable operation within HPESAN infrastructures, minimizing downtime and easing maintenance workflows.

Key Features :

• 32 Gb Fibre Channel with backward support for 16G/8G

• OM4 (100 m) and OM3 (70 m) reach on multimode fiber

• Extended-temperature rated module

• LC duplex pull-tab connector

• Digital diagnostics monitoring (DDM/DOM)

• SFP28& Fibre Channel industry standard compliant

Specification	Details
Model Number	Q2P62A
Product Type	32 Gb Fibre Channel SFP28Optical Transceiver Module
Supported Speeds	32GFC (28.05 Gbps), 16GFC (14.025 Gbps), 8GFC (8.5 Gbps)
Wavelength	850 nm VCSEL
Fiber Type	Multimode Fiber (OM4 / OM3)
Connector Type	LC duplex, pull-tab style
Max Distance	Up to 100 m (OM4), ~70 m (OM3)
Form Factor	SFP28hot-pluggable module
Digital Diagnostics Monitoring	Yes (DDM/DOM)
Operating Temperature	Extended (0 °C to ~70 °C)
Power Supply	+3.3 V
Optical Budget	~1.8 dB
Standards Compliance	SFP28MSA, SFF-8432/8431/8472, FC-PI-6, RoHS, CE
Weight	≈0.22 lb (0.1 kg)
Dimensions	~33 × 28 × 3 mm (1.3 × 1.1 × 0.12 inches)
