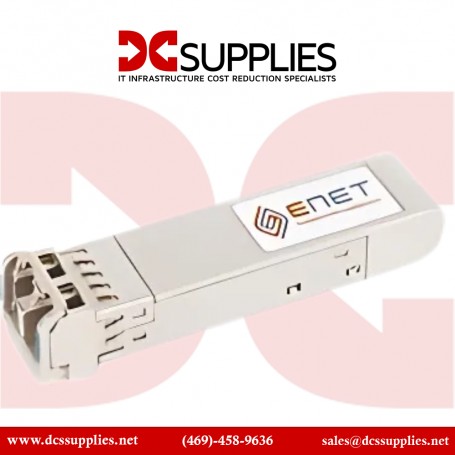

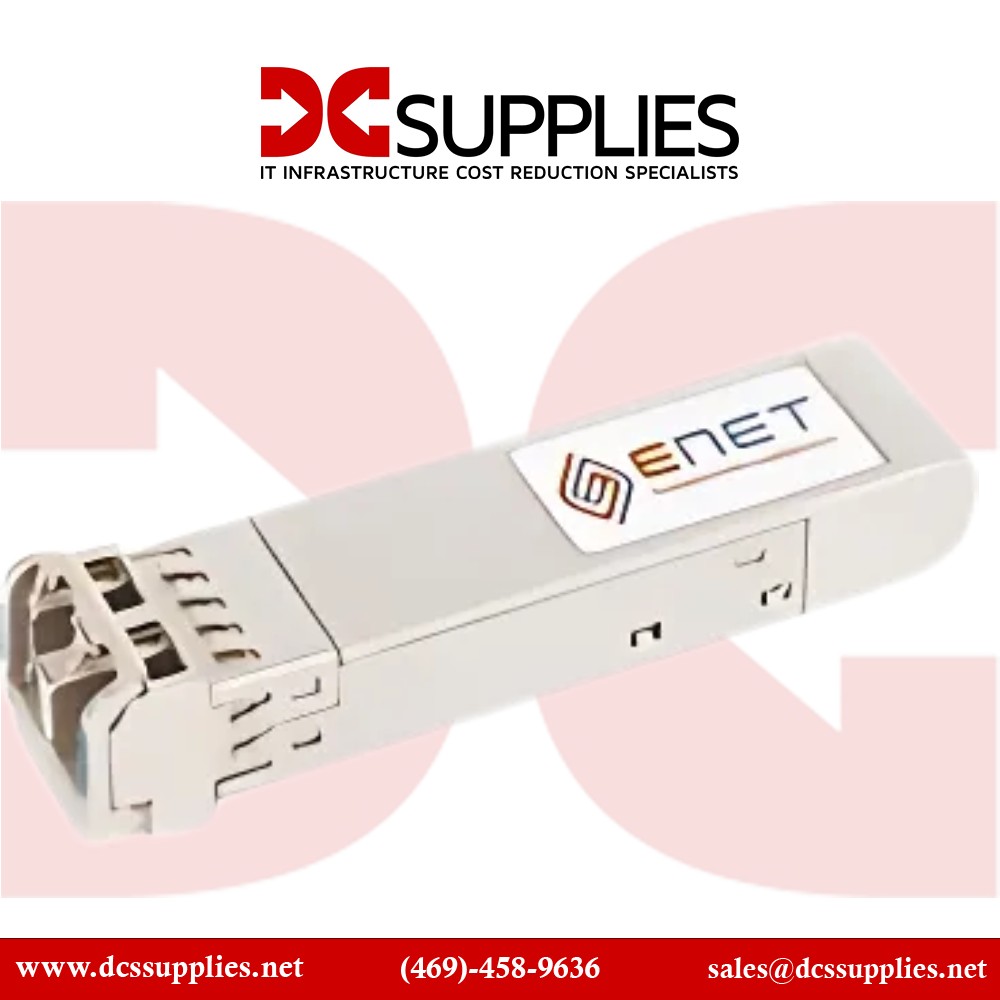

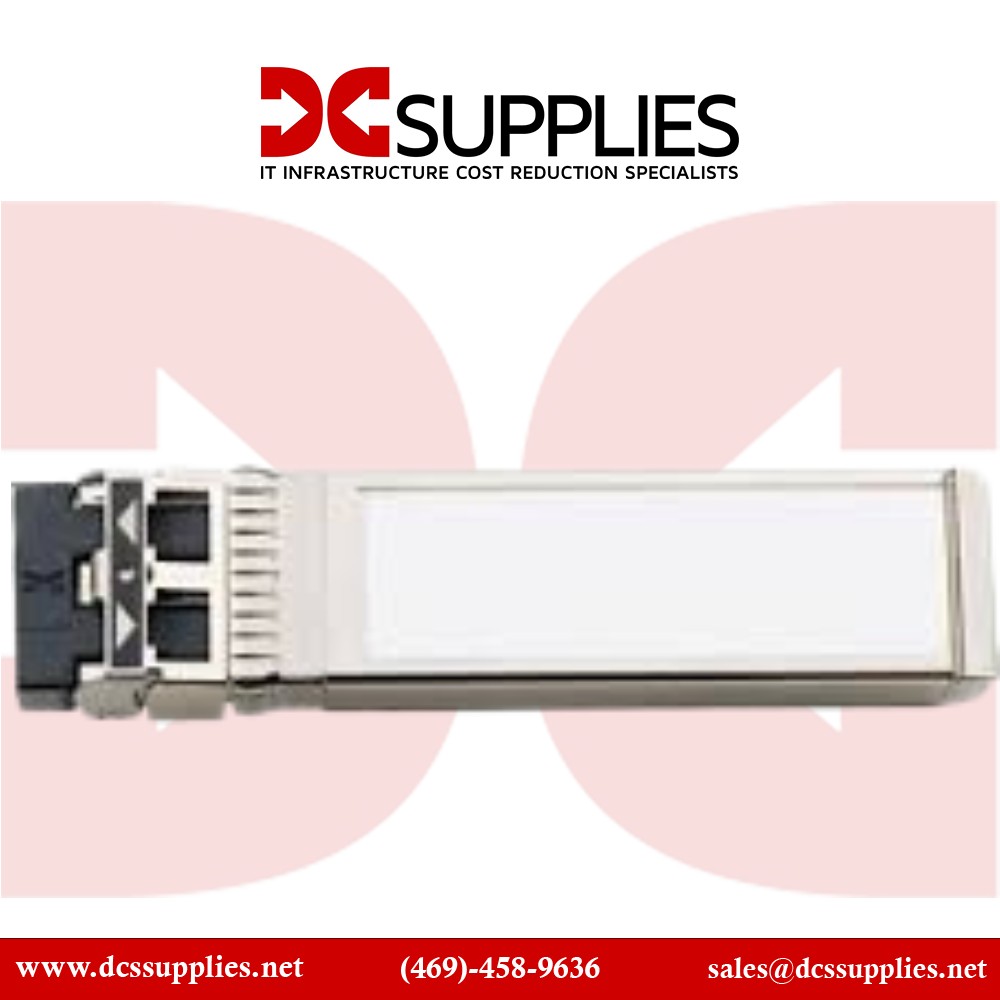

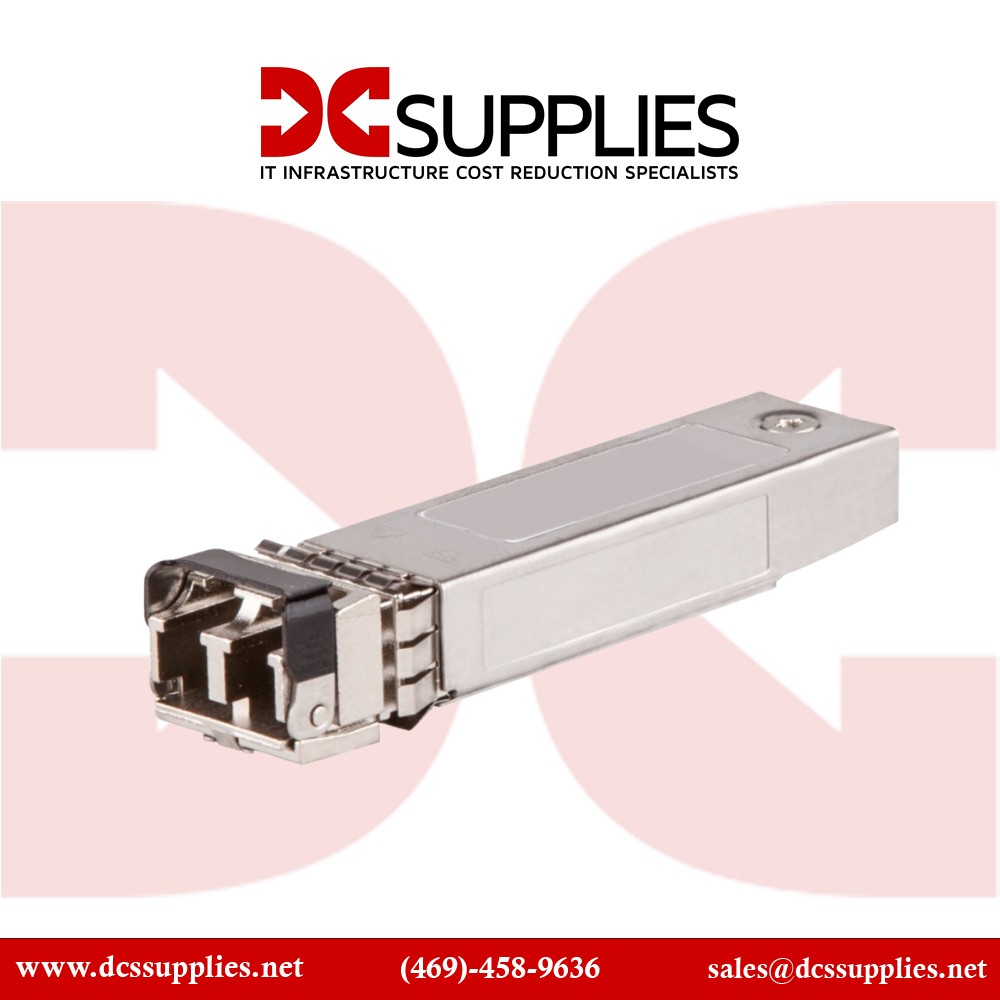

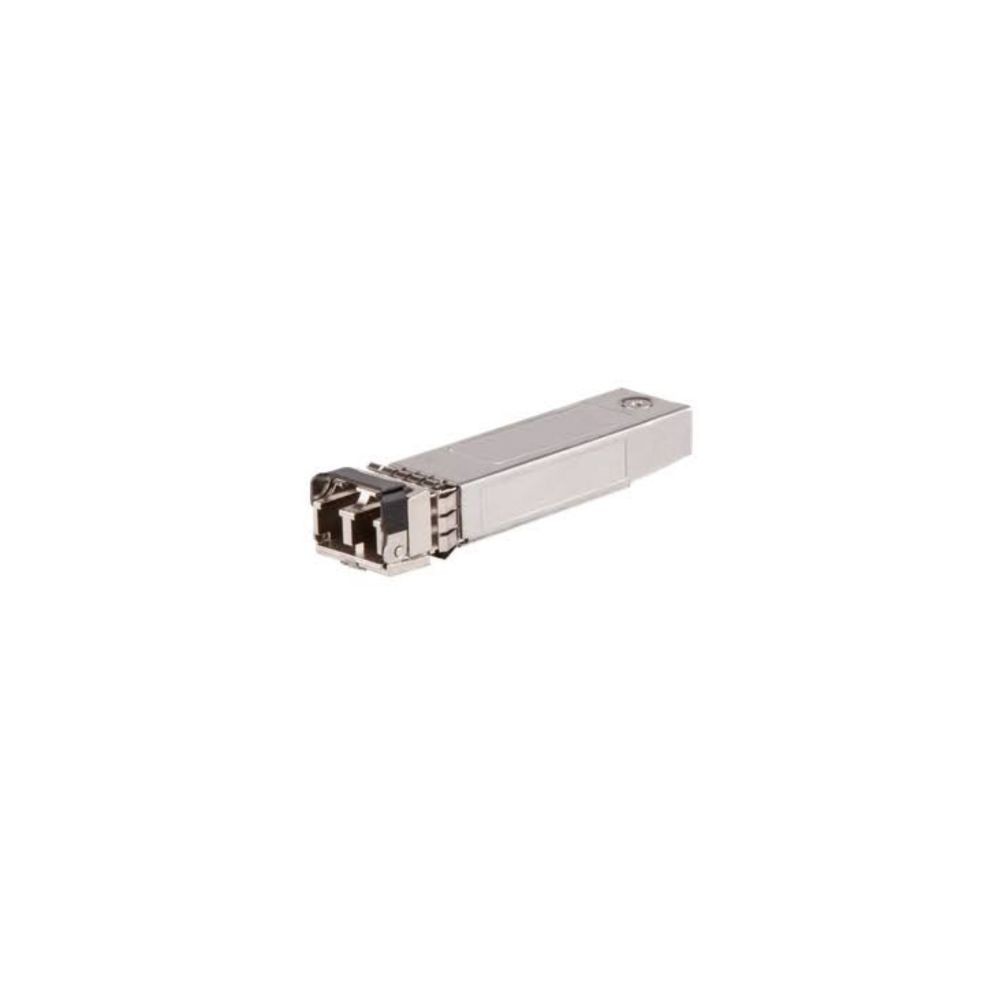

ENET J9151D-LRM-ENC 10GBASE-LRM SFP Transceiver 1310NM 220M M

ENET J9151D-LRM-ENC

10GBASE-LRM SFPTransceiver 1310NM 220M M

A compact 10G SFP+transceiver for short-reach fiber links.

Overview :

The ENET J9151D-LRM-ENC is a compact 10GBASE-LRM SFP+transceiver module compatible with HPAruba hardware. It provides reliable short-distance 10 Gigabit Ethernet connectivity up to 220 meters over single-mode fiber, making it well-suited for enterprise access networks, wiring closets, and data center applications requiring short-reach fiber links.

Features :

This transceiver operates at 1310 nm wavelength utilizing long-reach multimode (LRM) technology optimized for short-reach links up to 220 meters over single-mode fiber. It features a duplex LC type fiber connector and supports 10 Gbps data rates with low latency and error-free transmission. Fully compliant with Multi-Source Agreement (MSA) standards and tested for HPAruba compatibility, it integrates seamlessly into existing network architectures. The module supports Digital Optical Monitoring (DOM) to enable network administrators to monitor real-time diagnostic parameters including temperature, voltage, and optical power for proactive maintenance. The hot-swappable design promotes flexible network management with minimal disruption or downtime during installation or replacement actions.

Product Key Features

• Supports 10 Gigabit Ethernet at 1310 nm wavelength.
• 220 meters reach over single-mode fiber (SMF).
• Compatible with HPArubanetworking devices.
• Simplex LC duplex fiber connector.

---

Reliability & Performance :

The ENET J9151D-LRM-ENC transceiver uses a robust metal casing to protect the optical module from environmental and physical stresses. Its low power consumption and adherence to strict quality controls ensure consistent performance in demanding environments. Compatibility testing with HPArubaswitches ensures trouble-free deployment across supported platforms, contributing to overall network reliability and stability.

Key Features :

• 10GBASE-LRM transceiver operating at 1310 nm.
• Supports single-mode fiber connections up to 220 meters.
• Duplex LC connector interface for fiber optics.
• Compatible with HPArubaswitch and router models.
• Hot-swappable with Digital Diagnostics Monitoring (DOM).
• MSA compliant, ensuring wide interoperability.

Specifications :

Specification	Description
Model Number	J9151D-LRM-ENC
Product Type	10GBASE-LRM SFP+Transceiver
Data Rate	10 Gbps
Fiber Type	Single-mode fiber (SMF)
Connector Type	Duplex LC
Wavelength	1310 nm
Transmission Distance	Up to 220 meters
Power Consumption	< 1 W
Hot-pluggable	Yes
Digital Diagnostics	Supported (DOM)
Compatibility	HPAruba compatible
MSA Compliance	Yes
