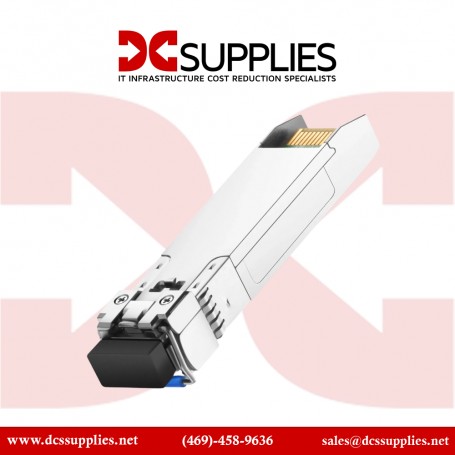

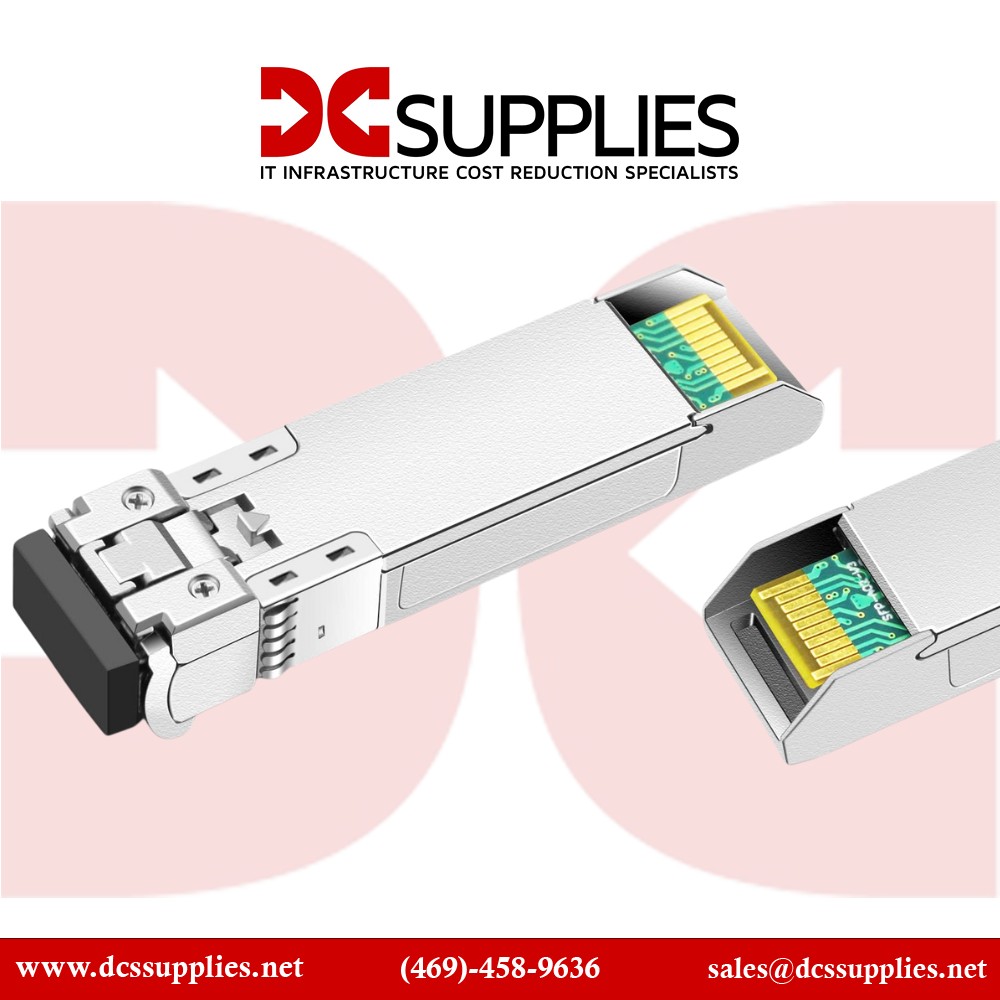

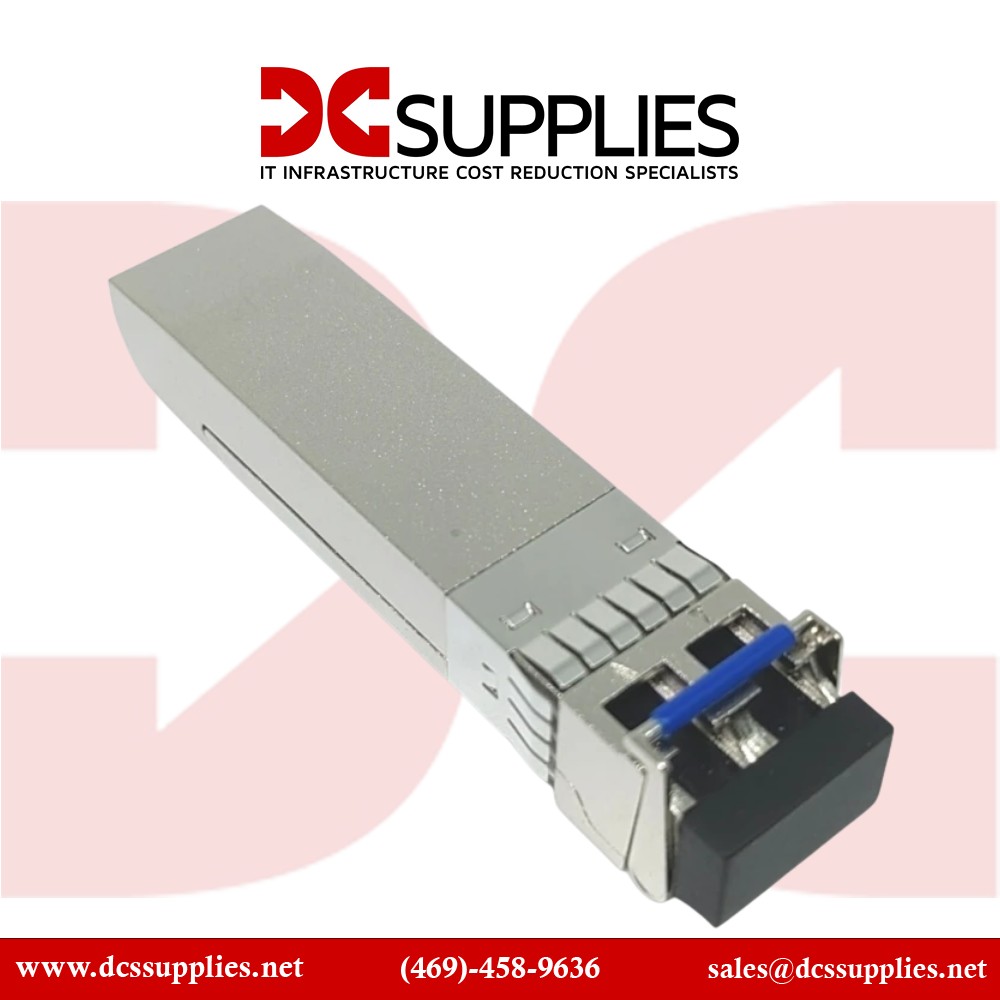

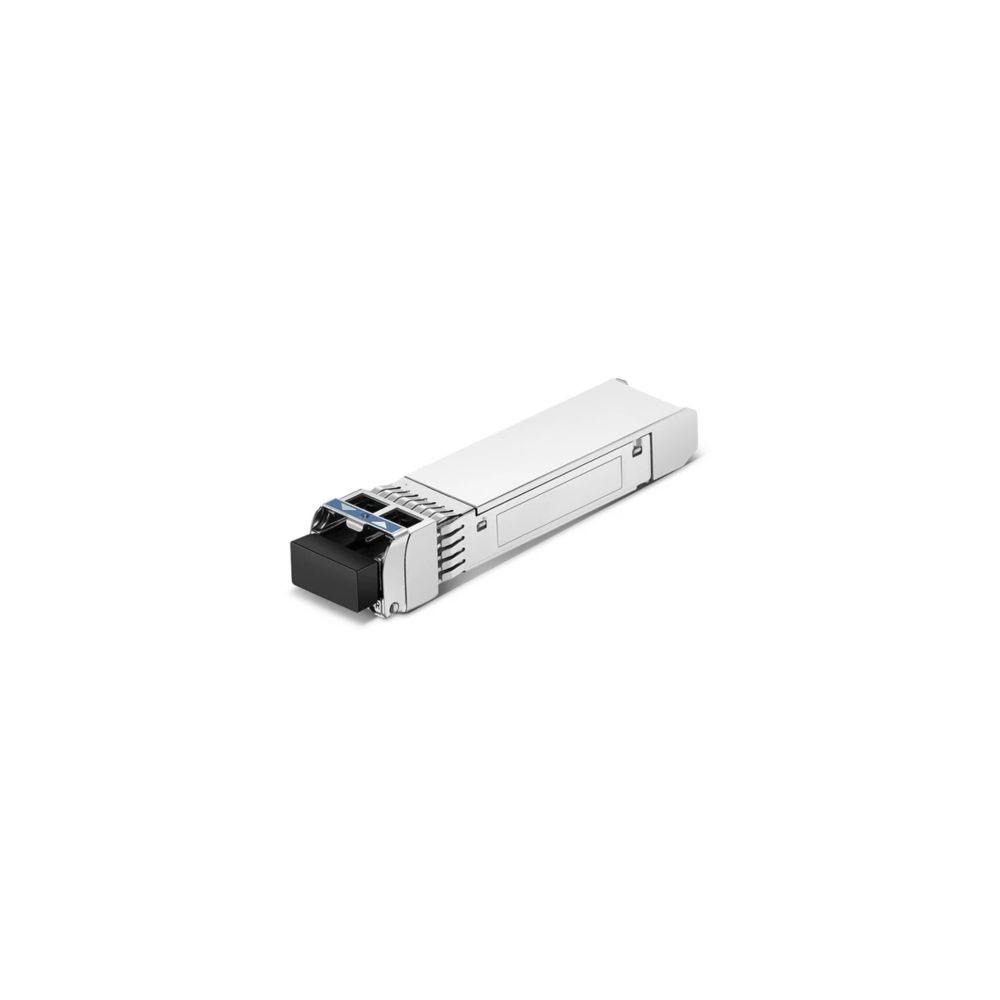

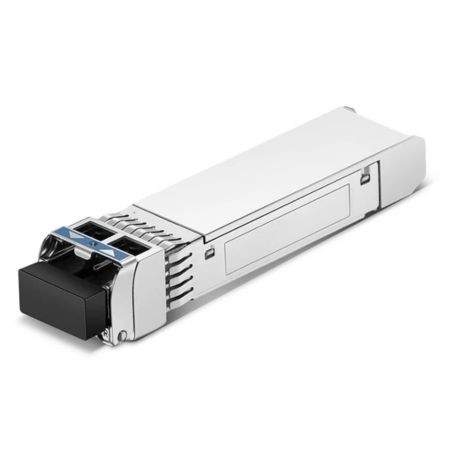

ENET J9151E-BX20D-ENC HP ARUBA COMPATIBLE Transceiver Module

ENET J9151E-BX20D-ENC

HPARUBA Compatible Transceiver Module

A bidirectional SFP+transceiver for long-distance 10G connections.

Overview :

The ENET J9151E-BX20D-ENC is a high-performance bidirectional 10Gbase-LR SFP+transceiver compatible with HPArubaswitches. It enables efficient long-distance 10G Ethernet connectivity over a single strand of single-mode fiber up to 20 km, using different wavelengths for transmit and receive signals. This module is ideal for enterprise, data center, and metro network environments requiring reliable, cost-effective fiber connectivity with minimized cabling.

Features :

This transceiver employs bidirectional (BiDi) technology to maximize fiber infrastructure by transmitting and receiving data over a single fiber strand using two distinct wavelengths (1330 nm for transmit, 1270 nm for receive). It features a simplex LC interface, simplifying fiber management in environments with limited cabling options. Designed for HPAruba compatibility, the module adheres to the Multi-Source Agreement (MSA) standards for SFP+transceivers, ensuring interoperability with a broad range of networking hardware. The 20 km reach accommodates extended link distances without the need for additional repeaters or amplifiers, suitable for campus backbones and data center interconnects.

Product Key Features

• 10 Gigabit Ethernet 10Gbase-LR BiDi standard.
• Bidirectional transmission with 1330 nm (Tx) and 1270 nm (Rx) wavelengths.
• Supports up to 20 km over single-mode fiber (SMF).
• Simplex LC connector optimizing fiber usage.

---

Reliability & Performance :

Built to enterprise-grade standards, the J9151E-BX20D-ENC features a robust metal enclosure designed for durability and stable optical performance. It supports Digital Optical Monitoring (DOM) for real-time monitoring of temperature, voltage, and optical power, aiding proactive maintenance. The hot-swappable design enables seamless integration or replacement without network downtime, and power-efficient operation reduces energy costs while maintaining high data integrity.

Key Features :

• 10Gbase-LR BiDitransceiver supporting 10 Gbps Ethernet.
• Bidirectional wavelengths: Tx 1330 nm, Rx 1270 nm.
• 20 km maximum transmission over single-mode fiber.
• Simplex LC connector for single-fiber use.
• HPAruba compatible and MSA compliant.
• Hot-swappable with DOM diagnostics.

Specifications :

Specification	Description
Model Number	J9151E-BX20D-ENC
Product Type	10Gbase-LR BiDiSFP+Transceiver
Data Rate	10 Gbps
Fiber Type	Single-mode fiber (SMF)
Connector Type	Simplex LC
Wavelength	Tx: 1330 nm / Rx: 1270 nm
Transmission Distance	Up to 20 km
Power Consumption	< 1.5 Watts
Hot-pluggable	Yes
Digital Diagnostics	Supported (DOM)
Compatibility	HPAruba compatible
MSA Compliance	Yes
