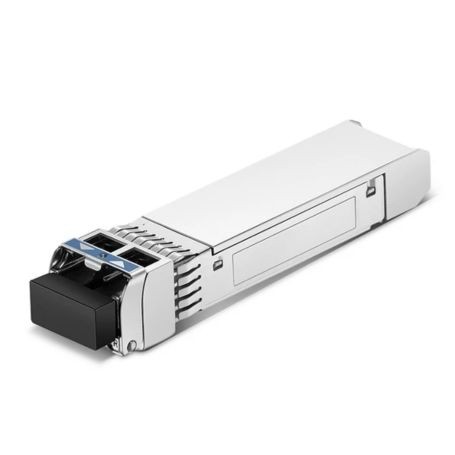

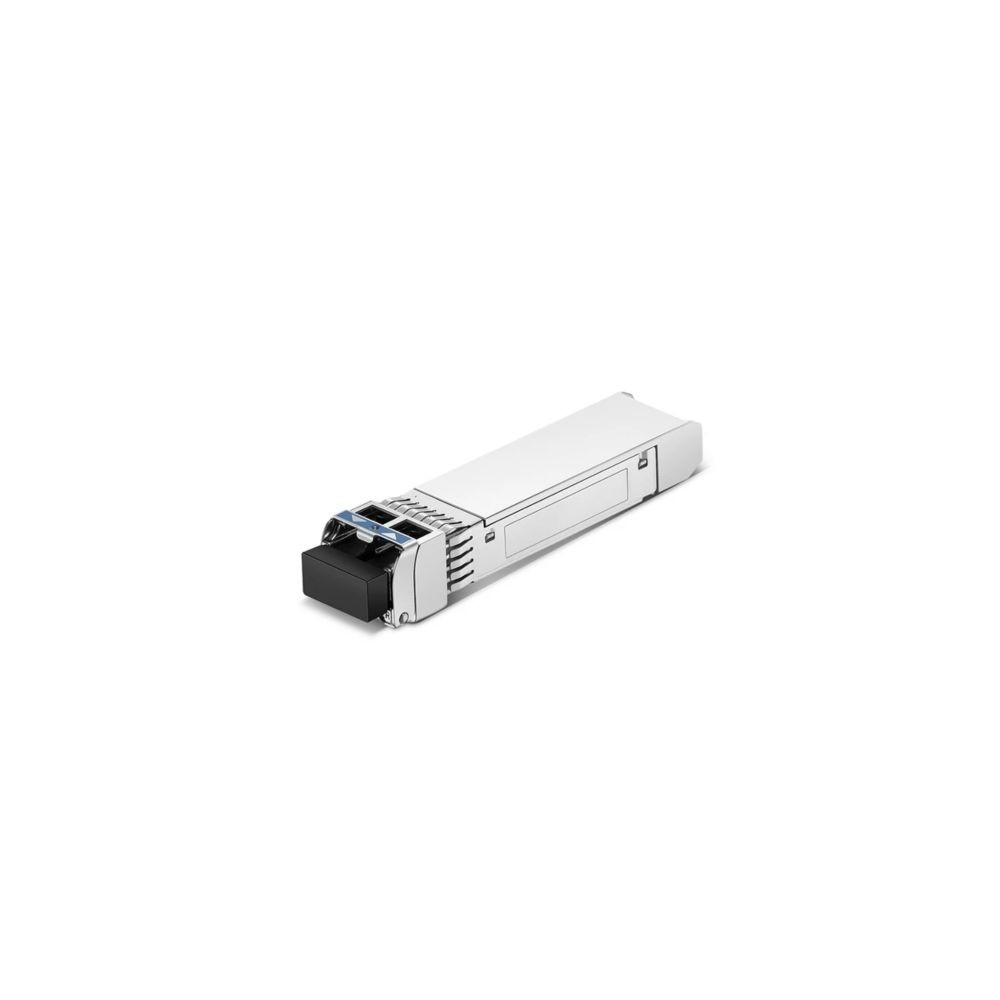

ENet JL748A-ENC HP ARUBA COMPATIBLE 10GBASE-SR SFP Transceiver Module 10GbE

ENet JL748A-ENC

HP Aruba Compatible 10GBASE-SR SFPTransceiver Module 10GbE

A high-quality 10GBASE-SR SFP+transceiver for short-range networking.

Overview :

The ENet JL748A-ENC is a high-quality 10GBASE-SR SFP+transceiver module compatible with HP Aruba devices. It provides reliable and fast 10 Gigabit Ethernet connectivity over multimode fiber with support for up to 300 meters, ideal for data centers and enterprise networks. This transceiver module supports the IEEE 802.3ae 10GBASE-SR standard for short-range 10 Gigabit Ethernet applications over multimode fiber. It uses an 850 nm VCSEL laser combined with a PIN photodiode to deliver high-speed data transmissions with low latency.

Features :

The duplex LC connector ensures easy and secure fiber optic connections for optimized network integration. Designed to be hot-swappable, the module permits network upgrades or replacements without downtime. It's commonly deployed in data centers, enterprise campuses, and telecom environments requiring short-range optical links. Digital Diagnostic Monitoring offers real-time access to critical parameters such as voltage, temperature, and optical power, enhancing reliability and ease of maintenance.

Product Key Features

• Supports 10GBASE-SR Ethernet at 10 Gbps data rate.
• Operates over multimode fiber (MMF) with duplex LC connector.
• Maximum transmission distance of up to 300 meters on OM3 fiber.
• 850 nm VCSEL laser transmitter and PIN photodiode receiver.

---

Reliability & Performance :

Built to operate efficiently within a temperature range of 0°C to 70°C, this transceiver meets industry standards for durability and compatibility. Its compact SFP+ form factor supports hot-plug capability for seamless installation. Tested extensively for OEM and third-party compatibility, it ensures network stability and performance in demanding IT environments. The component complies with RoHS and MSA standards, promoting eco-friendly and reliable operation.

Key Features :

• 10GBASE-SR Ethernet at 10 Gbps.
• Duplex LC connector supporting multimode fiber.
• Up to 300 meters transmission distance (OM3 fiber).
• 850 nm VCSEL laser and PIN photodiode receiver.
• Digital Diagnostic Monitoring (DDM) support.
• Hot-pluggable SFP+ MSA-compliant form factor.

Specifications :

Specification	Details
Model Number	JL748A-ENC
Product Type	10GBASE-SR SFP+Transceiver Module
Data Rate	10 Gbps
Maximum Distance	300 meters (OM3 multimode fiber)
Wavelength	850 nm
Form Factor	SFP+ (Small Form-factor Pluggable Plus)
Interface	Duplex LC optical connector
Transmitter Type	VCSEL laser
Receiver Type	PIN photodiode
Power Supply	+3.3 V
Operating Temperature	0°C to 70°C
Compliance	RoHS, MSA, IEEE 802.3ae
Digital Diagnostics	Supported (DDM/DOM)
