Detailed Specifications

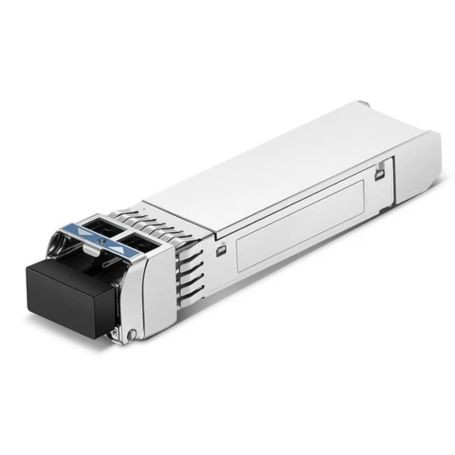

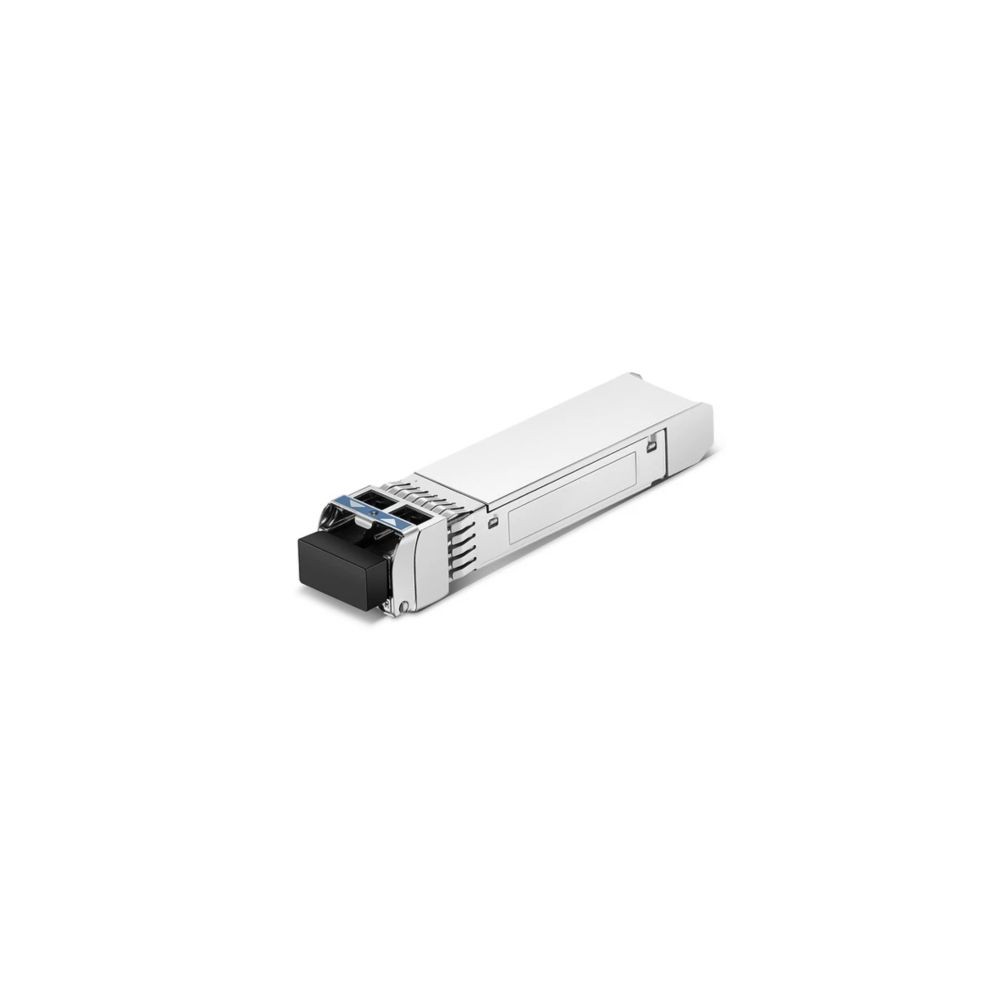

ENET JL749A-ENC
A high-speed 10 Gigabit Ethernettransceiver for long-distance networking.
Overview :
The ENET JL749A-ENC is an HP Aruba compatible 10GBase-LR SFP+transceiver module designed for long-distance, high-speed optical networks. It delivers reliable 10 Gigabit Ethernet connectivity over single-mode fiber with an extended reach up to 10 kilometers, ideal for data centers and campus networks. This 10GBase-LR transceiver utilizes a 1310 nm DFB laser and a PIN photodiode to transmit and receive data over single-mode fiber cables.
Features :
Its LC duplex connector provides secure, low-loss optical connections in network deployments requiring long-distance links. Supporting distances up to 10km, it is well suited for enterprise backbone, data center interconnects, and metro networks. Compliant with the SFP+ MSA standard and IEEE 802.3ae, the JL749A-ENC module ensures broad compatibility across HP Aruba and other networking equipment. Its hot-pluggable design enables easy installation or replacement without disrupting network operations. The Digital Diagnostic Monitoring (DDM) feature allows real-time access to important device parameters such as temperature, voltage, and optical power to aid network maintenance and monitoring.
Product Key Features
- Supports 10GBASE-LR Ethernet at 10 Gbps line rate.
- Operates over single-mode fiber (SMF) with LC duplex connector.
- 1310 nm DFB laser transmitter, PIN photodiode receiver.
- Maximum transmission distance of 10 kilometers.
Reliability & Performance :
Engineered for robust and dependable performance, this transceiver operates efficiently within a commercial temperature range of 0°C to 70°C. Its low power consumption and strict compliance with environmental regulations like RoHS ensure it meets enterprise sustainability goals. The JL749A-ENC undergoes rigorous compatibility and performance testing to guarantee reliable operation over long distances in high-demand network settings.
Key Features :
Specifications :
| Specification | Details |
|---|
| Model Number | JL749A-ENC |
| Product Type | 10GBase-LR SFP+Transceiver Module |
| Data Rate | 10 Gbps |
| Maximum Distance | 10 kilometers |
| Wavelength | 1310 nm |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Interface | Duplex LC optical connector |
| Transmitter Type | DFB laser |
| Receiver Type | PIN photodiode |
| Power Supply | +3.3 V |
| Operating Temperature | 0°C to 70°C |
| Compliance | RoHS, MSA, IEEE 802.3ae |
| Digital Diagnostics | Supported (DDM/DOM) |
