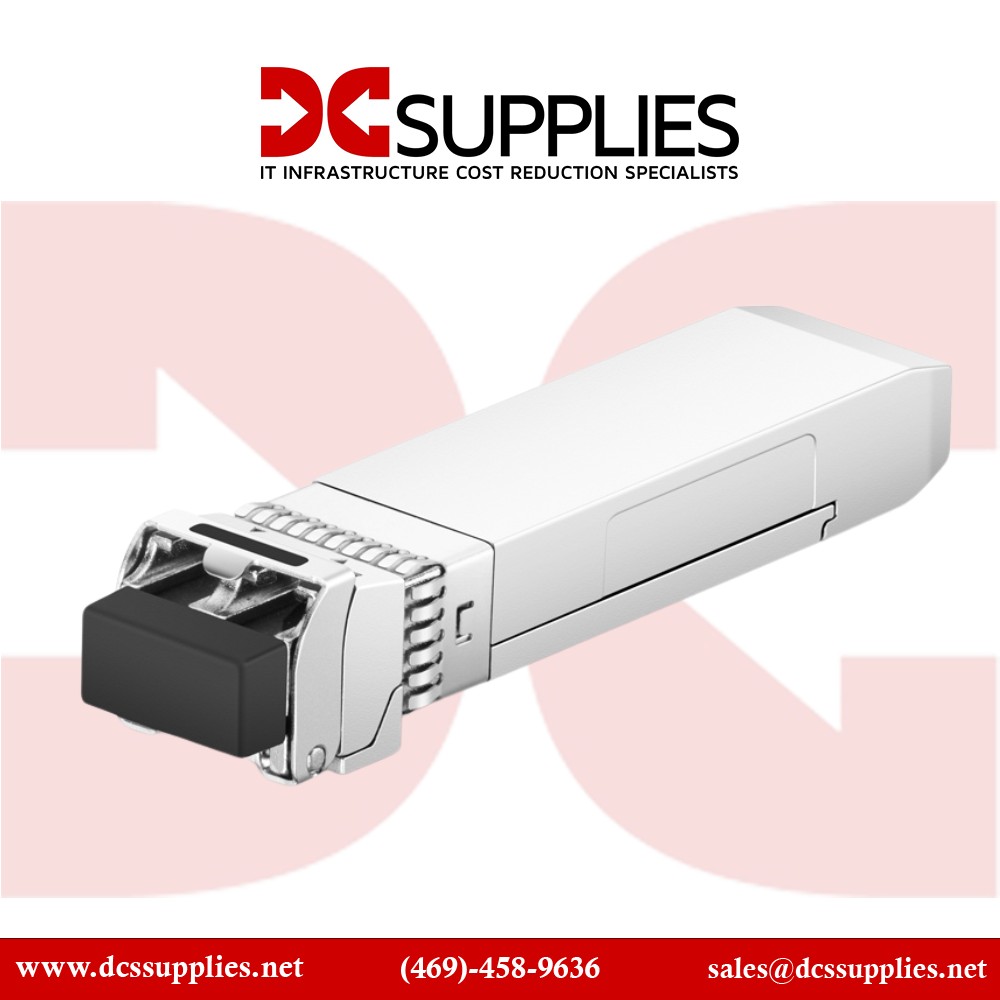

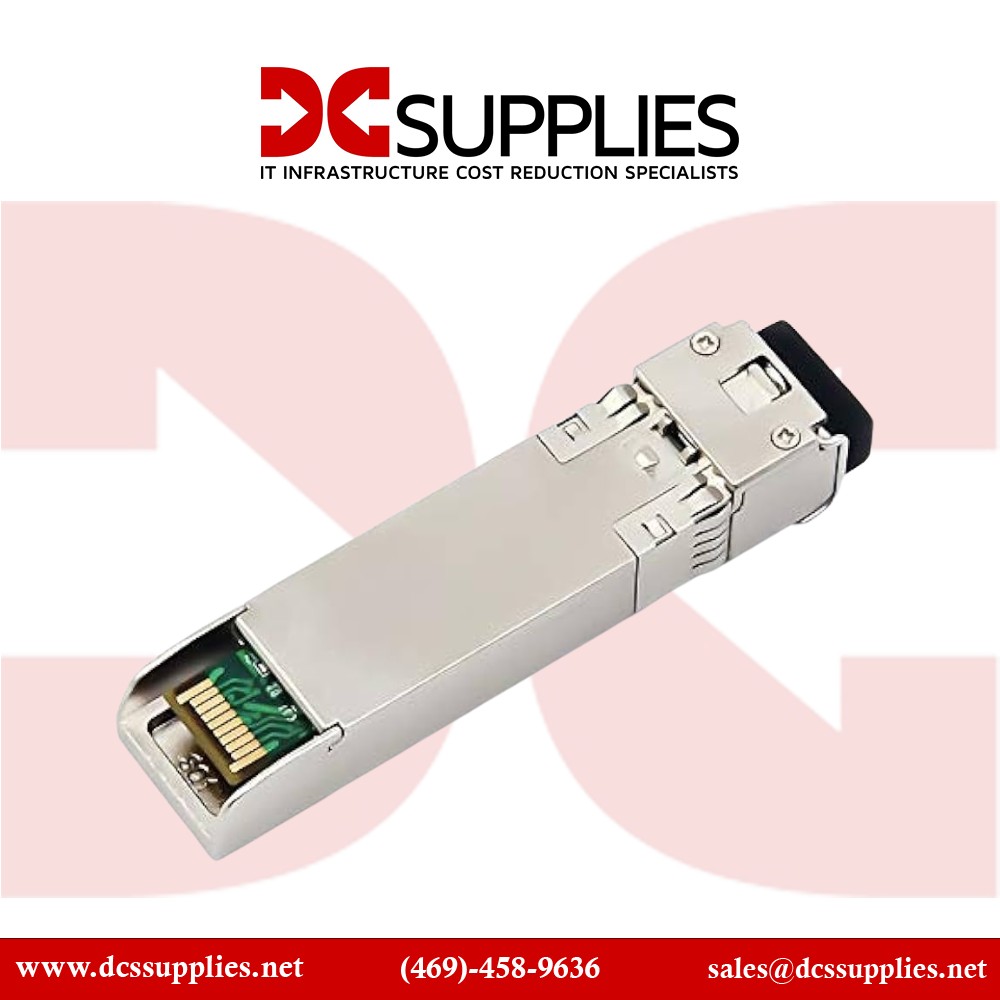

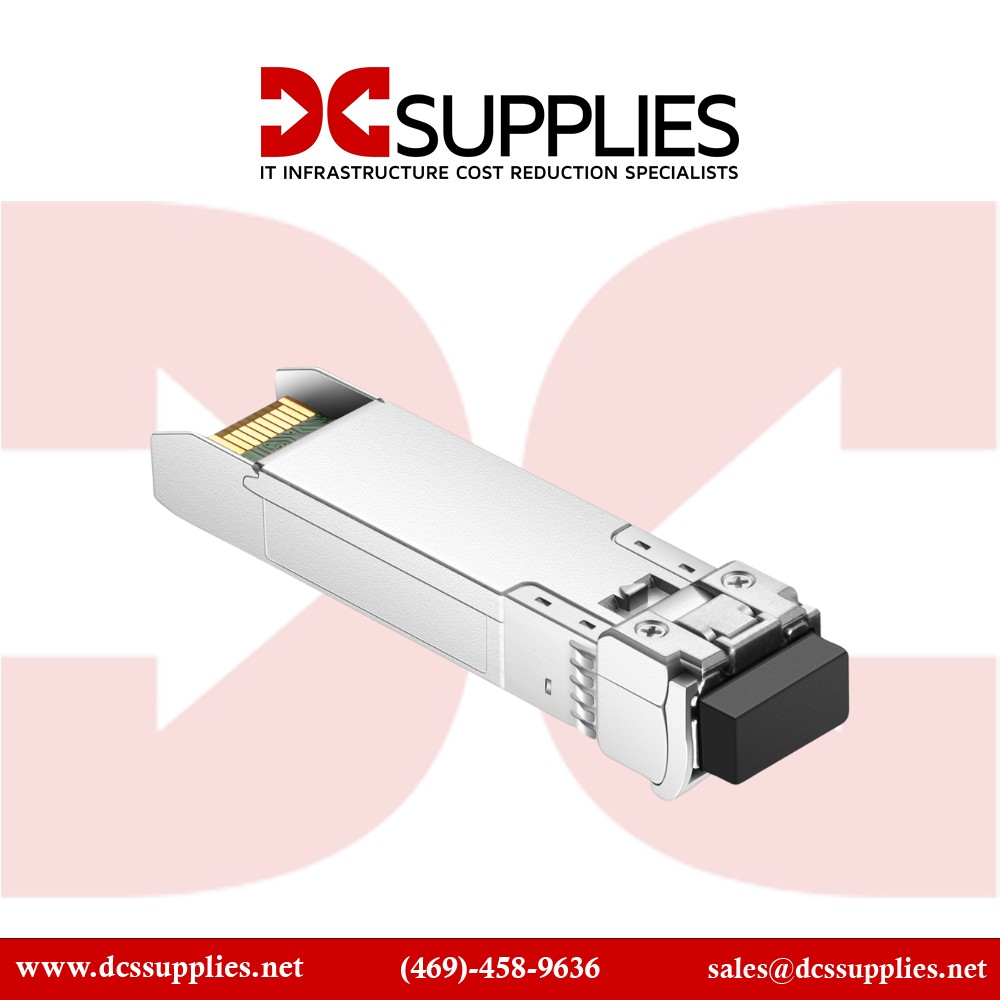

Fortinet FN-TRAN-SX-TAA TAA Compliant SFP mini GBIC transceiver module 1GbE

FN-TRAN-SX-TAA

New

High-speed SFP transceiver for short-range fiber links.
×




Detailed Specifications

Fortinet FN-TRAN-SX-TAA

SFP Mini GBIC Transceiver Module – 1 Gbps, MMF, 550 m

The Fortinet FN-TRAN-SX-TAA is a reliable SFP mini GBIC transceiver module designed for short-range fiber optic communication. It provides 1 Gbps connectivity over multimode fiber, making it an excellent choice for extending network segments in enterprise and data center environments.

Features :

Supporting the IEEE 802.3z 1000BASE‑SX standard, the FN‑TRAN‑SX‑TAA ensures compatibility with most network equipment featuring SFP ports. Its compact, hot-swappable design enables installation or replacement without shutting down equipment, reducing downtime and simplifying maintenance.

Advanced Options :

Optimized for multimode fiber, this module delivers reliable connections up to 550 meters over OM2 fiber at an 850 nm wavelength. Fully RoHS compliant, it integrates smoothly into Fortinet devices and other vendor hardware supporting standard SFP transceivers, providing rapid, cost-effective optical networking.

Product Key Features

  • Supports 1 Gbps data rate (Gigabit Ethernet)
  • Compatible with multimode fiber (MMF)
  • Hot-swappable SFP (mini GBIC) form factor
  • Transmission distance up to 550 meters
  • Complies with IEEE 802.3z 1000BASE-SX standard

Reliability & Performance :

The FN‑TRAN‑SX‑TAA provides stable, low-latency optical connectivity with strong signal integrity across short-range fiber links. Built with quality components, it delivers consistent performance under typical enterprise data center conditions. The hot-swappable format and compliance with industry standards simplify scaling and servicing within expanding network infrastructures.

Key Features :

  • 1 Gbps data rate support
  • Multimode fiber compatible
  • Hot-swappable SFP form factor
  • Transmission distance up to 550 meters
  • IEEE 802.3z 1000BASE-SX compliant

Specifications :

SpecificationDetails
Model Number FN-TRAN-SX-TAA
Product Type SFP Mini GBIC Transceiver Module
Data Rate 1 Gbps
Fiber Type Multimode Fiber (MMF)
Maximum Transmission Distance Up to 550 meters
Wavelength 850 nm
Connector Type LC Duplex
Form Factor SFP (Small Form-factor Pluggable)
Hot-swappable Yes
Standard Compliance IEEE 802.3z 1000BASE-SX
Operating Temperature 0°C to 70°C
RoHS Compliant Yes
