Fortinet FN-TRAN-QSFP28-BIDI-I QSFP transceiver module 100GbE View larger
Previous Next

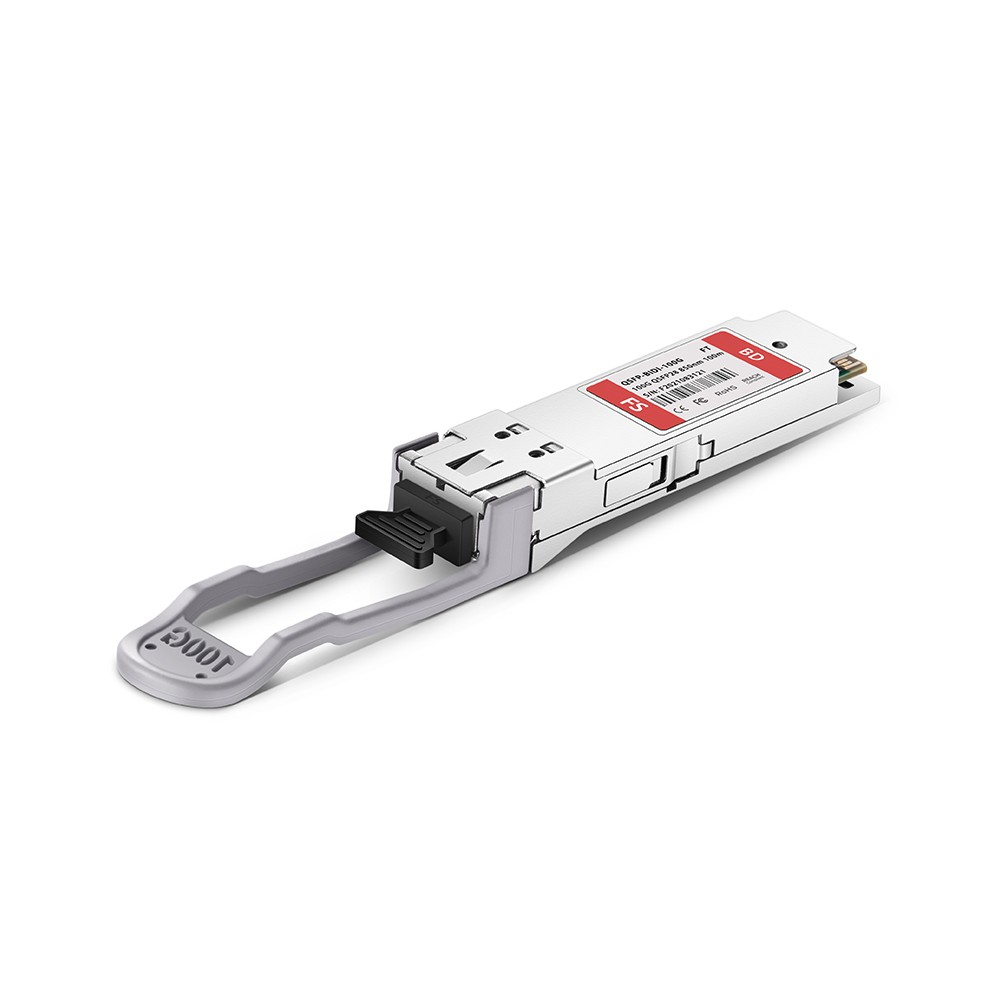

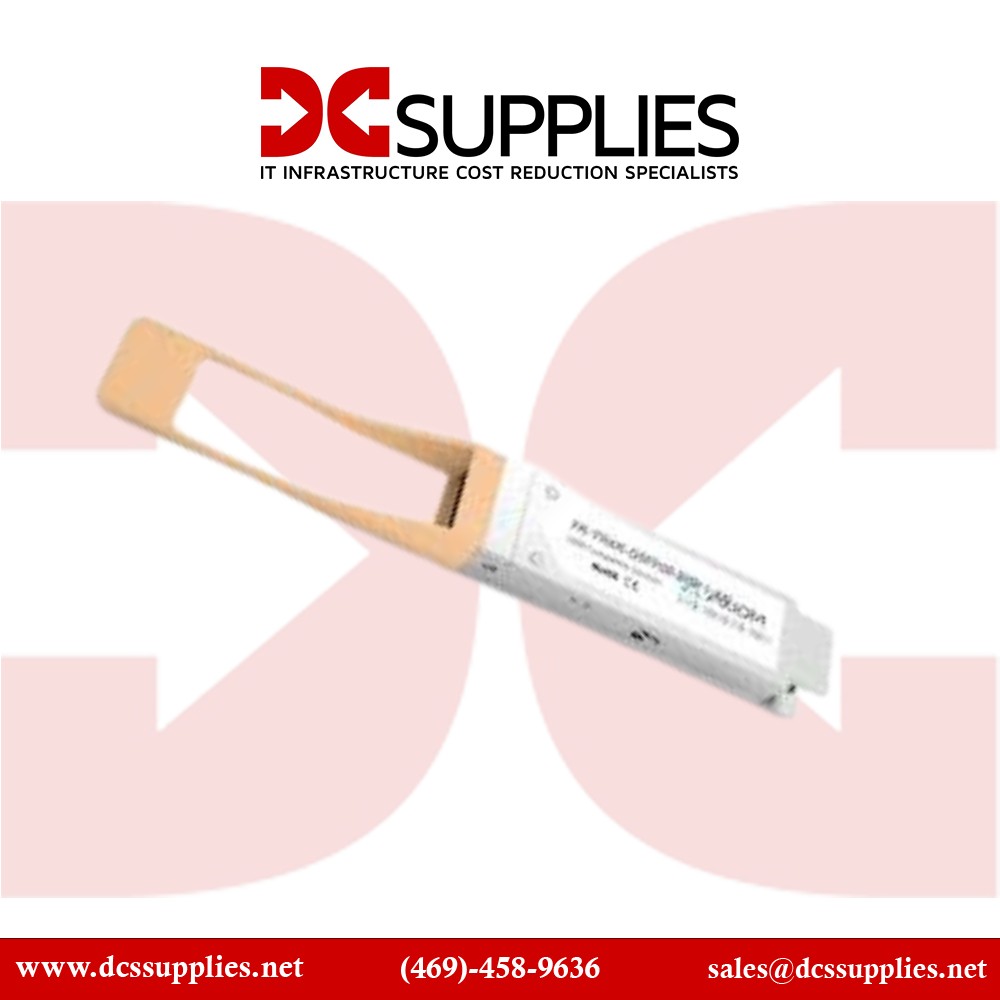

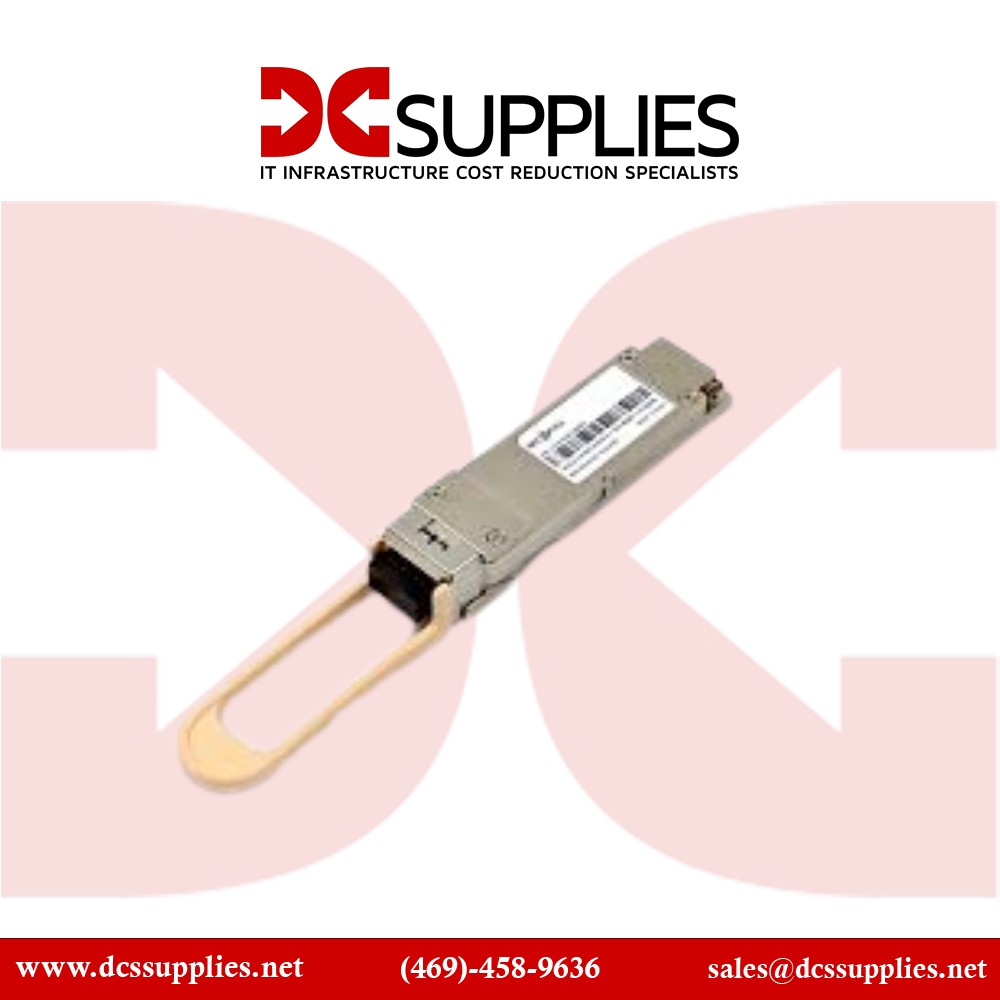

Fortinet FN-TRAN-QSFP28-BIDI-I QSFP transceiver module 100GbE

FN-TRAN-QSFP28-BIDI-I

New

High-speed 100GbE BiDi optical transceiver
×




Detailed Specifications

Fortinet FN-TRAN-QSFP28-BIDI-I

100GbE Bidirectional QSFP28 Optical Transceiver Module – 10 km Single-Mode Fiber

The Fortinet FN-TRAN-QSFP28 -BIDI-I is a high-performance 100 Gigabit Ethernet bidirectional optical transceiver module designed for Fortinet switches, routers, and compatible networking hardware. Its QSFP28 form factor provides a space-efficient solution for high-bandwidth, high-density data center and enterprise network applications.

Features :

Utilizing bidirectional (BiDi) optical technology, this module enables simultaneous data transmission and reception over a single fiber strand, reducing infrastructure needs without sacrificing performance. Supporting up to 10 km reach over single-mode fiber, it delivers the speed and reliability required for next-generation networks.

Advanced Options :

Fully compliant with IEEE 802.3ba and QSFP28 MSA standards, the FN-TRAN-QSFP28 -BIDI-I ensures broad interoperability. Its hot-swappable design allows installation or replacement without service interruptions. Combining low power consumption with robust optical components, it is ideal for mission-critical, high-density deployment environments.

Product Key Features

  • 100 Gigabit Ethernet bidirectional optical module
  • QSFP28 form factor for high-density network environments
  • Supports long-distance fiber connectivity up to 10km
  • Low power consumption for efficient operation
  • Hot-swappable for easy installation and replacement

Reliability & Performance :

Engineered for continuous operation in data centers and enterprise networks, the FN-TRAN-QSFP28 -BIDI-I combines low power consumption with exceptional optical stability. Compliance with Fortinet’s quality and interoperability standards guarantees seamless integration into existing network infrastructures while delivering dependable high-speed connectivity.

Key Features :

  • 100 Gigabit Ethernet bidirectional optical module
  • QSFP28 form factor for high-density network environments
  • Supports long-distance fiber connectivity up to 10km
  • Low power consumption for efficient operation
  • Hot-swappable for easy installation and replacement

Specifications :

SpecificationDetails
Model Number FN-TRAN-QSFP28 -BIDI-I
Brand Fortinet
Product Type Optical Transceiver Module
Data Rate 100GbE
Form Factor QSFP28
Optical Technology Bidirectional (BiDi)
Cable Type Single-Mode Fiber (SMF)
Maximum Reach Up to 10 km
Wavelength TX 1271 nm / RX 1331 nm (typical)
Hot-Swappable Yes
Power Consumption < 3.5W (typical)
Operating Temperature 0°C to 70°C
Compliance QSFP28
Dimensions Standard QSFP28 module size
Weight ~0.15 lbs (approx.)
