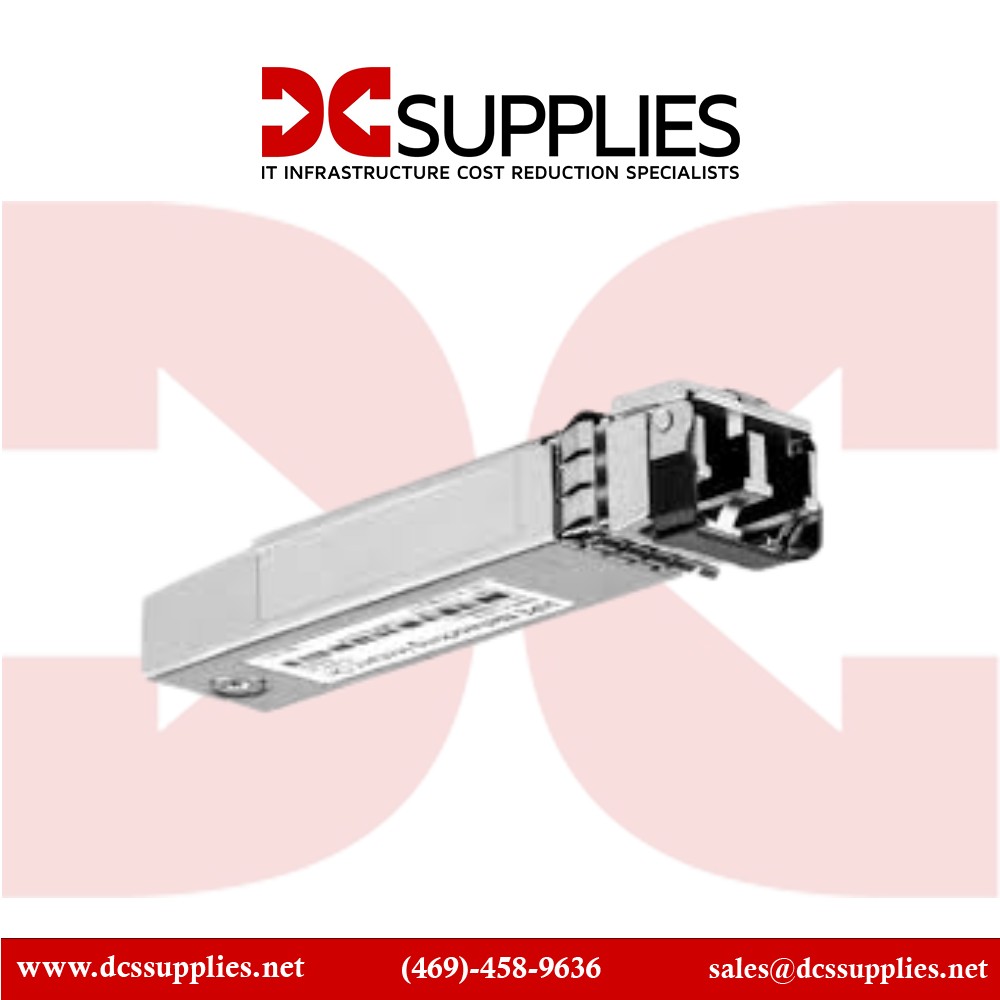

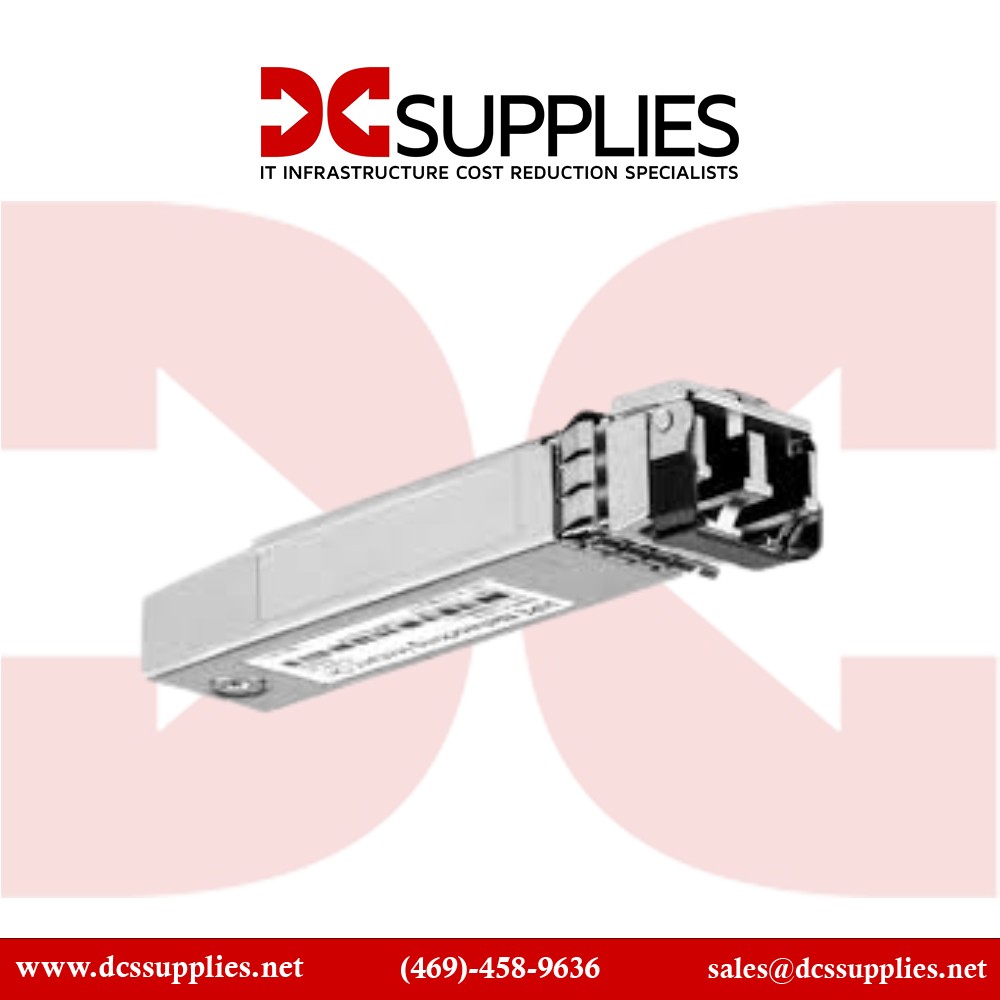

HPE1990-4750

Multi-mode 1 Gbps SFP LC SX Transceiver Module

The HPEAruba1990-4750 is a 1 Gbps SX SFPTransceiver Module designed for multi-mode fiber (MMF) networks over OM2 / 50 µm cabling. With LC duplex connectors and support for up to ~500 meters (1640 ft), it enables short-haul fiber links for edge switches and server aggregation. Ideal for HPEArubaInstant On or OfficeConnect environments, it offers plug-and-play operation and clean integration into fiber uplinks. This module is tailored for SMBs, campus networks, and branch deployment, delivering reliable gigabit speed with minimal latency and low power consumption.

Features

This multimode fiber SFP transceiver supports IEEE 1000Base-SX standards and operates at an 850 nm wavelength. With compatibility for OM2 fiber type, it reaches distances up to approximately 500 m (when using 50/125 µm fiber) or about 400 m on OM3, translating to around 1640 feet maximum reach. It includes Digital Optical Monitoring (DOM) support for real-time RX/TX power and temperature readings, aiding diagnostics and proactive maintenance The compact SFP form factor ensures compatibility with standard fiber ports on Instant On and Arubaswitches, with hot-swap capability and IEEE networking compliance.

Advanced Options

This SFP transceiver is engineered for reliable gigabit performance in multi-mode fiber environments. Operating under 1 W power consumption, its low-power design helps maintain switch thermal stability. DOM functionality allows network administrators to monitor link health,

Product Key Features

• 1 Gbps SFP module for multimode fiber (OM2)


• LC duplex connector, 850 nm wavelength


• Max transmission distance ~500 m (1640 ft) on OM2


• Digital Optical Monitoring (DOM) supported


• Compliant with IEEE 1000Base-SX standards


• Plug-and-play, hot-swappable SFP form factor

---

Reliability & Performance

including power levels and temperature, improving maintenance and troubleshooting. Its adherence to IEEE 1000Base-SX standards ensures compatibility with supported switches, including ArubaInstant On and OfficeConnect series. The module supports hot-swap and plug-and-play installation, minimizing network disruption during upgrades. Built to HPEquality standards, the module delivers consistent data throughput over fiber links up to 500 m, making it suitable for campus backbone, aggregation, and SMB deployments.

Key Features :

• • 1 Gbps SX SFP transceiver for multimode fiber

  • LC duplex connector, 850 nm wavelength

  • Maximum reach ~500 m (1640 ft) on OM2 fiber

  • Digital Optical Monitoring (DOM) enabled

  • IEEE 1000Base-SX standards compliant

  • Hot-swappable plug-and-play form factor

Specification	Details
Model Number	1990-4750
Product Type	1 Gbps SX SFP LC MMF Transceiver Module
Data Rate	1 Gbps
Standards Compliance	IEEE 1000Base-SX
Wavelength	850 nm
Fiber Type	Multimode (OM2 / 50 µm typical)
Connector	LC Duplex
Maximum Reach	~500 m (1640 ft) on OM2, ~400 m on OM3
Digital Optical Monitoring	Yes (DOM)
Power Consumption	< 1 W
Form Factor	SFPplug-in module
Operating Temperature	Commercial range
Hot-Swappable	Yes
Compatibility	ArubaInstant On, OfficeConnect, Arubaswitches supporting SFPports
