Detailed Specifications

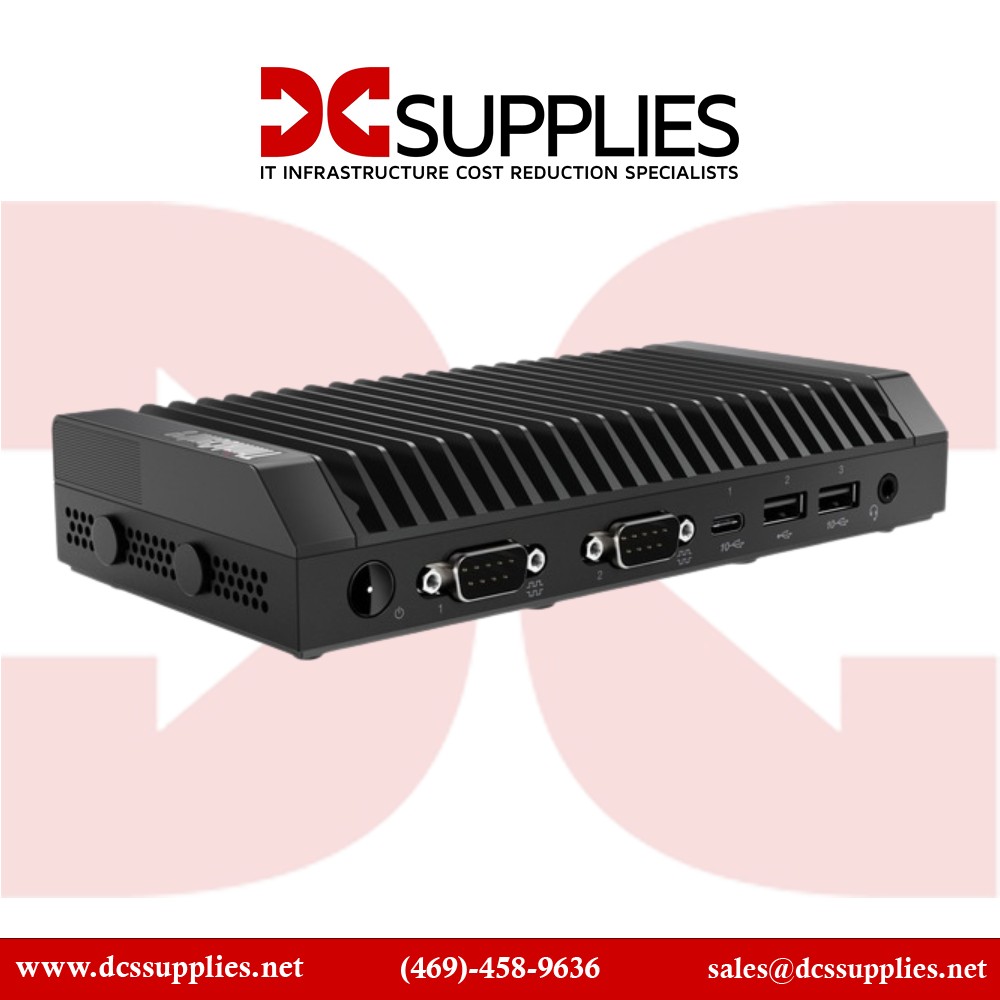

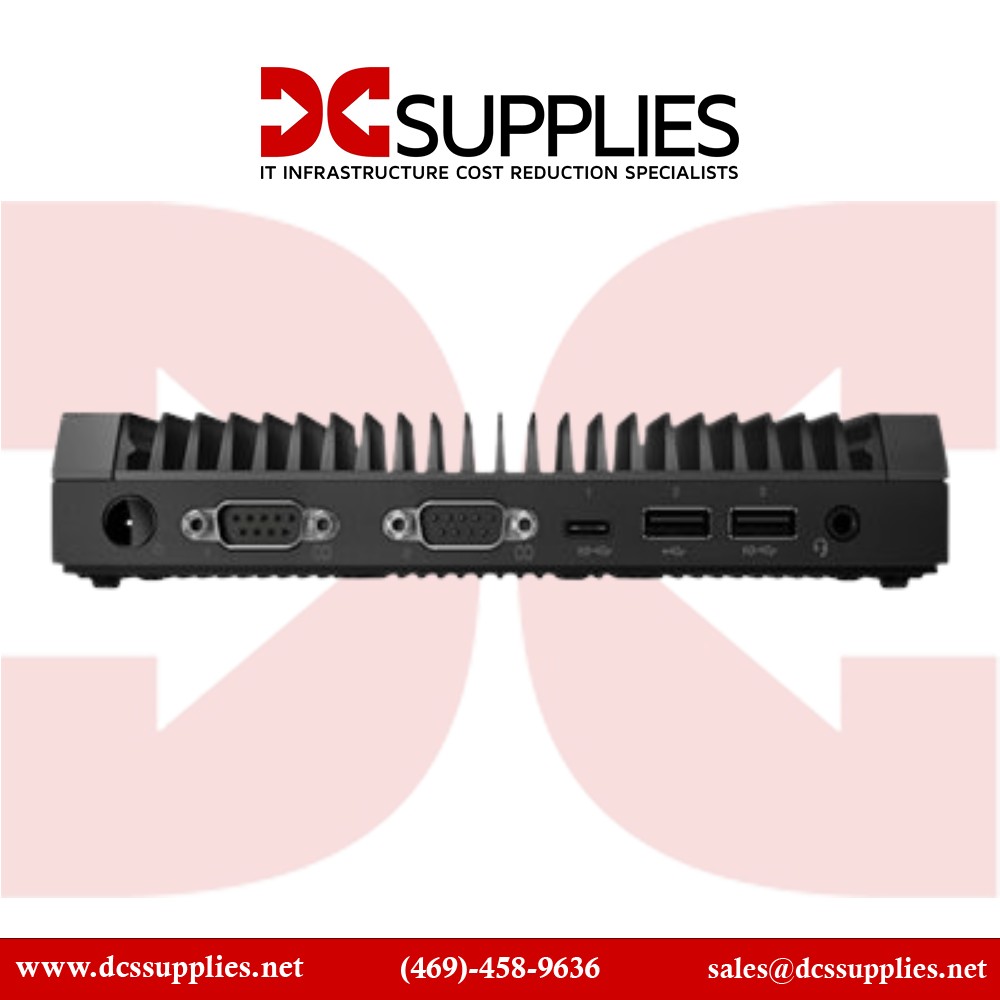

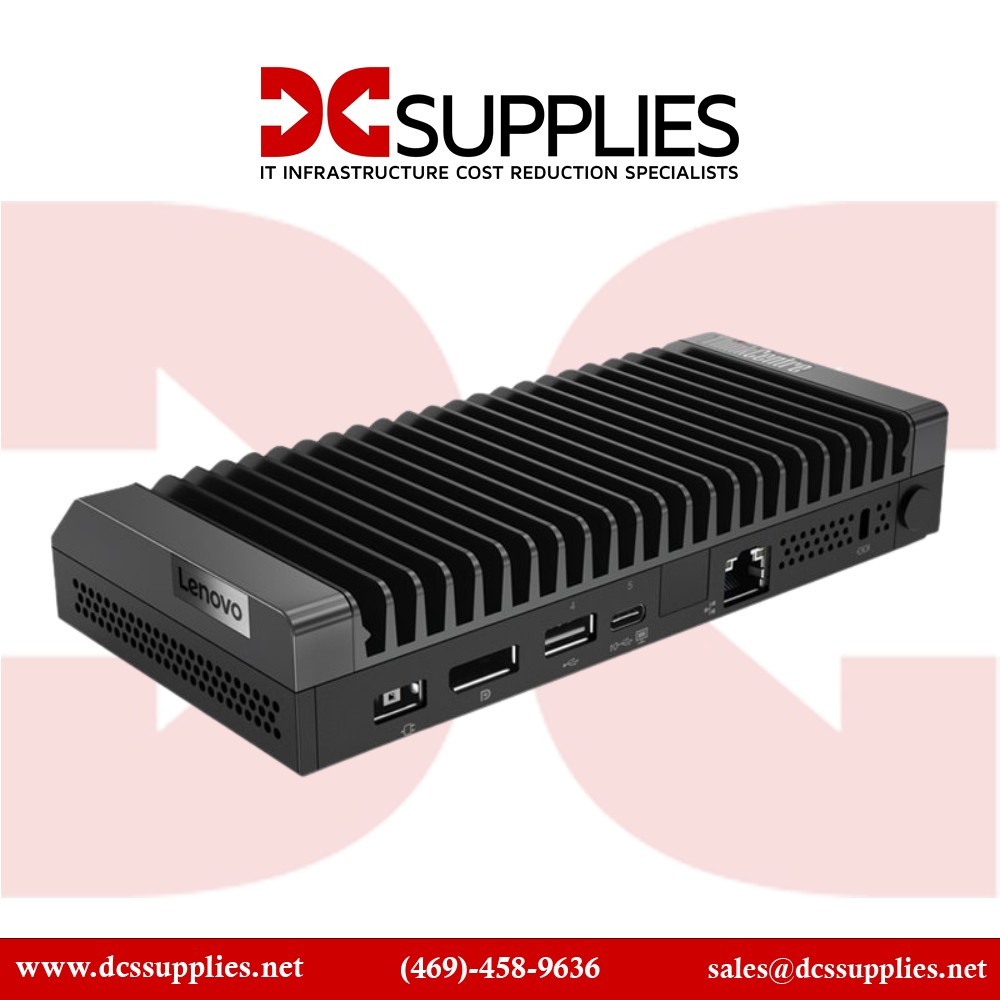

Lenovo 11BW0009US ThinkCentre M75n IoT 3050e mini PC AMD Athlon Silver 4 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise Black
Description
Nano in size, not in performance
Only a third of the size of a 1-liter desktop, the ThinkCentre M75n Nano Desktop is just as powerful—and 30% more energy-efficient. Fueled by up to AMD Ryzen™ 5 PRO processors, it delivers real-world performance to drive productivity, along with business-critical security and easy-to-use manageability.
Specifications
| Processor |
|---|
| Processor cache type |
L3 |
| Processor cache |
4 MB |
| Processor frequency |
1.4 GHz |
| Processor model |
3050e |
| Number of processors installed |
1 |
| Processor manufacturer |
AMD |
| Processor boost frequency |
2.8 GHz |
| Processor threads |
4 |
| Processor cores |
2 |
| Processor family |
AMD Athlon Silver |
| Memory |
|---|
| Non-ECC |
Yes |
| Internal memory |
4 GB |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR4-SDRAM |
| Memory clock speed |
2400 MHz |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Optical drive type |
No |
| SSD interface |
NVMe, PCI Express 3.0 |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Card reader integrated |
No |
| Total storage capacity |
128 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
128 GB |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
AMD Radeon Graphics |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Intel Dual Band Wireless-AC 9260 |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| LAN controller |
Realtek RTL8111FP-CG |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI port |
No |
| DisplayPorts quantity |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
mini PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Motherboard chipset |
AMD SoC |
| Sustainability certificates |
RoHS, EPEAT Silver, ENERGY STAR |
| Design |
|---|
| Volume |
0.55 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
mini PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Performance |
|---|
| Audio chip |
Realtek ALC233 |
| Password protection |
Yes |
| Password protection type |
HDD, Power on, Supervisor |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
AMD SoC |
| Software |
|---|
| Operating system installed |
Windows 10 IoT Enterprise |
| Power |
|---|
| Power supply |
65 W |
| Certificates |
|---|
| Certification |
MIL-STD-810H |
| Sustainability |
|---|
| Sustainability certificates |
RoHS, EPEAT Silver, ENERGY STAR |
| Weight & dimensions |
|---|
| Volume |
0.55 L |
| Width |
7.05" (179 mm) |
| Depth |
3.46" (88 mm) |
| Height |
1.36" (34.5 mm) |
| Weight |
25.4 oz (720 g) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Other features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
AMD |
