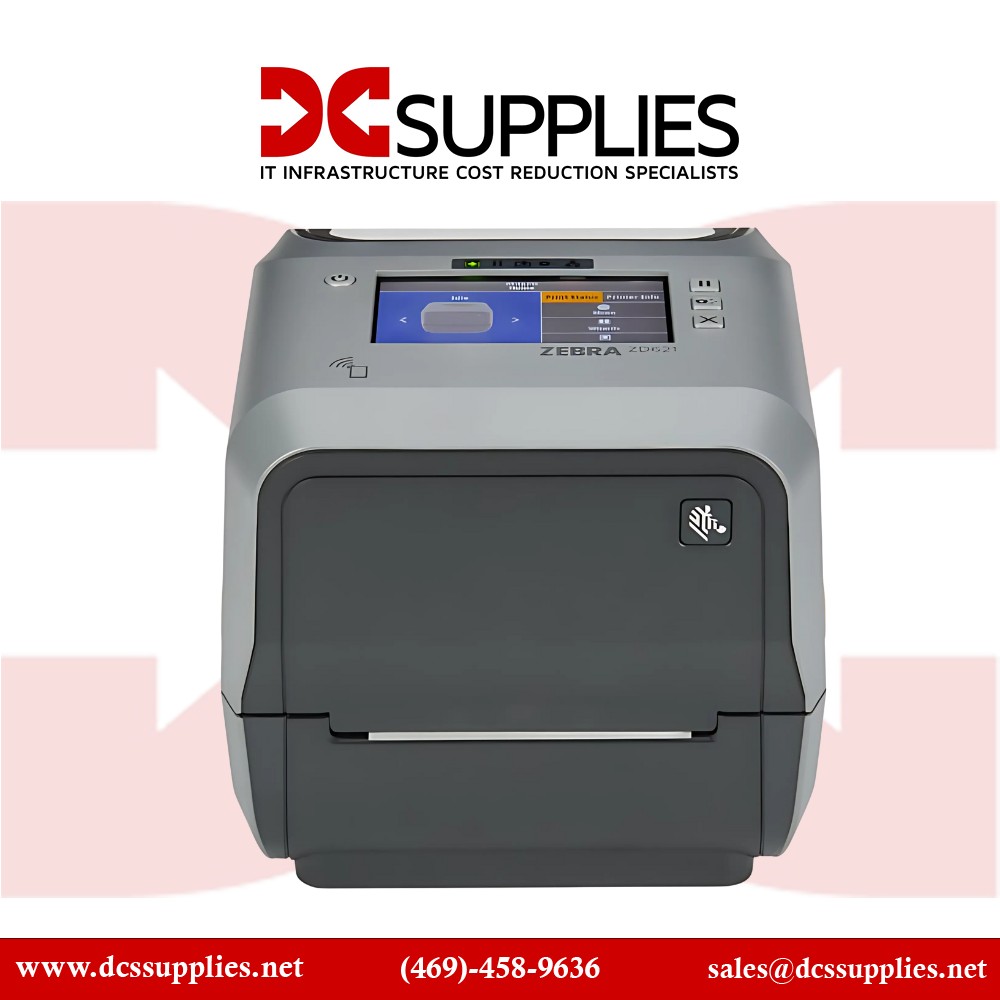

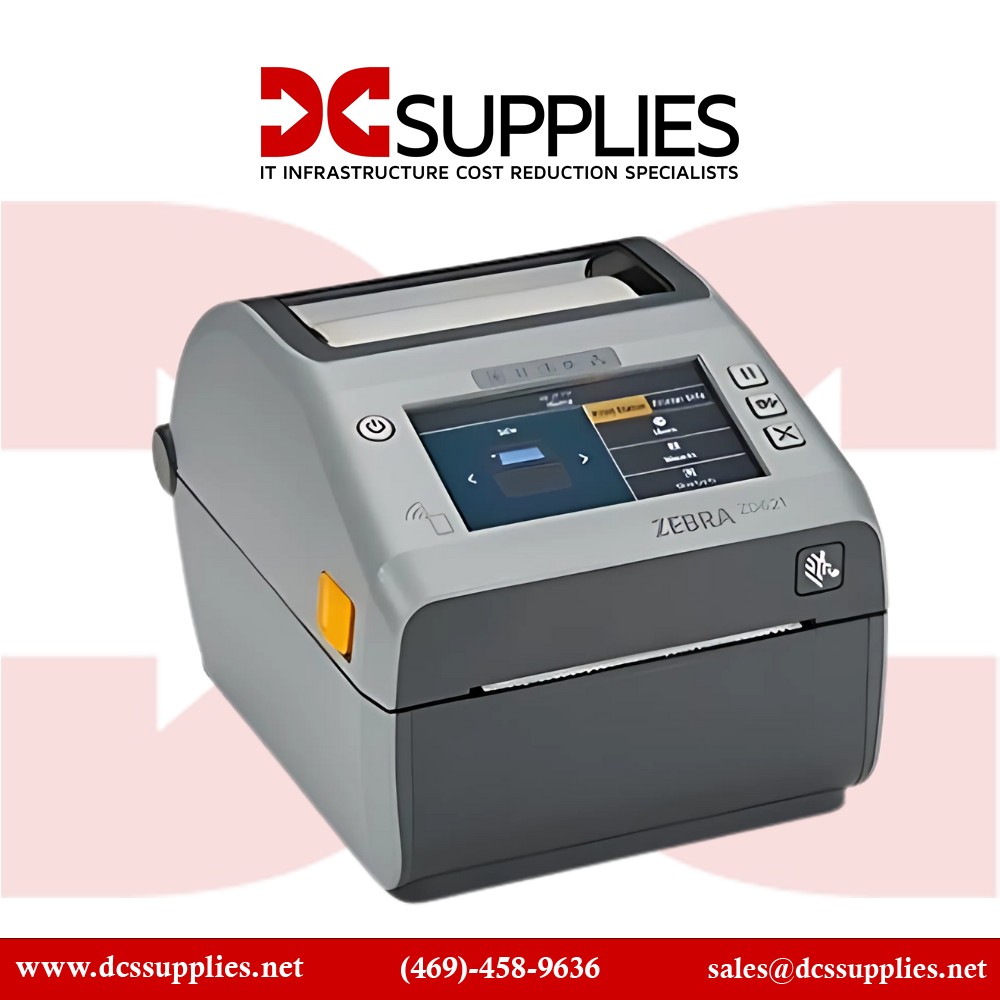

Zebra ZD6A142-311FR1EZ RFID Thermal Transfer Printer

ZD6A142-311FR1EZ

New

Premium 4-Inch RFID Desktop Printer with Full-Color Touchscreen and Adaptive Encoding
×




Detailed Specifications

Zebra ZD6A142-311FR1EZ

RFID Thermal Transfer Desktop Printer

The Zebra ZD6A142-311FR1EZ is a high-performance thermal transfer desktop printer with integrated RFID encoding, designed for dependable label printing in space-constrained environments. Featuring a full-color touchscreen and adaptive Zebra RE40 RFID technology, this printer streamlines asset tracking, inventory management, and compliance labeling across retail, manufacturing, healthcare, and logistics.

Features :

Engineered for precision and ease of use, this printer comes with an integrated Zebra RE40 RFID module that automatically adapts encoding for diverse label types and layouts. It offers standard connectivity through USB, USB Host, Serial, and Ethernet ports and provides an option to upgrade to dual-band Wi-Fi (802.11ac) and Bluetooth 4.1 for enhanced wireless communications.

Advanced Options :

Powered by Zebra’s Print DNA and PrintSecure, the ZD6A142-311FR1EZ supports quick setup, centralized management, and robust data protection. Optional accessories—such as a 300 dpi printhead upgrade, cutter, peeler, mounting brackets, or a mobile battery pack—further extend its functionality to meet evolving operational needs.

Product Key Features

  • Zebra RE40 RFID module with adaptive encoding
  • 4.3-inch full-color touchscreen with guided setup and alerts
  • Standard connectivity via USB, USB Host, Serial, and Ethernet
  • Optional dual-band Wi-Fi (802.11ac) and Bluetooth 4.1
  • Centralized management and enhanced security with Print DNA & Print Secure

Reliability & Performance :

Designed for continuous, high-demand operations, the Zebra ZD6A142-311FR1EZ offers robust performance and exceptional durability. Its adaptive RFID engine ensures accurate encoding even when label inlays vary, while the side-loading media path and solid construction minimize downtime. This makes it an ideal choice for critical applications such as patient tracking, warehouse management, and production line labeling.

Key Features :

  • Integrated Zebra RE40 RFID module with adaptive encoding
  • 4.3-inch full-color touchscreen with step-by-step setup and troubleshooting alerts
  • Connectivity via USB, USB Host, Serial, and Ethernet
  • Optional dual-band wireless support: Wi-Fi (802.11ac) & Bluetooth 4.1
  • Centralized printing management and network security with Print DNA & Print Secure

Specifications :

SpecificationDetails
Model Number ZD6A142-311FR1EZ
Printer Type RFID Thermal Transfer Desktop Printer
Print Method Thermal Transfer / Direct Thermal
Print Resolution 203 dpi
Max Print Width 4.09 inches (104 mm)
RFID Encoding Zebra RE40 with Adaptive Encoding Technology
Display 4.3-inch Color Touchscreen LCD
Standard Connectivity USB, USB Host, Serial, Ethernet
Wireless Connectivity Optional: Dual-Band Wi-Fi (802.11ac) & Bluetooth 4.1
Max Print Speed Up to 8 inches per second
Memory 512 MB Flash / 256 MB SDRAM
Media Handling Side-loading with lighted, color-coded path
Dimensions (WxDxH) 8.0 x 10.5 x 7.5 in (202 x 267 x 192 mm)
Weight Approx. 5.5 lbs (2.5 kg)
Supported Accessories Peeler, Cutter, 300 dpi upgrade, Desktop Battery, KDU, Mounting Plate
