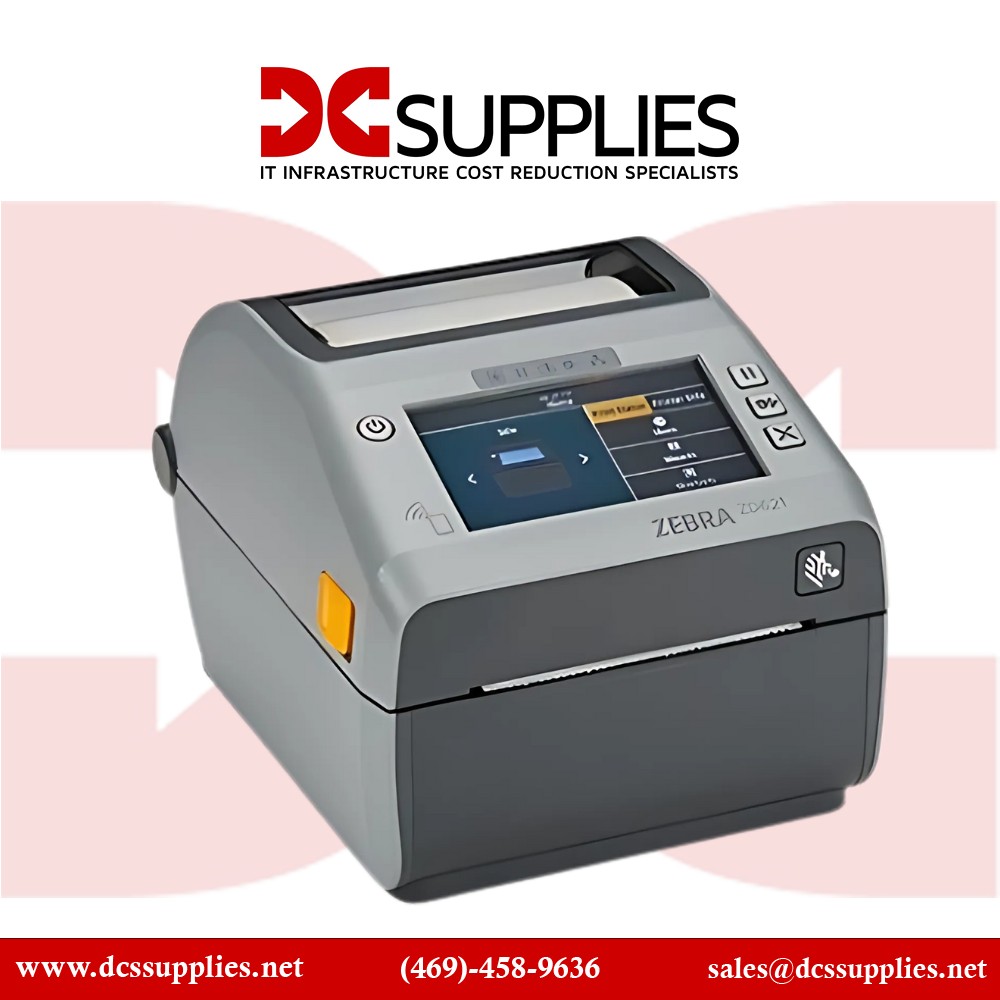

Zebra ZD6A143-311FR1EZ RFID Thermal Transfer Desktop Printer

Zebra ZD6A143-311FR1EZ

RFID Thermal Transfer Desktop Printer

The Zebra ZD6A143-311FR1EZ is a compact RFID thermal transfer desktop printer engineered for precision labeling in modern workflows. Featuring Zebra's advanced RE40 RFID module and a vibrant color display, it offers simple setup, flexible connectivity, and industry-leading encoding accuracy.

Expanded Overview:

Zebra's ZD621R Series RFID printer, exemplified by the ZD6A143-311FR1EZ, delivers next-generation performance in a space-saving desktop form factor. This solution enables businesses to encode and print RFID labels on-demand with no compromise to traceability or encoding precision, making it ideal for tight spaces where industrial printers are too bulky.

At its core, the ZD6A143-311FR1EZ printer utilizes Zebra's RE40 RFID encoding module, recognized for its adaptive encoding technology. This innovation significantly reduces media calibration time and provides broad media support. Whether you're printing short-run labels or integrating RFID into an existing workflow, this printer ensures consistent write success and ISO compliance across a wide range of inlay types and RFID label configurations.

Operating the printer is simple and intuitive, thanks to its 4.3" full-color, touch-enabled LCD. The screen offers step-by-step visual guides for setup, media loading, calibration, and error resolution. The customizable display also changes color based on the printer's status, allowing operators to quickly identify alerts and take necessary action.

Advanced connectivity comes standard with USB, Serial, Ethernet, and USB Host ports. For added flexibility, field-installable options include dual wireless radios supporting Wi-Fi 802.11ac and Bluetooth 4.1. These versatile communication options streamline integration with existing IT infrastructures and mobile workflows.

Product Key Features

• Integrated RE40 RFID module with adaptive encoding technology
• 4.3" full-color LCD touch display with real-time status alerts
• Ethernet, Serial, USB, and USB Host standard connectivity
• Optional Wi-Fi and Bluetooth dual radio module
• Built-in Print DNA and PrintSecure software for fast setup and cyber protection
• Wide range of accessories including cutter, battery, peeler, and more

---

Reliability & Performance:

Engineered for performance and uptime, the Zebra ZD6A143-311FR1EZ offers enterprise-level durability with a user-friendly design. Its thermal transfer printing mechanism enables the creation of long-lasting labels using ribbons, while the RE40 RFID engine supports effortless encoding, even when label placement varies. Ready for heavy-duty use, this printer supports 300 dpi resolution (optional), making it suitable for both high-detail labels and EPC-compliant smart tags. With built-in Print DNA software and Zebra's PrintSecure security solution, administrators can remotely configure, monitor, and protect their printer fleet, reducing downtime and safeguarding sensitive data across the network.

Key Features:

• Compact thermal transfer printer with RFID encoding (RE40 module)
• 4.3" color touchscreen with status indication and step-by-step setup
• USB, Ethernet, Serial ports standard with optional Wi-Fi/Bluetooth
• Print DNA software suite for performance, integration, and remote management
• High-accuracy adaptive RFID calibration technology
• Upgrade-friendly: battery, peeler, cutter, and display options available

Specifications:

Specification	Details
Model Number	ZD6A143-311FR1EZ
Printer Type	RFID Thermal Transfer Desktop Printer
Print Resolution	203 dpi (optional 300 dpi)
Max Print Width	4.09 inches (104 mm)
RFID Module	Zebra RE40 with Adaptive Encoding Technology
Display	4.3-inch Full-Color LCD Touchscreen
Connectivity	USB, USB Host, Serial, Ethernet (Standard)
Wireless Options	802.11ac Wi-Fi and Bluetooth 4.1 (Optional)
Print Method	Thermal Transfer / Direct Thermal
Max Print Speed	Up to 8 inches per second
Memory	512 MB Flash; 256 MB SDRAM
Ribbon & Media Handling	Side-loading with guided paths; optional peeler/cutter
Dimensions (WxDxH)	8.0 x 10.5 x 7.5 in (202 x 267 x 192 mm)
Weight	5.5 lbs (2.5 kg)
Accessories	Peeler, Cutter, Keyboard Display Unit, Battery, Mounting Plate
