Digi 70002405International 16P Mei RS232/422/485 RJ-45 Terminal Server View larger
Previous Next

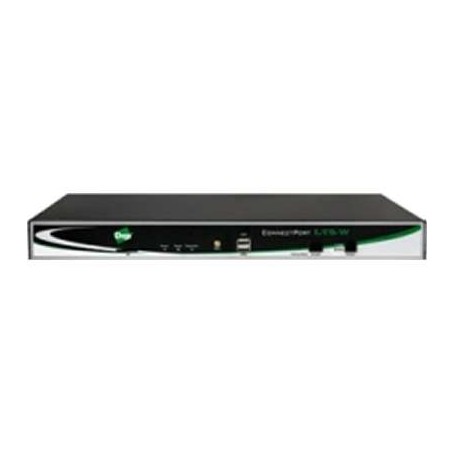

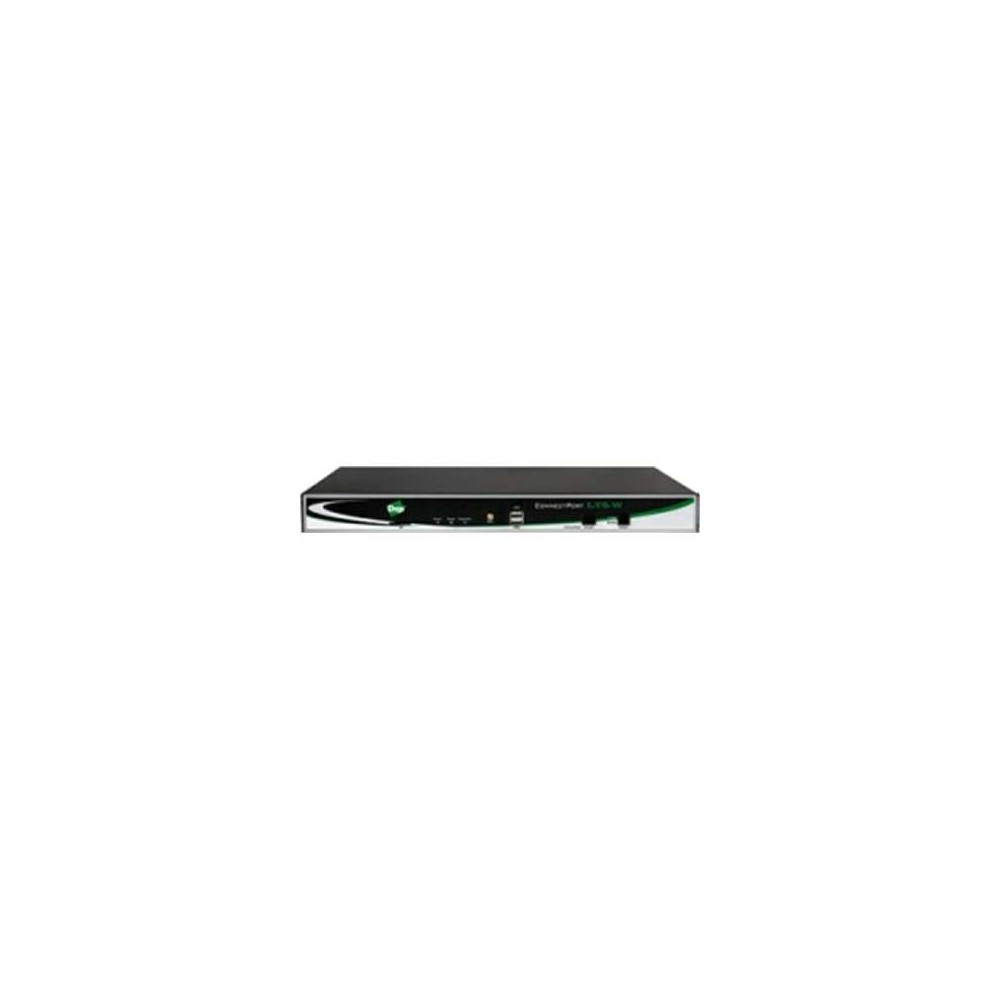

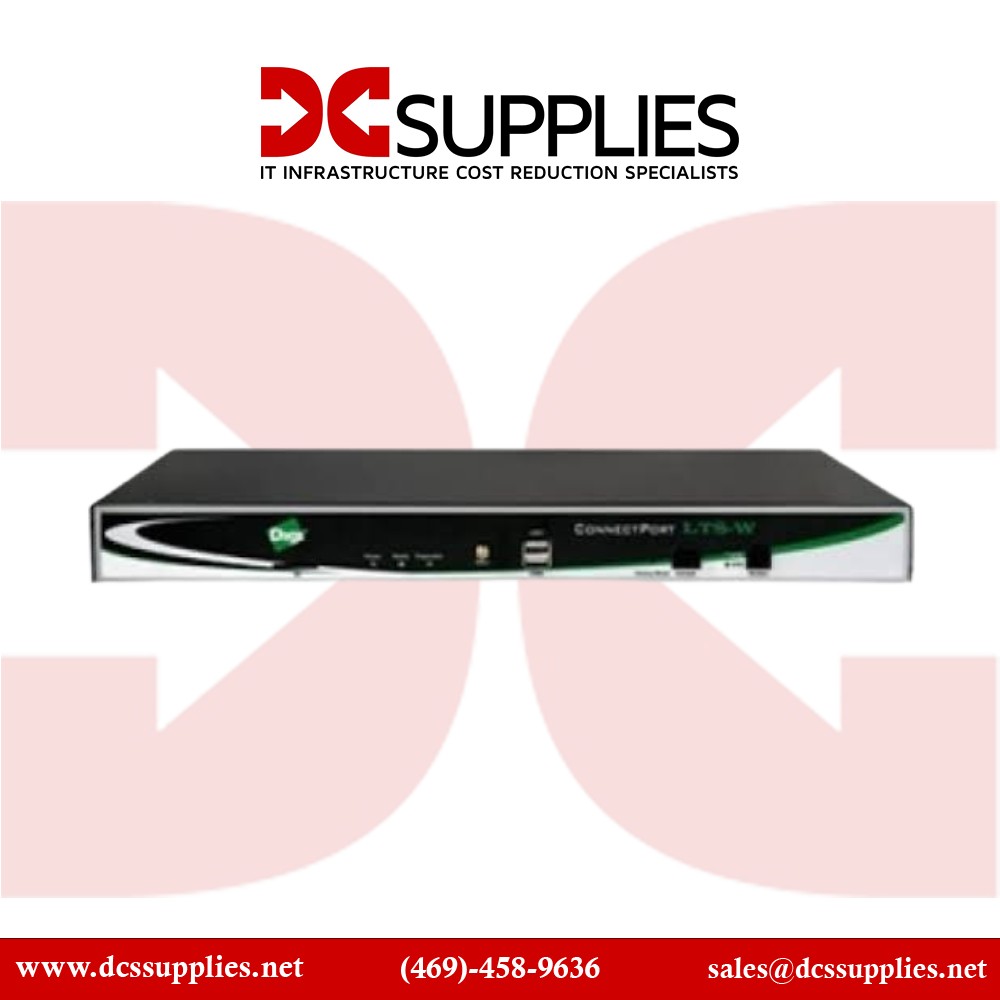

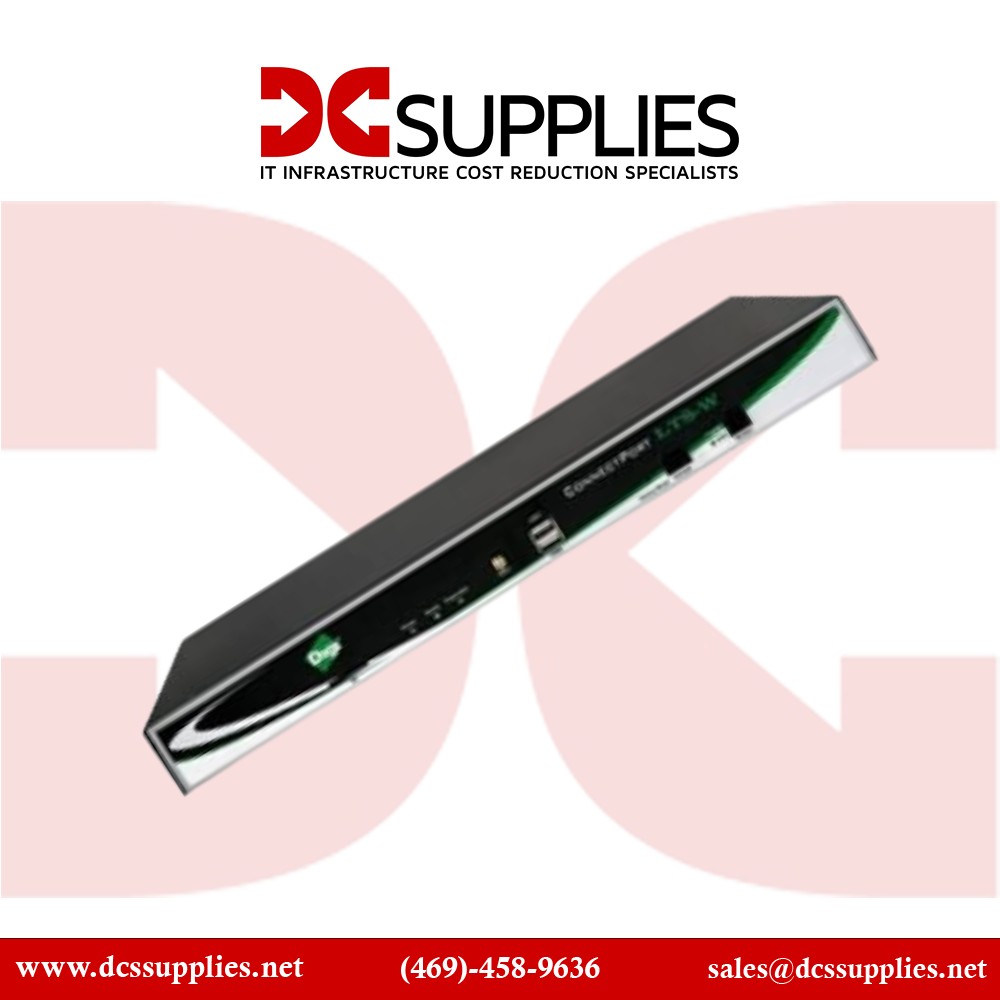

Digi 70002405 ConnectPort LTS 16 MEI - terminal server

New

Digi ConnectPort LTS 16 MEI terminal server ensures reliable connectivity.
×




  • New

Detailed Specifications

Digi 70002405

ConnectPort LTS 16 MEI – 16-Port Terminal Server

The Digi ConnectPort LTS 16 MEI (70002405) is a high-density, enterprise-class terminal server designed to deliver secure, reliable, and flexible serial connectivity. Supporting 16 configurable RS-232/422/485 MEI interfaces, it enables network-based remote access to serial devices in data centers, enterprise networks, and industrial environments.

As part of the trusted Digi terminal connectivity family, the ConnectPort LTS 16 combines ease of use, advanced security, and enterprise management features, making it the ideal solution for serial over IP applications, out-of-band management, and centralized monitoring.

Features :

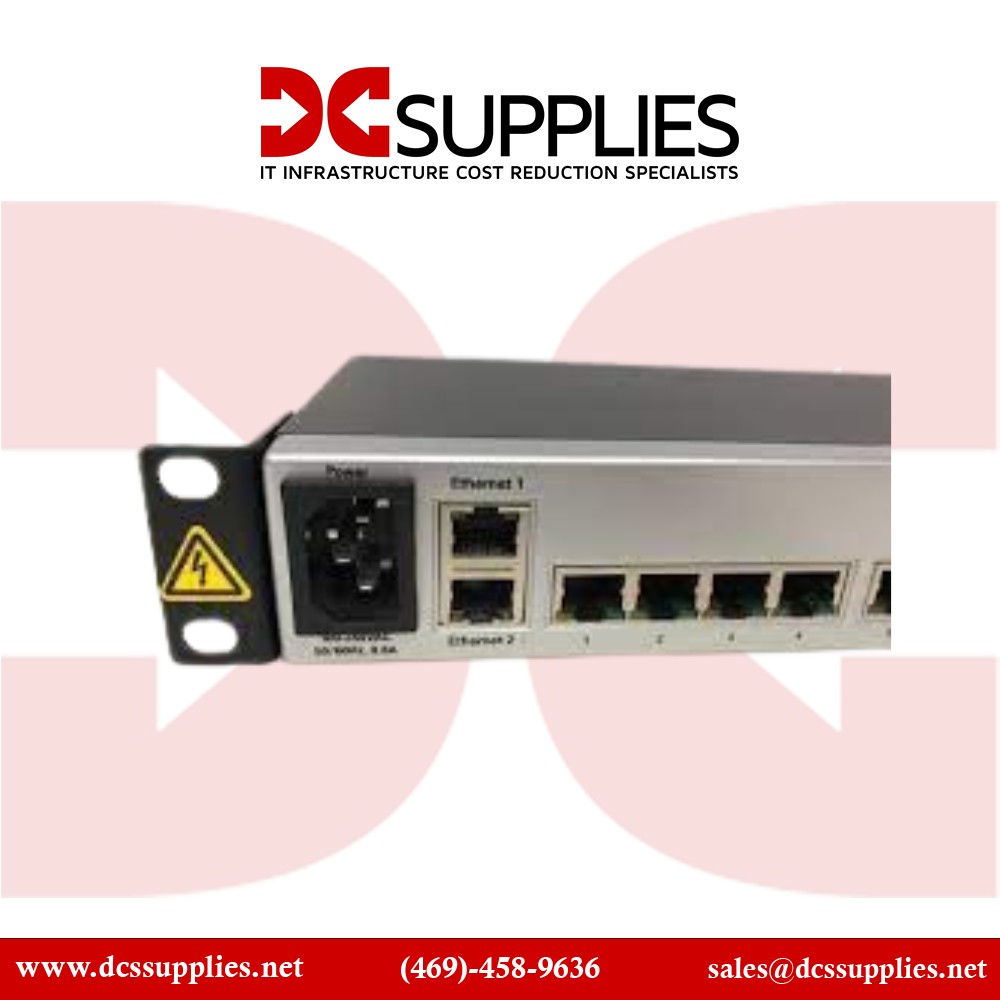

Provides 16 serial RJ45 ports with software-selectable RS-232/422/485 signaling, dual Gigabit Ethernet interfaces, and secure remote management access over SSH, SSL, and SNMP. Rackmount 1U design maximizes space efficiency in enterprise setups.

Advanced Options :

Out-of-band management, console port access, and advanced logging options make this terminal server suitable for data centers, carrier facilities, and remote edge deployments. Features built-in Digi RealPort® for COM/TTY port redirection and enterprise monitoring integration for automation workflows.

Product Key Features

  • 16-port serial terminal server (MEI: RS-232/422/485 selectable)
  • 1U rackmountable form factor
  • Dual Gigabit Ethernet ports
  • Secure access via SSH, SSL, and advanced authentication
  • Out-of-band management with logging & monitoring options
  • Integrates with Digi RealPort® COM/TTY redirection
  • Backed by Digi quality and reliability

Reliability & Performance :

The Digi ConnectPort LTS 16 MEI is built for around-the-clock enterprise environments. Its redundant software-configurable interfaces, robust network stack, and secure firmware ensure consistent uptime, while protecting sensitive data during remote access sessions. Designed for scalability, it helps enterprises manage large serial infrastructures securely and efficiently.

Key Features :

  • 16 serial MEI ports with RS-232/422/485 support
  • 1U rackmountable terminal server
  • Gigabit Ethernet connectivity
  • Enterprise-grade security features
  • Trusted Digi terminal access solution

Specifications :

SpecificationDetails
Part Number 70002405
Brand Digi
Product Type Terminal Server / Console Server
Model ConnectPort LTS 16 MEI
Form Factor 1U Rackmount
Serial Ports 16 x RJ45
Serial Interface Software-selectable RS-232/422/485
Networking 2 x Gigabit Ethernet ports
Management Interfaces Web UI, CLI, SNMP
Security SSH v2, SSL, RADIUS/TACACS+
RealPort® Support Yes (COM/TTY redirection)
Out-of-Band Management Supported
Operating System Support Windows, Linux, UNIX
LED Indicators Status, Power, LAN, Port Activity
Power Supply Dual internal or external AC (model dependent)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% – 95% non-condensing
Compliance CE, FCC, UL, RoHS
Warranty Digi Limited Warranty
Country of Origin Made by Digi
Use Cases Data centers, enterprise OOBM, industrial serial device networking
