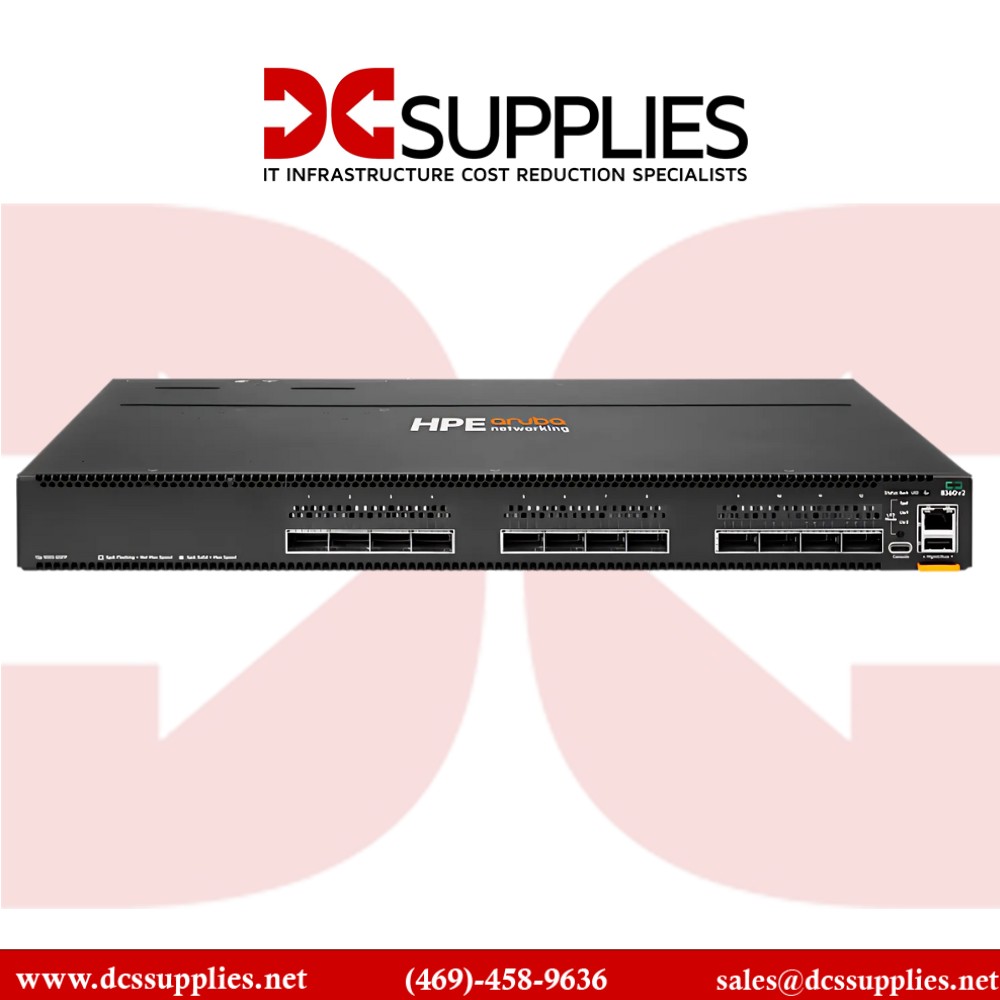

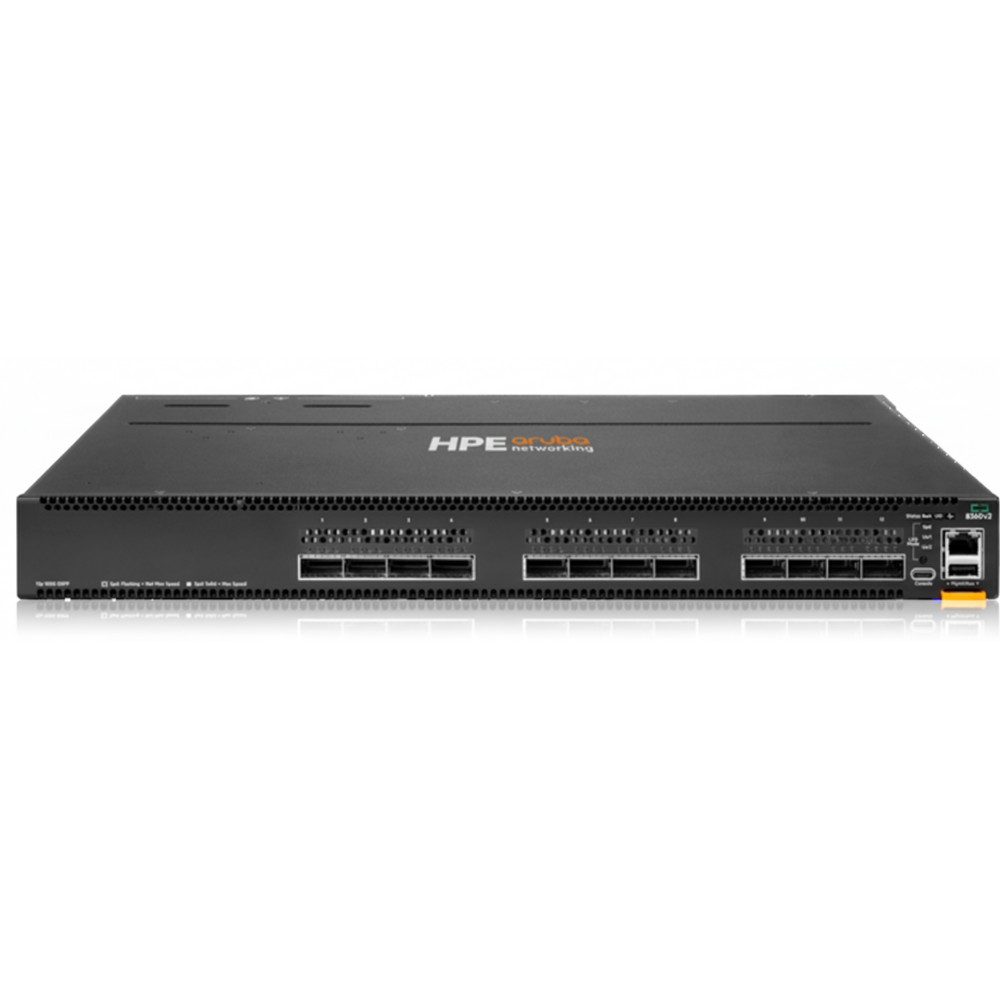

HPE Aruba JL709C CX 8360v2 8360-12C Ethernet Switch

New

HPE Aruba JL709C CX 8360v2 8360-12C Ethernet Switch
×




  • New

Detailed Specifications

HPE JL709C

Aruba JL709C CX 8360‑12C v2 Ethernet Switch – 12×100G QSFP28, Layer 3 Managed,

The HPE Aruba JL709C CX 8360‑12C v2 is a compact yet powerful Layer 3 managed switch, designed primarily for data center spine, leaf, or aggregation deployments. With 12 QSFP28 ports supporting high-speed uplinks and breakout flexibility, it delivers outstanding performance in a 1U rack-mountable chassis.

Features

Equipped with 12 QSFP28 ports, the JL709C supports aggregated speeds up to 100 GbE per port, or breakout to multiple 10/25 GbE links. It leverages ArubaOS‑CX, a microservices-driven OS featuring proactive network insights via the NAE and automation through REST APIs and Python.

Advanced Options

Optional MACsec secures traffic on uplink ports, and VSX redundancy provides active-active resilience with state synchronization.

Product Key Features

  •  12 × 40/100 GbE QSFP28 ports, each supporting breakout to 4×10/25 GbE

  •  MACsec-capable uplink ports for encrypted L2 links

  •  ArubaOS‑CX with built-in Network Analytics Engine (NAE), REST API, and Python programmability

  •  High availability via VSX redundancy, dual AC PSUs, and 3 hot-swappable fans

  •  2.4 Tbps switching capacity and ~1,145 Mpps forwarding rate

Reliability & Performance

Boasting 2.4 Tbps non-blocking capacity and around 1,145 Mpps, this switch handles high-throughput workloads with ease Redundancy is built-in with dual hot-swappable PSUs and fans, ensuring uninterrupted operation. The back-to-front airflow aligns with modern data center cooling architecture, while ArubaOS‑CX’s analytics simplify troubleshooting and maximize uptime.

Key Features :

  • 12× 40/100 GbE QSFP28 ports (breakout capable)

  • MACsec on select ports

  • ArubaOS‑CX with NAE, REST API, Python scripting

  • VSX redundancy with dual control planes

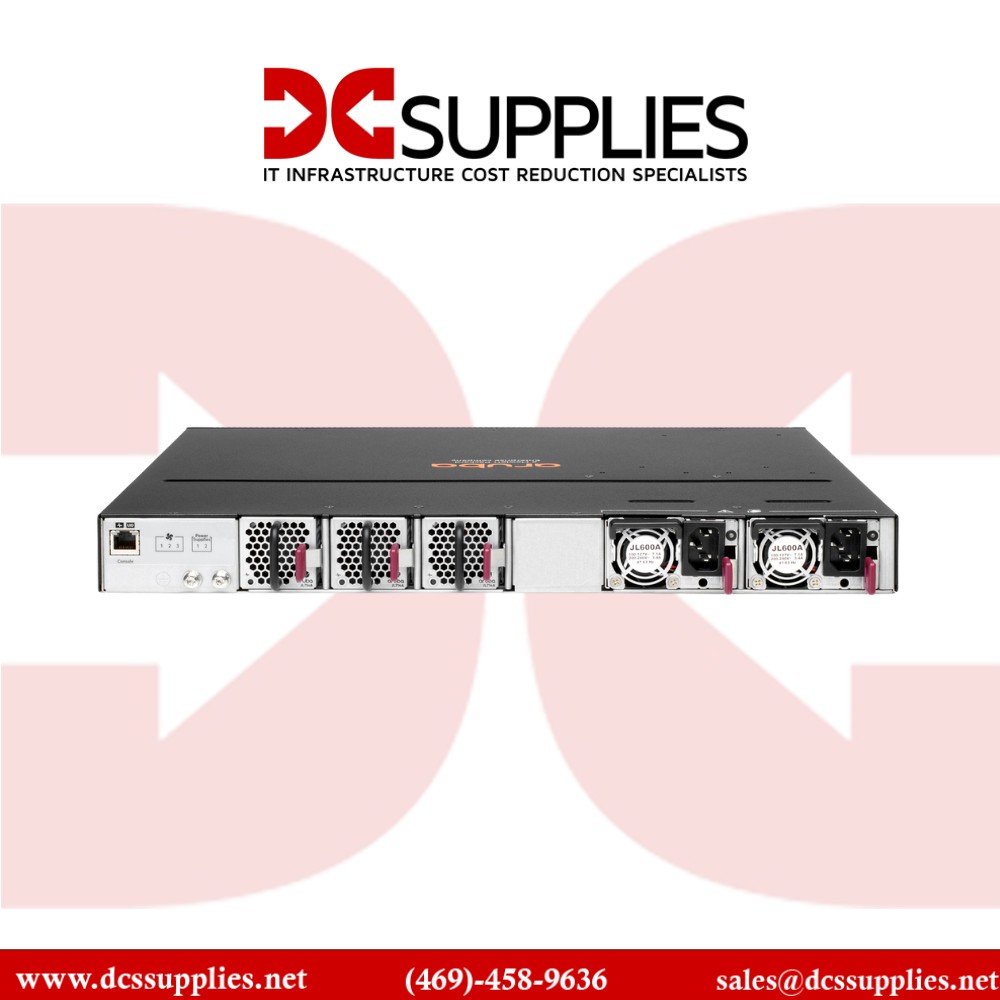

  • Dual hot-swappable AC power supplies and 3 fans

  • Back-to-front airflow for rack alignment

  • Layer 3 routing: BGP, OSPF, IS‑IS, VRF, EVPN/VXLAN

  • Deep buffers, QoS, ECMP, multicast support

  • Front rack-mountable (1U chassis)

SpecificationDetails
Model Number JL709C (#ABA bundle)
Product Type Layer 3 Managed Ethernet Switch
Ports 12 × 40/100 GbE QSFP28 (breakout to 4×10/25 GbE supported)
Switching Capacity 2.4 Tbps (bidirectional)
Forwarding Rate ~1,145 Mpps
MACsec Support On selected uplinks
Operating System ArubaOS‑CX with NAE, REST API, Python support
Redundancy VSX with dual control planes, dual PSUs, hot-swappable fans
Cooling Direction Back-to-front airflow
Rack Mount 1U, 19″ rack-mountable
Dimensions (H×W×D) 44 × 442.5 × 406 mm (~1.7″ × 17.4″ × 16.0″)
Weight ~17.65 lb (8 kg)
Memory/CPU 16 GB RAM, 32 GB Flash, 1.8 GHz quad-core CPU
Packet Buffer 32 MB
Power Input Dual AC 100–240 VAC, 47–63 Hz
Power Consumption Max around 375 W (bundle); typical idle ~120 W
Jumbo Frame Support Up to 9 KB
Compliance TAA, RoHS, CE, FCC, UL
Warranty Lifetime
