HPE JL704C

Aruba JL704C CX 8360-48Y6C v2 Managed Switch - 48×25G SFP28 + 6×100G QSFP28, Layer 3

The HPE Aruba JL704C CX 8360-48Y6C v2 is a top-tier 1U Layer 3 managed switch engineered for high-density, high-throughput environments×supporting modern workloads in data centers, campus cores, and cloud networks. With a versatile mix of 25G and 100G ports, robust MACsec encryption, and ArubaOS-CX intelligence, it seamlessly integrates performance with security and programmability.

Features

Built on a microservices-based ArubaOS-CX, the JL704C switch delivers deep visibility and automation via its Network Analytics Engine (NAE), while REST APIs and Python support empower DevOps workflows. It offers VSX-based redundancy, dual control planes, and state synchronization for zero.

Advanced Options

-downtime upgrades. The switch supports a full spectrum of protocols×BGP, OSPF, VRF, VXLAN/EVPN, MPLS×enabling flexible leaf-spine and core network designs with granular segmentation and traffic optimization.

Product Key Features

• 48× 25GbE SFP/SFP+/SFP28 + 6× 40/100GbE QSFP+/QSFP28, with breakout flexibility

• MACsec support on 4×25G and 2×100G ports for encrypted layer-2 links

• ArubaOS-CX with Network Analytics Engine (NAE)×automation, REST API, telemetry

• VSX redundancy and redundant, hot-swappable PSUs & fans for non-stop operation

• Powerful performance: 4.8 Tbps switching capacity, up to 2,678 Mpps forwarding rate

• Ideal for data center spine/leaf, campus core, and cloud-scale environments

Reliability & Performance

With 4.8 Tbps of non-blocking bandwidth and 2,678 Mpps forwarding, this switch handles intensive workloads effortlessly. Dual hot-swappable power supplies and fans, along with front-to-back airflow, enable uninterrupted service and modular maintenance. Layer 2/3+ features×MACsec, RDMA, DCBX, ECN/PFC×ensure low latency, bandwidth efficiency, and secure encryption across links.

Key Features :

• 48× 25 GbE SFP/SFP+/SFP28 ports + 6× 40/100 GbE QSFP+/QSFP28

• MACsec on 4×25G and 2×100G ports

• ArubaOS-CX with NAE, REST API, Python scripting

• VSX redundancy with dual control planes

• Supports BGP, OSPF, IS-IS, VRF, VXLAN, EVPN, PIM, MPLS readiness

• Deep buffering, RoCEv2, DCB, ECN, QoS support

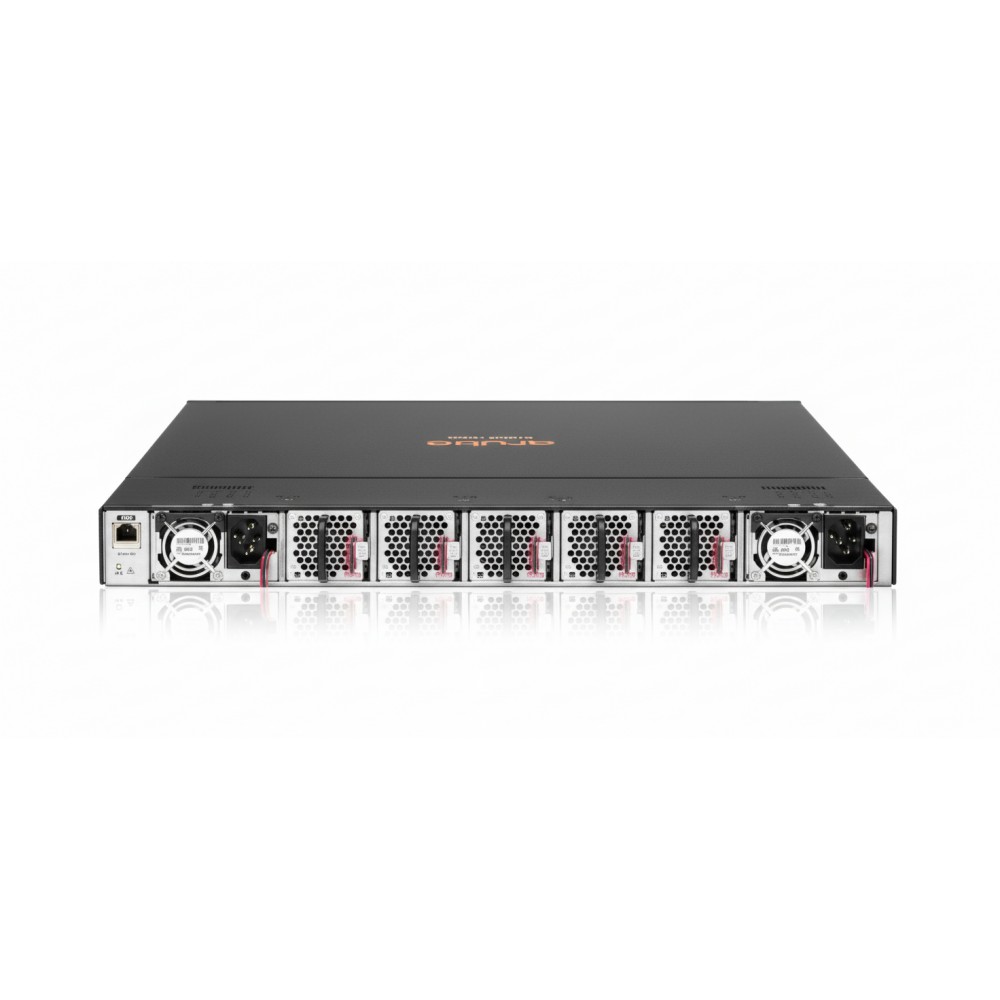

• Dual hot-swap PSUs & fans, front-to-back airflow

• 1U rack-mountable, enterprise-grade chassis

Specification	Details
Model Number	JL704C
Product Name	Aruba CX 8360-48Y6C v2
Product Type	Layer 3 Managed Ethernet Switch
Switching Capacity	4.8 Tbps
Forwarding Rate	2,678 Mpps
25G Ports	48 × SFP/SFP+/SFP28
100G Ports	6 × QSFP+/QSFP28
MACsec Port Support	4 × 25G, 2 × 100G
OS	ArubaOS-CX
Management Interfaces	CLI, Web GUI, REST API, Python, SNMP, USB-C, RJ-45 console
Routing Protocols	BGP, OSPF, IS-IS, VRF, ECMP, PIM
Virtualization	VXLAN, EVPN, MPLS readiness
Redundancy	Dual hot-swap PSUs & fans; VSX support
Port Flexibility	Breakout QSFP ports to 4×25G/4×10G
Memory & Storage	16 GB RAM, 32 GB Flash
CPU	Quad-core 1.8 GHz
Physical Dimensions (H×W×D)	44 × 442.5 × 558.8 mm (1.73″ × 17.4″ × 22.0″)
Weight	10.73 kg (23.65 lb)
Operating Temp/Humidity	0-45 °C (32-113 °F); 15-95 % non-condensing
Airflow	Front-to-back
Power Consumption	230 W idle / 725 W max; 1,450 BTU/hr
Compliance	TAA, RoHS, CE, FCC, UL, VCCI
