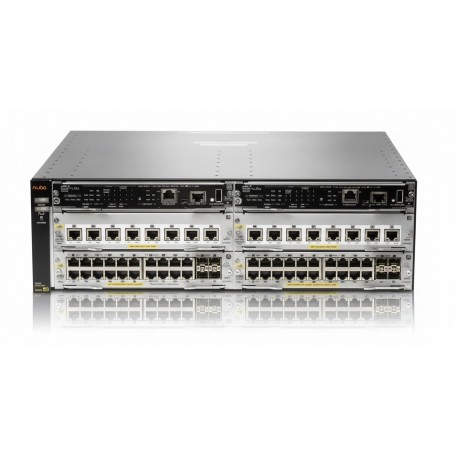

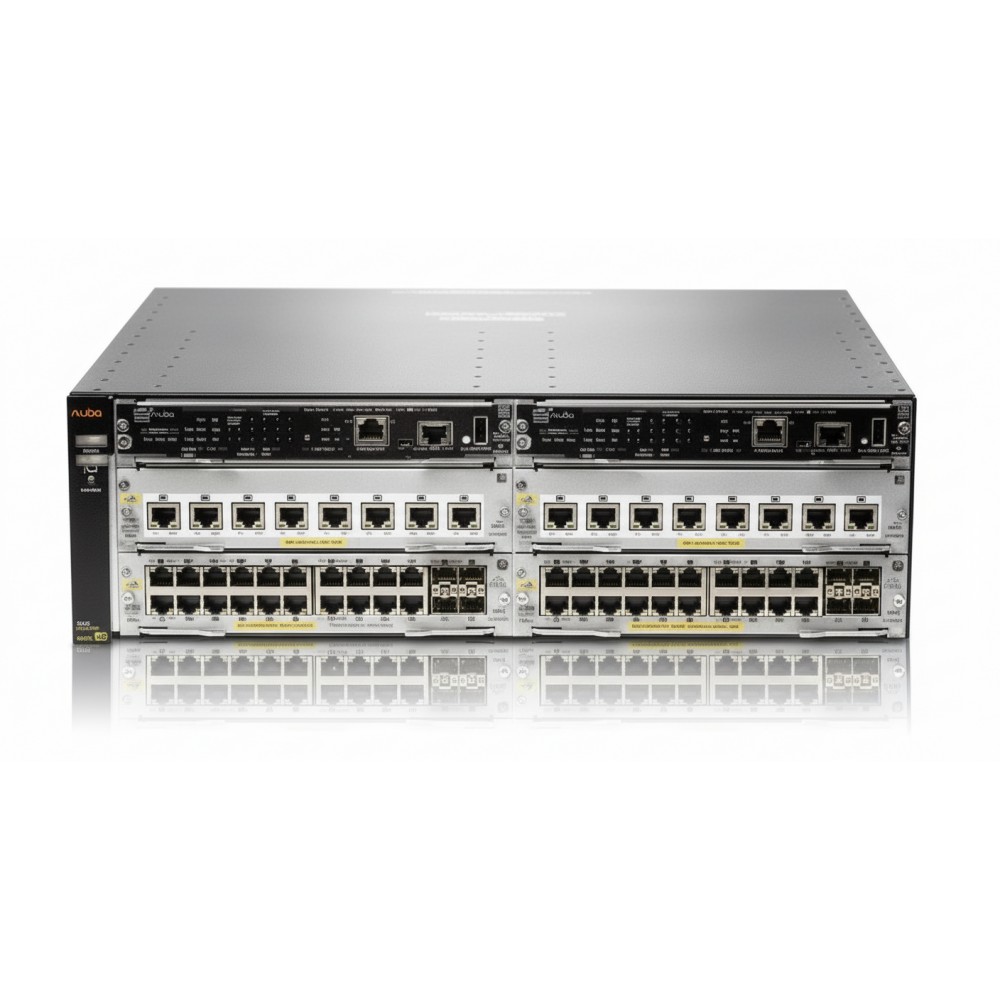

HPE Aruba J9821A 5406R zl2 modular 4U Switch Managed Rack Mountable View larger
Previous Next

HPE Aruba J9821A Network equipment Switch Chassis

New

In Stock

HPE Aruba J9821A 5406R chassis Gray
×




$2,895.00

  • New

Detailed Specifications

HPE J9821A

Aruba 5406R zl2 6-Slot Switch Chassis

The HPE Aruba J9821A switch chassis serves as the robust base for the 5400R zl2 modular switch family. With room for up to six plug‑in modules, it supports high-density deployment of Gigabit, 10 GbE, PoE+, and 40 GbE network access—perfect for campus, data center edge, or enterprise backbones that demand scalability, resiliency, and advanced control.

Features :

Based on the powerful sixth-generation ProVision ASIC and delivering a massive 2 Tbps crossbar fabric at 2.1 µs latency, the J9821A chassis offers exceptional performance. . Equipping up to six modules—including PoE+, SFP+, QSFP+, and Smart Rate expansion cards—provides tailored connectivity (up to 96×10 GbE, 288×1 GbE). Dual PSU slots and fan trays ensure operational reliability and redundancy.

Advanced Options :

Featuring Virtual Switching Framework (VSF) with hitless failover, the chassis can integrate multiple units under one management plane for high availability.  It also supports SDN/OpenFlow, IPv4/IPv6 routing, OSPF, BGP, QoS, and security tools—all license-free.

Product Key Features

  • Modular 4U chassis with six expansion slots for zl2 modules

  • 2 Tbps crossbar switching fabric & 960 Gbps switching capacity

  • Virtual Switching Framework (VSF) stacking & hitless failover

  • Dual power supply support, hot‑swappable modules & redundancy

  • Enterprise Layer 2/3 features (OSPF, BGP, IPv6, OpenFlow)

  • Integrated management via ClearPass, AirWave, and Aruba Central

Reliability & Performance :

The chassis is built for enterprise-grade uptime, with hot-swappable modules, management redundancy, and forwarding rates up to 571 Mpps. Its low-latency 2.1 µs forwarding supports sensitive applications like VoIP and video. Integrated support for ClearPass, AirWave, and Aruba Central enables unified management across wired and wireless infrastructures. With thermal and electrical efficiency built in, it remains quiet and reliable even under full PoE+ load

Key Features :

  • Six zl2 module expansion slots

  • 2 Tbps switch fabric, 960 Gbps capacity

  • Virtual Switching Framework (VSF) stacking

  • Hot‑swappable modules, dual PSUs & fan tray support

  • Advanced Layer 2/3 & SDN (OSPF, BGP, IPv6, OpenFlow)

  • Zero-cost stacking and firmware upgrades

  • Integration with Aruba ClearPass, AirWave, Central

  • Supports up to 288 PoE+ ports or 96×10 GbE

  • Low‑latency, high‑throughput ProVision ASIC

  • Ideal for campus, enterprise, and edge deployments

Specifications :

SpecificationDetails
Model Number J9821A
Product Name Aruba 5406R zl2 Switch Chassis
Product Type Modular Switch Chassis
Form Factor 4U Rack-mountable
Module Slots 6 zl2 expansion slots
Switch Fabric 2 Tbps crossbar fabric
Switching Capacity 960 Gbps
Forwarding Rate Up to 571.4 Mpps
Latency (64-byte FIFO) ~2.1 µs
Management Ports RJ-45 Console, AUX, OOBM, mini-USB
Stacking VSF with hitless failover
Redundancy Dual PSUs (optional), fan trays, management modules
Layer 2/3 Feature Set VLANs, ACLs, QoS, OSPF, BGP, IPv6, OpenFlow
Security MACsec, 802.1X, ACLs, DDoS protection
Integration ClearPass, AirWave, Aruba Central
Dimensions (HxWxD) 17.53 × 44.45 × 45.09 cm (6.9 × 17.5 × 17.75 in)
Weight ~11.1 kg (24.5 lb)
