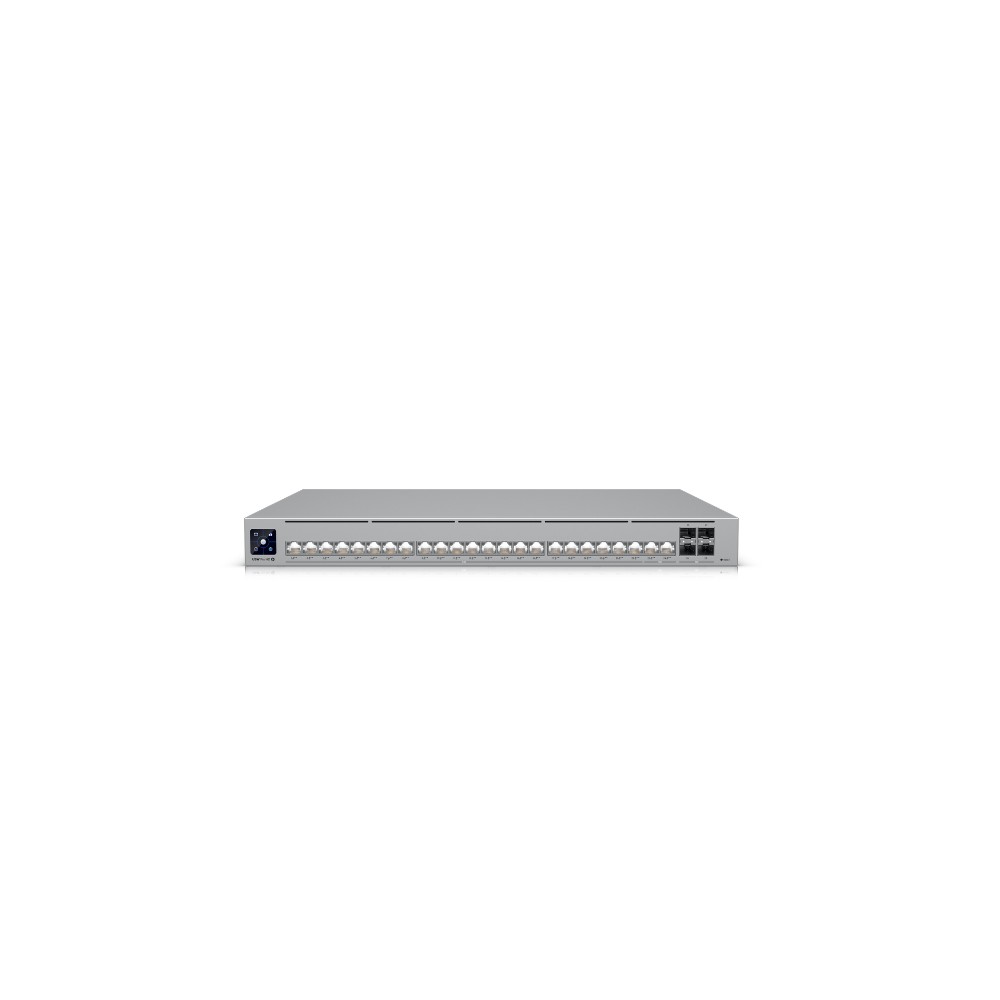

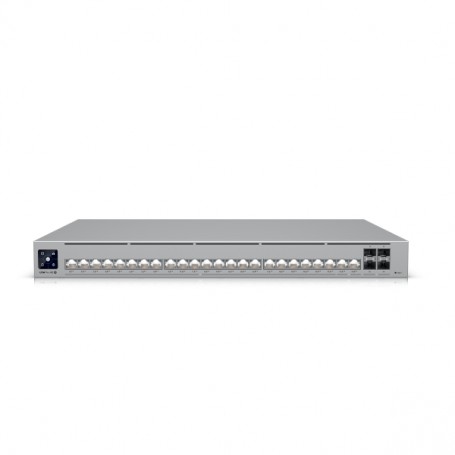

Ubiquiti USW-PRO-HD-24-POE 24 Port Managed PoE Switch View larger

Ubiquiti USW-PRO-HD-24-POE 24 Port Managed PoE Switch

USW-PRO-HD-24-POE

New

Ubiquiti 24‑Port PoE Managed Switch
×




Detailed Specifications

Ubiquiti USW‑PRO‑HD‑24‑POE 24‑Port Managed PoE Switch

Overview

The Ubiquiti USW‑PRO‑HD‑24‑POE is a Layer‑2 managed Ethernet switch with 24 Gigabit RJ45 ports and robust PoE+ power delivery, designed for enterprise access layer networking. It provides dedicated PoE+ on all 24 ports with an aggregated budget sufficient to power cameras, APs, and access devices without external injectors. The switch offers 10 GbE uplinks via SFP+ ports for high‑speed aggregation and supports VLAN, link aggregation, and QoS features configurable through UniFi Network controller. It fits wired networks in enterprise campuses, wiring closets, and branch offices requiring dense PoE support and centralized management.

Key Features

• 24× GbE PoE+ ports
• 10 GbE SFP+ uplinks
• High PoE budget delivery
• UniFi Network managed

Technical Specifications

SpecificationDetails
Brand Ubiquiti
Part Number USW‑PRO‑HD‑24‑POE
Product Type Managed PoE Ethernet Switch
Ethernet Ports 24× 10/100/1000 RJ45 with PoE+
Uplink Ports (2) 10 GbE SFP+
PoE Standard 802.3af/at PoE+ on all RJ45
Total PoE Budget 400 W
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
VLAN Support 802.1Q VLAN
Link Aggregation LACP support
QoS Layer‑2/Layer‑3 QoS
Management UniFi Network controller

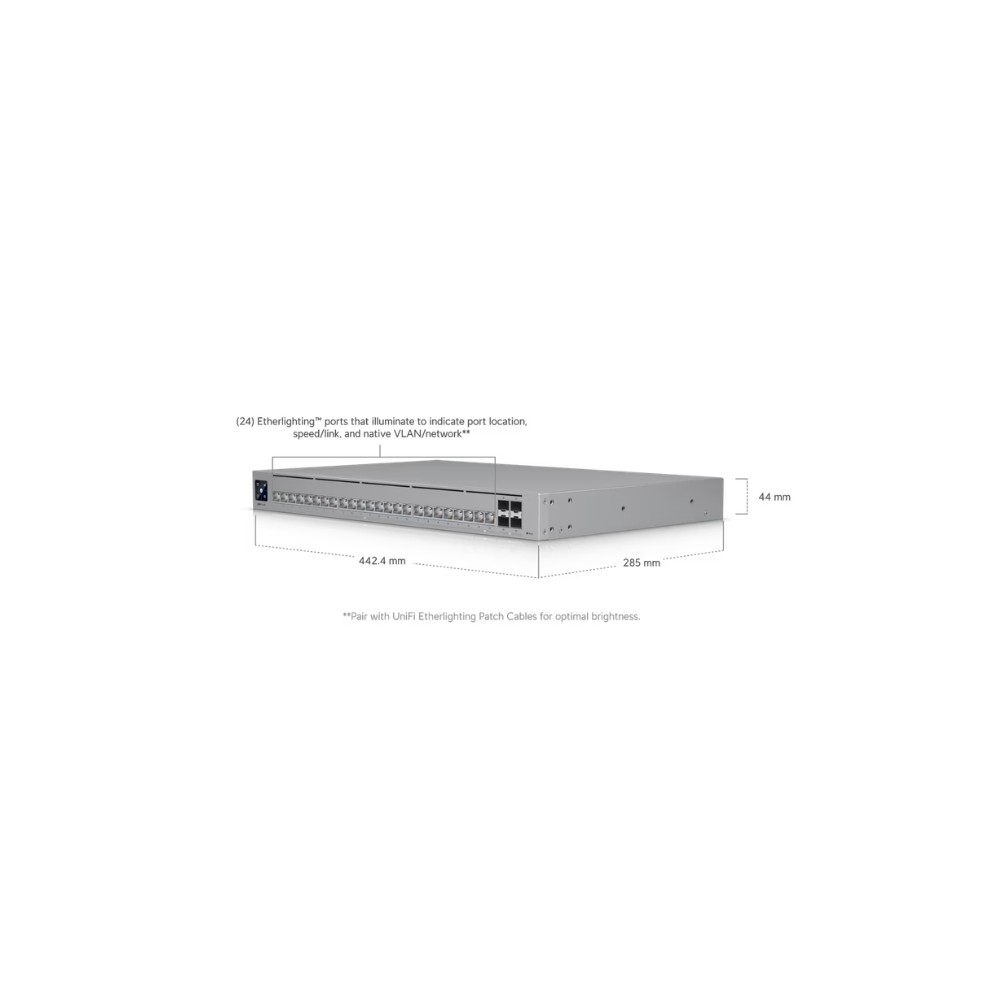

Dimensions 442 × 285 × 44 mm
Weight 3.8 kg
