TP-Link TL-SG1024 24-Port Unmanaged Gigabit Rackmount Switch View larger

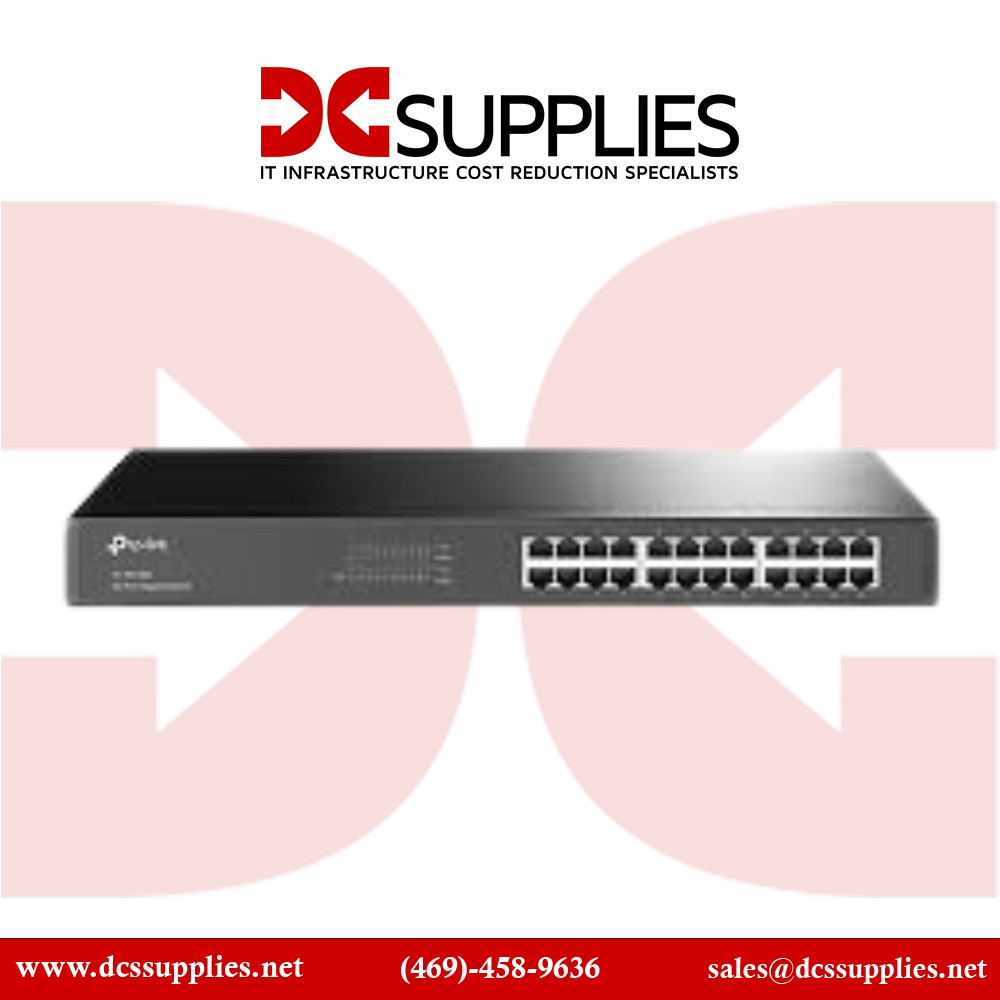

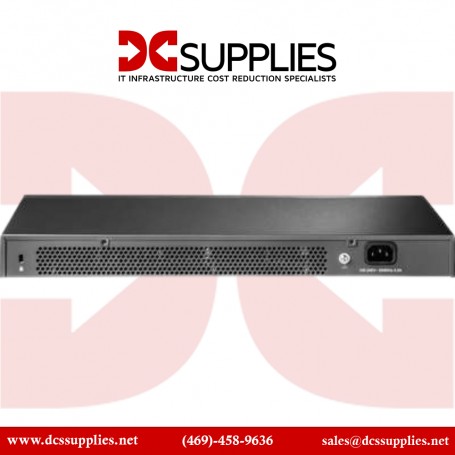

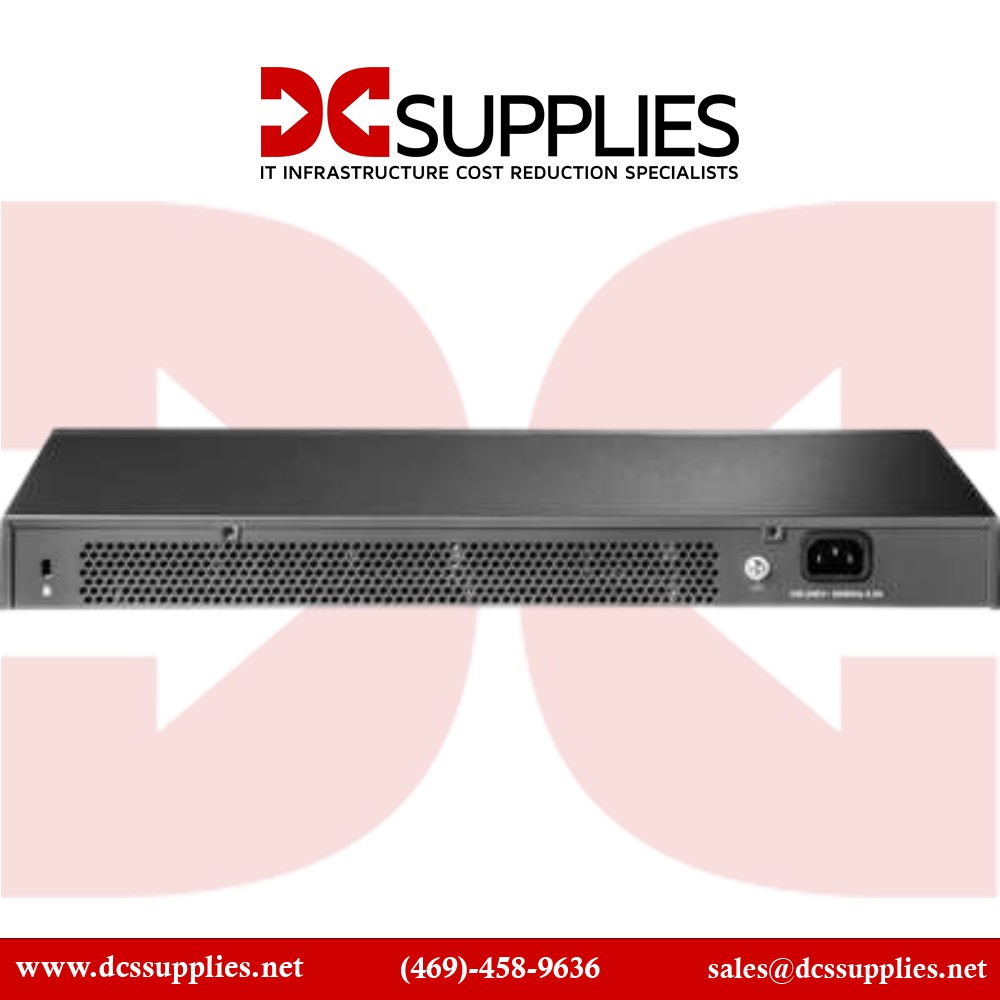

TP-Link TL-SG1024 24-Port Unmanaged Gigabit Rackmount Switch

TL-SG1024

New

TP-Link TL-SG1024 24-Port Unmanaged Gigabit Rackmount Switch

×




dc supplies, TP-Link Switch, TL-SG1024, TP-Link TL-SG1024, TL-SG1024 Switch, 24 port unmanaged gigabit switch, rackmount gigabit switch, TL-SG1024 network switch, Gigabit switch for business, 24-port Ethernet switch

Detailed Specifications

TP-Link TL-SG1024 24-Port Unmanaged Gigabit Rackmount Switch

Overview :

The TL-SG1024 24-Port Gigabit Rackmount Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 25% over traditional network switches. With a variety of IEEE standards, including 802.3i, 802.3u, 802.3ab, and 802,3x, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100 Mbps against the original Ethernet speed of 10 Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.

With 24 x 10/100/1000 Mbps RJ-45 ports, you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 48 Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection.

The TL-SG1024 24-Port Gigabit Rackmount Switch operates using 100-240 VAC at 50/60 Hz and consumes a maximum of 14.6W. It has a packet forwarding rate of 35.7 Mbps and includes a power cord, rackmount kits, and rubber feet. It is protected by a limited 5-year warranty.

Specifications :

Product Name 24-Port Gigabit Switch
Product Type Ethernet Switch
Manageable No
Ethernet Technology Gigabit Ethernet
Media Type Supported Twisted Pair
Total Number of Network Ports 24
Form Factor Rack-mountable

Desktop

Power Consumption 13.60 W
Power Source Power Supply
Layer Supported 2
Network (RJ-45) Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet Network
Networking Standards IEEE 802.3i

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

Height 1.7"
Width 17.3"
Depth 7.1"
Product Model TL-SG1024
Network Technology 10/100/1000Base-T
Package Contents
  • TL-SG1024 24-Port Gigabit Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet
Limited Warranty 3 Year
Number of Network (RJ-45) Ports 24
Frequency 50 Hz

60 Hz

System Requirements Operating Systems:
  • Microsoft Windows 8/7/Vista/XP
  • MAC OS X
  • NetWare
  • UNIX
  • Linux
Stock Details
Manufacturer TP-LINK
Manuf Part# TL-SG1024
