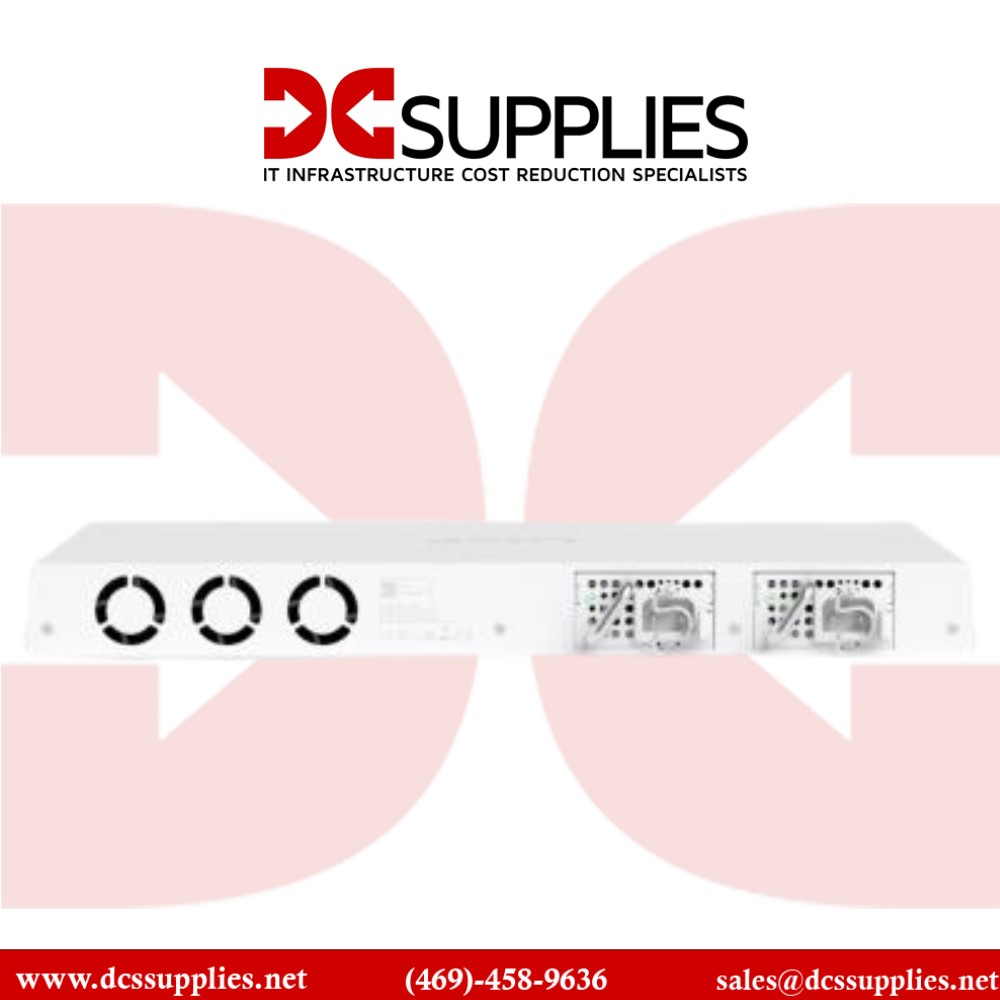

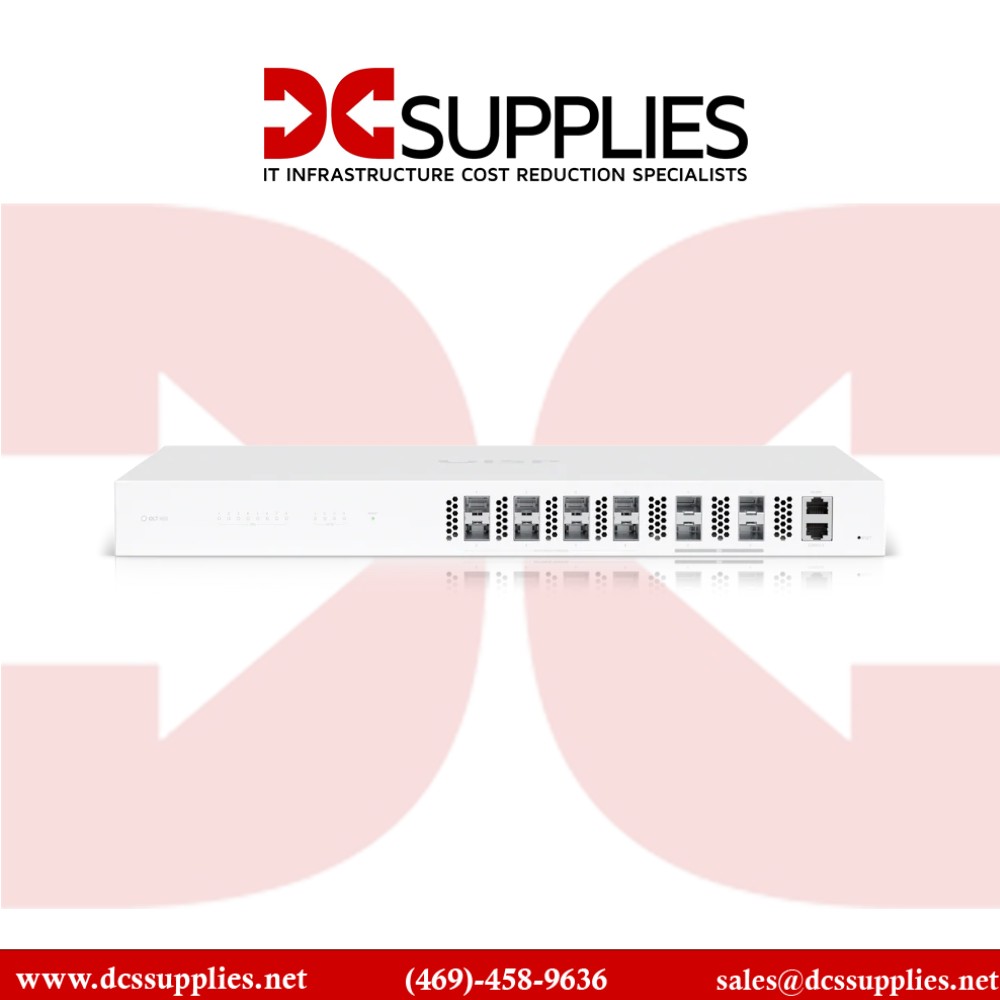

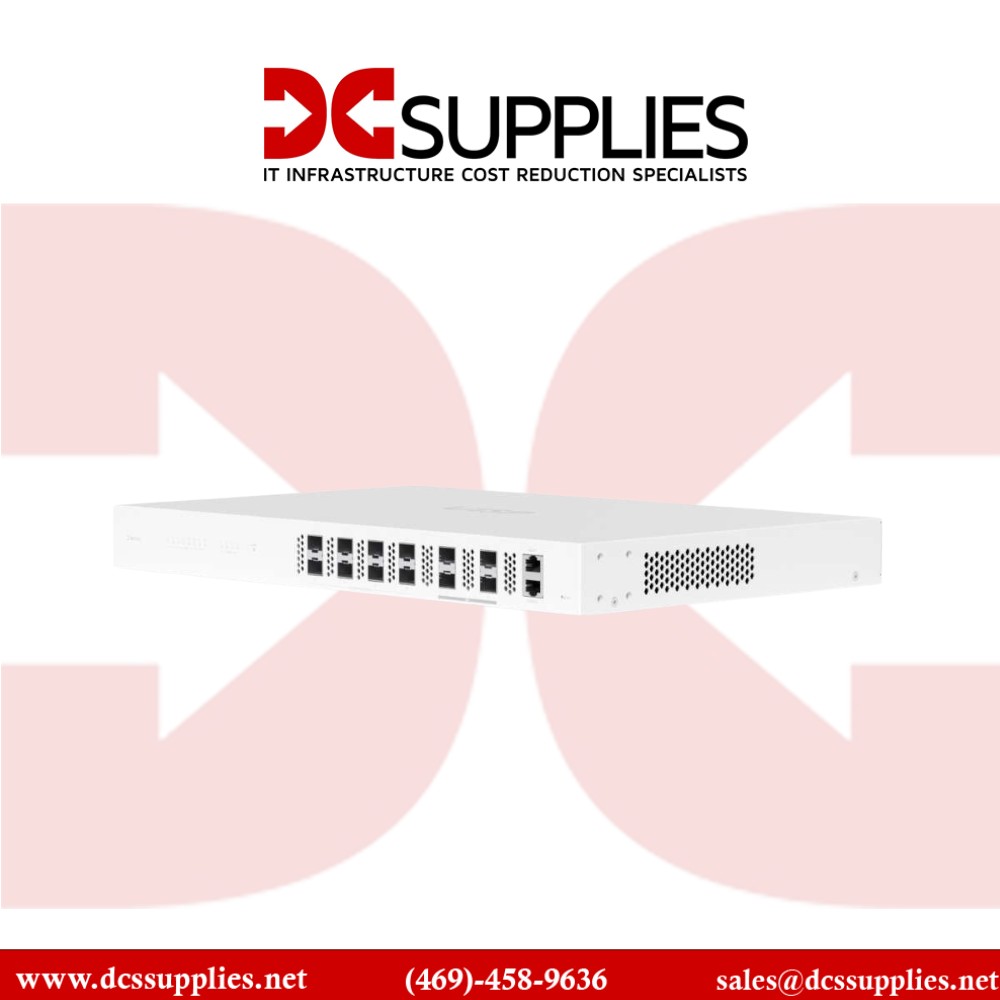

UBIQUITI (UISP-FIBER-OLT-XGS) UISP Fiber OLT XGS View larger

UBIQUITI (UISP-FIBER-OLT-XGS) UISP Fiber OLT XGS

UISP-FIBER-OLT-XGS

New

UBIQUITI (UISP-FIBER-OLT-XGS) UISP Fiber OLT XGS
×




dc supplies, Ubiquiti Switch, Fiber Optic Network Equipment, UISP-FIBER-OLT-XGS, UBIQUITI UISP-FIBER-OLT-XGS, UISP-FIBER-OLT-XGS Switch, uisp fiber olt xgs, optical line terminal (olt), Ubiquiti UISP platform, broadband access solutions

Detailed Specifications

UBIQUITI (UISP-FIBER-OLT-XGS) UISP Fiber OLT XGS

Overview :

An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers. XGSPON 10 Gbps bi-directional capacity, 2048 Client capacity (8 ports), (4) 25G SFP28 uplink ports, 1U Rack mount, AC/DC power module redundancy support

Product Features:
  • XGS-PON 10 Gbps bi-directional capacity
  • 2048 Client capacity (8 ports)
  • (4) 25G SFP28 uplink ports
  • 1U rack mount
  • AC/DC power module redundancy support

Specifications :

Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight 5.29 kg (11.7 lb)
Enclosure material SGCC steel
Hardware
Networking interface (8) XGS/XG/GPON ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface Ethernet out-of-band
Ethernet in-band
RJ45 serial console port
Bluetooth
Memory 512 MB DDR3
Onboard flash storage 64 MB NOR + 512 MB NAND
Power method (1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply (2) Hotswap AC/DC PSU
Supported voltage range 100–240V AC
Max. power consumption 70W
