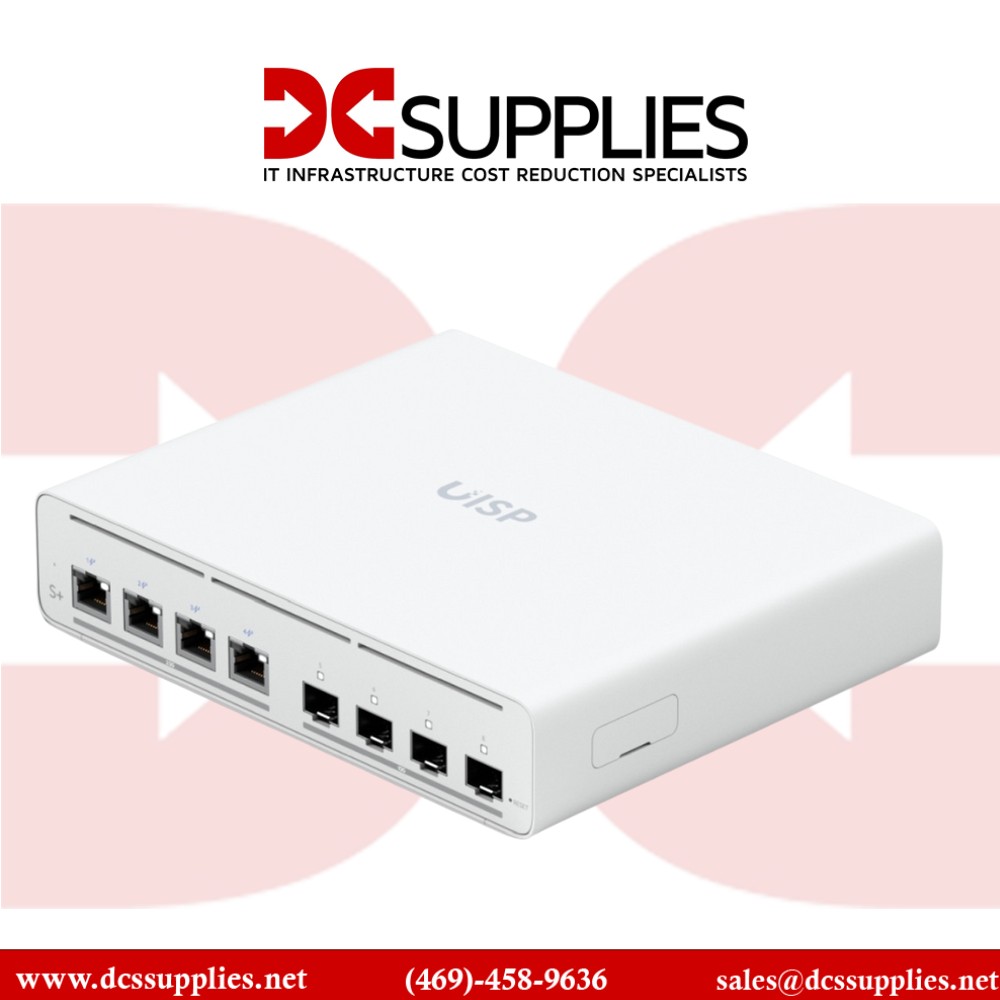

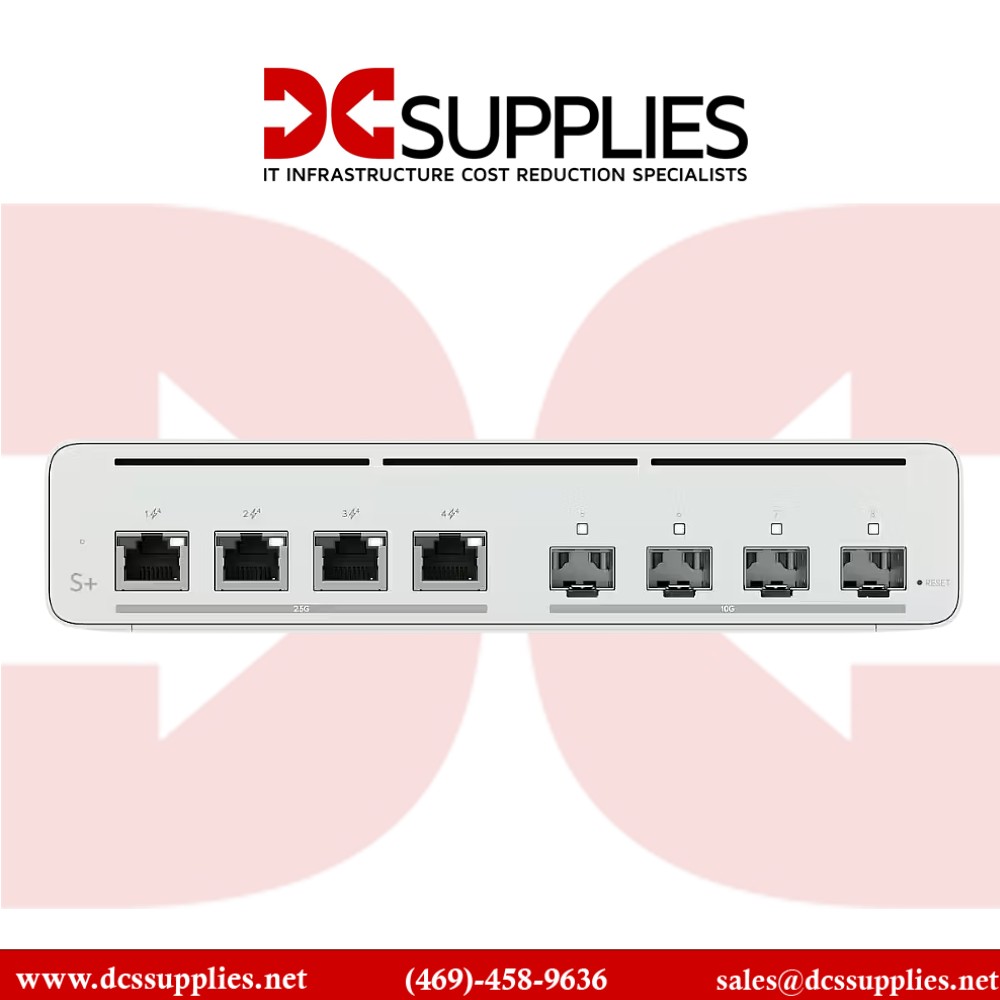

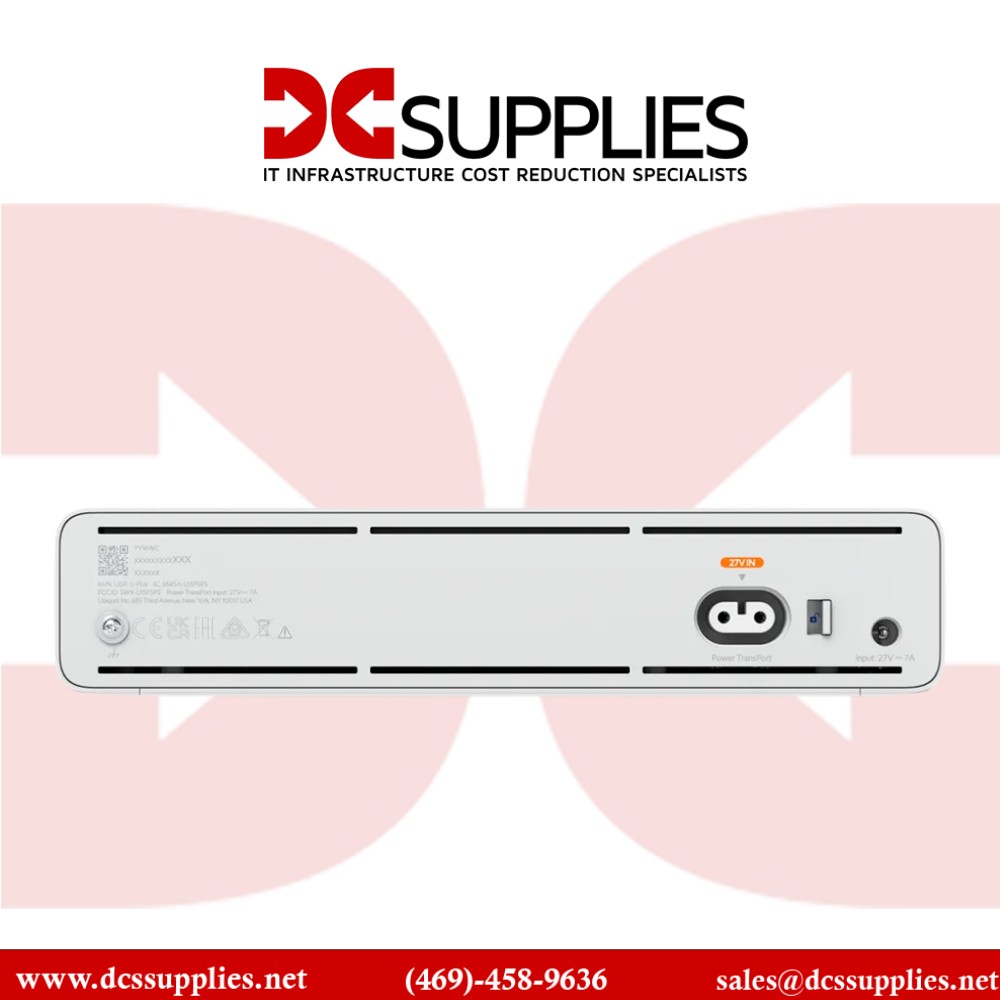

Ubiquiti Networks UISP-S-Plus Switch Plus 4-Port 2.5G PoE View larger

Ubiquiti Networks UISP-S-Plus Switch Plus 4-Port 2.5G PoE

UISP-S-Plus

New

Ubiquiti Networks  UISP-S-Plus Switch Plus 4-Port 2.5G PoE
×




dc supplies, gigabit POE switch, Network Switch with PoE, Ubiquiti Networks Switch, UISP-S-Plus, Ubiquiti UISP-S-Plus, UISP-S-Plus Switch, Ubiquiti Networks UISP-S-Plus, UISP-S-Plus Switch Plus, 4-Port 2.5G PoE Switch, Ubiquiti 2.5G PoE Switch

Detailed Specifications

Ubiquiti Networks  UISP-S-Plus Switch Plus 4-Port 2.5G PoE

Overview :

With its versatile design, the UISP Switch Plus 4-Port 2.5G PoE Compliant Managed Switch from Ubiquiti Networks supports both indoor and outdoor installations that require power and high bandwidth. Mountable onto a desktop, wall, or 1 RU rack, this managed switch offers four 2.5G Ethernet ports, each of which provides up to 40W of power to compatible devices with a total budget of 160W.

Additionally, four SFP+ ports are available for up to 10 Gb/s fiber links. Other features include port isolation, speed limiting, and DHCP snooping functionality. You can manage this switch through a local web interface and via the UISP application.

Specifications :

nputs/Outputs
4x RJ45 2.5 GbE PoE (Unspecified)
4x SFP+ 10 GbE
PoE Power Budget
160 W
Interfaces
Inputs/Outputs
4x RJ45 2.5 GbE PoE (Unspecified)
4x SFP+ 10 GbE
Stackable
No
Performance
Forwarding Rate
74.4 Mpps
Switching Bandwidth
100 Gb/s
50 Gb/s (Non-Blocking)
Computer
Flash Memory
256 MB
CPU
Dual-Core: Up to 1.4 GHz Cortex
Memory
1 GB DDR4
Electrical
Power Draw
25.00 W (Active)
DC Input Power
27 VDC at 7.04 A
AC Input Power
No
PoE Power Budget
160 W
Power Supply Type
External
Environmental
Operating Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
5 to 95%
General
Certifications
CE, FCC, IC
Cooling System
Passive
Material of Construction
Steel
Indicator Lights
Link/Activity, Link/Activity/Speed, PoE, Status
Dimensions
8.3 x 6.7 x 1.7" / 210.4 x 170.2 x 43.7 mm
