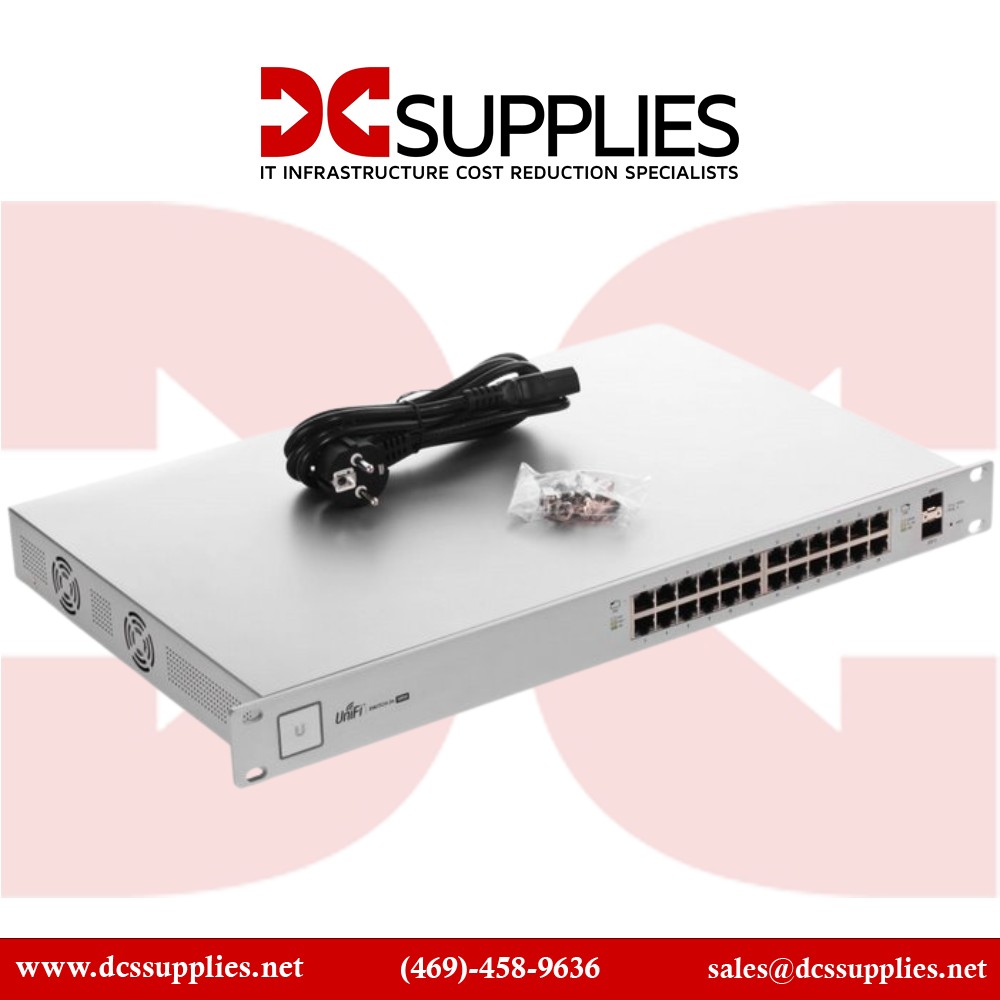

Ubiquiti Networks US-24-250W Unifi Switch 24 Port PoE 250W

New

24-Port Gigabit Managed PoE+ Switch with 250W Budget

×




  • New

Detailed Specifications

Ubiquiti Networks US-24-250W

UniFi Switch 24-Port PoE 250W – High-Performance Managed Switching Solution

The Ubiquiti Networks US-24-250W UniFi Switch is a fully managed Layer 2 switch engineered to provide reliable PoE+ power and high-speed connectivity in business, campus, or enterprise environments. Featuring 24 Gigabit Ethernet ports and a generous 250W power budget, it's designed to support multiple PoE devices such as UniFi access points, IP cameras, and VoIP systems—all managed through the intuitive UniFi Controller platform.

Features :

This switch features 24 Gigabit Ethernet ports with PoE+ support and a 250W total PoE power budget for connected devices. It includes 2 SFP uplink ports for fiber connectivity and is managed via UniFi Controller software. With non-blocking throughput up to 26 Gbps and a 1U rack-mountable metal chassis, it provides a powerful and flexible networking solution for various deployment scenarios.

Advanced Options :

Ideal for scalable enterprise networks, the US-24-250W ensures seamless device integration and centralized management. Its 24 Gigabit ports enable high-speed data transfers while simultaneously powering PoE-enabled devices—reducing cable clutter and the need for separate power sources. The two dedicated SFP ports allow fiber uplinks, which help extend connectivity across network segments and enhance overall performance. Management is handled through Ubiquiti's UniFi Network Controller, offering robust configuration tools, remote firmware upgrades, and advanced features such as VLANs, link aggregation, and QoS policies.

Product Key Features

  • 24 Gigabit Ethernet ports with PoE+ support
  • 250W total PoE power for connected devices
  • 2 SFP uplink ports for fiber connectivity
  • Managed via UniFi Controller software
  • Non-blocking throughput up to 26 Gbps
  • 1U rack-mountable metal chassis

Reliability & Performance :

Built with enterprise-grade reliability, the US-24-250W delivers non-blocking throughput up to 26 Gbps and supports line-rate packet forwarding on all ports. It's designed for 1U rack-mounted deployments and offers silent operation due to its efficient fanless cooling system. With high uptime, seamless integration into UniFi environments, and rugged hardware construction, this switch ensures long-term operational excellence in demanding IT environments. The switch's 52 Gbps switching capacity and 38.69 Mpps forwarding rate provide ample performance for even the most bandwidth-intensive applications.

Key Features :

  • 24 x Gigabit Ethernet ports with PoE+
  • 250W total power budget for PoE
  • 2 x 1G SFP uplink ports
  • Non-blocking switching throughput up to 26 Gbps
  • Managed through UniFi Network Controller
  • 1U rack-mountable metal enclosure

Specifications :

SpecificationDetails
Model Number US-24-250W
Type Managed PoE+ Ethernet Switch
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Total Ports 24 x RJ-45 Gigabit Ethernet
Uplink Ports 2 x SFP (1 Gbps)
PoE Standard IEEE 802.3af/at
Total PoE Power Budget 250 Watts
Layer Supported Layer 2
Form Factor 1U Rack-Mountable
Dimensions (HxWxD) 1.8" x 19.1" x 11.2"
Weight 5.7 lbs (approx.)
Power Supply Internal AC
Operating Temperature -5 to 40° C (23 to 104° F)
Environmentally Friendly Yes
Management UniFi Network Controller
