Detailed Specifications

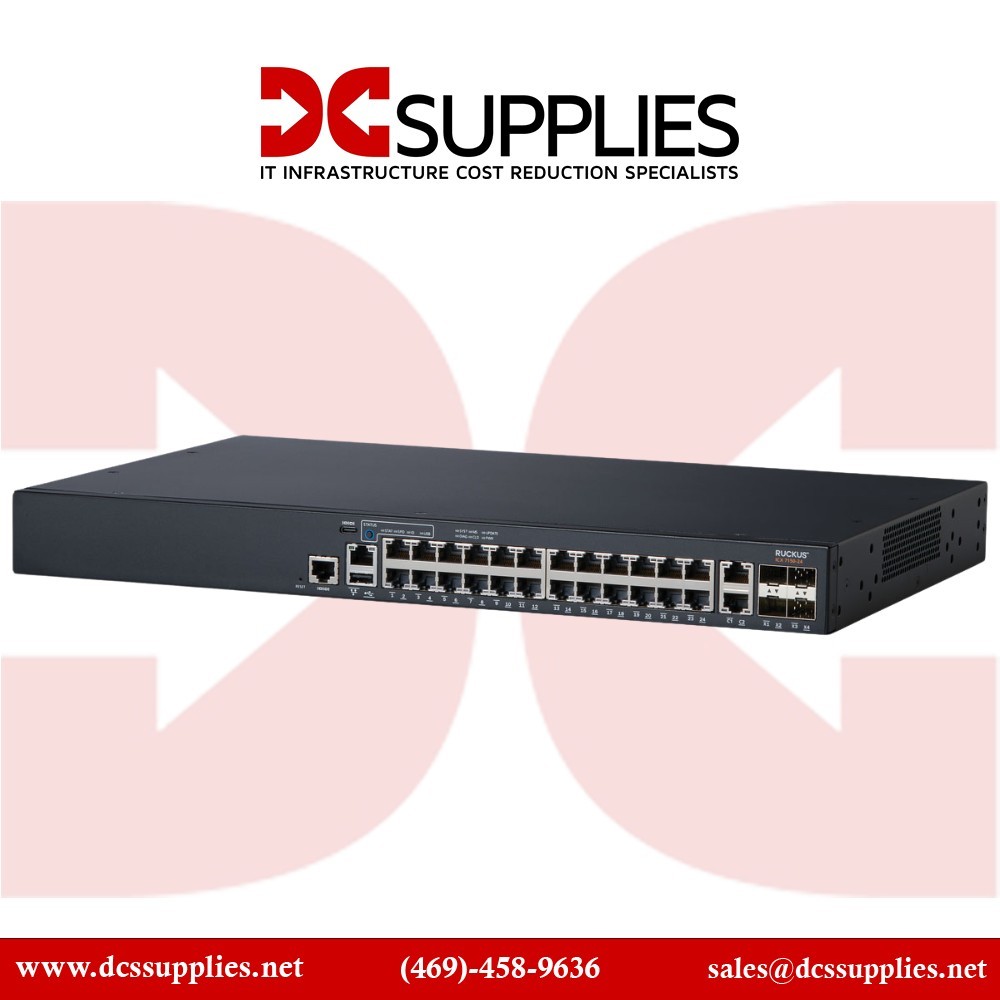

RUCKUS ICX7150-24-2X10G 24 Port Switch 2 10 GbE Uplinks
Overview
The ICX7150-24-2X10G is a managed access switch designed for campus access or branch office deployments where you require 24 × 10/100/1000 Mbps downlink ports and multi-10 GbE uplinks/stacking. It supports two fixed 10 Gb SFP+ uplinks (with additional uplink ports upgradable via license) and full stacking of ICX7150 series units, making it a solid choice for access-layer aggregation feeding into the core/aggregation network. Engineers will appreciate the stacking bandwidth headroom, full Layer 3 static routing support, and the ability to grow the uplink bandwidth without replacing the access switch.Mbps downlink ports and multi-10 GbE uplinks/stacking. It supports two fixed 10 Gb SFP+ uplinks (with additional uplink ports upgradable via license) and full stacking of ICX7150 series units, making it a solid choice for access-layer aggregation feeding into the core/aggregation network. Engineers will appreciate the stacking bandwidth headroom, full Layer 3 static routing support, and the ability to grow the uplink bandwidth without replacing the access switch.
Key Features
24 × 1 Gb RJ-45 downlink ports plus 2 × 10 Gb SFP+ uplinks (with license option for 4 × 10 Gb) for high-bandwidth backhaul and stack interconnects.

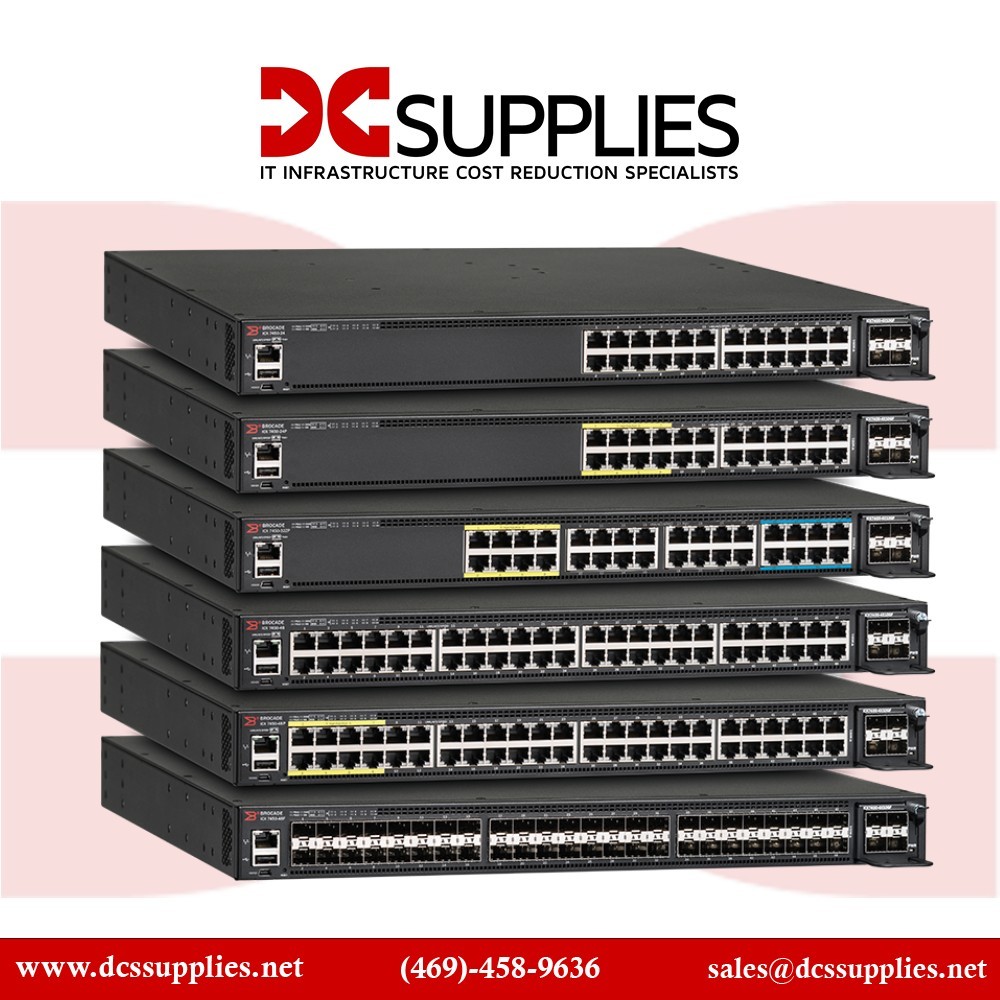

Stackable up to 12 units (or up to 8 depending on exact firmware) providing simplified management of a large access fabric.
Basic Layer 3 routing (static routing and RIP) built-in—suitable for access-to-aggregation scenarios without separate L3 router.
Fan-quiet or fanless mode (model variant dependent) lets you deploy it in noise-sensitive spaces (labs, conference rooms) while still giving full access performance.
Specifications
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | ICX7150-24-2X10G |
| Product Type | Managed Access Switch (24 × 1 Gb downlinks + 2 × 10 Gb uplinks) |
| Key Specification 1 | Port Configuration: 24 × 10/100/1000 Mbps RJ-45 + 2 × 10 Gb SFP+ |
| Key Specification 2 | Uplink/Stack Configuration: 2 × 10 Gb SFP+ (upgradable to 4 × 10 Gb) |
| Key Specification 3 | Switching Capacity / Stack Bandwidth: family supports ~132 Gb/s switching; stack bandwidth up to ~320 Gb/s for 8 units in this variant. |
| Management | CLI, Web GUI, SNMP, USB Type-C console, Out-of-band RJ-45 port |
| Power Requirements | Internal AC single PSU; typical for 1U fixed switches |
| Dimensions & Weight | Approx. 17.3″ W × 11.0″ D × 1.7″ H (1 RU) / ~10.9 lbs (~4.9 kg) – estimated from family specs |
