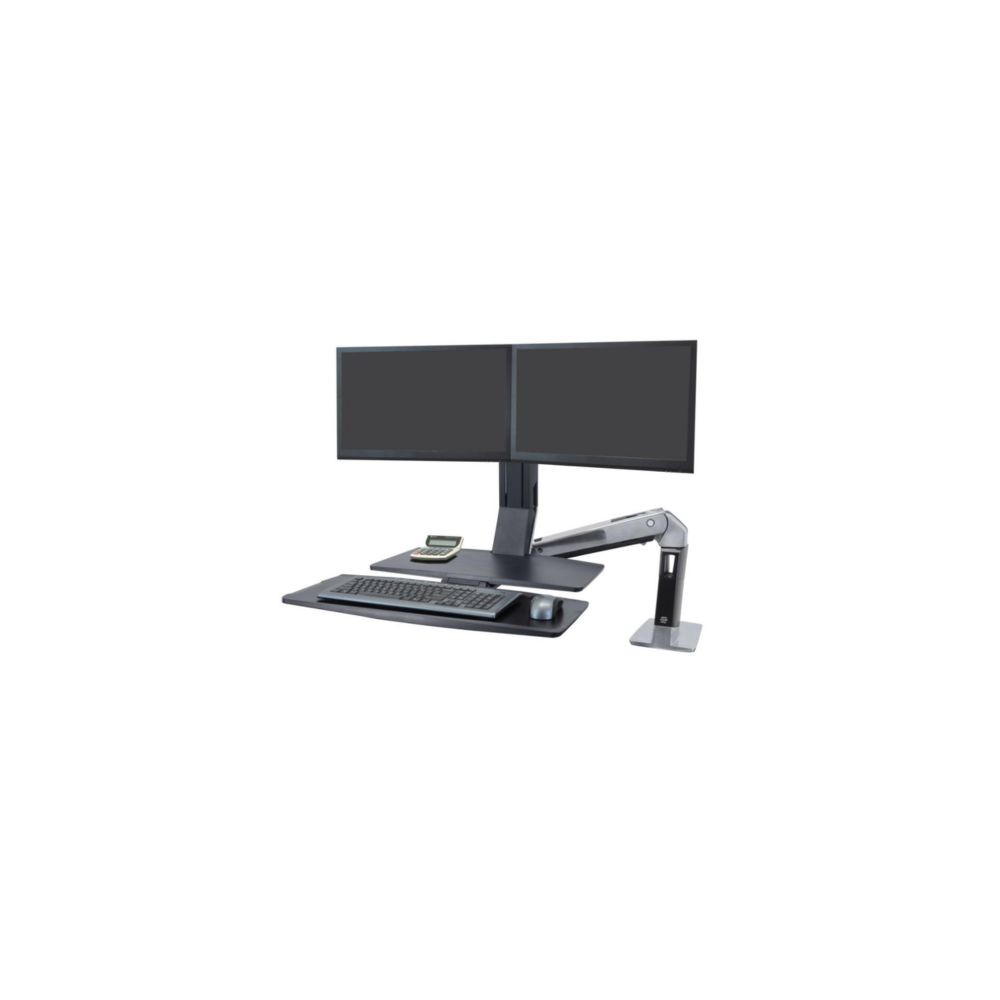

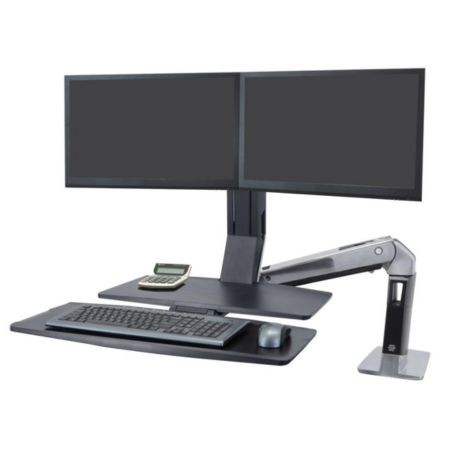

The Ergotron 24-316-026 WorkFit-A is an adjustable dual-monitor workstation designed to make existing desks more flexible. Its articulated arm system supports two monitors, while the integrated keyboard tray and additional Worksurface+ platform provide a practical setup for everyday computing.
With Ergotron Constant Force lift technology, the workstation allows the monitors and keyboard to move together through a 20-inch (51 cm) height-adjustment range. Users can switch between sitting and standing positions while maintaining a coordinated workstation layout. Its polished aluminium and black finish suits professional offices, home workspaces and shared working environments.
Key Features
- Dual-monitor mounting: Supports two compatible monitors, each weighing 4.5–10 lb (2.0–4.5 kg), with VESA 75 × 75 mm or 100 × 100 mm mounting patterns.
- Sit-stand adjustment: Provides 20 inches (51 cm) of coordinated vertical movement for the monitors and keyboard, plus 5 inches (13 cm) of independent monitor height adjustment.
- Flexible monitor positioning: Offers up to 180° of pan, 360° of screen rotation and tilt adjustment of up to 30°.
- Integrated keyboard tray: Provides a dedicated keyboard and mouse area that can be positioned centrally or offset to either side and folded up when not in use.
- Additional Worksurface+ platform: Adds space for lightweight work essentials while helping keep the main desk area organised.
Flexible Dual-Monitor Workspace
The WorkFit-A is particularly useful for corner desks and workstations where a conventional desktop sit-stand converter may take up too much space. Its clamp-mounted design attaches to a suitable desk edge, and the articulated arm can be repositioned to bring the displays closer or move them aside when additional workspace is needed.
The two monitor pivots provide independent screen positioning, allowing users to adjust each display for a more comfortable viewing arrangement. The mount supports compatible displays with standard VESA mounting patterns, making it important to check both screen weight and mounting compatibility before installation.
Integrated Keyboard Tray and Worksurface+
The included keyboard tray measures approximately 27 × 9.75 inches (68.6 × 24.8 cm). It can be mounted in a centred position or offset to the left or right to accommodate different desk layouts and user preferences.
The additional Worksurface+ platform measures approximately 22.63 × 9.75 inches (57.5 × 24.8 cm). It provides room for lightweight accessories and everyday work items. Observe the separate load limits for the monitor arms, keyboard tray and worksurface, rather than relying solely on the total assembly capacity.
Installation and Compatibility
The WorkFit-A attaches to a suitable desktop using a desk clamp. The supported desktop thickness is approximately 0.5–2.5 inches (1.3–6.4 cm), subject to the applicable installation documentation. Check the desk's construction, edge clearance and stability before mounting the workstation.
For the best fit, verify that both monitors fall within the specified weight range, use compatible VESA mounting patterns and have enough clearance for the arm's movement. Cable-management features help route display cables along the arm to maintain a tidier workspace.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 24-316-026 |
|---|
| Product Type | Dual-monitor sit-stand workstation with Worksurface+ |
|---|
| Product Family | WorkFit-A |
|---|
| Finish | Polished aluminium and black |
|---|
| Number of Monitors | 2 |
|---|
| Recommended Monitor Size | Up to approximately 22 inches per display; compatibility also depends on weight and dimensions |
|---|
| Monitor Weight Range | 4.5–10 lb (2.0–4.5 kg) per monitor |
|---|
| Maximum Total Load Capacity | 25 lb (11.3 kg), subject to individual component limits |
|---|
| Coordinated Height Adjustment | 20 inches (51 cm) |
|---|
| Independent Monitor Height Adjustment | 5 inches (13 cm) |
|---|
| Maximum Monitor Height Adjustment | Up to 25 inches (63.5 cm), depending on configuration |
|---|
| Monitor Tilt | Up to 30° |
|---|
| Monitor Pan | 180° |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Keyboard Tray Dimensions | Approximately 27 × 9.75 inches (68.6 × 24.8 cm) |
|---|
| Worksurface+ Dimensions | Approximately 22.63 × 9.75 inches (57.5 × 24.8 cm) |
|---|
| Desk Clamp Thickness | Approximately 0.5–2.5 inches (1.3–6.4 cm) |
|---|
| Mounting Type | Desk clamp |
|---|
| Cable Management | Integrated cable-routing features |
|---|
| Warranty | 5 years, subject to applicable warranty terms |
|---|
DC Supplies Product Note
The Ergotron 24-316-026 combines dual-monitor support, a keyboard tray and an extra work platform in one adjustable workstation. Before ordering, confirm monitor weights, VESA compatibility and desk-clamp fit. The 25 lb total capacity does not override the separate weight limits for individual components.
Frequently Asked Questions
How many monitors does the Ergotron 24-316-026 support?
This WorkFit-A configuration supports two compatible monitors. Each display should weigh between 4.5 and 10 lb (2.0–4.5 kg) and use a supported VESA mounting pattern.
Can the workstation move between sitting and standing positions?
Yes. The workstation provides approximately 20 inches (51 cm) of coordinated vertical adjustment for the monitors and keyboard, helping users change working positions throughout the day.
Does it include a keyboard tray and extra worksurface?
Yes. This configuration includes a keyboard tray and a separate Worksurface+ platform. Their individual load limits should be observed.
Which VESA mounting patterns are supported?
The monitor pivots support VESA 75 × 75 mm and 100 × 100 mm mounting patterns. Check the display's specifications before installation.
Will it fit my existing desk?
It is designed for clamp mounting on a compatible desk edge. Check the desktop thickness, construction, available clearance and stability before installation.
Can the monitors be adjusted independently?
Yes. The monitor pivots allow individual screen positioning, including tilt, pan and rotation, within the mount's adjustment limits.
