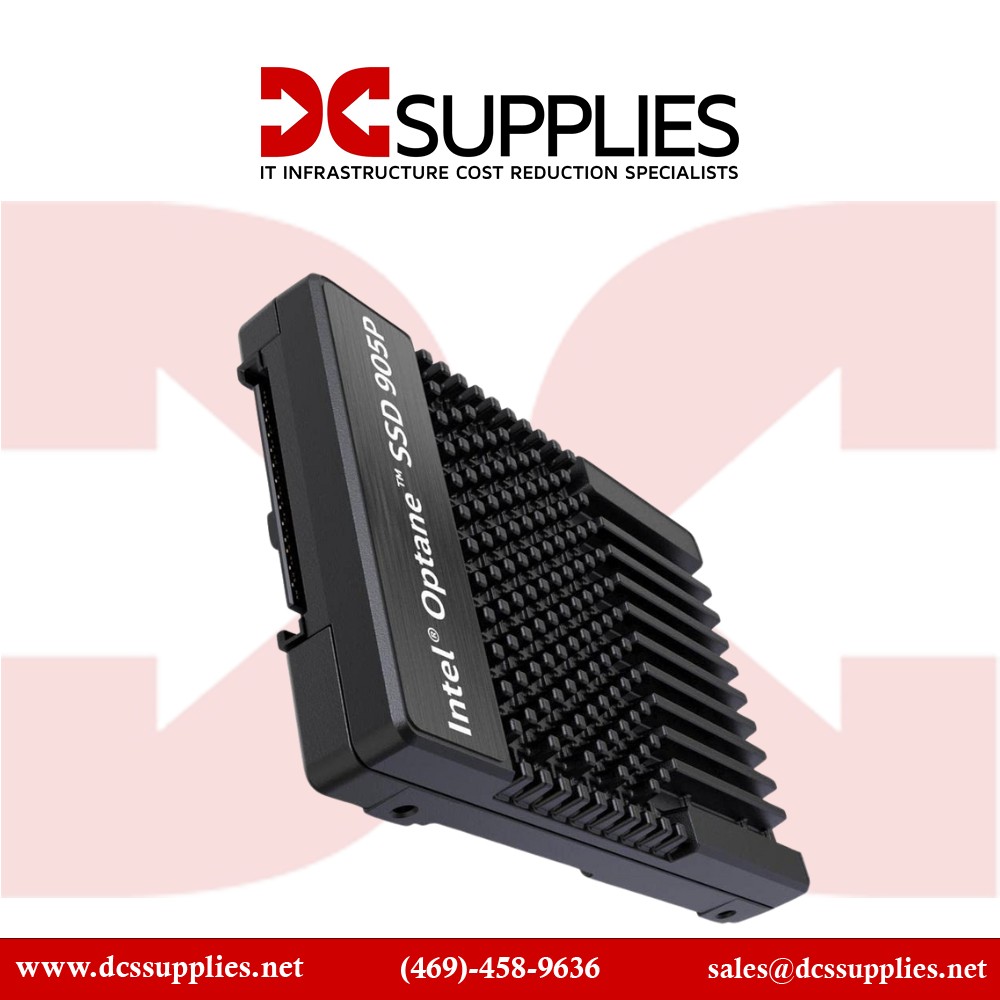

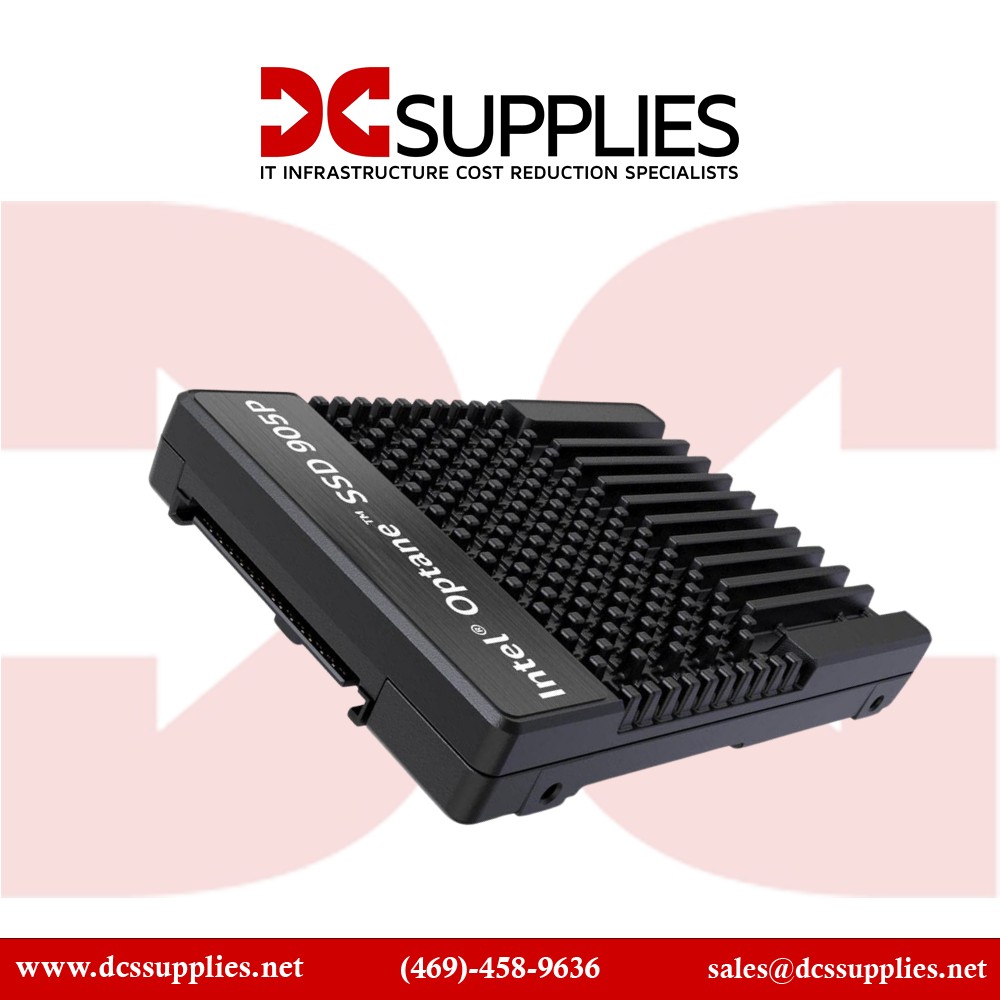

Intel SSDPE21D015TA01 Optane 905P Series 1.5TB, 2.5 x 15mm U., PCIe 3.0 x4, 3D XPoint Solid State Drive (SSD

Intel

SSDPE21D015TA01 Optane 905P Series 1.5 TB 2.5″ U.2 (15 mm), PCIe 3.0 ×4, 3D XPoint SSD

IntelSSDPE21D015TA01, the Optane SSD905P 1.5 TB in 2.5″ U.2 form (15 mm height), is built for heavy-duty professionals, content creators, and enthusiast workstation users. Leveraging Intelbreakthrough 3D XPoint memory, it delivers exceptional low-latency access (<11 µs) and extreme endurance×rated at 27.37 PB written over its lifetime, or 10 drive writes per day (DWPD)

Features

Designed in U.2 format, the Optane 905P fits enterprise-class workstations or servers with appropriate backplanes, offering tool-less hot-plug capability and strong thermal control. Its consistent speed regardless of queue depth and workload type positions it ideally for DB workloads, virtualization, simulation, and interactive compute demands.

Advanced Options

The IntelOptane 905P delivers industry-leading responsiveness and endurance thanks to its underlying 3D XPoint technology. Whether used as a system drive or scratch disk, it dramatically reduces latency and improves workflow fluidity×especially in scenarios with frequent context switching or small-file operations. Its sustained high bandwidth and endurance make it perfect for repetitive, data-intensive tasks such as video editing, database operations, virtualization hosts, and scientific computing. Enhanced power-loss protection and thermal logging add layers of protection for sensitive workloads. With a MTBF of 1.6 million hours and AES-256 hardware encryption support, it meets reliability, security, and longevity requirements in enterprise-class systems

Product Key Features

1. 1.5 TB capacity with ultra-low latency (<11 µs)

2. High random IOPS up to 575K (read) / 550K (write)

3. Sequential throughput: ~2,600 MB/s read and ~2,200 MB/s write

4. Exceptional endurance: 27.37 PB written lifetime (10 DWPD)

5. U.2 2.5″ form factor (15 mm), PCIe 3.0 ×4 NVMe, with hot-plug support

---

Reliability & Performance

IntelOptane SSD905P is engineered for peak reliability and performance continuity. With power-loss protection and robust thermal monitoring, it preserves data integrity even during abrupt power events. The drive's endurance rating and high MTBF minimize downtime and replacement needs. Its performance remains consistent across low and high queue depths, ensuring predictable responsiveness in multitasking and mixed I/O environments. Enhanced ECC firmware protects data, and AES-256 encryption secures it without performance penalty×making this SSD suitable for both workstation and light-enterprise deployment scenarios.

Key Features

• 1.5 TB capacity

• PCIe 3.0 ×4 NVMe interface

• U.2 (2.5″ × 15 mm) hot-plug format

• 3D XPoint memory technology

• Random IOPS up to 575K/550K

• Sequential throughput ~2,600/2,200 MB/s

• Latency under 11 µs

• Endurance: 10 DWPD (~27.37 PB written)

• Power-loss protection and AES-256 encryption

• Operating temperature range 0 °C-85 °C

• MTBF 1.6M hours, uncorrectable BER: 1 sector per 10^17 bits read

Specifications :

Product Specifications

Specification	Details
Model Number	SSDPE21D015TA01
Product Type	Enterprise SSD(Optane 905P)
Capacity	1.5 TB
Interface	PCIe 3.0 ×4 (NVMe U.2)
Form Factor	2.5″ U.2 (15 mm) hot-plug
Memory Media	Intel 3D XPoint'
Sequential Read Speed	Up to ~2,600 MB/s
Sequential Write Speed	Up to ~2,200 MB/s
Random Read IOPS	Up to 575,000 (4 KB)
Random Write IOPS	Up to 550,000 (4 KB)
Read Latency	<10 µs
Write Latency	<11 µs
Endurance	10 DWPD (~27.37 PB lifetime writes)
MTBF	1.6 million hours
Power (Active / Idle)	~18.6 W / ~6.2 W
Operating Temp Range	0 °C to 85 °C
Reliability Features	Power-loss protection, thermal logging, AES-256
Error Rate	Uncorrectable BER: 1 in 10^17 bits read
Warranty	5-Year Limited Warranty
