Axiom SSDEP65DV7T6-AX 7.68TB Enterprise EP650 SSD 2.5-inch Hot-Swap 24GBS SAS View larger

Axiom SSDEP65DV7T6-AX 7.68TB Enterprise EP650 SSD 2.5-inch Hot-Swap 24GBS SAS

New

Axiom SSDEP65DV7T6-AX 7.68TB Enterprise EP650

×




  • New

Detailed Specifications

Axiom

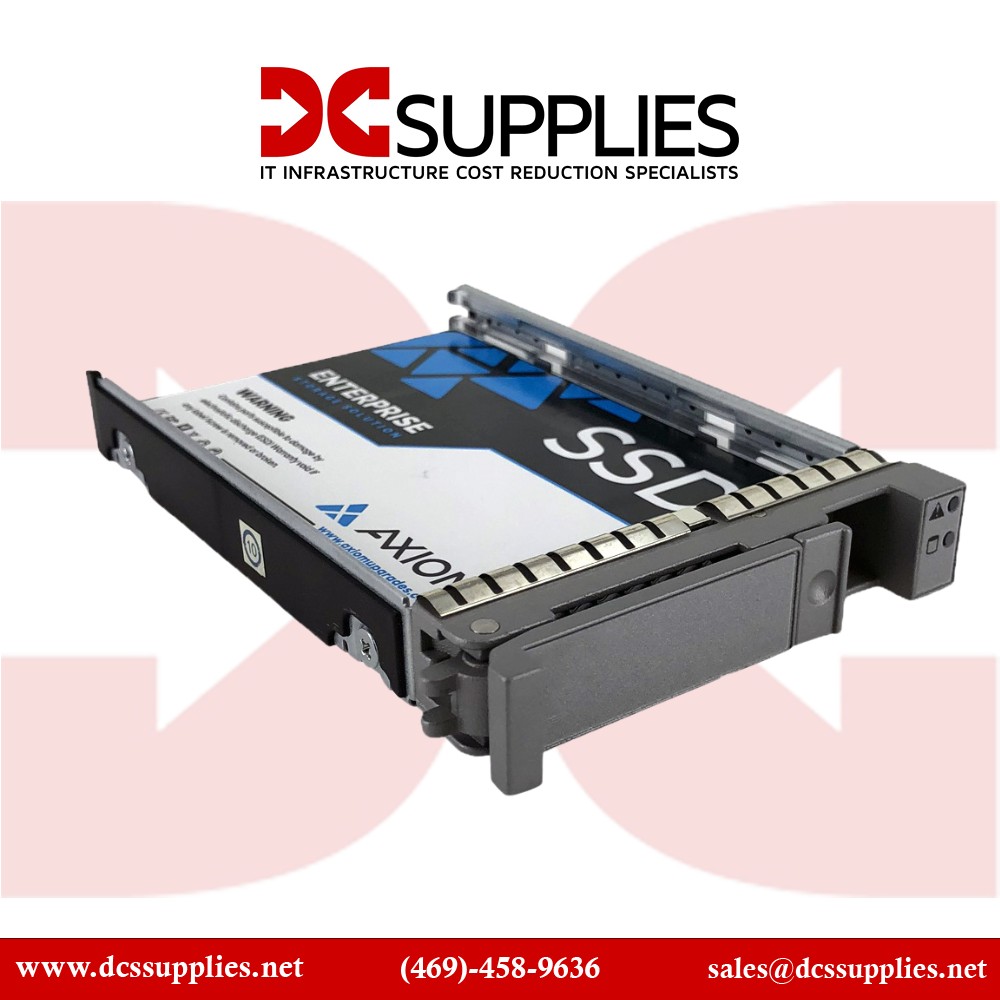

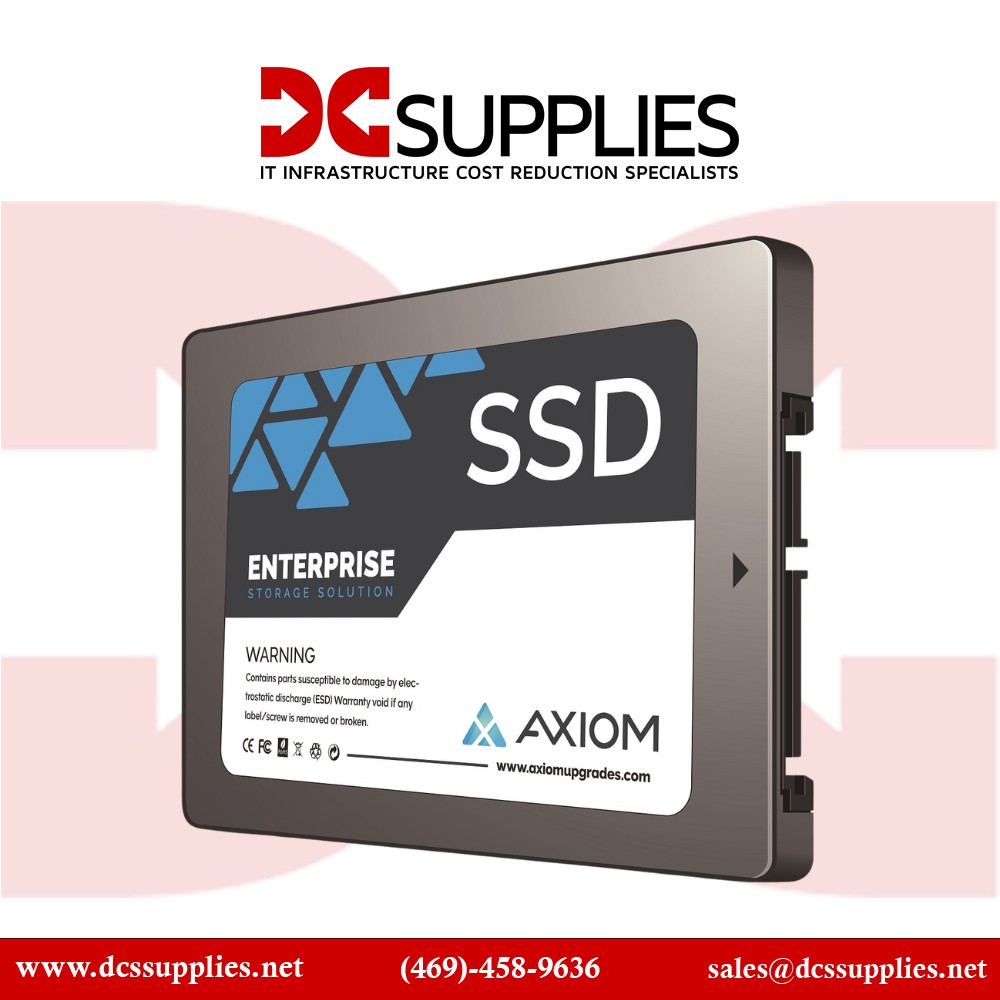

SSDEP65DV7T6‑AX Enterprise EP650 solid state drive – 7.68 TB, 2.5″ Hot‑Swap, Dual‑Port 24 Gb/s SAS

The Axiom EP650 solid state drive (model SSDEP65DV7T6‑AX) delivers ultra-high-performance enterprise storage with a massive 7.68 TB capacity in a compact 2.5″ hot-swap SAS form factor. Leveraging a blazing-fast dual-port 24 Gb/s SAS interface, this drive achieves sequential reads up to ~4.10 GB/s and writes up to ~3.61 GB/s, while sustaining up to 420,000 random read IOPS and 140,000 random write IOPS. Designed for demanding workloads such as virtualization, database operations, and high-throughput analytics, the EP650 offers enterprise features like multi-layer ECC, power-loss protection, and dual-path redundancy to ensure uptime and data integrity.

Features

Custom-built for data center environments that require both capacity and speed, the EP650 features advanced 3D V‑NAND TLC flash and enterprise-grade firmware optimized for endurance and reliability. Backed by hardware error correction, AES encryption support, and total write endurance up to 14,016 TBW, this solid state drive is well-suited for continuous, write-intensive operations on large storage arrays

Advanced Options

Its dual-port SAS design enables full-duplex data communication and path redundancy, ideal for failover scenarios in high-availability storage controllers or RAID environments. With hot‑swap capability and full compliance with SAS/SATA backplanes, deployment is seamless in server chassis and storage enclosures without interrupting system operation.

Product Key Features

  • 7.68 TB enterprise capacity in a 2.5″ SAS solid state drive

  • Dual-port 24 Gb/s SAS interface for bandwidth and redundancy

  • Sequential read/write speeds up to ~4.10 GB/s and ~3.61 GB/s

  • Up to 420K read and 140K write IOPS (@ 4 KB random workloads)

  • Endurance: ~1 DWPD for 5 years (~14,016 TB total writes)

  • Enterprise-grade ECC, PLP (power-loss protection), hot-swap support

  • AES-hardware encryption compatible (TCG Enterprise)

  • MTBF rating of ~2 million hours for high reliability

Reliability & Performance

The Axiom EP650 solid state drive provides consistent low-latency performance and high throughput even under sustained enterprise workloads. Engineered with proven 24 Gb/s SAS architecture, dual data paths ensure uninterrupted service in failover or redundant environments. Its robust build with error correction and power-fail protection safeguards data during unexpected power events. Rated for approximately 2 million hours MTBF and backed by a five-year warranty, the EP650 is ideal for 24/7 operations in storage farms, server virtualization, and high-performance computing clusters

Key Features (Bullet List)

  • 7.68 TB SAS 24 Gb/s enterprise solid state drive

  • Dual-port with full-duplex SAS traffic

  • High sequential throughput (4.10 GB/s read, 3.61 GB/s write)

  • High random IOPS (420K read / 140K write)

  • Endurance: ~14,016 TBW over 5 years (1 DWPD)

  • 2.5″ hot-swappable U.2 form factor (7 mm)

  • Advanced ECC, hardware encryption, power-loss protection

  • MTBF ~2 million hours; endurance for RAID storage use

  • AES and sanitize command support; ideal for regulated environments

Specifications :

SpecificationDetails
Model Number SSDEP65DV7T6‑AX
Product Series EP650 Enterprise Series
Capacity 7.68 TB
Interface Dual-port SAS 24 Gb/s
Form Factor 2.5‑inch (U.2 hot‑swap, 7 mm height)
Sequential Read ~4.10 GB/s
Sequential Write ~3.61 GB/s
Random Read IOPS Up to ~420,000 IOPS (4 KB)
Random Write IOPS Up to ~140,000 IOPS (4 KB)
Endurance (TBW / DWPD) ~14,016 TBW (1 DWPD for 5 years)
Error Correction Advanced ECC with LDPC
Power Loss Protection Yes (capacitor-based)
Hot-Swap Capability Yes
Encryption Support AES-XTS (TCG Enterprise compliant)
MTBF ~2,000,000 hours
Operating Temperature 0 °C to 70 °C
Storage Temperature –40 °C to 85 °C
Shock/Vibration Tolerance Up to 1500 g / 20 g @10–2000 Hz
Compliance RoHS, WEEE, sanitize commands, AES, TCG
Warranty 5‑Year Limited Warranty
