APC SMX2200RMLV2U Smart-UPS X 2200VA 2U Rack/Tower 127V View larger

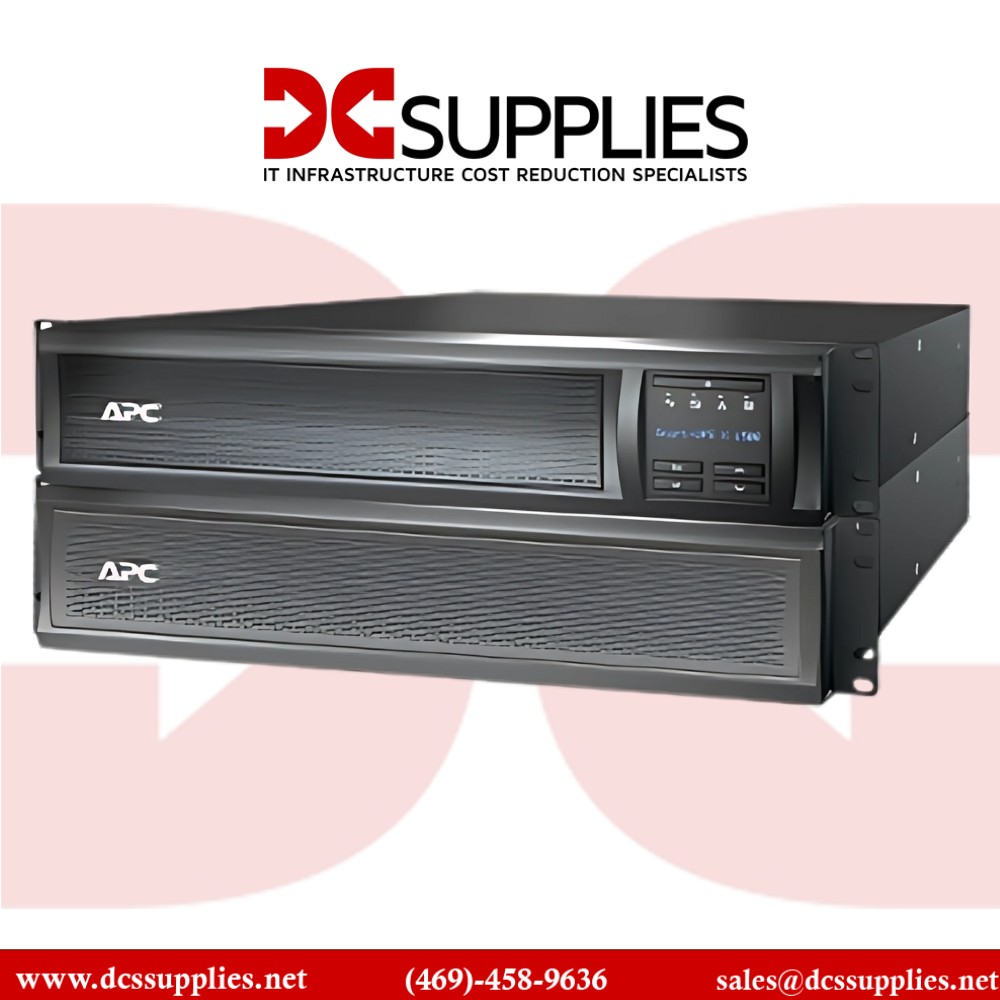

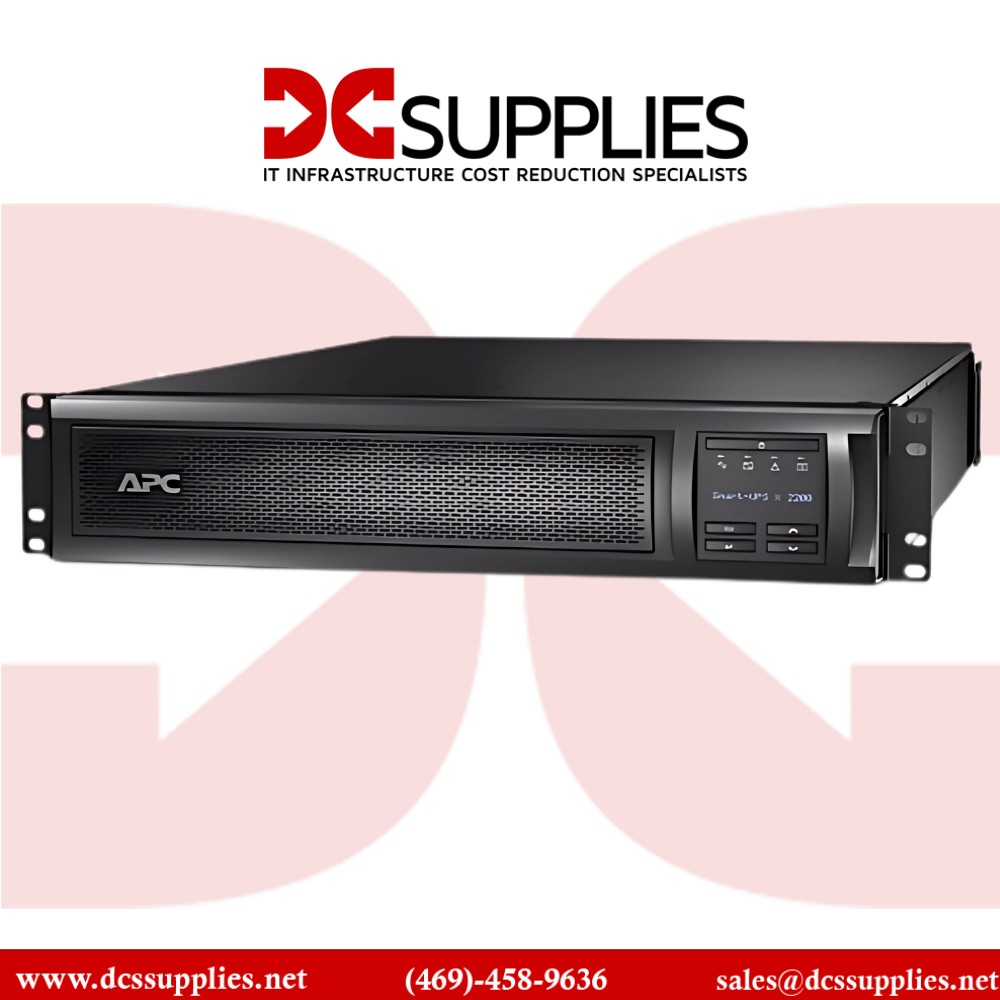

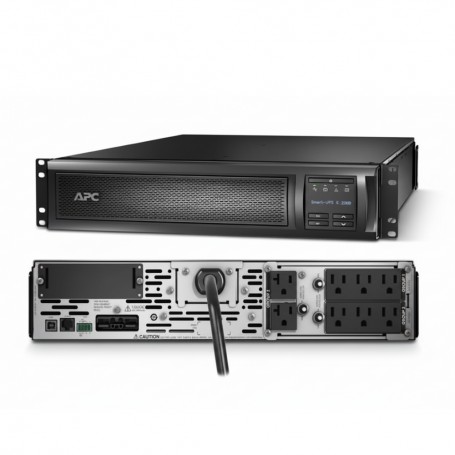

APC SMX2200RMLV2U Smart-UPS X 2200VA 2U Rack/Tower 127V

New

In Stock

APC Smart-UPS X 2200VA 100-127V 2U Rack Tower LCD, Extended R T, L5-30P
×




$2,034.90

  • New

Detailed Specifications

APC

SMX2200RMLV2U

Smart‑UPS X 2200 VA 2U Rack/Tower (127 V)

The APC SMX2200RMLV2U is a robust 2200 VA / 1980 W line-interactive UPS offering pure sine-wave output, designed for rackmount or tower deployment. Ideal for protecting servers, storage arrays, networking gear, and POS systems, it ensures clean power and uninterrupted operation during outages. It features eight battery-backed outlets, SmartSlot expansion, LCD control panel, and hot-swappable batteries. With support for up to ten external battery packs, the SMX2200RMLV2U delivers scalable runtime tailored to mission-critical needs.

Features

Operating at 100–127 V, this 2 U UPS corrects voltage fluctuations via Automatic Voltage Regulation (AVR) and delivers seamless transition to battery power within 2–4 ms, safeguarding connected equipment from power anomalies. The integrated LCD provides real-time system status and diagnostics, while SmartSlot allows optional remote management through APC’s NMC cards .

Advanced Options

The SMX2200RMLV2U includes a rackmount kit and collapsible feet for tower use. It features three switched outlet groups, enabling organized power sequence control and load shedding during extended runtime requirements. Highly efficient up to 98%, this UPS minimizes energy waste while maximizing uptime

Product Key Features

  • 2200 VA / 1980 W line-interactive, pure sine-wave output

  • 100–127 V input/output with AVR

  • 8 battery & surge-protected outlets: 6 × 5‑15R, 2 × 5‑20R

  • LCD status display and audible alarms

  • SmartSlot for NMC cards (sold separately)

  • Hot-swappable internal battery with support for up to 10 external packs

  • 3 switched outlet groups and scalable runtime

  • Rack/Tower convertible with included hardware

Reliability & Performance

The SMX2200RMLV2U combines efficiency, flexibility, and durability to support critical applications. Its 98 % efficiency at full load reduces operating costs and heat generation . The rapid 2–4 ms transfer time ensures smooth transitions to battery during disturbances, while circuit breakers and predictive failure alerts enhance safety and proactive maintenance. With user-replaceable batteries and extensive runtime expansion, this UPS is built for longevity and resilience in demanding IT environments.

Key Features (Bullet List)

  • 2200 VA / 1980 W capacity

  • Pure sine-wave, line-interactive topology

  • 100–127 V AVR input/output

  • 8 battery-backed outlets (6 × 5‑15R & 2 × 5‑20R)

  • Built-in LCD and audible alarms

  • SmartSlot for remote management

  • Hot-swappable battery, expandable with up to 10 extra packs

  • 3 switched outlet groups

  • Rack (2 U) to tower convertible

Specifications :

SpecificationDetails
Model Number SMX2200RMLV2U
Type Line‑Interactive UPS, pure sine-wave
Capacity 2200 VA / 1980 W
Input Voltage 100–127 V AC @ 50/60 Hz
Output Voltage 100–127 V pure sine wave
Topology Line‑interactive with AVR
Transfer Time 2–4 ms
Outlets 6 × NEMA 5‑15R & 2 × NEMA 5‑20R (battery-backed)
Switched Outlet Groups 3 separate
SmartSlot 1 slot for NMC cards (remote management, optional)
Battery Sealed lead‑acid, hot-swappable; 3 h recharge; 3–5 yr life
Extended Runtime Supports up to 10 × SMX120RMBP2U external battery packs
Dimensions (H×W×D) 3.35″ × 17″ × 26.26″ (85 × 431 × 667 mm)
Weight Approx. 84.8 lb / 38.45 kg
Efficiency Up to 98% at full load
Surge Energy Rating 540 J
Communications LCD, USB, Serial, Audible alarms, EPO support
Warranty 3‑Year UPS; 2‑Year battery; optional on-site service
