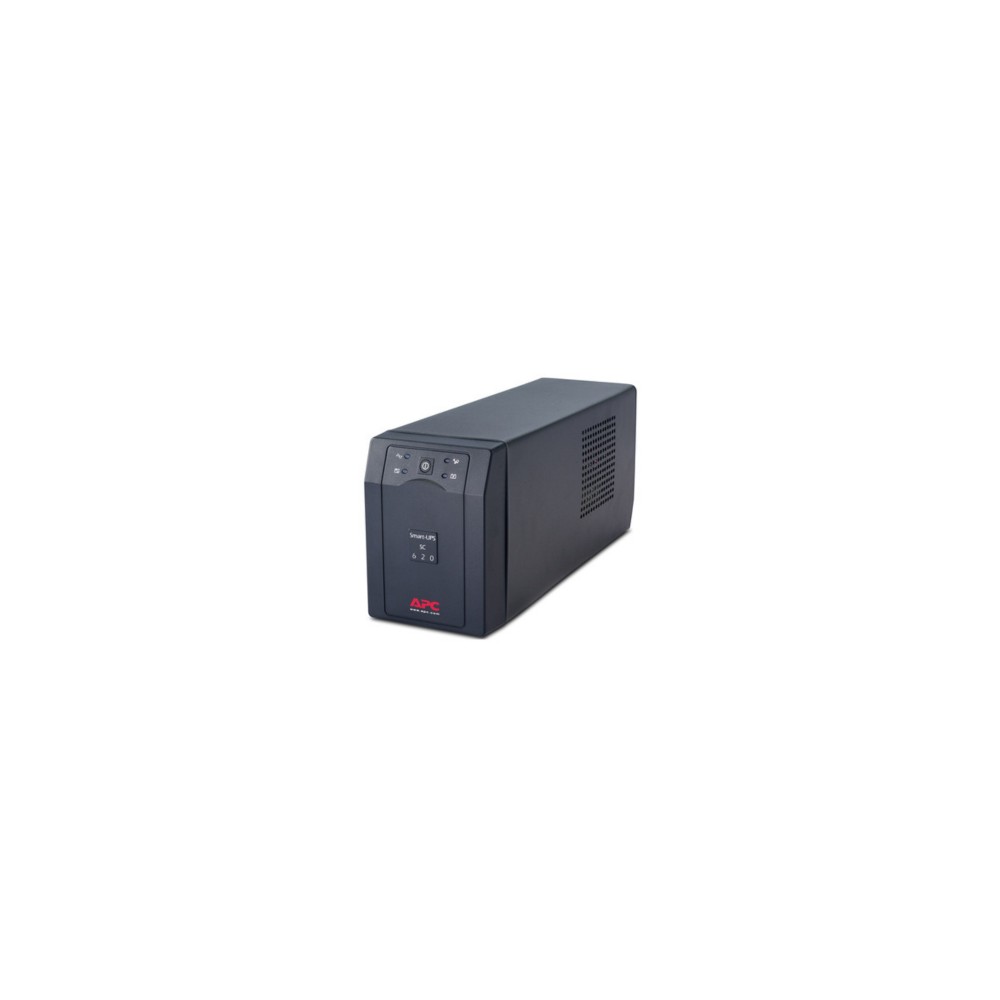

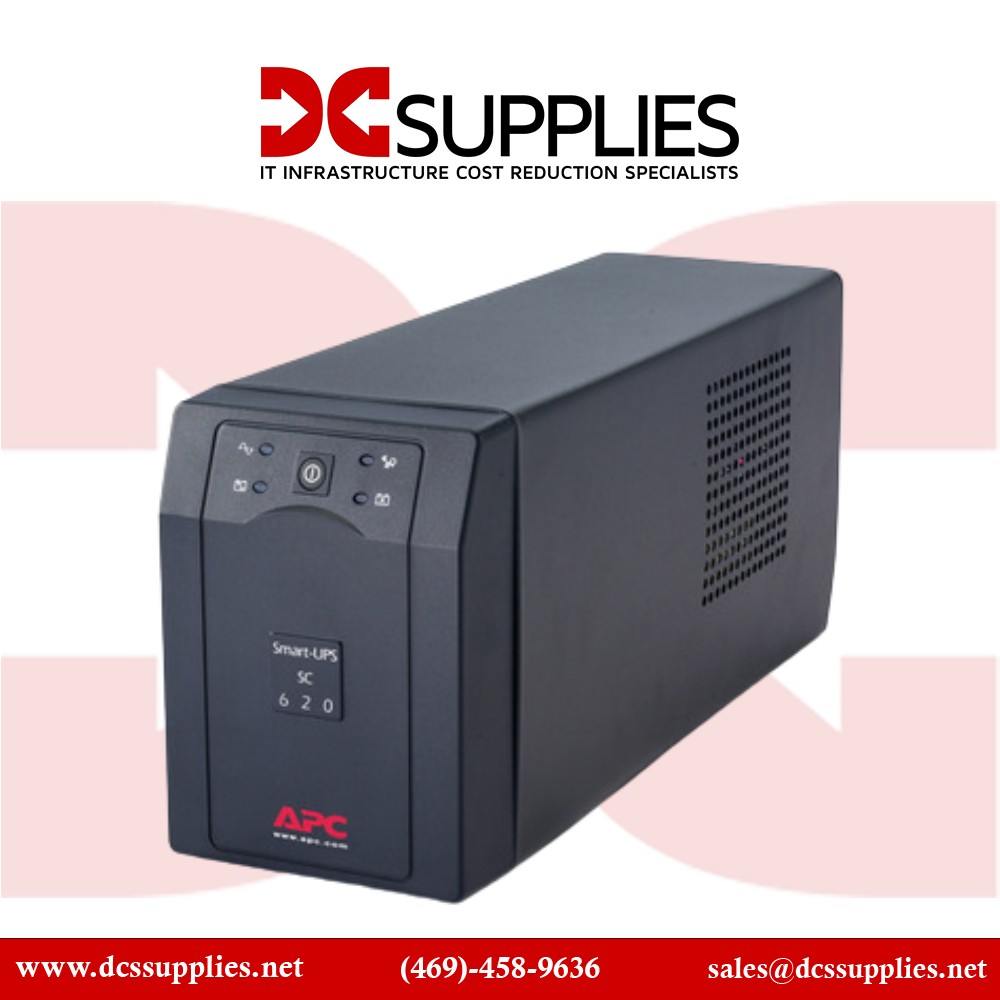

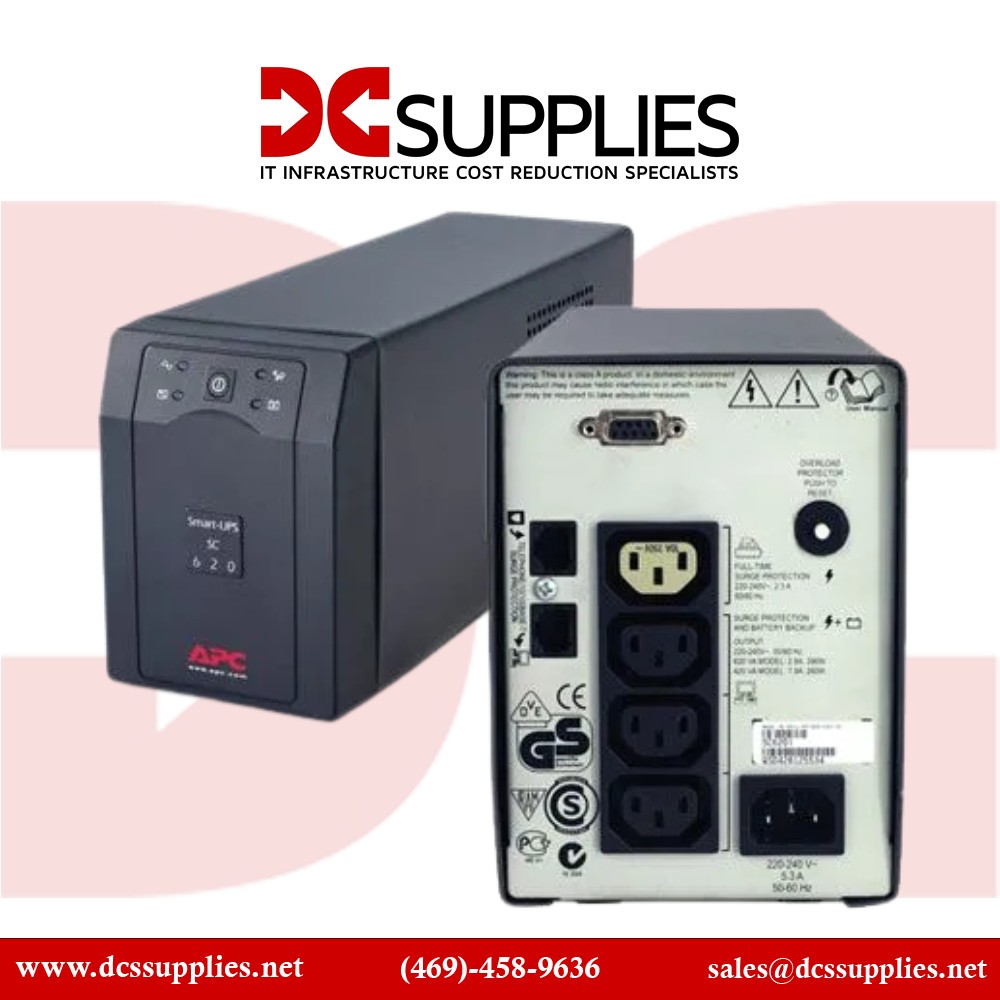

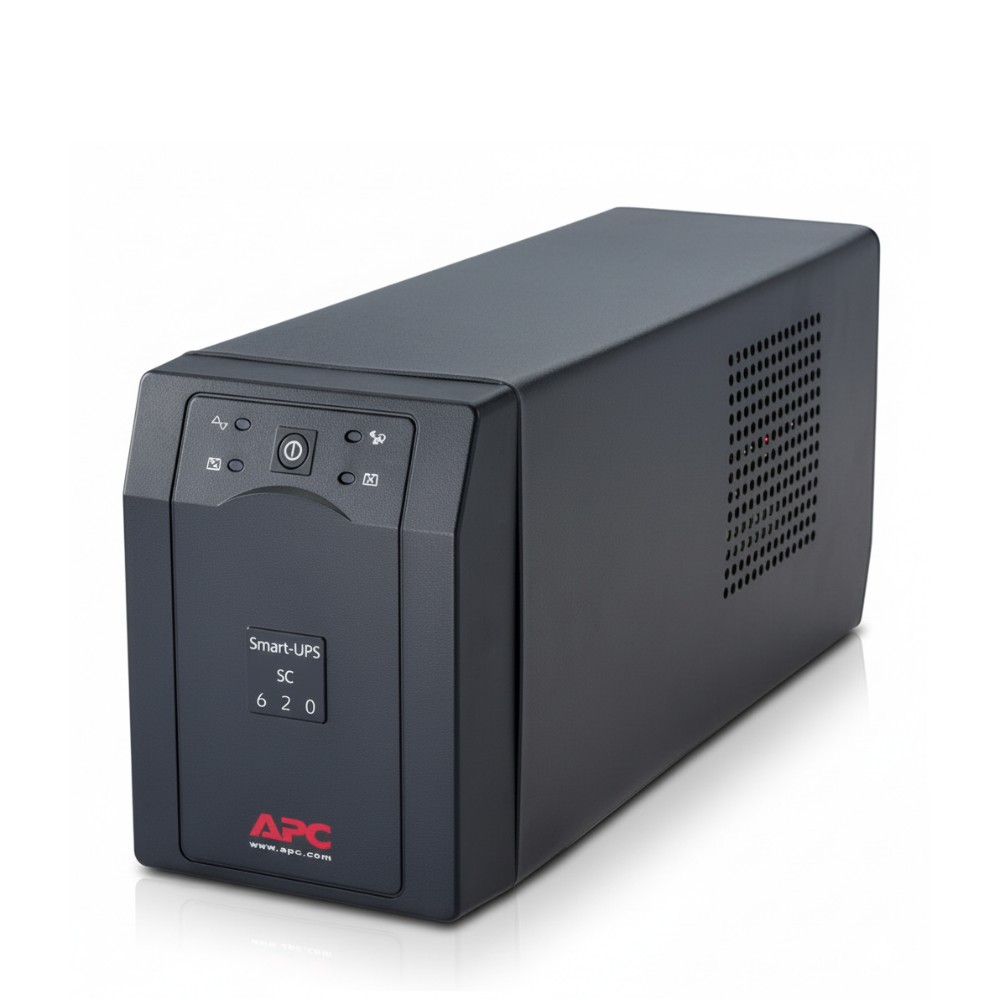

APC SC620I Smart-UPS SC 620VA Tower Model - 230V International Version View larger

APC SC620I Smart-UPS SC 620VA Tower Model - 230V International Version

New

APC SC620I 620VA Line-Interactive Smart-UPS with 4 AC outlets for reliable backup power
×




  • New

Detailed Specifications

APC

SC620I

Smart‑UPS SC 620VA Tower UPS (230V International)

The APC SC620I Smart‑UPS SC 620VA Tower is a 230 V international model designed to safeguard small business servers, network devices, and POS systems. It delivers reliable backup power and clean, regulated electricity during outages and disturbances.

Features

This UPS features 620 VA capacity (390 W) and utilizes line‑interactive design with stepped sine wave output, ensuring efficient power conditioning. Its wide input range (approximately 195–265 V) supports harsh electrical environments  Hot‑swappable battery design allows servicing without interrupting power to essential equipment—ideal for continuous operations.

Advanced Options

The SC620I includes surge protection for power and data lines, PLUS RS‑232 connectivity for comprehensive management and safe shutdown procedures using APC PowerChute software

Product Key Features

  •  620 VA / 390 W line‑interactive UPS with pure sine wave output

  •  Supports hot‑swappable battery replacement without shutdown

  •  Surge and data‑line protection for connected equipment

  •  Includes RS‑232 interface for UPS management

  •  Compact tower form factor suitable for international 230 V setups

  •  Environmentally conscious recyclable packaging & take‑back support

Reliability & Performance

Built to APC’s quality standards, the SC620I ensures dependable runtime—around 5.5 minutes at full load and approximately 15.7 minutes at half load  Maintenance‑free sealed lead‑acid battery is user replaceable, with a typical lifespan of 3–5 years . Audible alarms and LED indicators keep you informed of UPS status, while automatic voltage regulation keeps output steady.

Key Features (Bullet List)

  • 620 VA / 390 W output capacity

  • Pure sine wave power protection

  • Wide input voltage range (≈195–265 V)

  • Hot‑swap battery replacement

  • RS‑232 communication interface

  • Surge and data‑line protection (RJ‑45)

  • Line‑interactive topology with AVR

  • Compact tower form factor

  • Replaceable RBC4 battery cartridge

  • Eco-friendly packaging and take‑back program

Specifications :

SpecificationDetails
Model SC620I
Type Tower Line‑Interactive UPS
Capacity 620 VA / 390 W
Input Voltage 230 V nominal, 195–265 V range
Output Voltage 230 V pure sine wave
Topology Line‑Interactive

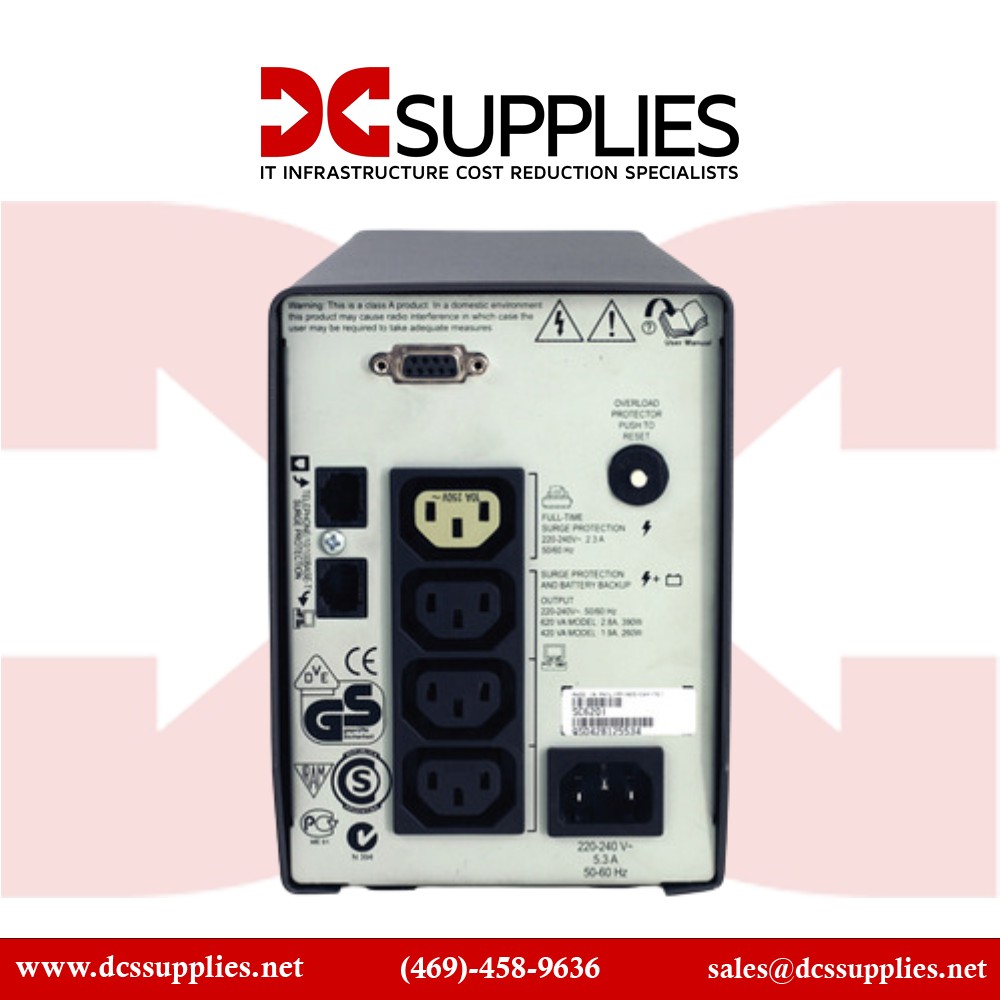

Plug & Outlets 1 × IEC‑C14 inlet; 3 × IEC‑C13 battery + surge outlets; 1 × IEC‑C13 surge only
Transfer Time ~2 ms typical
Battery Type Sealed lead‑acid, user‑replaceable (RBC4)
Backup Time ~5.5 min (full load); ~15.7 min (half load)
Recharge Time ~5 hours
Management Port RS‑232 DB9 connector
Surge Protection 320 Joules plus RJ‑45 data‑line protection
Dimensions 168 × 119 × 375 mm (H×W×D)
Weight 12.27 kg
Operating Temp./Humidity 0–40 °C, 0–95% humidity
Noise Level 45 dBA @ 1 m
Certifications CE, EAC, GOST, VDE, VCCI, RoHS
Warranty 2 years (repair or replace)
