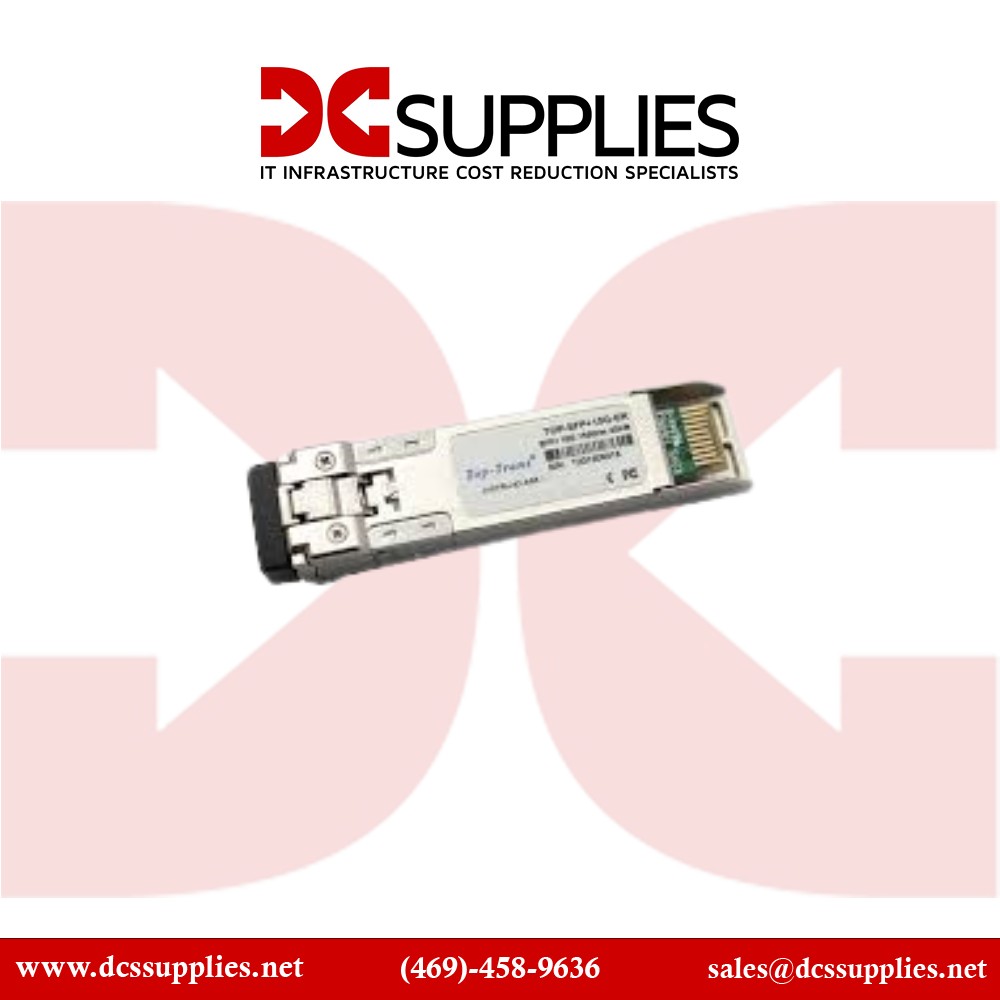

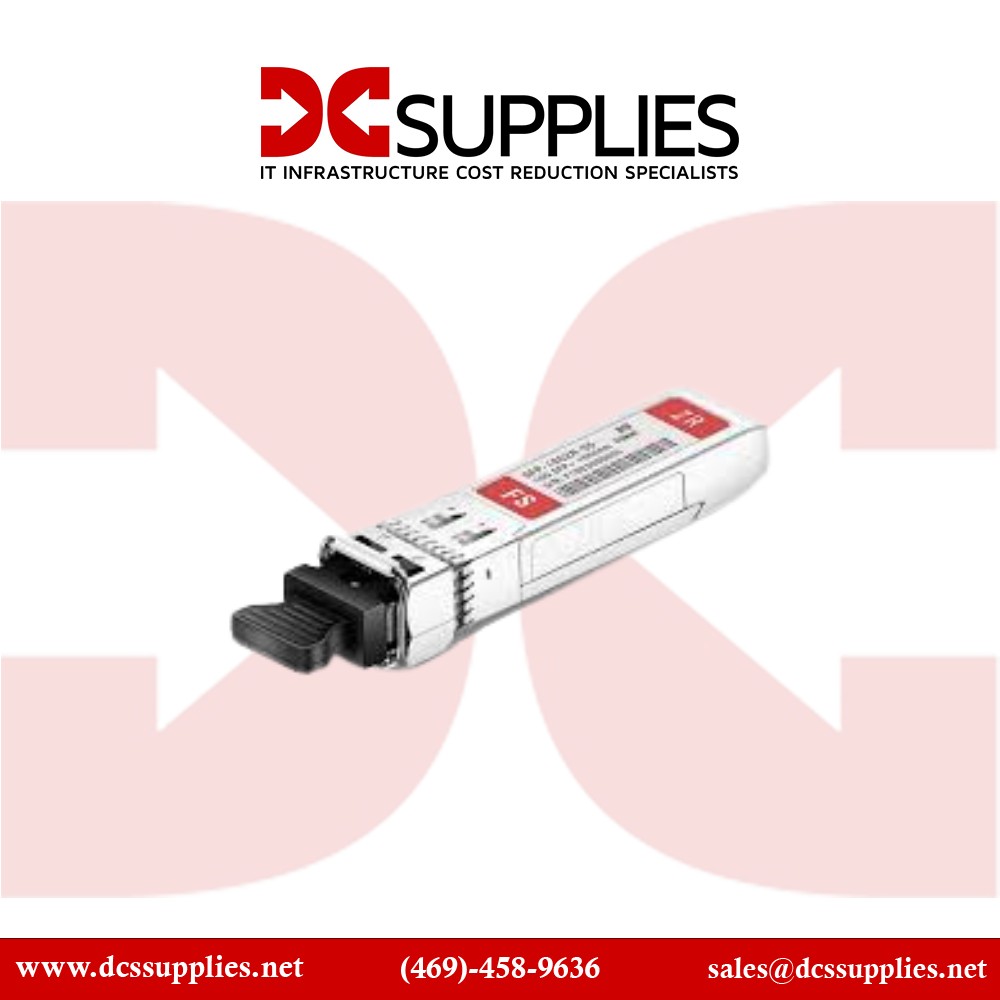

Accortec AA1419066-E6-ACC 1-Port 1000Base CWDM Module, Data Networking

New

1-Port Gigabit CWDM SFP Transceiver, 1570 nm, LC Connector
×




  • New

Detailed Specifications

Accortec AA1419066-E6-ACC

1-Port 1000Base-CWDM SFP Module – 1570nm, 80km, LC Duplex

The Accortec AA1419066-E6-ACC 1-Port 1000Base-CWDM SFP Module is designed to meet the demands of high-bandwidth enterprise and service provider networks. Operating at a CWDM-specific 1570 nm wavelength, this module enables efficient utilization of fiber infrastructure by allowing multiple channels on a single optical strand.

Features :

This 1-Port 1000Base-CWDM optical transceiver module operates at 1570 nm wavelength for CWDM deployments with an LC Duplex connector for secure and easy fiber connections. It supports up to 80 km over single-mode fiber and is hot-swappable for seamless network upgrades. The module is fully compliant with 1000Base-X and MSA standards.

Advanced Options :

Featuring a hot-swappable SFP form factor and LC Duplex connector, the AA1419066-E6-ACC supports quick, tool-free installations while minimizing network disruptions. It provides up to 80 km of data transmission over 9 μm single-mode fiber, enabling reliable interconnectivity between buildings, campuses, or remote facilities. The module is MSA-compliant and interoperable with a broad range of routers, switches, and optical platforms.

Product Key Features

  • 1-Port 1000Base-CWDM optical transceiver module
  • Operates at 1570 nm wavelength for CWDM deployments
  • LC Duplex connector for secure and easy fiber connections
  • Supports up to 80 km over single-mode fiber
  • Hot-swappable for seamless network upgrades
  • Fully compliant with 1000Base-X and MSA standards

Reliability & Performance :

Manufactured by Accortec, a leader in networking components, this CWDM SFP module is engineered for long-term performance and operational stability. With Digital Diagnostics Monitoring (DDM) support, administrators can monitor real-time parameters like temperature, voltage, and optical power to ensure optimal network uptime and performance. Its low power consumption and compact design are ideal for high-density deployments in rackmount systems.

Key Features :

  • 1-Port 1000Base-CWDM Optical Transceiver
  • Operates at 1570 nm CWDM wavelength
  • LC Duplex connector for secure SMF connections
  • Up to 80 km transmission over 9 μm single-mode fiber
  • Hot-swappable SFP form factor
  • MSA and 1000Base-X compliant
  • Supports Digital Diagnostics Monitoring (DDM)

Specifications :

SpecificationDetails
Model Number AA1419066-E6-ACC
Brand Accortec
Type CWDM SFP Optical Transceiver Module
Port Count 1-Port
Data Rate 1 Gbps (Gigabit Ethernet)
Wavelength 1570 nm
Connector Type LC Duplex
Transmission Distance Up to 80 km (single-mode fiber)
Interface SFP (Hot-swappable)
Form Factor SFP
Fiber Mode 9 μm Single-Mode Fiber
DDM Support Yes
Compatibility 1000Base-X, MSA Compliant
Power Consumption <1.5W
Operating Temperature 0°C to 70°C
Dimensions Approx. 2.2 x 0.5 x 0.3 inches
Weight Approx. 0.02 lbs
