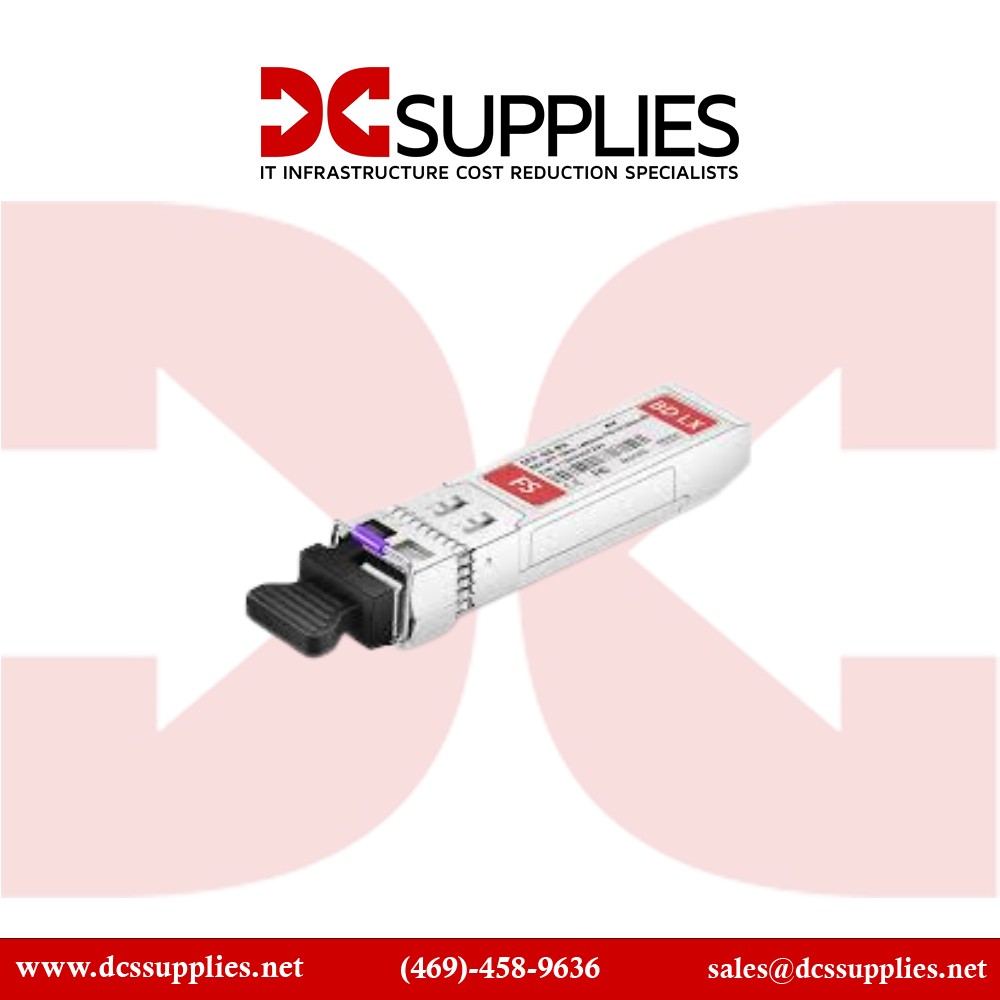

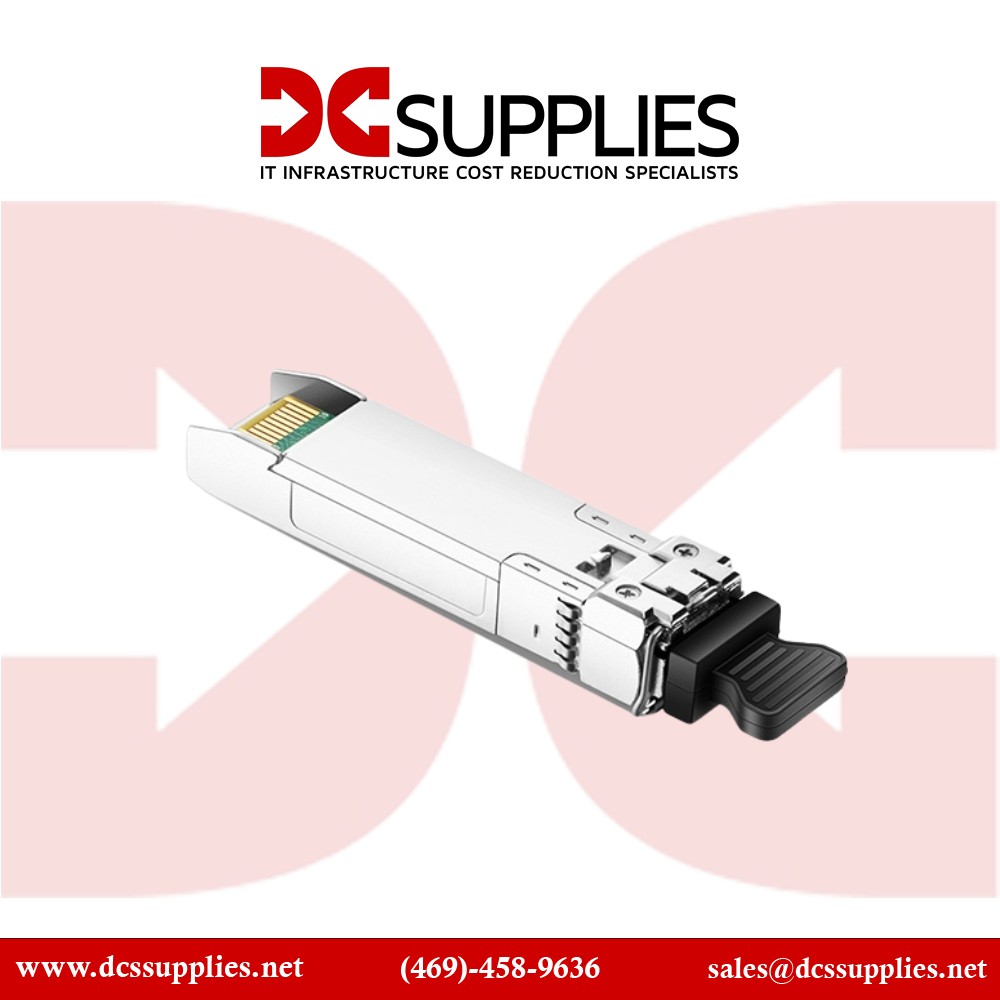

Sole Source AA1419082-E5-SG 100Mbps 100Base-BX-U Single-mode Fiber Connector SFP View larger

Sole Source AA1419082-E5-SG 100Mbps 100Base-BX-U Single-mode Fiber Connector SFP

New

Sole Source AA1419082-E5-SG 100BASE-BX-U SFP ensures reliable 100Mbps single-mode fiber connectivity for networks.
×




  • New

Detailed Specifications

Sole Source Technology AA1419082-E5-SG

100Mbps 100BASE-BX-U Single-Mode Fiber LC SFP Transceiver

BiDi 100Mbps single-fiber uplink SFP.

Overview :

The Sole Source Technology AA1419082-E5-SG is a 100BASE-BX-U bidirectional Small Form-factor Pluggable (SFP) optical transceiver. It supports fast Ethernet connectivity over a single strand of single‑mode fiber (SMF), transmitting at 1310nm and receiving at 1550nm. With a reach of up to 10km and LC connector interface, this transceiver provides reliable compatibility with Nortel OEM networking equipment. Its hot‑swappable design and MSA compliance make it an efficient, future-ready choice for enterprise, campus, and service provider networks.

Features :

This Sole Source Technology module reduces cabling costs by enabling TX/RX over a single fiber (BiDi). It provides compliance with IEEE 802.3u 100BASE-BX standards and features Digital Diagnostics Monitoring (DDM) for proactive network health management. Energy-efficient operation, streamlined deployment, and Nortel compatibility ensure dependable integration in business‑critical environments.

Product Key Features

  • 100BASE-BX-U BiDi SFP from Sole Source Technology
  • 1310nm TX / 1550nm RX for single-mode fiber
  • LC interface with up to 10km reach
  • Designed for Nortel OEM compatibility

Reliability & Performance :

With its hot-swappable, MSA-compliant design, the Sole Source Technology AA1419082-E5-SG ensures stable and efficient fast Ethernet links in access and metro networks. Robust diagnostics enable administrators to monitor optical power, temperature, and voltage. It delivers consistent throughput and is broadly interoperable, providing a dependable, OEM-compliant upgrade path while reducing overall infrastructure costs with BiDi single-fiber operation.

Key Features :

  • 1-port SFP transceiver for 100BASE-BX-U fast Ethernet
  • Single-fiber operation reduces cabling infrastructure
  • Hot-pluggable, DDM monitoring supported
  • Backed by Sole Source Technology quality assurance

Specifications :

SpecificationDetails
Model Number AA1419082-E5-SG
Brand Sole Source Technology
Product Type SFP Optical Transceiver
Standard 100BASE-BX-U
Data Rate 100 Mbps
Transmit Wavelength 1310nm
Receive Wavelength 1550nm
Fiber Type Single-Mode Fiber (SMF)
Connector LC Simplex
Max Distance Up to 10 km
Form Factor Hot-Pluggable SFP
Compatibility Nortel OEM switches/routers
Diagnostic Monitoring DDM (Digital Diagnostics Monitoring)
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Power Consumption <1w typical="" td="">
MSA Compliance Yes
TAA Compliance Yes
Encryption DECT Security & Optical Layer Standards
Applications Enterprise LAN, Campus, Metro Access
Certifications CE, FCC, RoHS
Warranty 3-Year Warranty by Sole Source Technology
