Sole Source Technology AA1419069-E6-SG 1000BASE-BX-U SFP SMF LC Nortel Compatible View larger

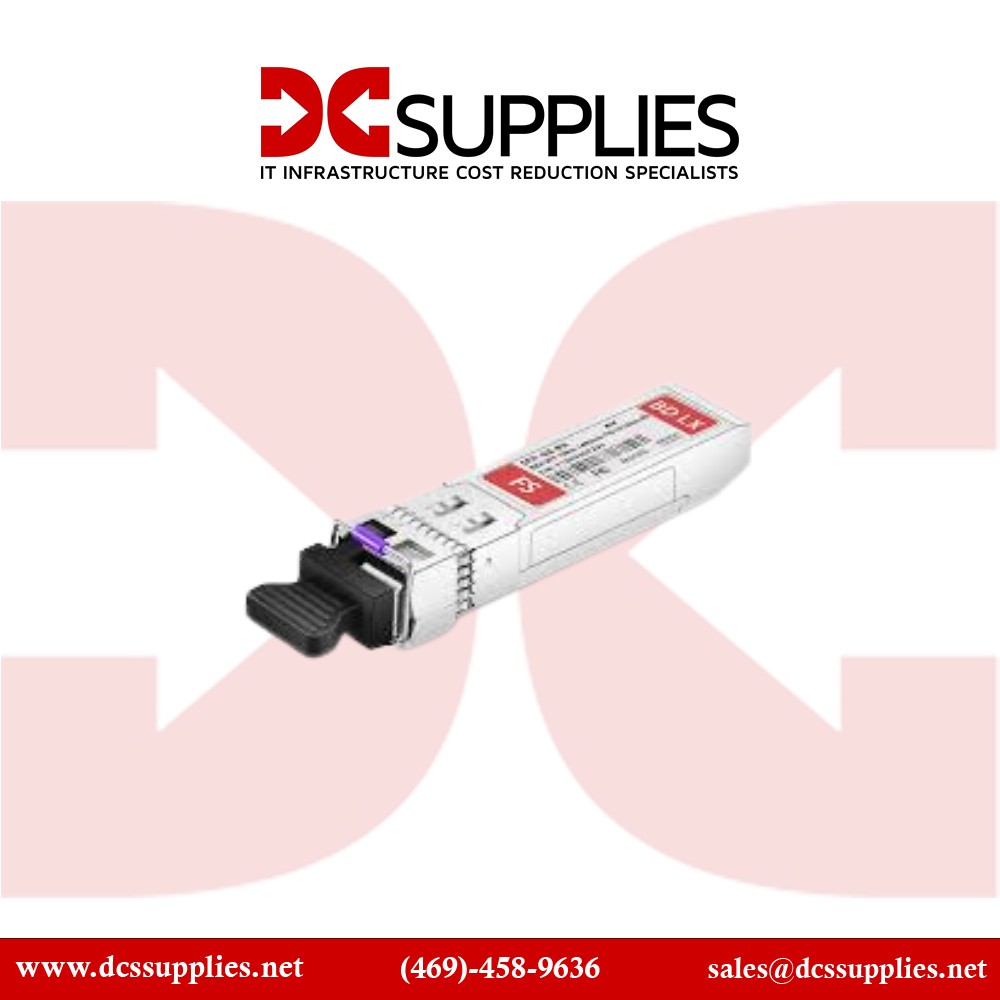

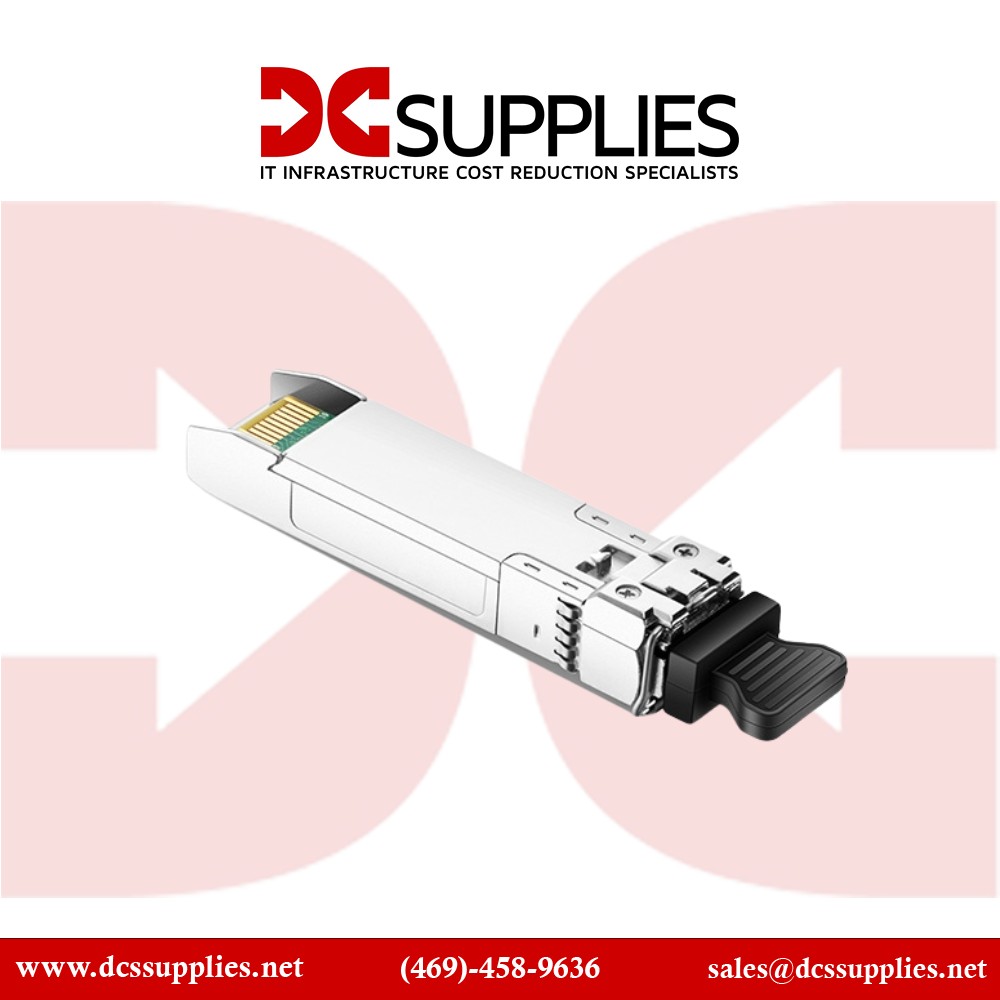

Sole Source Technology AA1419069-E6-SG 1000BASE-BX-U SFP SMF LC for Nortel

New

Sole Source AA1419069-E6-SG 1000BASE-BX-U SFP provides reliable single-mode LC fiber connectivity for Nortel systems.
×




  • New

Detailed Specifications

Sole Source Technology AA1419069-E6-SG

1000BASE-BX-U SFP SMF LC for Nortel Transceiver

BiDi Gigabit uplink SFP for Nortel systems.

Overview :

The Sole Source Technology AA1419069-E6-SG is a 1000BASE-BX-U bidirectional (BiDi) SFP optical transceiver for Gigabit Ethernet applications. Using single-mode fiber (SMF), it supports 1.25Gbps transmission with 1310nm TX and 1490nm RX wavelengths, enabling communication up to 10km over a single strand of fiber. Fully interoperable with Nortel platforms, the Sole Source Technology AA1419069-E6-SG is hot‑pluggable, MSA compliant, and designed for cost‑efficient scalability in enterprise, access, and campus networks.

Features :

This Sole Source Technology SFP reduces cabling by using bidirectional optics to send and receive data over a single fiber strand. It integrates Digital Diagnostics Monitoring (DDM) for proactive performance tracking and is engineered for robust, energy‑efficient operation. The BiDi BX‑U module complements BX‑D counterparts for paired deployment, providing OEM‑grade compatibility with Nortel systems, ensuring both interoperability and ease of installation.

Product Key Features

  • 1000BASE-BX-U BiDi SFP from Sole Source Technology
  • 1310nm transmit / 1490nm receive wavelengths
  • LC connector, single-mode fiber, up to 10km range
  • Hot-swappable, Nortel compatible, with DDM support

Reliability & Performance :

The Sole Source Technology AA1419069-E6-SG ensures strong, stable optical links for business‑critical platforms. Hot‑swap capability means zero downtime during maintenance or upgrades. DDM functions allow administrators to monitor real‑time conditions such as temperature and optical power, reducing risk of failures. Fully compliant with MSA and TAA standards, and validated for Nortel systems, this module provides reliable high‑speed connectivity at lower cost than OEM options.

Key Features :

Specifications :

SpecificationDetails
Model Number AA1419069-E6-SG
Brand Sole Source Technology
Product Type BiDi SFP Optical Transceiver
Standard 1000BASE-BX-U
Data Rate 1.25 Gbps
Transmit Wavelength 1310nm
Receive Wavelength 1490nm
Fiber Type Single-Mode Fiber (SMF)
Interface LC Duplex (BiDi)
Maximum Distance Up to 10 km
Form Factor Hot-Pluggable SFP
Compatibility Nortel OEM systems
DDM Support Yes (Digital Diagnostics Monitoring)
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Power Consumption <1w typical="" td="">
Compliance MSA, TAA
Hot Swappable Yes
Applications Enterprise LAN, Campus, Access Networks
Diagnostics Optical Power, Temp, Voltage
Certifications CE, FCC, RoHS
Warranty 3-Year Limited Warranty by Sole Source Technology
