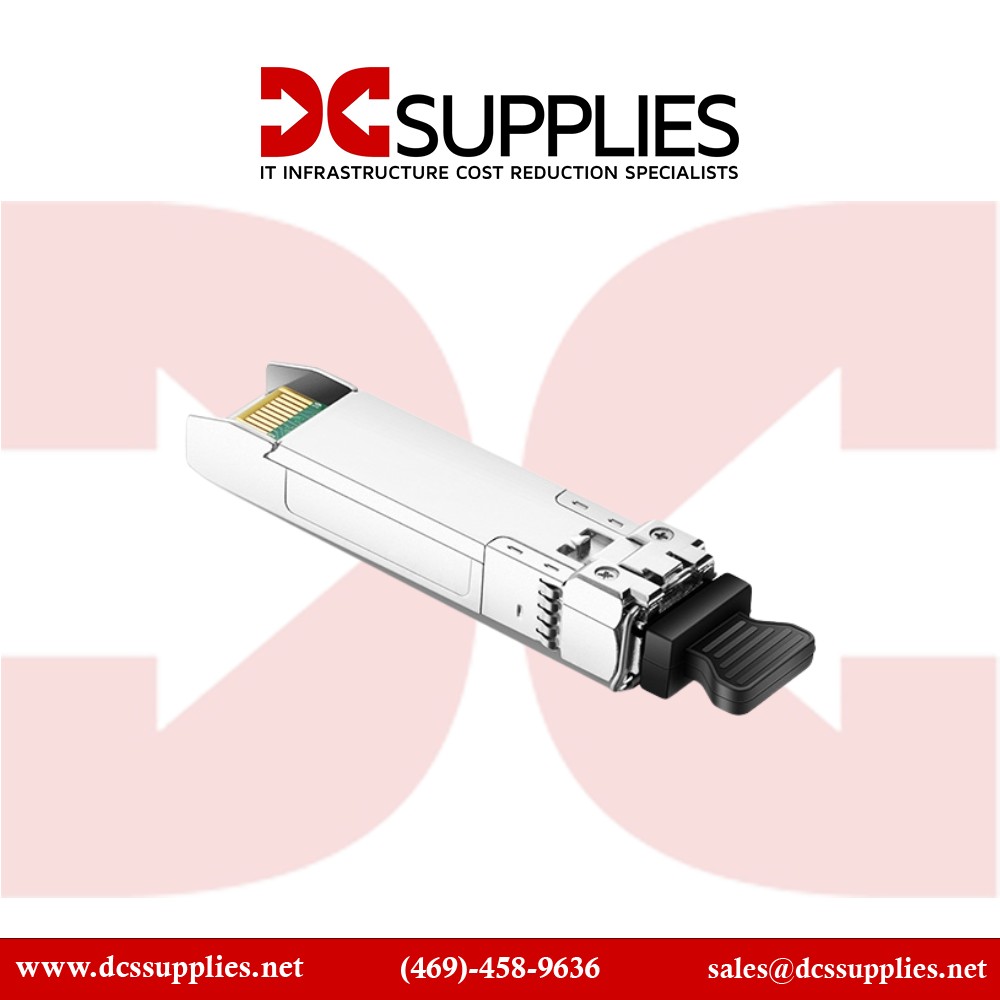

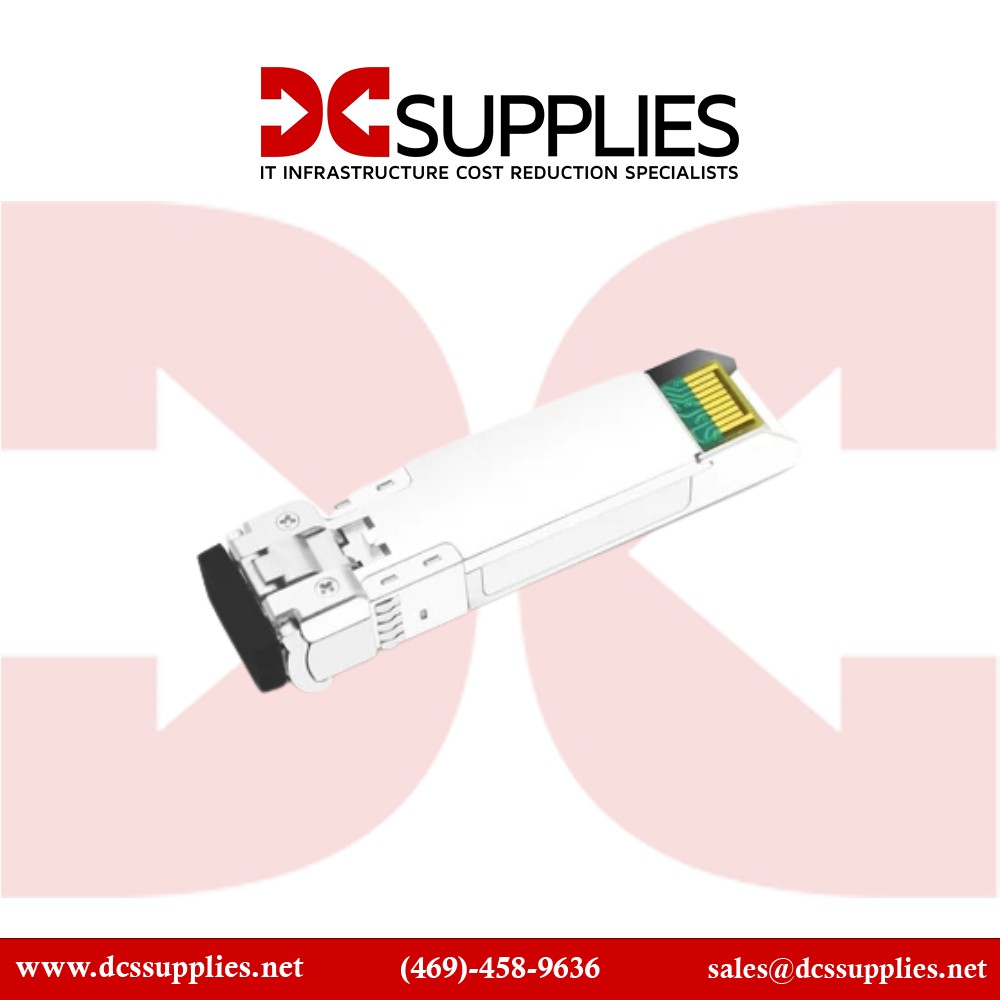

Sole Source Technology AA1419070-E6-SG 1000BASE-BX-D SFP SMF LC Nortel 1490NM View larger

Sole Source Technology AA1419070-E6-SG 1000BASE-BX-D SFP SMF LC Nortel 1490NM

New

Sole Source AA1419070-E6-SG 1000BASE-BX-D SFP ensures reliable single-mode LC fiber connectivity, fully Nortel compatible.
×




  • New

Detailed Specifications

Sole Source Technology AA1419070-E6-SG

1000BASE-BX-D SFP Transceiver SMF LC Nortel 1490nm TX / 1310nm RX – 100% Compatible Transceiver

BiDi Gigabit SFP module for long-haul links.

Overview :

The Sole Source Technology AA1419070-E6-SG is a 1000BASE-BX-D bidirectional (BiDi) SFP transceiver designed for Gigabit Ethernet applications. It delivers 1.25Gbps data rates over a single strand of single-mode fiber (SMF), using a 1490nm wavelength for transmit and a 1310nm wavelength for receive. This compact LC connector-based module supports distances up to 10km. Fully compatible with Nortel systems, the Sole Source Technology AA1419070-E6-SG provides reliable, OEM-grade performance for enterprise and service provider networks.

Features :

This Sole Source Technology SFP module offers bi‑directional transmission, allowing TX and RX on a single fiber strand, reducing cabling needs and overall infrastructure costs. It is hot‑pluggable, MSA compliant, and supports Digital Diagnostics Monitoring (DDM). With low power operation and full OEM compatibility, it provides a stable and cost-efficient solution for Gigabit Ethernet connectivity in campus and access networks.

Product Key Features

  • 1000BASE-BX-D BiDi SFP from Sole Source Technology
  • 1490nm TX / 1310nm RX wavelengths using LC SMF
  • Supports up to 10km reach for Ethernet applications
  • 100% Nortel compatible, fully MSA & DDM compliant

Reliability & Performance :

The Sole Source Technology AA1419070-E6-SG ensures consistent bi‑directional transmission with minimal latency and stable optical performance. Its use of a single fiber strand saves infrastructure costs while maintaining robust 1.25Gbps throughput. OEM validation ensures seamless interoperability with Nortel platforms. Digital Diagnostics Monitoring supports preventive maintenance, while its hot‑swappable design minimizes downtime. Built to high manufacturing standards, this transceiver delivers dependable performance for mission‑critical environments.

Key Features :

  • Bidirectional Gigabit link with single fiber
  • 10km range over SMF, LC connector
  • DDM-enabled with hot-swap design
  • Certified Nortel compatible by Sole Source Technology

Specifications :

SpecificationDetails
Model Number AA1419070-E6-SG
Brand Sole Source Technology
Product Type 1000BASE-BX-D BiDi SFP Transceiver
Standard IEEE 802.3z 1000BASE-BX-D
Data Rate 1.25 Gbps
Wavelength (TX / RX) 1490nm TX / 1310nm RX
Fiber Type Single-Mode Fiber (SMF)
Connector Type LC Duplex (BiDi)
Maximum Distance Up to 10 km
Form Factor Hot-Pluggable SFP
Compatibility 100% Nortel Systems
DDM Support Yes (Digital Diagnostics Monitoring)
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Power Consumption <1w typical="" td="">
Compliance MSA, TAA
Hot Swappable Yes
Applications Enterprise LAN, Campus, Metro Access
Diagnostics Optical Power, Temp, Voltage via DDM
Certifications CE, FCC, RoHS
Warranty 3-Year Limited Warranty by Sole Source Technology
