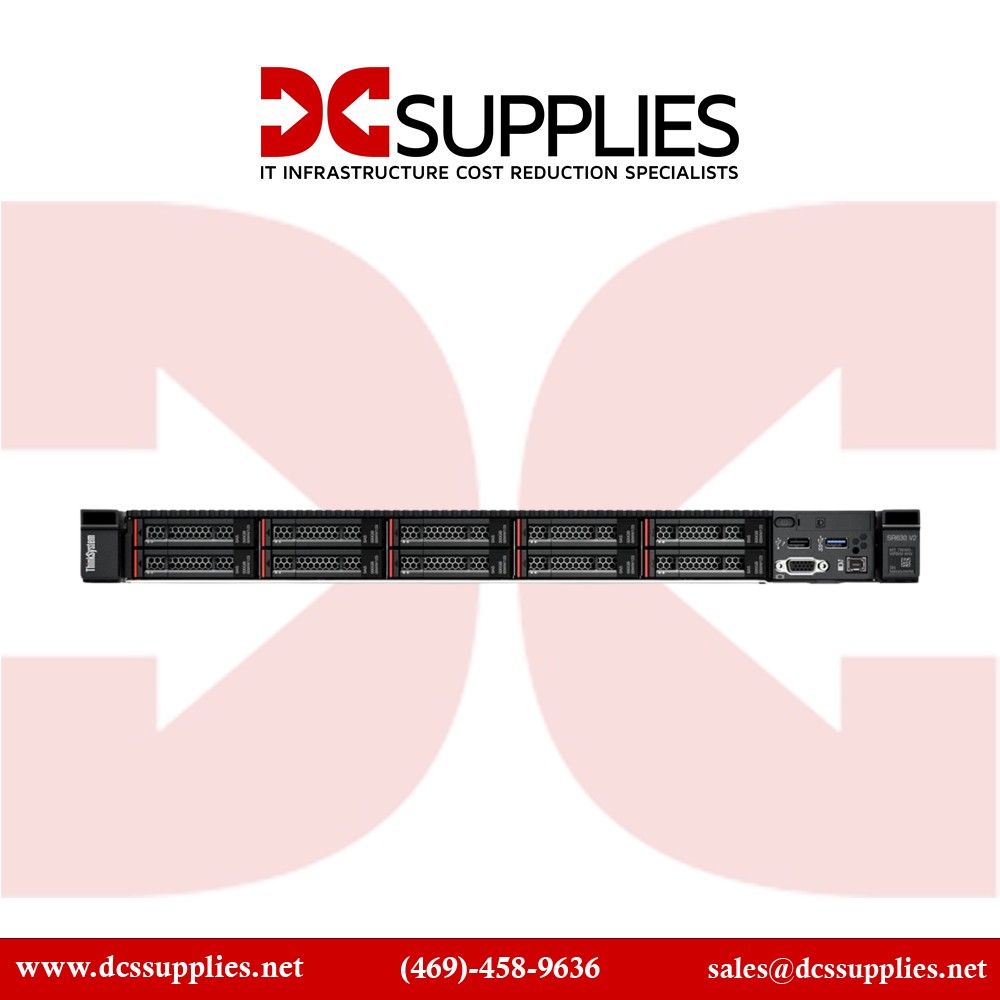

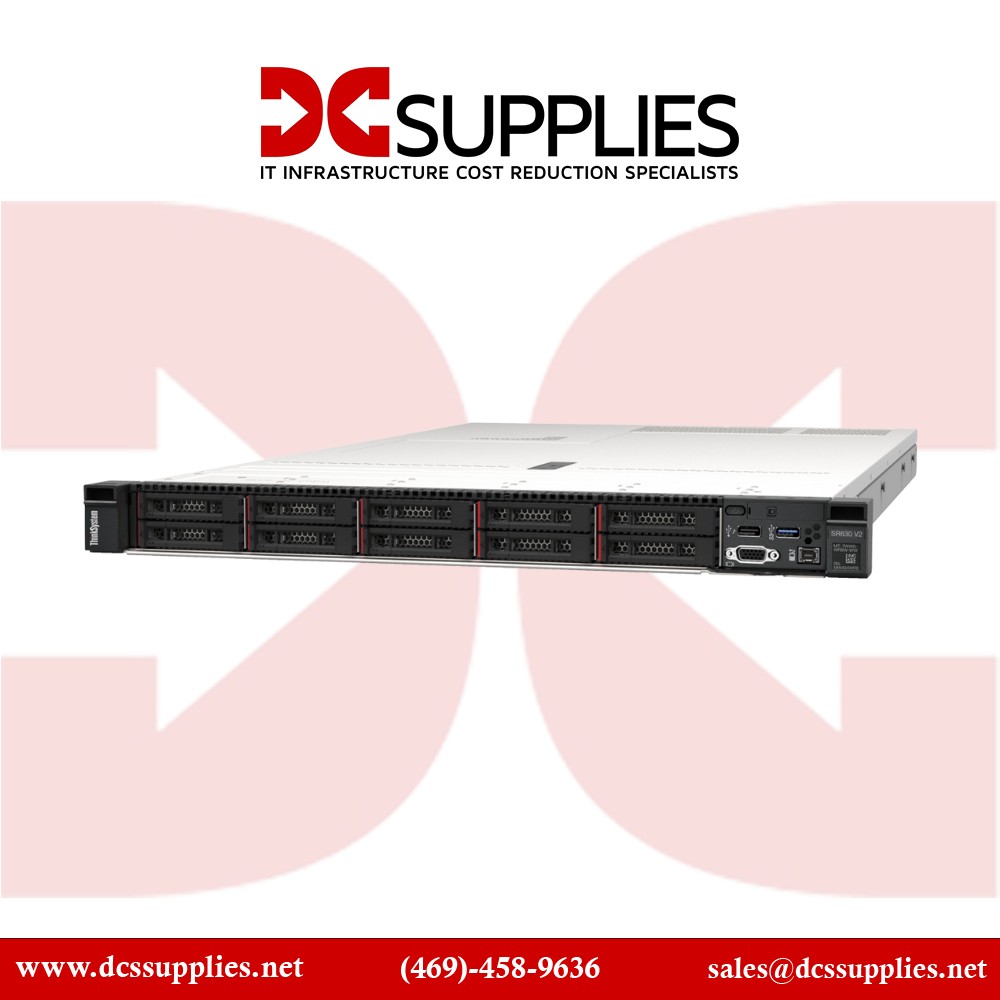

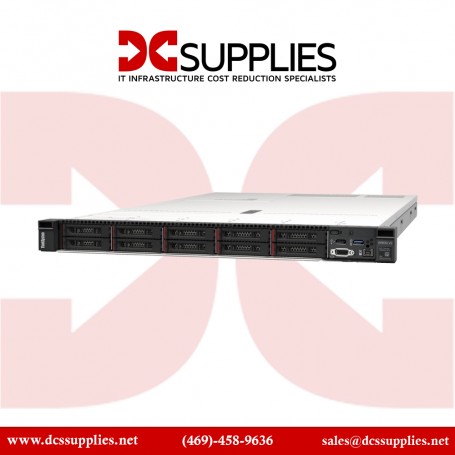

Lenovo 7Z71A01ENA ThinkSystem SR630 V2 server 2.8 GHz 32 GB Rack (1U) Intel Xeon Silver 750 W DDR4-SDRAM View larger
Previous Next

Lenovo 7Z71A01ENA ThinkSystem SR630 V2 server 2.8 GHz 32 GB Rack

New

Lenovo 7Z71A01ENA ThinkSystem SR630 V2 server 2.8 GHz 32 GB Rack
×




  • New

Detailed Specifications

Lenovo

7Z71A01ENA

ThinkSystem SR630 V2 1U Rack Server

The Lenovo ThinkSystem SR630 V2 (7Z71A01ENA) is a high-performance yet compact 1U rack server built for modern enterprise workloads. Powered by an Intel® Xeon® Silver 4309Y processor (2.8 GHz base) with 32 GB DDR4 ECC memory, this unit brings balanced computing performance for virtualization, databases, and cloud applications. Featuring a robust 750 W power supply with redundancy, versatile drive configurations, and Lenovo’s XClarity Controller for remote management, it delivers business-class reliability and scalability in a sleek rack-ready design.

Features

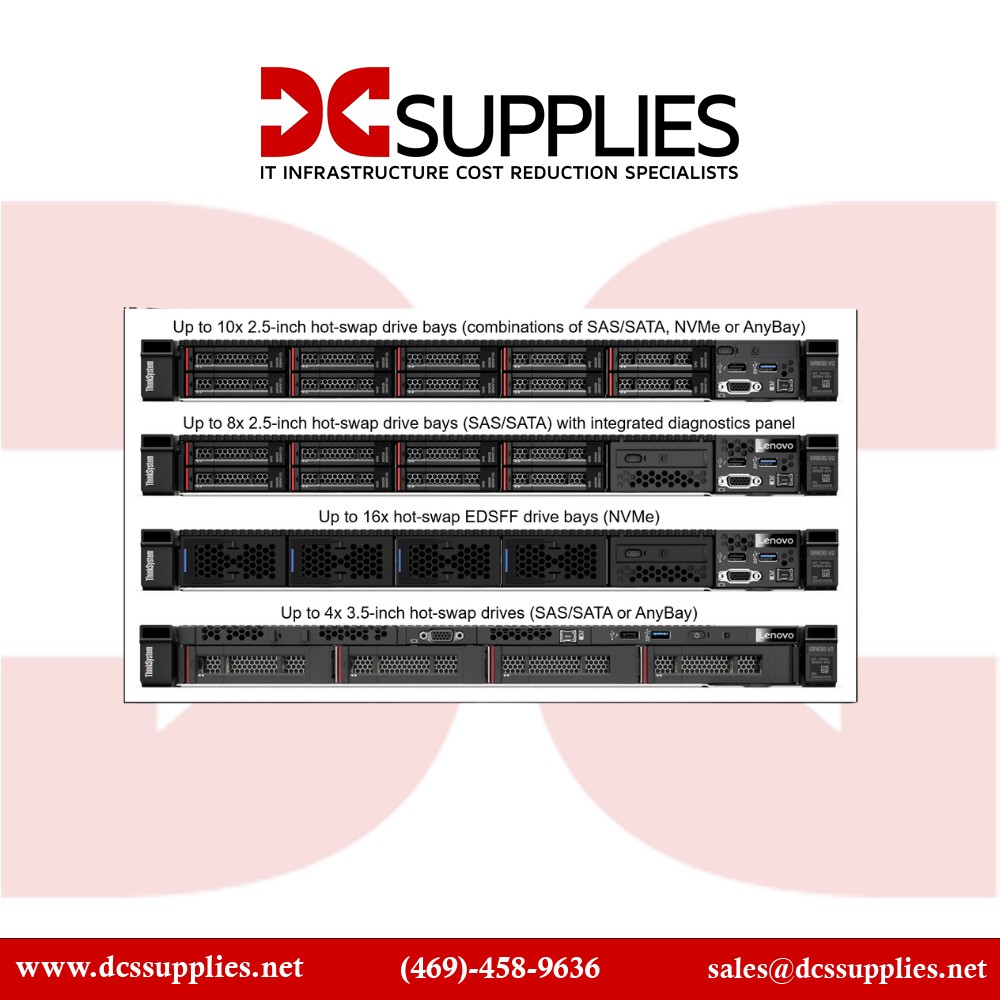

The SR630 V2 combines enterprise-grade flexibility with capacity to support hybrid data center operations. Its 2.8 GHz Xeon Silver 4309Y processor (12 MB cache) and 32 GB DDR4-3200 memory enable efficient multitasking with room to expand. The chassis supports up to 12 × 2.5″ NVMe or 4 × 3.5″ HDD/SSD bays, along with dual M.2 slots, offering a range of storage and boot options.

Advanced Options

Networking is handled via onboard 1 GbE ports, with OCP 3.0 and PCIe Gen4 expansion available for 10/25 GbE upgrades. A 750 W PSU with optional redundancy ensures consistent uptime, while the server stays within ASHRAE Class A2 thermal specifications. Lenovo’s ThinkShield protection and XClarity Controller provide firmware security, remote monitoring, and centralized lifecycle tools—ideal for secure, scalable rack deployments.

Product Key Features

  • Intel® Xeon® Silver 4309Y (2.8 GHz, 12 MB cache) processor

  • 32 GB DDR4‑3200 ECC memory (up to 8 TB via 32 DIMMs)

  • Flexible storage: 4 × 3.5″ or up to 12 × 2.5″ bays, plus dual M.2

  • Onboard 1 GbE networking plus expansion via OCP/PCIe

  • 750 W hot-plug power supply with redundancy option

  • Lenovo XClarity Controller with ThinkShield security

Reliability & Performance

The SR630 V2 server delivers dependable performance through its Intel Xeon platform and ECC memory, ideal for mixed workloads. Storage flexibility allows optimized configurations for performance or capacity, and the PSU ensures service continuity. Cooling meets strict thermal standards, suited to densely packed rack systems. Lenovo XClarity Controller enables secure remote diagnostics, firmware updates, and power control—reducing onsite interventions. ThinkShield hardware protections guard against firmware-level attacks. With scalable expansion options, the server adapts to evolving business needs while maintaining energy efficiency and uptime.

Key Features (Bullet List)

  • Intel Xeon Silver 4309Y CPU, 2.8 GHz

  • 32 GB DDR4 ECC RAM (expandable to 8 TB)

  • Storage options: 4 × 3.5″ or up to 12 × 2.5″, dual M.2

  • Onboard 1 GbE + OCP/PCIe expansion for 10/25 GbE

  • 750 W hot-plug PSU with redundancy choice

  • Lenovo XClarity Controller + ThinkShield security

  • 1U rack form factor, ENERGY STAR certified

Specifications :

SpecificationDetails
Model Number 7Z71A01ENA
Form Factor 1U Rack-mount
Processor Intel Xeon Silver 4309Y (2.8 GHz, 12 MB cache)
Memory 32 GB DDR4-3200 ECC (1 × 32 GB)
Max Memory Up to 8 TB via 32 DIMM slots
Storage Bays 4 × 3.5″ or 12 × 2.5″ plus 2 × M.2
Drive Types SATA, SAS, NVMe
Network Interfaces 2 × 1 GbE embedded, OCP 3.0, PCIe Gen4 expansion
Power Supply 750 W hot-plug; optional redundant configuration
Security & Management Lenovo ThinkShield, XClarity Controller
Thermal Compliance ASHRAE Class A2
Dimensions (HxWxD) ~1.7″ × 17.3″ × 30.4″
Weight ~58 lb (26.3 kg)
Warranty 3-Year Parts/Labor/Onsite
