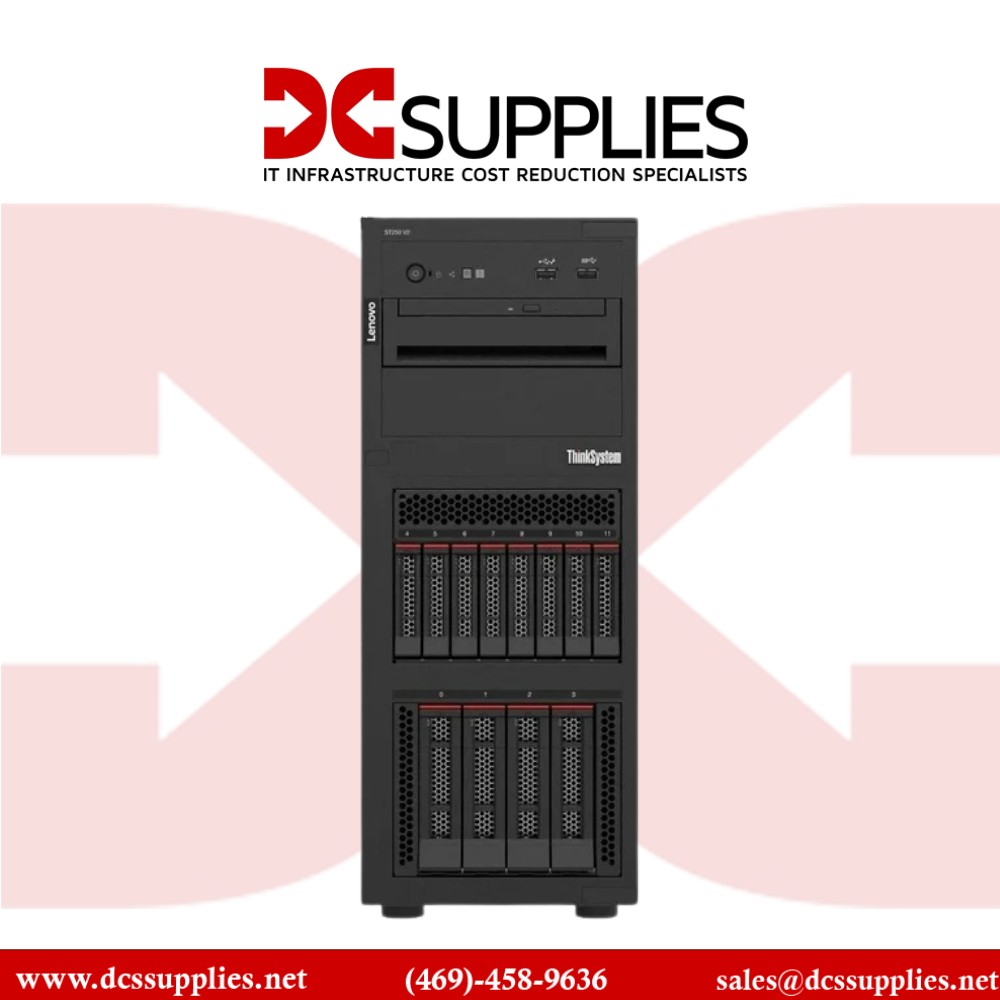

Lenovo 7D8FA012NA ThinkSystem ST250 V2 server Tower Intel Xeon E 2.9 GHz 16 GB DDR4-SDRAM 550 W View larger
Previous Next

Lenovo 7D8FA012NA ThinkSystem ST250 V2 server Tower Intel

New

Lenovo 7D8FA012NA ThinkSystem ST250 V2 server Tower Intel
×




  • New

Detailed Specifications

Lenovo

7D8FA012NA

ThinkSystem ST250 V2 Tower Server

The Lenovo ThinkSystem ST250 V2 (7D8FA012NA) is a versatile and compact 4U tower server that delivers enterprise-class performance for small to medium-sized businesses, remote offices, or branch environments. Powered by the Intel® Xeon® E‑2336 six-core processor (2.9 GHz base, 4.8 GHz turbo), and preinstalled with 16 GB of TruDDR4 ECC memory, it handles workloads like file serving, virtualization, and remote collaboration with ease. With support for hot-swap storage, optional GPU acceleration, and comprehensive systems management via Lenovo XClarity Controller, this server offers flexibility, reliability, and professional-grade features in a space-saving tower design.

Features

The ST250 V2 combines modern CPU performance and memory expansion with flexible I/O and storage options. Featuring one Xeon E‑2300 Series processor, this system supports up to 128 GB of 3200 MHz ECC memory across four UDIMM sockets. The chassis supports robust internal storage configurations—including up to four hot-swappable 3.5‑inch bays—and provides optional optical and media bay expansion. One PCIe Gen4 slot, along with three PCIe Gen3 slots, allows for GPU or networking add-ons, such as NVIDIA Quadro or advanced RAID cards.

Advanced Options

Built for reliability and serviceability, it features redundant hot‑swap power supply capability, tool‑free chassis access, and intelligent thermal cooling for continuous 24/7 operation. Comprehensive remote management is handled through Lenovo XClarity Controller, offering secure firmware updates, power control, and health monitoring. With options for TPM security, chassis intrusion detection, and ENERGY STAR 3.0 compliance, the ST250 V2 brings enterprise-grade capability to environments with limited space and IT budget.

Product Key Features

  • Intel® Xeon® E‑2336 six-core processor (2.9 GHz base, 4.8 GHz turbo)

  • 16 GB TruDDR4 ECC memory (expandable to 128 GB)

  • Up to four hot-swap 3.5″ drive bays (SAS/SATA), plus optical/media bays

  • One PCIe Gen4 and three PCIe Gen3 expansion slots

  • Supports optional NVIDIA GPU (e.g., Quadro P620/T1000)

  • Lenovo XClarity Controller with UEFI provisioning & remote management

  • Optional redundant hot-swap power supplies (up to 550  W Platinum)

  • Enterprise security: TPM 2.0 & chassis intrusion detection

Reliability & Performance

The ST250 V2 delivers consistent uptime and solid processing capability in a modest tower form factor. Powered by a Xeon E‑2336 CPU and ECC memory, it's well-suited for virtualization, file/print services, and collaboration workloads. The option for up to 4 hot-swap drive bays supports high-capacity local storage with RAID resilience. Expansion slots support performance upgrades via PCIe Gen4, while optional GPU capability accelerates workloads like CAD or media workflows. Built-in XClarity Controller enhances remote administration, making it ideal for branch or remote environments. With redundant PSU options, hot‑swap drive support, and intelligent cooling, the server is designed to operate reliably in various conditions with minimal downtime.

Key Features (Bullet List)

  • Six‑core Xeon E‑2336 CPU

  • 16 GB ECC DDR4 memory (up to 128 GB)

  • 4 × 3.5″ hot-swap storage bays

  • 1 × PCIe Gen4 + 3 × PCIe Gen3 slots

  • GPU supported (NVIDIA Quadro)

  • Lenovo XClarity Controller

  • TPM 2.0 + chassis intrusion detection

  • Optional 550 W hot-swap power supply

  • Tool‑free chassis design

Specifications :

SpecificationDetails
Model Number 7D8FA012NA
Form Factor 4U Tower / Optional Rack-Mount Kit
Processor Intel Xeon E‑2336 (6C/12T, 2.9 GHz / 4.8 GHz)
Memory Installed 16 GB TruDDR4 ECC @ 3200 MHz
Max Memory 128 GB via 4 x UDIMM slots
Drive Bays 4 × 3.5″ hot-swap SAS/SATA; media/optical bays
RAID Support Integrated SATA RAID (controller dependent)
Expansion Slots 1 × PCIe Gen4 x16, 3 × PCIe Gen3 x4
GPU Support NVIDIA Quadro P620/T1000 (requires 550W PSU)
Networking 2 × 1 GbE RJ‑45
Power Supply 300W/550W Platinum; hot-swap option
Remote Management Lenovo XClarity Controller Enterprise
Security Features TPM 2.0, chassis intrusion switch
Dimensions (H×W×D) 17.5 × 17.0 × 22.8 in (444×430×578 mm)
Weight 52 lb (≈23.6 kg)
Certifications ENERGY STAR 3.0, RoHS, CECP
Warranty 3-Year Onsite Next Business Day
