Sale! HPE 752686-B21 ProLiant DL380 Gen9 2U Rack Server 1x Intel Xeon E5-2609 V3 1.9GHz Hexa-core (6 Core) 8GB DDR4 SDRAM View larger
Previous Next

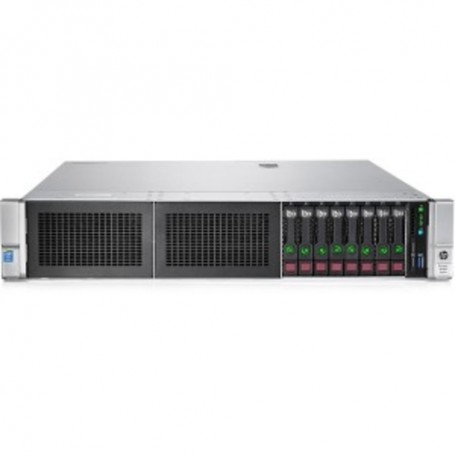

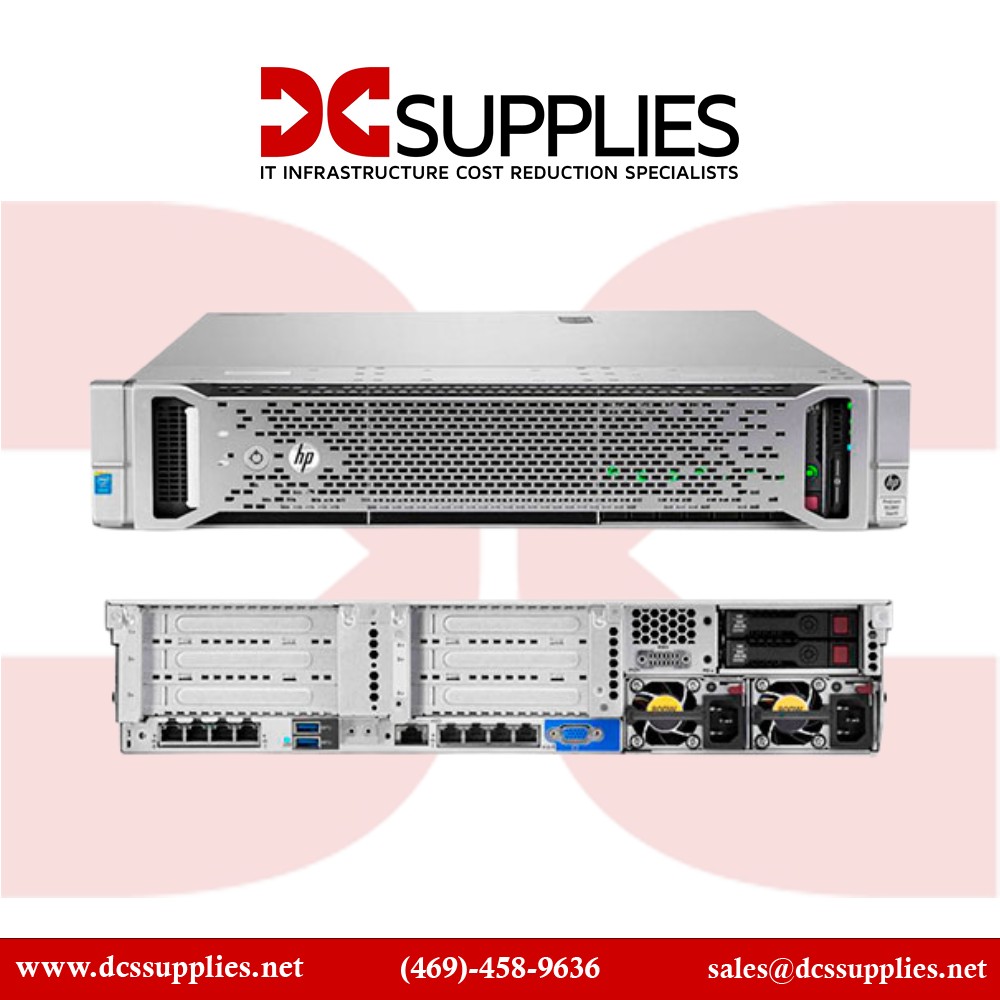

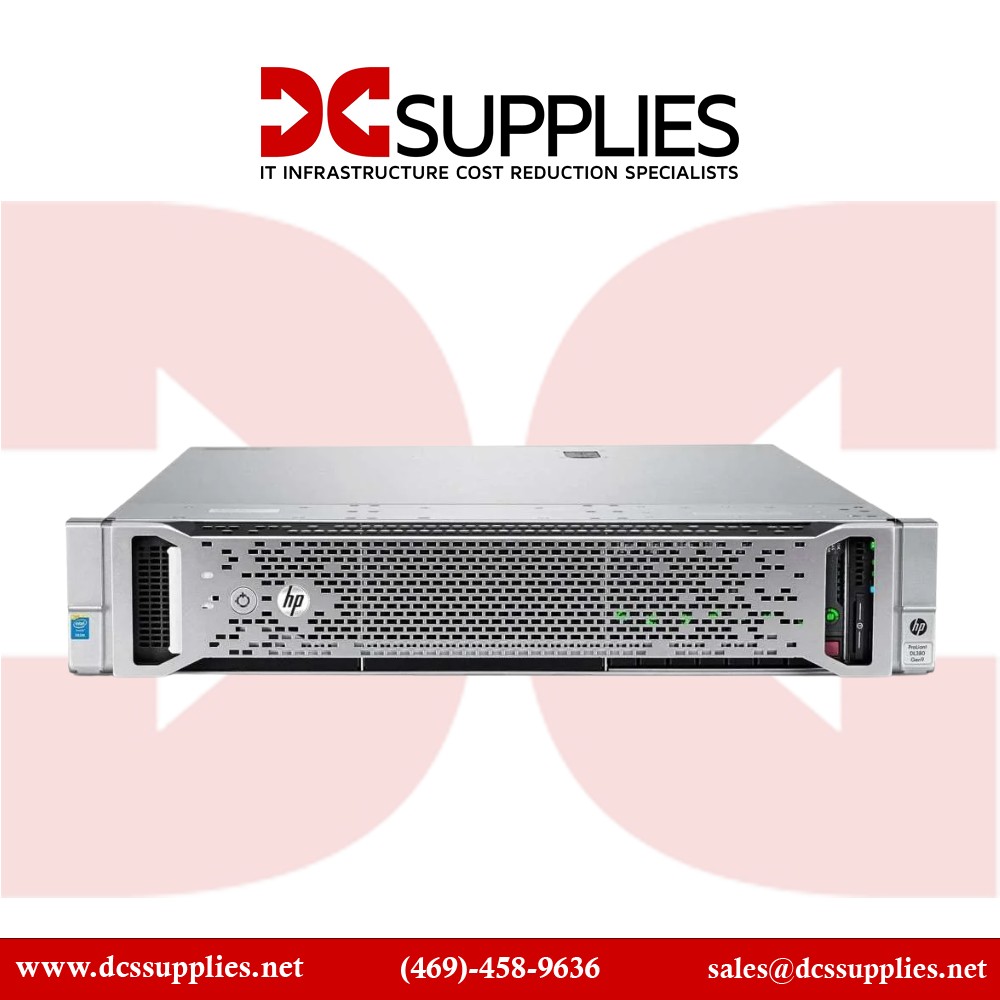

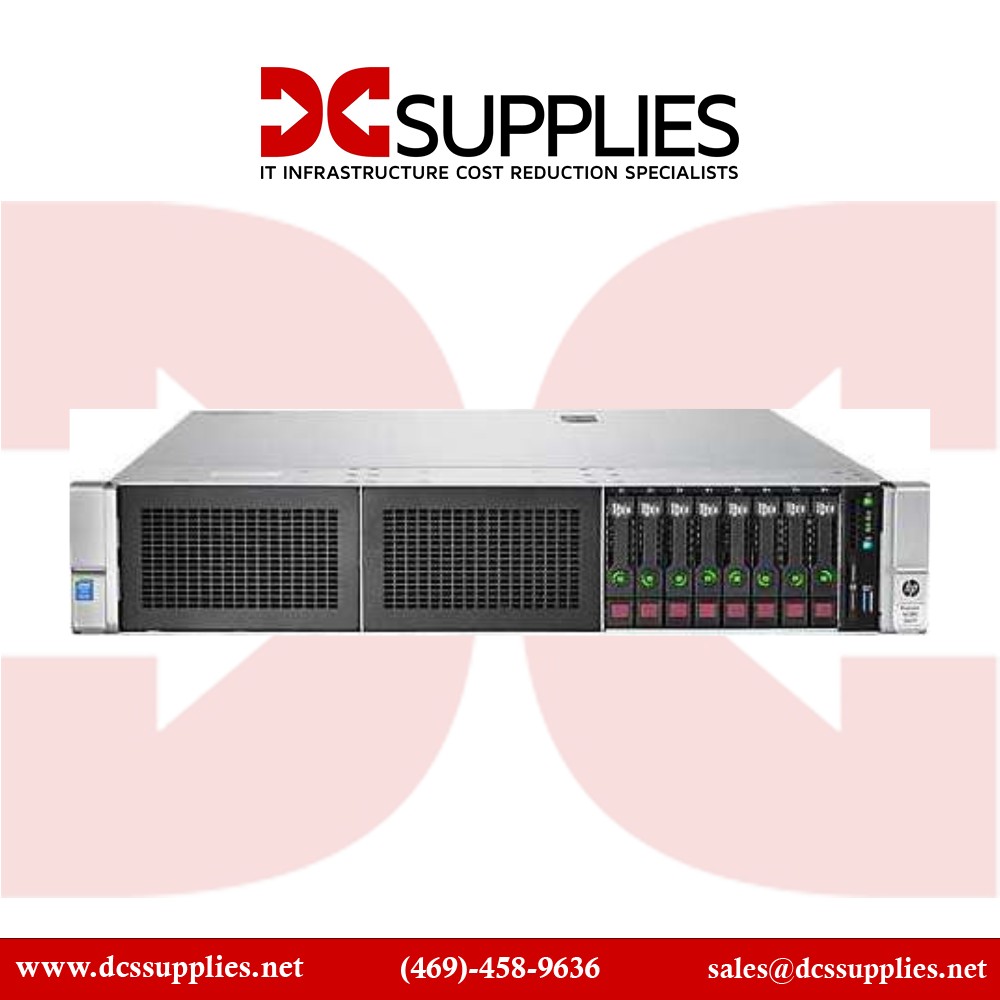

HPE 752686-B21 ProLiant DL380 Gen9 2U Rack Server

New

In Stock

HPE DL380 Gen9 2U, Xeon E5-2609 V3, 1.9GHz, 6-core, 8GB DDR4
×




$2,955.00

  • New

Detailed Specifications

HPE 752686-B21

ProLiant DL380 Gen9 Rack Server – Model: 752686‑B21 (1× E5‑2609 v3, 8 GB)

The HPE DL380 Gen9 (752686‑B21) is a versatile 2U rackmount enterprise server, suitable for virtualization, database, file services or general-purpose workloads. Configured with a single-socket Xeon CPU and modest memory, it offers strong performance with extensive upgrade scalability.

Features

Built on Intel’s C610 chipset, this entry model packs 6-core Xeon horsepower, RAID-controlled storage, and robust iLO remote management. Whether deployed in a small business data center or remote office, its 2U form factor, eight 2.5″ bays, and support for up to 384 GB of memory provide a flexible and high-density platform for growing IT needs.

Advanced Options

Compatible with HPE’s management and ecosystem tools, it integrates seamlessly into larger enterprise environments. The included 500 W Platinum PSU ensures energy efficiency and hot-swap capability for reduced downtime during maintenance.

Product Key Features

  •  Intel Xeon E5‑2609 v3 6-core (1.9 GHz, 15 MB L3 cache)

  •  8 GB DDR4 SDRAM (expandable up to 384 GB across 24 DIMM slots)

  • HP Dynamic Smart Array B140i with SATA 6 Gb/s RAID (0/1/5/10)

  •  Up to 8 hot-swap 2.5″ SFF drive bays in 2U chassis

  •  Integrated 4×1 GbE ports + iLO 4 out-of-band management

  •  500 W Platinum hot-swap redundant PSU (supports 1+1 config)

Reliability & Performance

With rugged hot-swap components and a Platinum-rated power supply, the DL380 Gen9 supports high availability. Its dual-socket capable board, extensive memory ceiling, and SFF storage array deliver a reliable foundation for virtualization, backup, and compute tasks. iLO 4 simplifies deployment and remote troubleshooting, while quad‑NICs provide network redundancy out of the box.

Key Features (Bullet List)

  • Intel Xeon E5‑2609 v3 (6-core, 1.9 GHz, 15 MB L3)

  • 8 GB DDR4 memory (expandable to 384 GB, 24 DIMM slots)

  • HP Smart Array B140i SATA RAID (0/1/5/10)

  • 8× hot-swap 2.5″ SFF drive bays

  • Integrated quad‑1 GbE + iLO 4 management

  • 500 W Platinum 80PLUS hot-plug PSU

  • Up to 2 CPUs; support for redundancy & expansion

SpecificationDetails
Model Number 752686‑B21
Chassis 2U rackmount, 8× 2.5″ hot-swap SFF bays
Processor 1× Intel Xeon E5‑2609 v3 (6-core, 1.9 GHz, 15 MB L3)
Max CPUs Supported 2
Memory 8 GB DDR4 (1× 8 GB); up to 384 GB via 24 DIMM slots
Memory Type/Speed DDR4 Registered ECC, 1600 MHz
Storage Controller HP B140i SATA RAID (0/1/5/10), 10 channels
Drive Bays 8× 2.5″ SFF, hot-swappable
RAID Levels 0, 1, 5, 10
Network 4× 1 GbE (HP 331i), 1× iLO 4
Expansion Slots 2× CPU, 24× DIMM, 2× PCIe3 x16 (x8), 1× PCIe3 x8, 1× microSD
Power Supply 1× 500 W Platinum hot-plug (supports 1+1 redundant)
Management HPE iLO 4
GPU Integrated Matrox G200eH2, 1× VGA
Dimensions (HxWxD) 3.4″ × 17.5″ × 26.7″
Weight ~32.5 lb
Operating Temp Standard data center range
