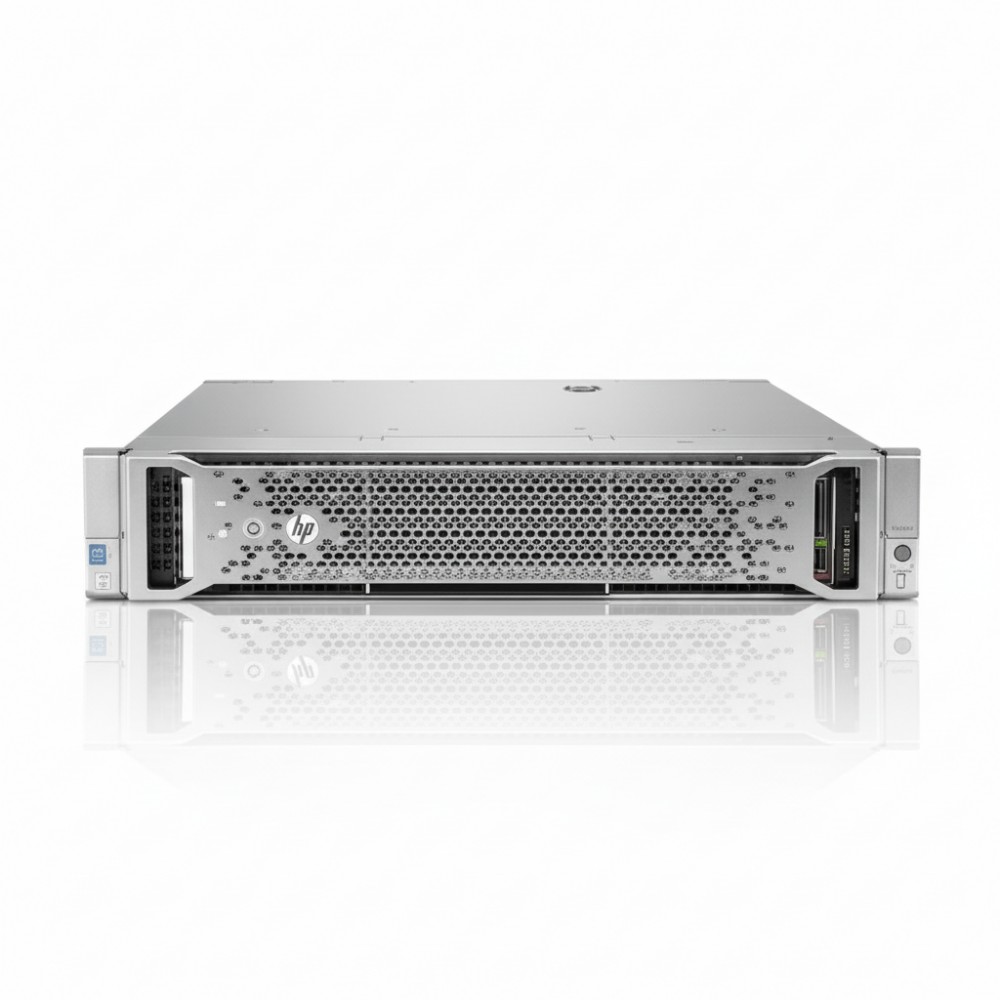

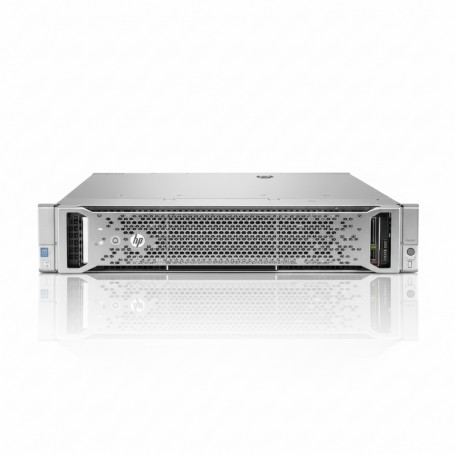

The HPE DL380 Gen9 (752686‑B21) is a versatile 2U rackmount enterprise server, suitable for virtualization, database, file services or general-purpose workloads. Configured with a single-socket Xeon CPU and modest memory, it offers strong performance with extensive upgrade scalability.
Built on Intel’s C610 chipset, this entry model packs 6-core Xeon horsepower, RAID-controlled storage, and robust iLO remote management. Whether deployed in a small business data center or remote office, its 2U form factor, eight 2.5″ bays, and support for up to 384 GB of memory provide a flexible and high-density platform for growing IT needs.
Compatible with HPE’s management and ecosystem tools, it integrates seamlessly into larger enterprise environments. The included 500 W Platinum PSU ensures energy efficiency and hot-swap capability for reduced downtime during maintenance.
Intel Xeon E5‑2609 v3 6-core (1.9 GHz, 15 MB L3 cache)
8 GB DDR4 SDRAM (expandable up to 384 GB across 24 DIMM slots)
HP Dynamic Smart Array B140i with SATA 6 Gb/s RAID (0/1/5/10)
Up to 8 hot-swap 2.5″ SFF drive bays in 2U chassis
Integrated 4×1 GbE ports + iLO 4 out-of-band management
500 W Platinum hot-swap redundant PSU (supports 1+1 config)
With rugged hot-swap components and a Platinum-rated power supply, the DL380 Gen9 supports high availability. Its dual-socket capable board, extensive memory ceiling, and SFF storage array deliver a reliable foundation for virtualization, backup, and compute tasks. iLO 4 simplifies deployment and remote troubleshooting, while quad‑NICs provide network redundancy out of the box.
Intel Xeon E5‑2609 v3 (6-core, 1.9 GHz, 15 MB L3)
8 GB DDR4 memory (expandable to 384 GB, 24 DIMM slots)
HP Smart Array B140i SATA RAID (0/1/5/10)
8× hot-swap 2.5″ SFF drive bays
Integrated quad‑1 GbE + iLO 4 management
500 W Platinum 80PLUS hot-plug PSU
Up to 2 CPUs; support for redundancy & expansion
Specification | Details |
---|---|
Model Number | 752686‑B21 |
Chassis | 2U rackmount, 8× 2.5″ hot-swap SFF bays |
Processor | 1× Intel Xeon E5‑2609 v3 (6-core, 1.9 GHz, 15 MB L3) |
Max CPUs Supported | 2 |
Memory | 8 GB DDR4 (1× 8 GB); up to 384 GB via 24 DIMM slots |
Memory Type/Speed | DDR4 Registered ECC, 1600 MHz |
Storage Controller | HP B140i SATA RAID (0/1/5/10), 10 channels |
Drive Bays | 8× 2.5″ SFF, hot-swappable |
RAID Levels | 0, 1, 5, 10 |
Network | 4× 1 GbE (HP 331i), 1× iLO 4 |
Expansion Slots | 2× CPU, 24× DIMM, 2× PCIe3 x16 (x8), 1× PCIe3 x8, 1× microSD |
Power Supply | 1× 500 W Platinum hot-plug (supports 1+1 redundant) |
Management | HPE iLO 4 |
GPU | Integrated Matrox G200eH2, 1× VGA |
Dimensions (HxWxD) | 3.4″ × 17.5″ × 26.7″ |
Weight | ~32.5 lb |
Operating Temp | Standard data center range |
