Detailed Specifications

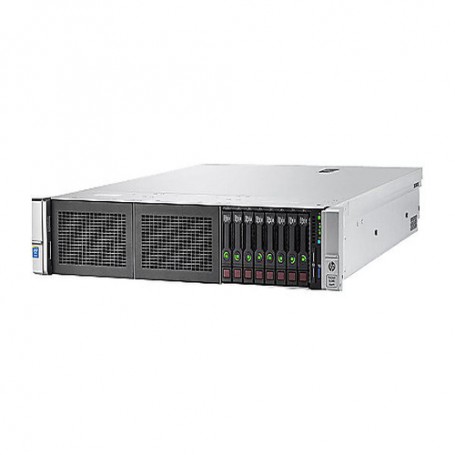

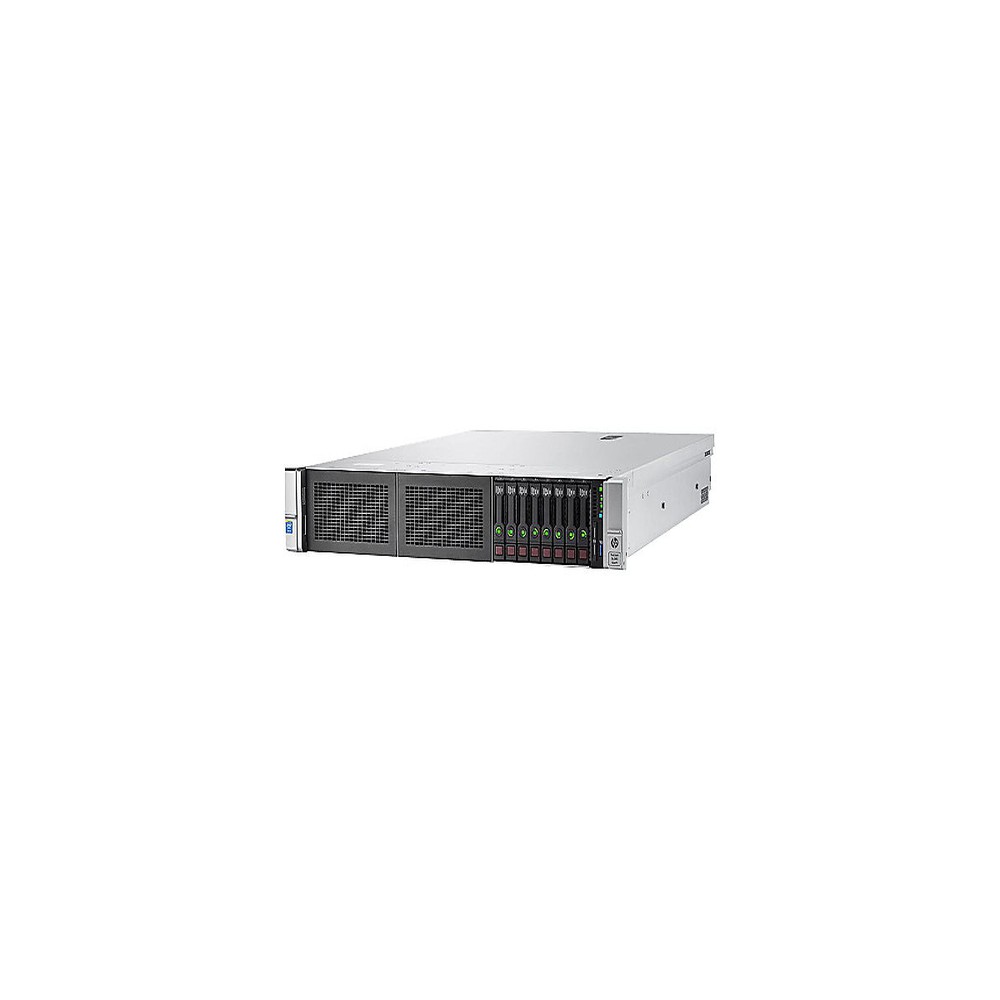

HPE SB ProLiant DL380 Gen9 Xeon E5-2670V3 64 GB Rack Mountable Server
The HPE ProLiant DL380 Gen9 Server delivers the best performance and expandability in the Hewlett Packard Enterprise 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for anyenvironment. Deploy the data center standard.
| Basic |
|---|
| Brand Name: |
HPE |
| Energy Star: |
Yes |
| Environmentally Friendly: |
Yes |
| Form Factor: |
Rack |
| Maximum Memory: |
384 GB |
| Number of Processors Installed: |
2 |
| Number of Processors Supported: |
2 |
| Processor Core: |
Dodeca-core (12 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E5-2670 v3 |
| Processor Speed: |
2.30 GHz |
| Processor Type: |
Xeon |
| Product Family: |
ProLiant DL380 G9 |
| Product Type: |
Server |
| Rack Height: |
2U |
| Standard Memory: |
64 GB |
| Total Hard Drive Capacity: |
No |
| Controllers |
|---|
| Controller Type: |
12Gb/s SAS |
| Display & Graphics |
|---|
| Graphics Controller Manufacturer: |
Matrox |
| Graphics Controller Model: |
G200eH2 |
| Graphics Memory Capacity: |
Up to 16 MB |
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
784655-S01 |
| Manufacturer Website Address: |
http://www.hpe.com |
| Product Line: |
ProLiant |
| Product Name: |
ProLiant DL380 G9 Server |
| Product Series: |
DL380 G9 |
| Product Type: |
Server |
| I/O Expansions |
|---|
| Number of Internal 2.5" Bays: |
8 |
| Number of PCI Express x16 Slots: |
2 |
| Number of PCI Express x8 Slots: |
1 |
| Number of Total Expansion Slots: |
3 |
| Interfaces/Ports |
|---|
| Network (RJ-45): |
Yes |
| Number of USB 3.0 Ports: |
5 |
| Remote Management: |
Yes |
| Total Number of USB Ports: |
5 |
| Memory |
|---|
| Maximum Memory: |
384 GB |
| Memory Card Reader: |
Yes |
| Memory Card Supported: |
microSD |
| Memory Standard: |
DDR4-2133/PC4-17000 |
| Memory Technology: |
DDR4 SDRAM |
| Number of Total Memory Slots: |
24 |
| Standard Memory: |
64 GB |
| Miscellaneous |
|---|
| Certifications & Standards: |
- ACPI 2.0b Compliant
- PCIe 3.0 Compliant
- PXE Support
- WOL Support
- Microsoft Logo Certifications
- ASHRAE A3/A4
- FCC Rating Class A
- CISPR 22
- EN55022
- EN55024
- FCC CFR 47, Pt 15
- ICES-003
- CNS13438
- GB9254
- K22
- K24
- EN 61000-3-2
- EN 61000-3-3
- EN 60950-1 IEC 60950-1
|
| Compatibility: |
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Citrix XenServer
|
| Energy Star: |
Yes |
| Environmental Certification: |
ENERGY STAR |
|
EU WEEE |
|
WEEE |
| Environmentally Friendly: |
Yes |
| Package Contents: |
- ProLiant DL380 G9 Server
- Rail Kit
|
| Network & Communication |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Physical Characteristics |
|---|
| Depth: |
26.7" |
| Form Factor: |
Rack |
| Height: |
3.4" |
| Rack Height: |
2U |
| Weight (Approximate): |
32.60 lb |
| Width: |
17.5" |
| Power Description |
|---|
| Input Voltage: |
230 V AC |
| Maximum Power Supply Wattage: |
800 W |
| Number of Power Supplies Installed: |
2 |
| Processor & Chipset |
|---|
| 64-bit Processing: |
Yes |
| Cache: |
30 MB |
| Chipset Manufacturer: |
Intel |
| Chipset Model: |
C610 |
| Hyper-Threading: |
Yes |
| Maximum Turbo Speed: |
3.10 GHz |
| Number of Processors Installed: |
2 |
| Number of Processors Supported: |
2 |
| Processor Core: |
Dodeca-core (12 Core) |
| Processor Manufacturer: |
Intel |
| Processor Model: |
E5-2670 v3 |
| Processor Speed: |
2.30 GHz |
| Processor Type: |
Xeon |
| QuickPath Interconnect: |
9.60 GT/s |
| Storage |
|---|
| Total Hard Drive Capacity: |
No |
| Warranty |
|---|
| Limited Warranty: |
3 Year |
