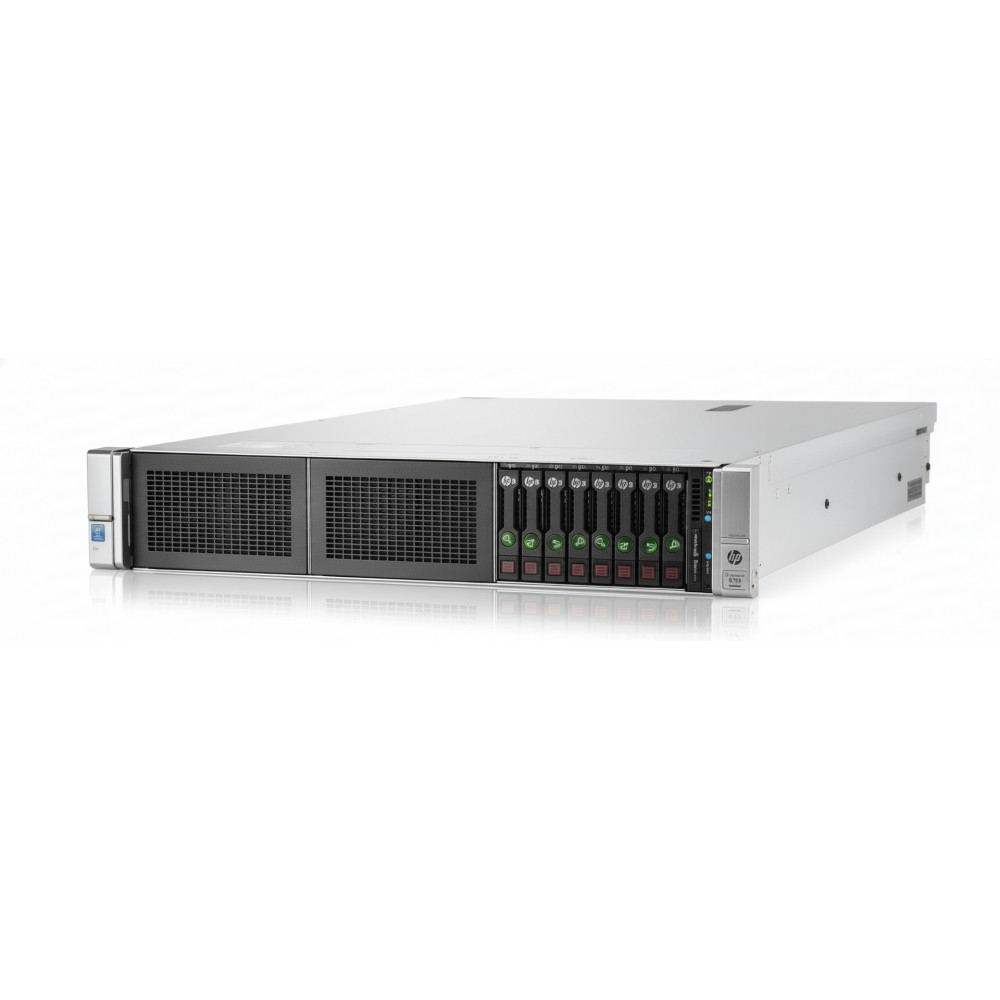

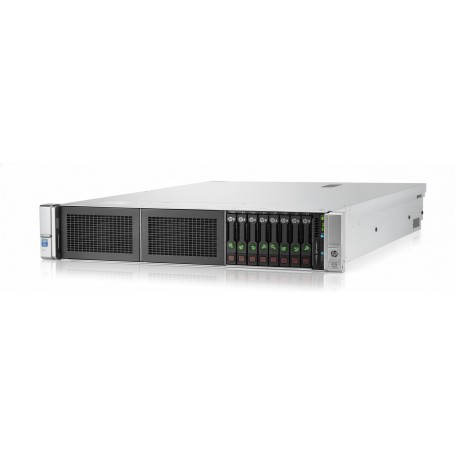

HPE SB ProLiant DL380 Gen9 Xeon E5-2670V3 64 GB Rack Mountable Server View larger
Previous Next

HPE ProLiant 784655-S01 DL380 Gen9 Xeon E5-2670V3 64 GB Rack Mountable Server

New

HPE ProLiant 784655-S01 DL380 Gen9 Xeon...

×




  • New

Detailed Specifications

HPE 784655-S01

ProLiant DL380 Gen9 Rack Server–Dual Xeon E5‑2670 v3 (2.3 GHz),64 GB DDR4, 8× SFF Bays

The HPE ProLiant DL380 Gen9 784655‑S01 is a powerful and versatile 2U rack server built for enterprise-class computing. With dual Intel Xeon E5‑2670 v3 processors and 64 GB ECC memory, it offers stellar performance for virtualization, database hosting, and business-critical applications, packaged in a robust chassis suited for data center deployment.

Features

Crafted for demanding environments, this server boasts dual 12-core Xeon E5‑2670 v3 CPUs (2.3 GHz base, 3.1 GHz turbo) and 64 GB DDR4 ECC memory across four DIMMs, supporting up to 384 GB total  Its eight front-access SFF bays support SAS/SATA/SSD storage, with the option to scale up to 26 physical drives. The Smart Array P440ar controller with 2 GB cache provides enterprise-grade RAID flexibility and data protection.

Advanced Options

Remote management and monitoring are handled by iLO, making deployment and updates effortless. With expansion via FlexibleLOM and PCIe slots, and a high-efficiency redundant power system, the server is ready to meet future demands.

Product Key Features

  • Dual 12-core Intel Xeon E5‑2670 v3 (2.3 GHz, turbo 3.1 GHz)

  •  64 GB DDR4 ECC SmartMemory (4× 16 GB, up to 384 GB)

  •  Hot-plug 8× SFF drive bays; expandable to 26 drives

  •  HPE Smart Array P440ar with 2 GB FBWC RAID support

  •  Dual 800 W Platinum hot-swap power supplies

  •  Embedded 4× 1 GbE NIC, remote management via iLO

Reliability & Performance

With dual 800 W Platinum (94%+) PSUs and hot-swappable fans, this system ensures continuous uptime and energy-efficient power delivery . The rugged chassis supports Smart Socket Guide cooling, while Intel Hyper-Threading and Turbo Boost technologies ensure responsive performance under peak loads. Ideal for clustered or high-availability setups in enterprise data centers .

Key Features (Bullet List)

    • 2× Intel Xeon E5‑2670 v3 CPUs, 2.3 GHz (12 cores, 30 MB L3 cache)

    • 64 GB DDR4 ECC (expandable to 384 GB)

    • 8× hot-plug SFF bays, expandable to 26 physical drives

    • HPE Smart Array P440ar RAID controller, 2 GB FBWC

    • Dual 800 W Flex Slot Platinum power supplies

    • Integrated 4× 1 GbE NICs; FlexibleLOM / PCIe expansion ready

    • HPE iLO remote management

SpecificationDetails
Model Number 784655‑S01
Form Factor 2U rack-mountable
Processors 2× Intel Xeon E5‑2670 v3 (12-core, 2.3 GHz; turbo 3.1 GHz, 120 W)
L3 Cache 30 MB per CPU
Memory 64 GB DDR4 ECC (4×16 GB; up to 384 GB in 24 slots)
Memory Speed DDR4‑2133 (PC4‑17000R)
Drive Bays 8× SFF hot-plug; supports up to 26 drives via expansion
Storage Controller Smart Array P440ar with 2 GB FBWC (RAID 0/1/5/6/10/50/60)
Network 4× 1 GbE embedded; FlexibleLOM support
Power Supplies 2× 800 W Flex Slot Platinum hot-swappable (94%+ efficiency)
Expansion Slots 3× PCIe Gen3; secondary riser for additional slots
Management HPE iLO with Intelligent Provisioning
Cooling System Six hot-plug fans; Smart Socket Guide airflow
Dimensions (H×W×D) 3.4″ × 17.5″ × 26.7″ (87×445×679 mm)
Weight (empty) ≈32.6 lb (14.8 kg)
