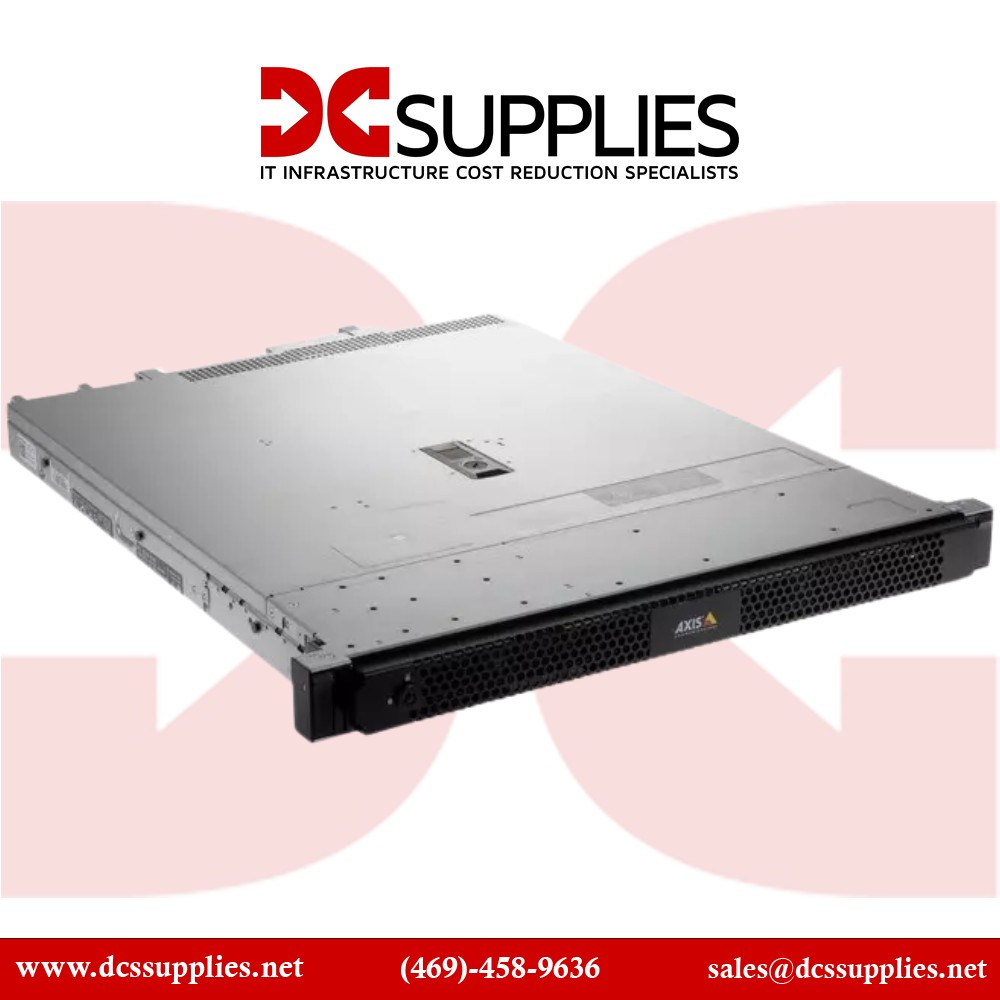

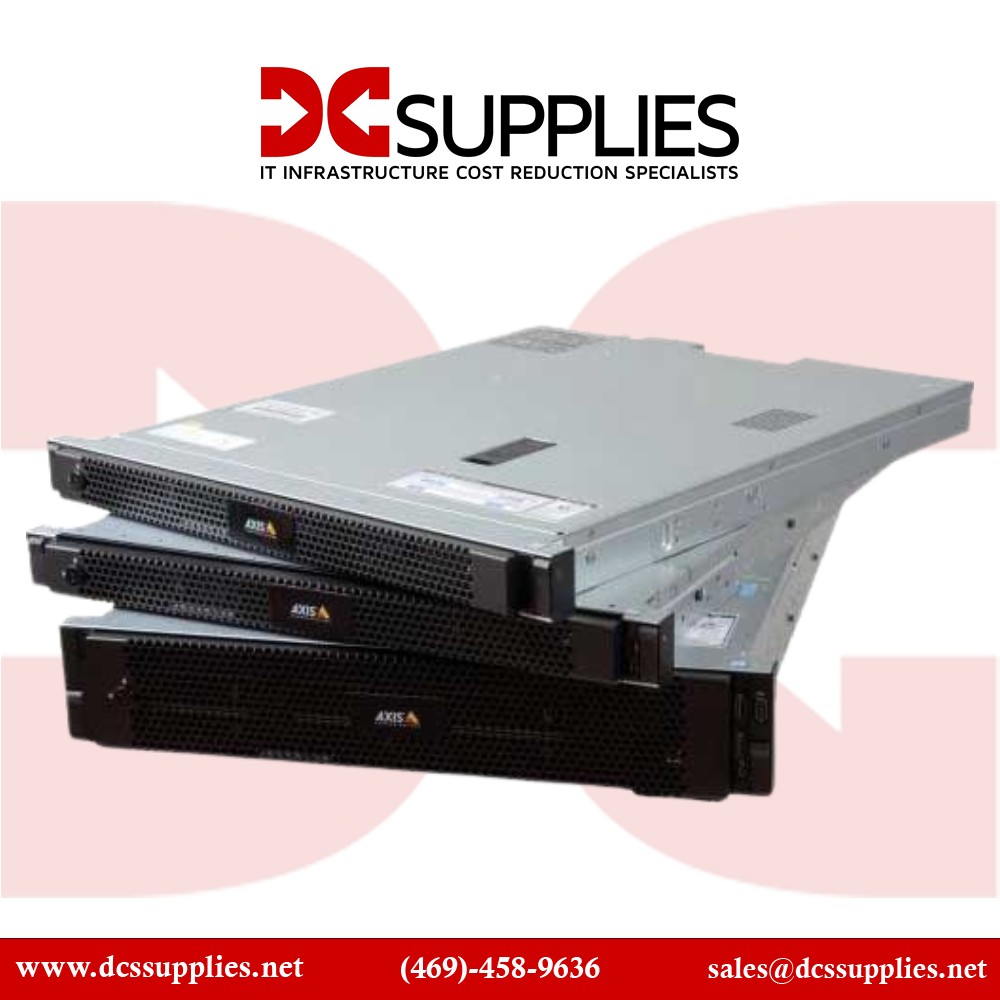

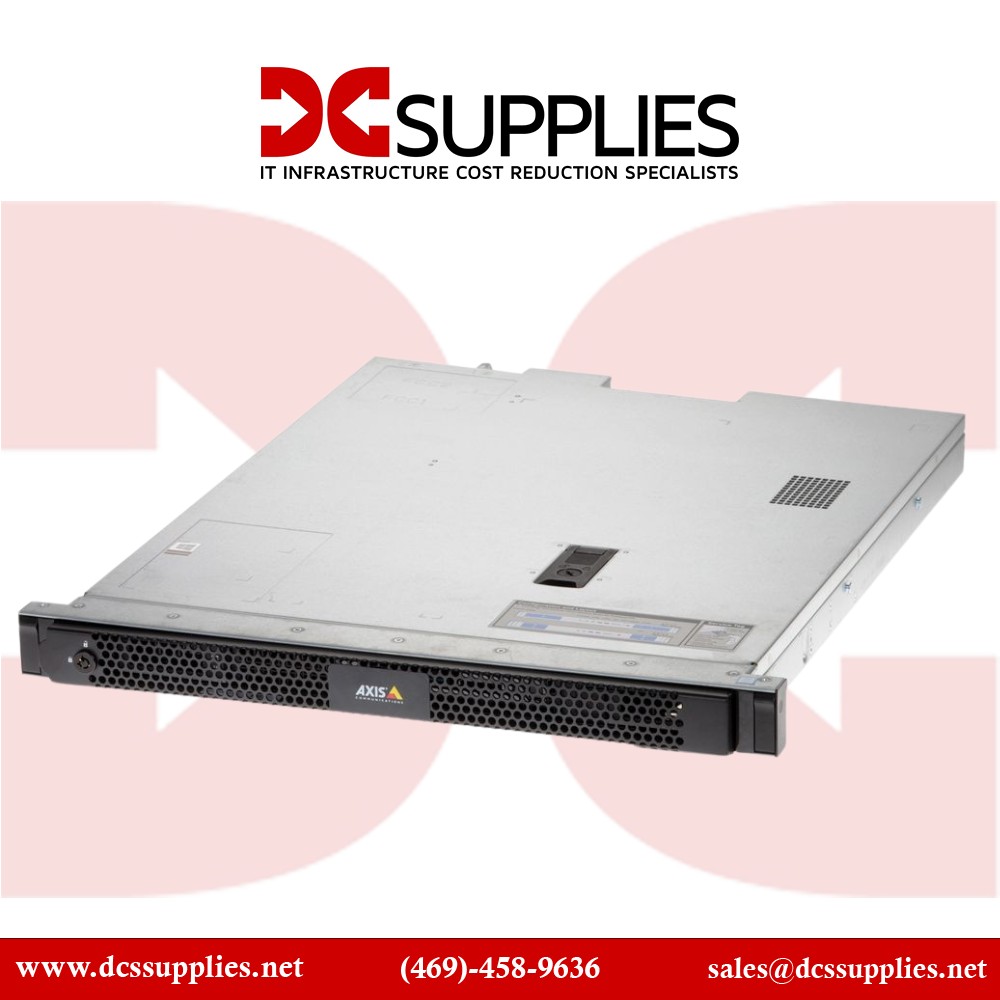

Axis 01618-001 Communications S1116 Camera Station Rackmount Server

Detailed Specifications

Axis

01618‑001 Camera Station S1116 Racked Recorder | Surveillance Server for Axis Camera Station

The Axis Camera Station S1116 Racked Recorder (Part No. 01618‑001) is a robust, purpose-designed rack-mount surveillance Server preloaded with Axis Camera Station Pro video management software. Built on an enterprise-grade Intel Core i5 (8th gen) processor with 8 GB RAM, a 256 GB OS SSD, and up to 8 TB enterprise HDD, this system is optimized to support up to 32 video channels with a sustained recording throughput of 256 Mbit/s. Ideal for mid-sized surveillance deployments, this turn-key solution reduces configuration overhead while delivering high reliability and ease-of-use in camera recording and management.

Features

Built to be plug-and-play, the S1116 Server arrives preconfigured with Windows 10 IoT Enterprise and validated Axis Camera Station licenses. Its rack (1U) chassis includes multiple hard drive bays and optional RAID configurations (0 or 1) for data redundancy. The integrated Intel Core i5 (approx. 3.0 GHz, 6-core) and 8 GB of system RAM ensure smooth handling of HD and UHD live feeds and recordings.

Advanced Options

Connectivity includes dual GigE (1 GbE + optional 10 GbE) ports, HDMI, USB‑C/USB‑A ports, an SD card reader, and expansion slots to support field-installed hardware upgrades. The system supports Axis desktop terminals for secure live view and monitoring. Hot-swappable drive bays, built-in OS recovery on SSD, and RAID-ready storage make it easy to maintain uptime even in demanding environments. Equipped with TPM-enabled hardware-level security (including digital signature validation), it supports practices required in regulated enterprise or public sector settings.

Product Key Features

  • Rackmount 1U form-factor with enterprise drive tray support

  • Intel Core i5 (8th generation) CPU and 8 GB RAM

  • 256 GB SSD for OS; up to 8 TB HDD for recordings

  • Supports up to 32 cameras at 256 Mbit/s aggregate bitrate

  • Windows 10 IoT Enterprise with Axis Camera Station Pro preloaded

  • RAID 0/1 support (configurable for redundancy)

  • Dual Ethernet: 1 GbE + optional 10 GbE ports

  • HDMI, USB‑C/USB‑A, and SD media reader on front panel

  • TPM-supported security and built-in OS recovery

  • Hot-swappable drive bays; 1U rackrail kit included

  • 3‑Year onsite warranty, preloaded with licenses for 16 channels (expandable)


Reliability & Performance

Despite being a legacy Server model, the S1116 Racked Recorder is built for round-the-clock operation. The Intel Core i5 multicore CPU paired with RAID-configurable storage ensures fault tolerance and consistent video recording even under heavy multi-camera load. The solid SSD OS drive accelerates boot times and firmware updates without impacting recording storage.

Certified to 32 Axis Camera Station licenses (expandable), it supports seamless remote access via Axis Recorder Toolbox or AD integration. With Axis Secure Remote Access and signed video support, the unit ensures video authenticity and secure replay—even offline. Advanced system monitoring and remote license management enhance maintainability, while the 3-year on-site warranty and easy drive accessibility reduce downtime during component replacements or upgrades.

Key Features (Bullet List)

  • Rackmount 1U Server optimized for surveillance recording

  • Intel Core i5 (6-core, ~3 GHz) with 8 GB RAM

  • 256 GB SSD for OS & recovery; up to 8 TB HDD for recordings

  • Validated for up to 32 camera channels; 256 Mbit/s recording rate

  • Windows 10 IoT + Axis Camera Station Pro (16-channel licenses included)

  • RAID 0/1 support for redundancy in HDD bays

  • Dual Ethernet ports (1 GbE + optional 10 GbE), USB, HDMI, SD slot

  • TPM secure boot & signed video support

  • Hot-swappable HDD bays; preloaded OS image & recovery tools

  • 3-Year on-site hardware warranty + license support

Specifications :

Product Specifications
SpecificationDescription
Model Number 01618‑001 (Camera Station S1116 Racked Recorder)
Processor Intel Core i5 (8th gen, ~3.0 GHz, 6 cores)
System Memory 8 GB DDR4 RAM
Operating System Drive 256 GB SSD (Windows 10 IoT Enterprise)
Storage Capacity Up to 8 TB HDD (surveillance grade)
Recording Performance Up to 32 channels, 256 Mbit/s total throughput
RAID Support Hardware RAID 0 or 1
Ethernet Connectivity 1× Gigabit + Optional 10 Gigabit Ethernet
Front I/O 2× USB‑3, 1× USB‑C/DisplayPort, SD card slot, audio jack
Backplates / Rack Kit Includes 1U rail kit
Security Features TPM-enabled, signed video support, OS recovery partition
Dimensions / Weight ~589 × 482 × 43 mm (1U), ~9.6 kg
Operating Conditions 10 °C to 35 °C, 10–85% RH non‑condensing
Power Supply 550 W AC (100‑240 VAC)
Warranty 3‑Year On-site Hardware Warranty; Axis license support included
