Detailed Specifications

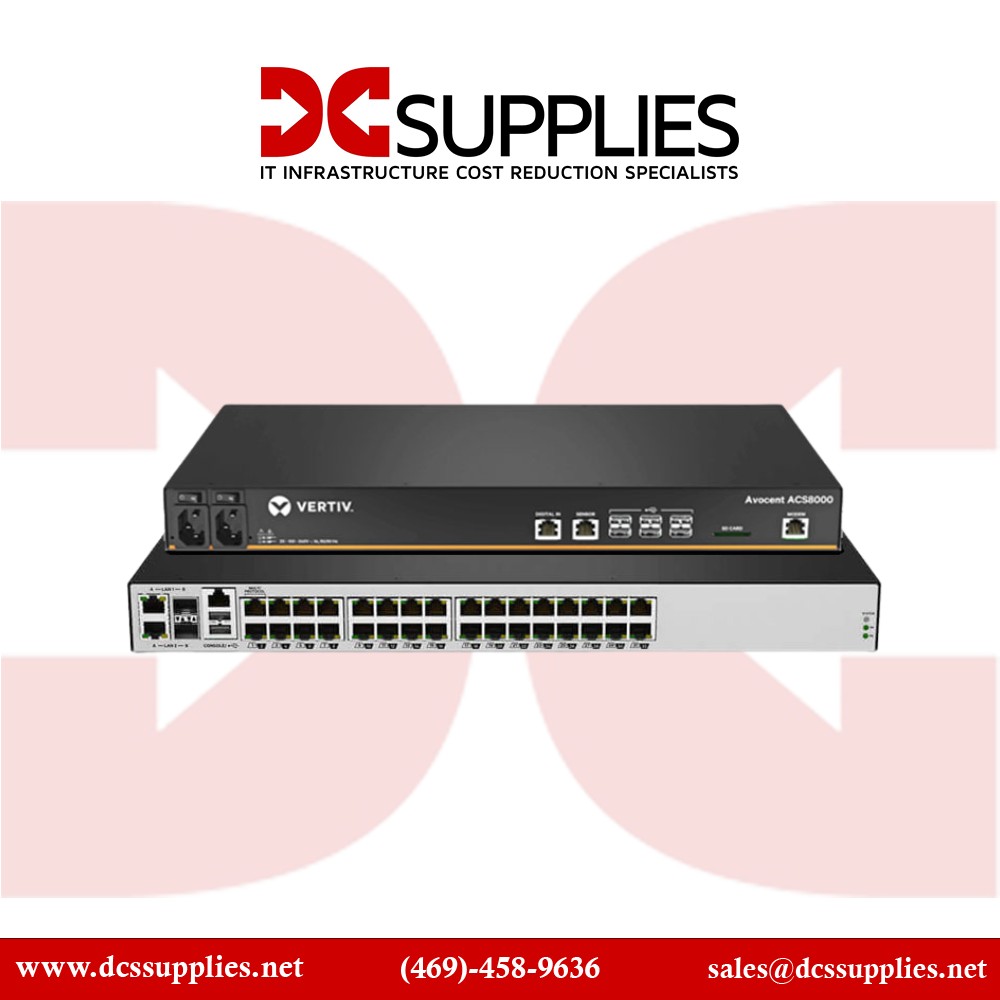

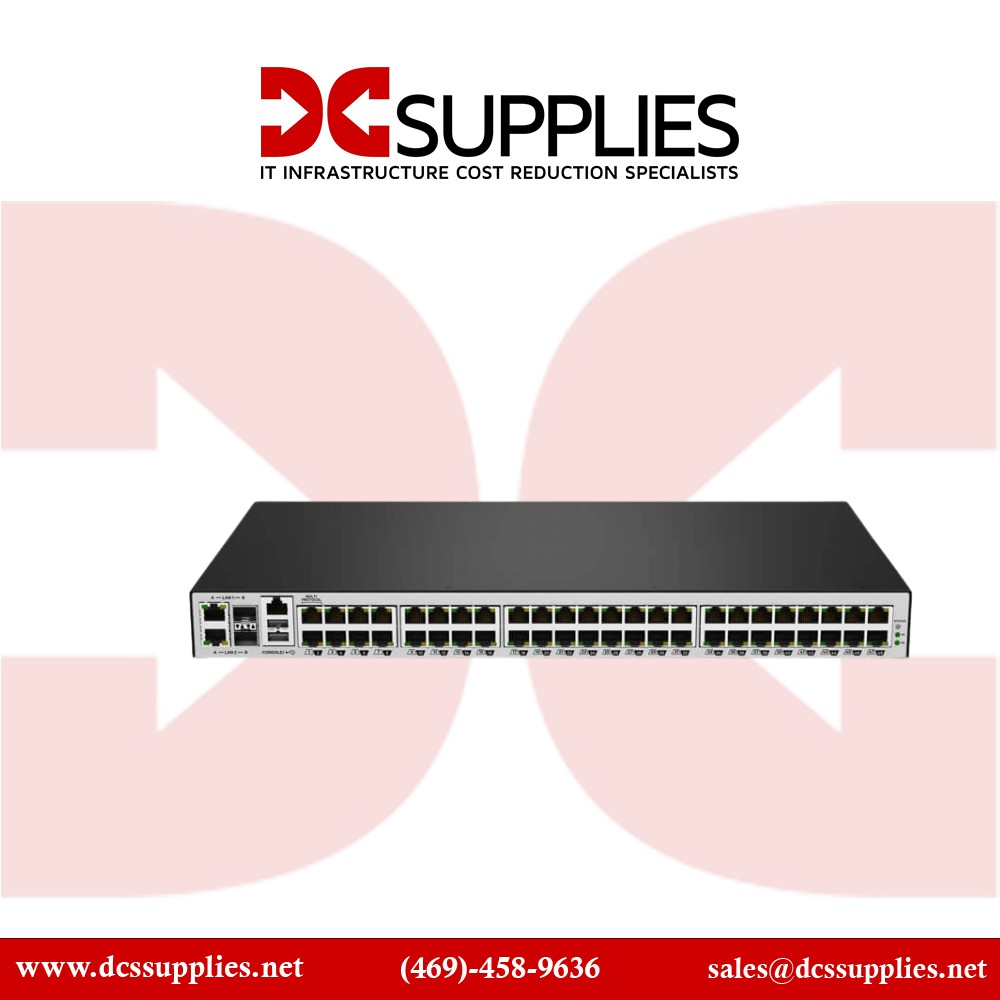

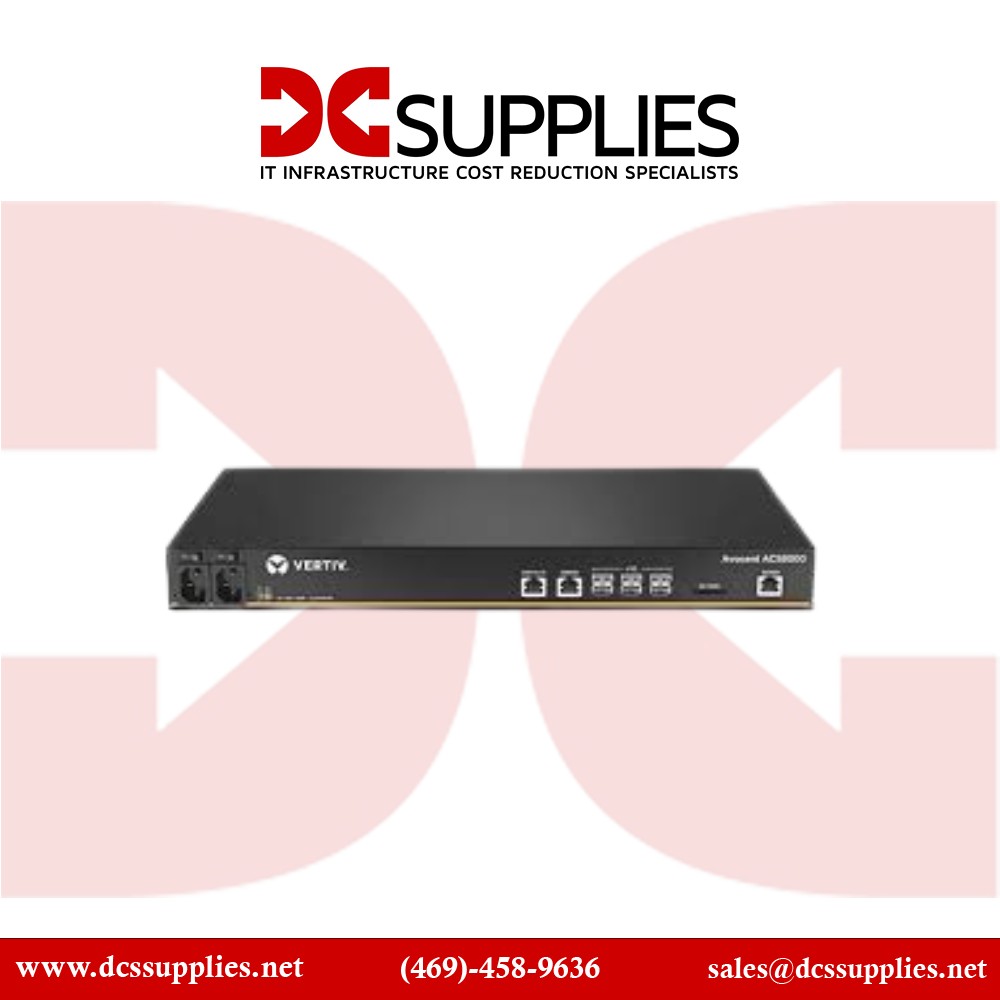

Vertiv ACS8048DAC-400 Avocent ACS8000 48-Port Serial Console Server - Dual AC Power, USB Connectivity
Overview :
The Vertiv ACS8048DAC-400 Avocent ACS8000 48-Port Serial Console Server is a high-performance console server designed for secure remote management of network devices. With 48 serial ports and dual AC power for redundancy, this console server ensures high availability and reliability for mission-critical infrastructure. Its advanced USB connectivity allows for fast configuration and management. The Avocent ACS8000 is ideal for IT administrators needing enhanced visibility and control of distributed networks in data centers or branch offices.
Key Features:
- 48 Serial Ports: Supports a large number of devices for scalable remote management.
- Dual AC Power: Ensures redundancy and high availability for continuous operation.
- USB Connectivity: Simplifies management with fast and flexible USB configuration.
- Secure Remote Access: Provides encrypted connections for secure device management.
- High Performance: Designed for efficient handling of multiple serial devices in data centers or remote locations.
- Intuitive Web Interface: Easy to manage with a user-friendly web-based GUI.
- Out-of-Band Management: Offers an alternative access method when primary networks are down.
- Advanced Logging and Monitoring: Provides detailed event logging and device monitoring.
- Integrated Modem Support: Optional modem for connectivity in remote locations.
- Compact 1U Rackmount Design: Saves space in the data center while delivering robust management capabilities.
Technical Specifications :
| Attribute | Details |
|---|
| Brand Name |
Vertiv (Avocent) |
| Product Type |
Serial Console Server |
| Model |
ACS8048DAC-400 (ACS8000 Series) |
| Part Number |
ACS8048DAC-400 |
| Port Count |
48 x RJ45 serial ports |
| Power Supply |
Dual AC Power Supply |
| Power Input |
100-240V AC, 50/60 Hz |
| Power Consumption |
50 Watts (max) |
| USB Connectivity |
2 x USB 2.0 ports |
| Network Interface |
2 x 10/100/1000 Ethernet ports |
| Management Interface |
Web-based GUI, CLI (Command Line Interface), SNMP |
| Protocols Supported |
SSH, Telnet, IPv4/IPv6, HTTP/HTTPS, NTP, SNMP, TFTP |
| Environmental Monitoring |
Supports external sensors for temperature, humidity, etc. |
| Memory |
4 GB Flash, 2 GB RAM |
| Authentication |
RADIUS, LDAP, TACACS+, Active Directory (AD) |
| Security Features |
SSL/TLS, FIPS 140-2 encryption, SSHv2, IP filtering |
| Console Redundancy |
Failover support with automatic network failover |
| Mounting |
1U Rack-mountable (rack ears included) |
| Dimensions (H x W x D) |
1.73 x 17.28 x 9.06 inches (4.4 x 43.9 x 23 cm) |
| Weight |
8.3 lbs (3.75 kg) |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Certifications |
CE, UL, FCC, RoHS, and WEEE compliant |
| Warranty |
2-Year Limited Warranty |
| Additional Features |
Dual gigabit Ethernet ports for redundancy |
| Use Case |
Remote management of data center and edge infrastructure |
