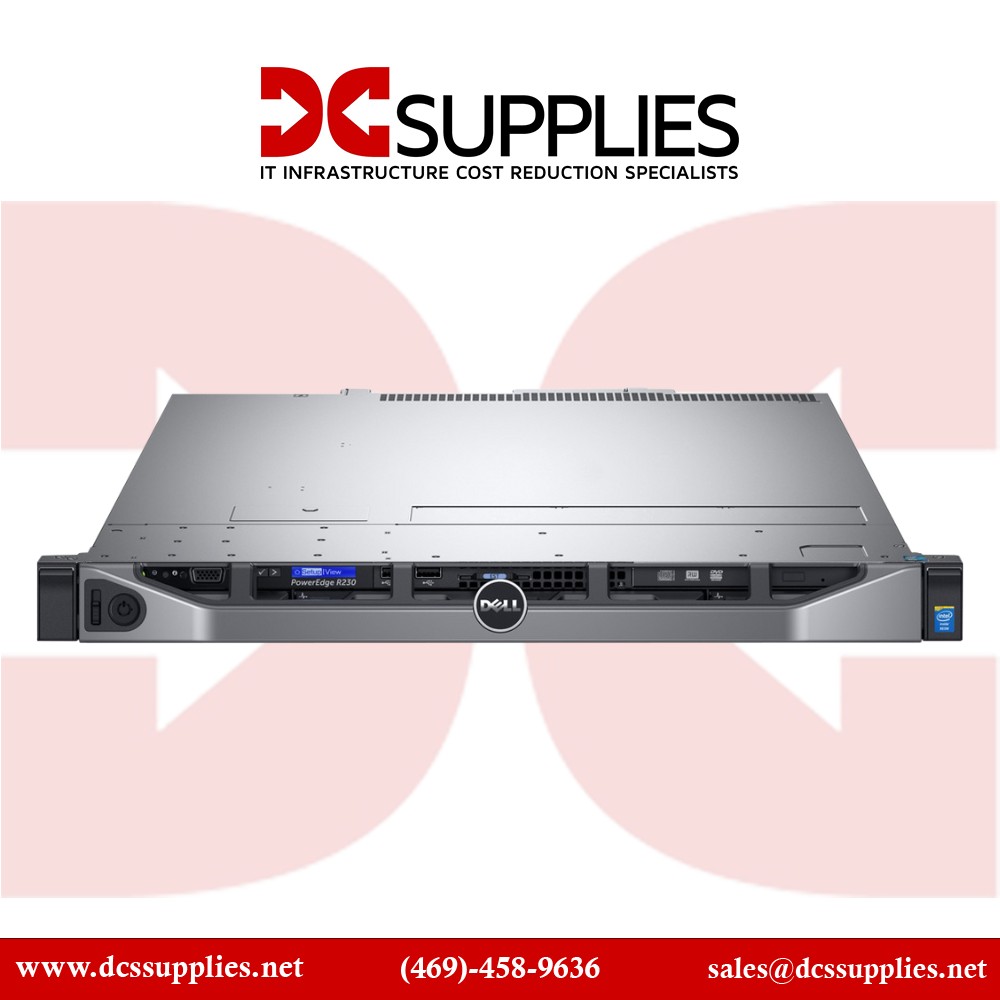

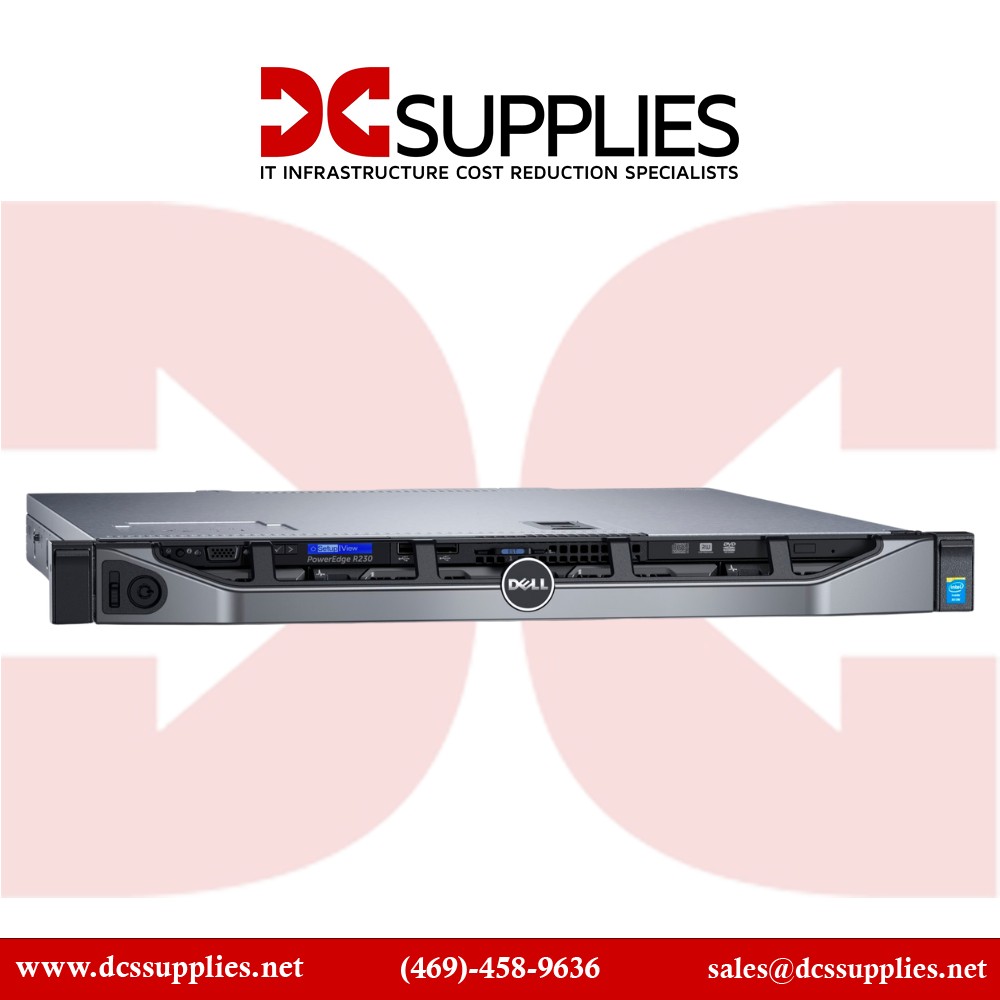

Dell PowerEdge R230 1U Rack server E3-1220 V6/4G/500G SATA/DVD/250W

New

Dell PowerEdge R230 1U Rack server
×




  • New

Detailed Specifications

Dell PowerEdge

R230

1U Rack Server – Intel Xeon E3-1220 v6, 4GB RAM, 500GB SATA HDD, DVD, 250W PSU

The Dell PowerEdge R230 is a cost-effective 1U rack server built for small businesses and branch offices. Designed for light workloads such as file sharing, web serving, and print services, this system features an Intel Xeon E3-1220 v6 processor, 4GB ECC memory, and a 500GB SATA HDD to deliver reliable performance in a compact footprint

Features

Compact yet capable, the PowerEdge R230 combines essential server-class features in a 1U chassis. It supports up to 64GB ECC DDR4 memory across four DIMM slots and provides basic RAID options via the onboard PERC S130 controller. The inclusion of iDRAC8 Express ensures administrators can manage the server remotely with ease..

Advanced Options

Whether used in SMB IT environments or remote branch deployments, the R230 provides solid compute performance and dependable storage capacity for non-intensive applications.

Product Key Features

  •  Intel Xeon E3-1220 v6 Quad-Core 3.0GHz for solid performance

  •  4GB DDR4 ECC memory with upgrade options up to 64GB

  •  500GB 3.5" SATA hard drive for basic storage needs

  •  Built-in DVD-ROM for easy media access

  •  Space-saving 1U rack design, ideal for tight IT environments

  •  250W PSU for energy-efficient power delivery

Reliability & Performance

Engineered with ECC memory support, redundant data protection, and quiet operation, the Dell R230 balances power and efficiency. With Intel’s v6 Xeon platform, it delivers steady quad-core performance. The low-pr.

Key Features (Bullet List)

  • Intel Xeon E3-1220 v6 Quad-Core 3.0GHz CPU

  • 4GB DDR4 ECC UDIMM (expandable to 64GB)

  • 500GB 3.5” SATA Hard Drive

  • DVD-ROM Optical Drive

  • Integrated PERC S130 Software RAID

  • Dual Gigabit Ethernet ports

  • 1 x PCIe Gen3 x8 Expansion Slot

  • Integrated iDRAC8 Express Remote Management

  • 250W Power Supply

  • Tool-less 1U Rack Form Factor

Specifications :

SpecificationDetails
Model Number PowerEdge R230
Form Factor 1U Rackmount Server
Processor Intel Xeon E3-1220 v6 (3.0GHz, Quad-Core)
Memory Installed 4GB DDR4 ECC UDIMM
Max Memory 64GB (4 DIMM Slots)
Storage 500GB 3.5” SATA HDD
RAID Support PERC S130 (Software RAID 0, 1, 5, 10)
Optical Drive DVD-ROM
Network 2 x Gigabit Ethernet Ports
Expansion Slots 1 x PCIe Gen3 x8
Remote Access iDRAC8 Express
Power Supply 250W Non-Redundant PSU
Dimensions (H x W x D) 1.68” x 17.09” x 15.08” (42.8 x 434.2 x 383 mm)
Weight Approx. 17.6 lbs (8 kg)
