Dell R940xa Intel Xeon Platinum 8270*2/64G/480GB SSD SATA RI*1/1600W.

Let us know what is Your needs, We can design as per your required specifications, Get in touch with sales@dcsupplies.net

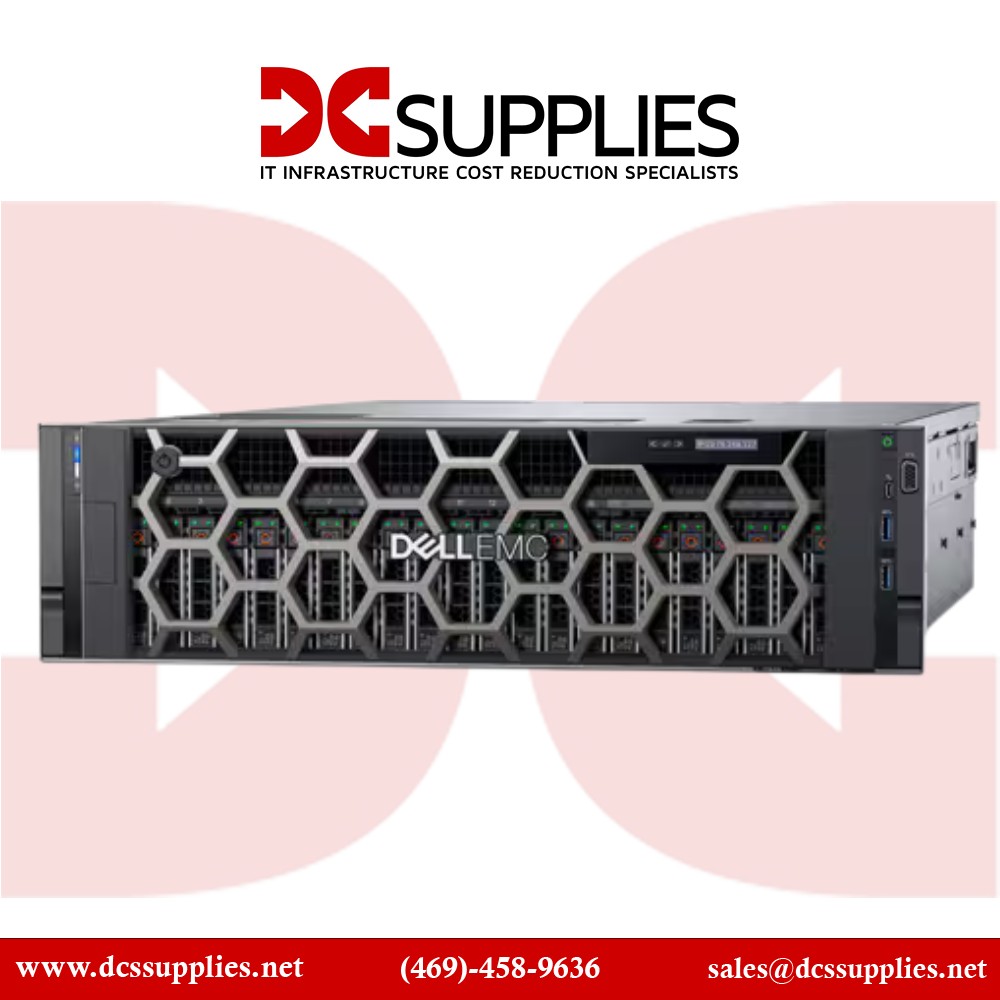

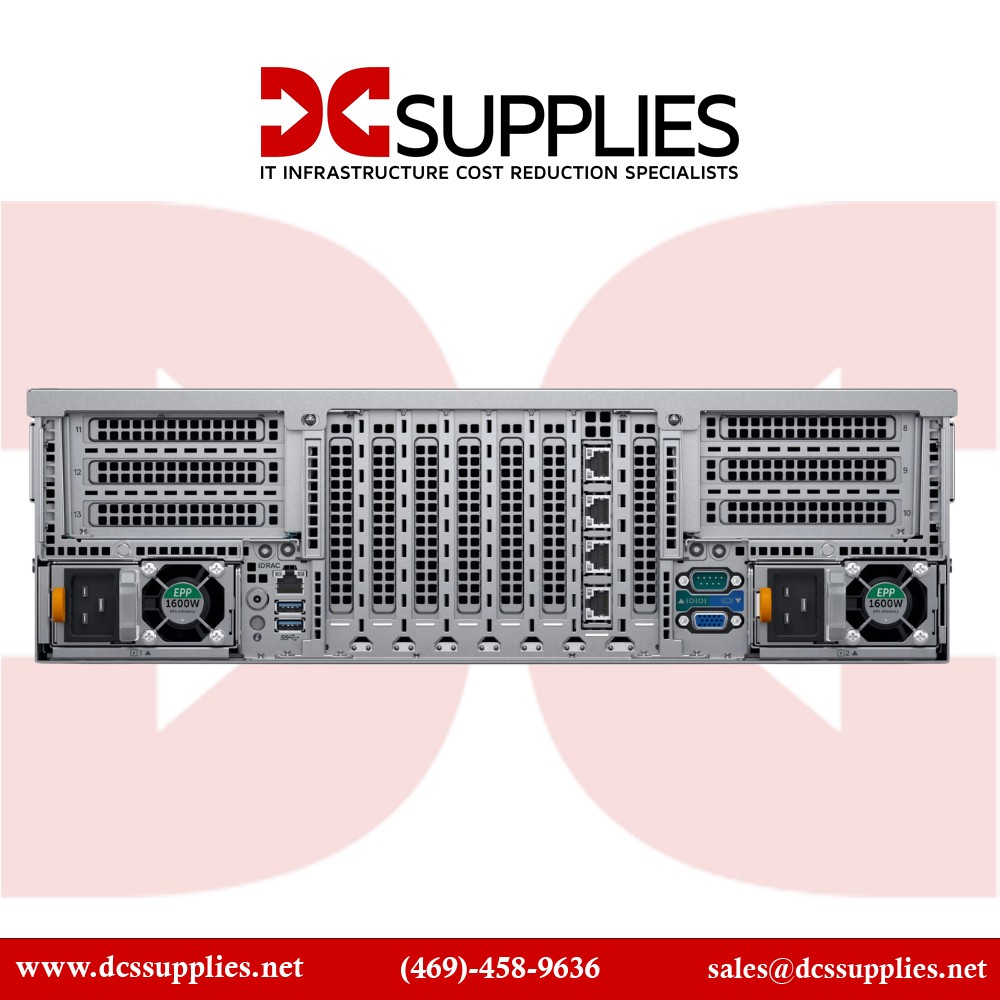

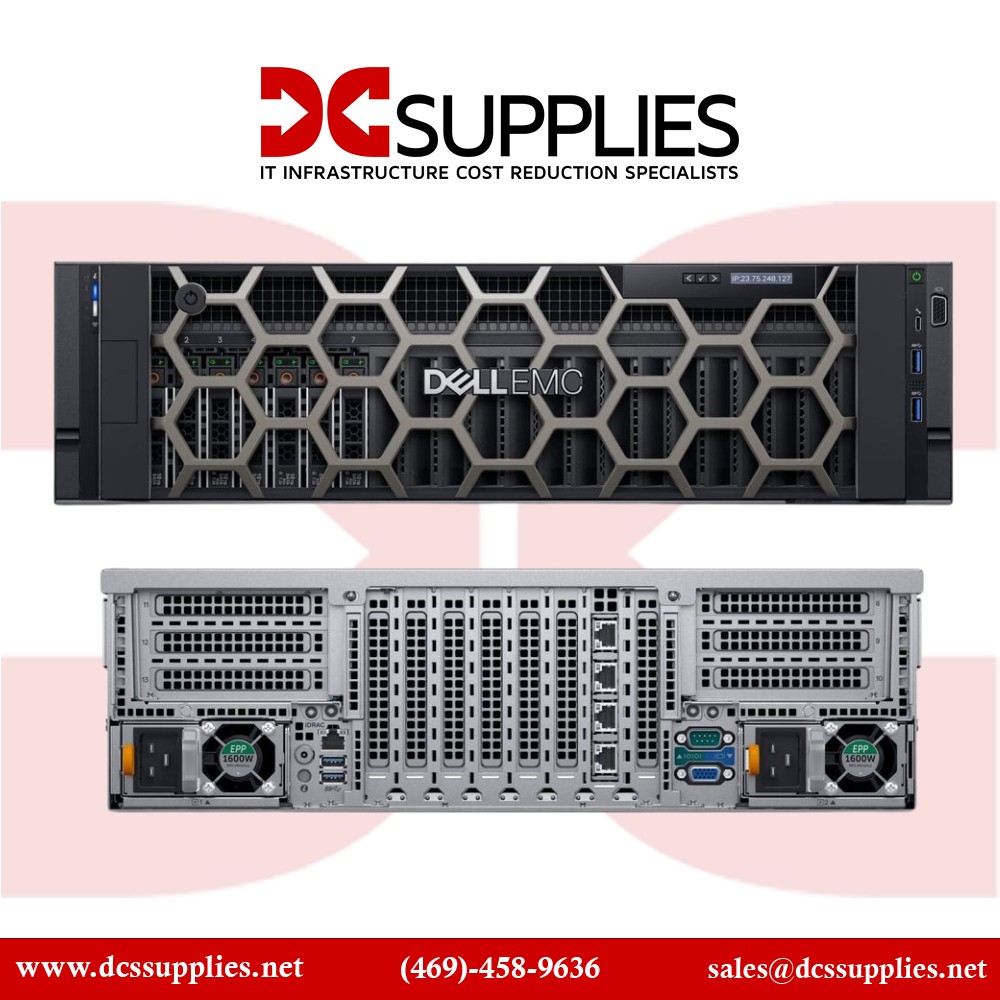

Overview R940xa

This system is designed to make quick work of complex database and analytics data sets, compute-intensive applications, and for machine learning. The Dell EMC PowerEdge R940xa server offers extreme GPU database acceleration with four processor performance and up to 6TB of memory for in-memory database applications. Optional FPGA modules provide a programmable option for data analysis of complex parallel workloads. With room for up to 32 front-mounted drives, this system will also dynamically scale as your business grows. Keep in mind, the R940xa is substantially different from the PowerEdge R940 server, which is a 3U system that only supports a maximum of two GPUS, and features a separate CPU mezzanine for processors 3 and 4. On the R940xa you get a 1:1 relationship of processor to GPU.

Performance R940xa

You can install two or four Intel Xeon Scalable processors for up to 112 cores using either first or second-generation Intel Xeon Scalable processors. Both first and second-generation processors support up to 6TB of memory with CPUs that have an “M” suffix. Gen 2 Intel Xeon Scalable processors also support memory speeds of up to 2933MHz compared to Gen 1 CPUs that support a top speed of 2666MHz. Certain Gold and Platinum processors also support 3 UPI channels for improved inter-CPU communication.

Memory R940xa

Memory speed is dependent on both the speed of your memory modules and the speed of the memory supported on your choice of CPU, defaulting to the slowest performer of the two. There are 48 memory module slots total with each processor supporting twelve memory modules slots with two modules in each memory channel. Memory types supported include Registered (RDIMM), Load-Reduced, (LRDIMM) and up to 12x NVDIMM modules. The system will support a total of 6TB using Load-Reduced 128GB memory modules in all 48 slots.

Storage R940xa

The Dell EMC R940xa server supports a few standard configurations including 8x 2.5-inch drives, 24x 2.5-inch drives, or up to 32x 2.5-inch SAS or SATA HDD or SSD drives total, including up to four direct-attached NVMe storage devices. Internal storage controllers supported on this system include the H730P, H740P, and H330 plus software RAID provided by the integrated S140 controller. A boot-optimized storage subsystem can be used to support the OS and includes one or two M.2 read-intensive boot-class M.2 SATA drives in either pass-thru mode or mirror mode. The BOSS is ideal for hyper-converged infrastructures and software-defined storage offering an alternative to using your upfront storage to support the OS.

Specifications R940xa
