Detailed Specifications
Dell R750xs 8X3.5 1X32GB 1X480GB SSD H755 3YR BASIC NBD
We can design as per your required specification, Get in touch with sales@dcsupplies.net

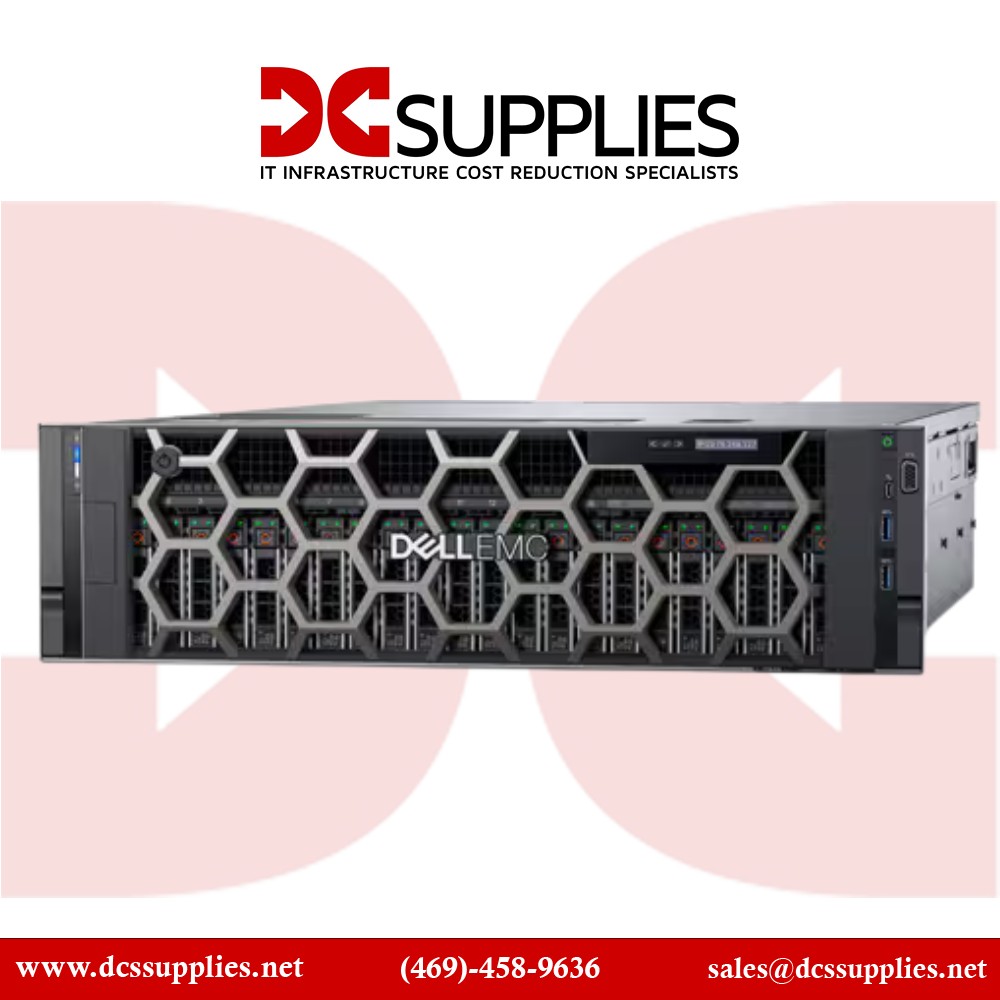

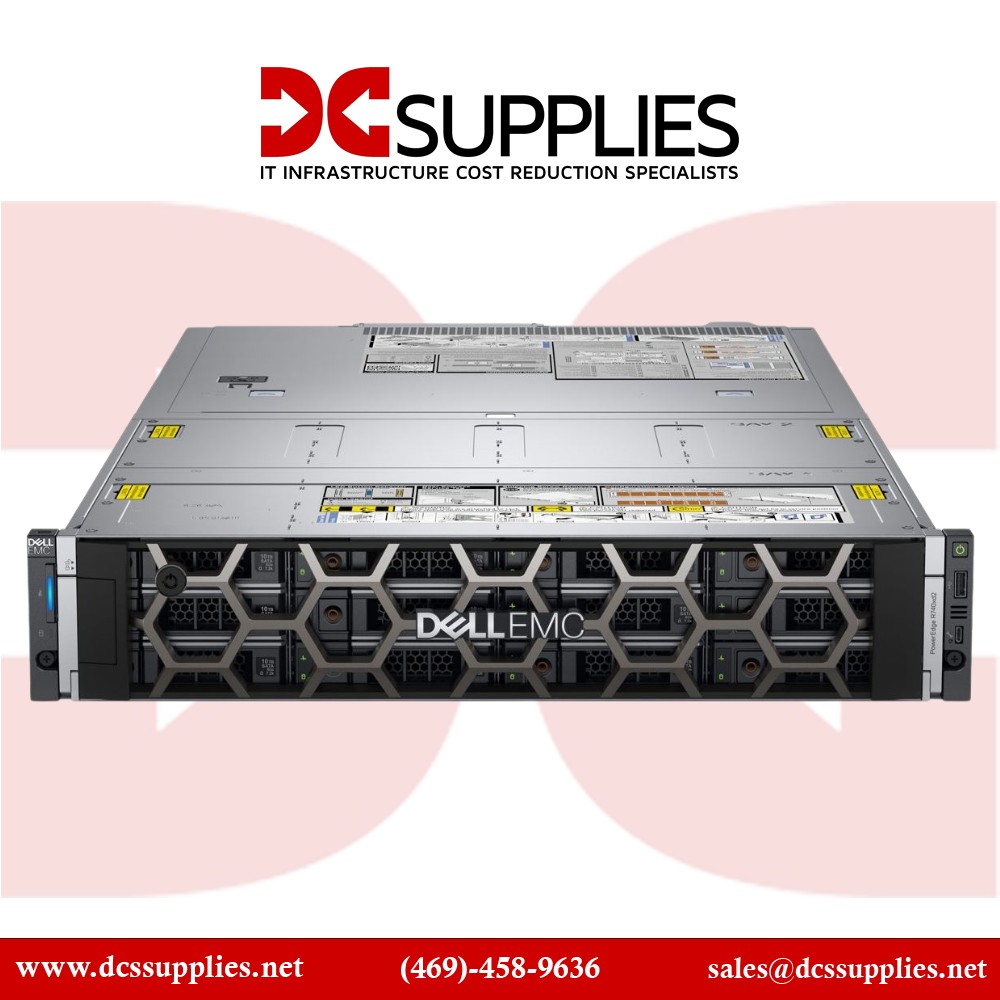

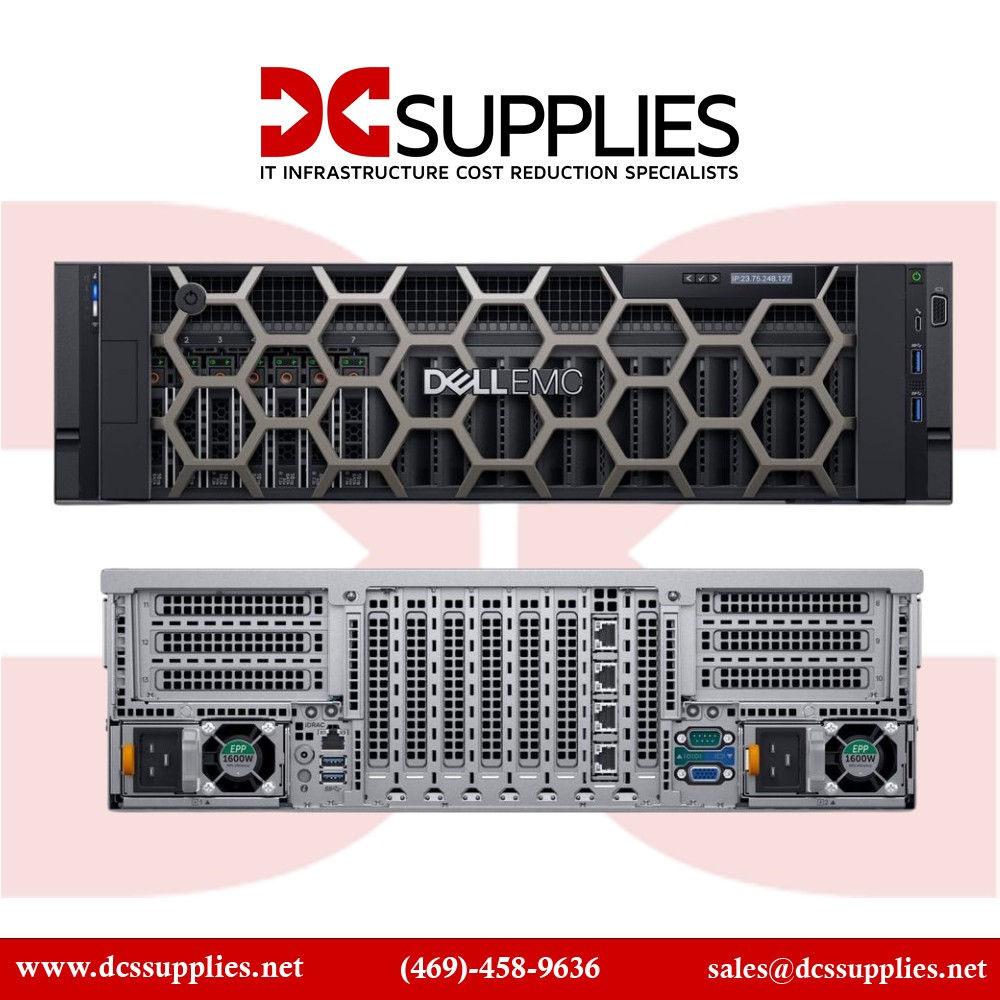

Overview R750xs
The Dell EMC PowerEdge R750xs, with 3rd generation Intel Xeon Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can:
- Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
- Improve throughput, and reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
- Include flexible storage: Up to 12x 3.5” SAS/SATA HDDs or SSDs; or up to 16x 2.5” SAS/SATA HDDs or SSDs, and 8 NVMe drives
- Enable virtualization, medium VM density or VDI, and software-defined storage node workloads
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Specifications R750xs
| Model |
1 x DELL EMC PowerEdge R750xs 2U Rack Server |
| Chassis |
1 x 3.5″ Chassis with up to 8 Hard Drives (SAS/SATA), |
| Processor |
1 x Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Mother Board |
1 x PowerEdge R750xs Motherboard with Broadcom
5720 Dual Port 1Gb On-Board |
| Memory |
1 x DELLL 16GB RDIMM, DDR4, 3200MT/s, Dual Rank |
| Hard Drive |
1 x DELL 1.2TB SAS 2.5inch 10K RPM 12Gbps Hot Plug Hard Drive |
| RAID Controller |
1 x RAID Controller PERC H755, Front SAS, 8GB NV Cache |
| iDRAC |
1 x iDRAC9 Enterprise (Integrated Dell Remote Access Controller) (15G) |
| Network Card |
1 x Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0 |
| Optical Drive |
1 x DVD+/- RW SATA Internal |
| Power Supply |
2 x Dual, Hot-plug, PSU (1+1), 1400W, Mixed Mode |
| Ready Rails |
1 x Ready Rails™ Sliding Rails With Cable Arm Management |
| Cable Arm |
Cable Arm Management |
| Bezel |
1 x Standard Bezel |
| Power Cord |
2 x Jumper Cord – C13/C14, 2M, 250V, 10A (EU, TW, APCC countries except ANZ) |
