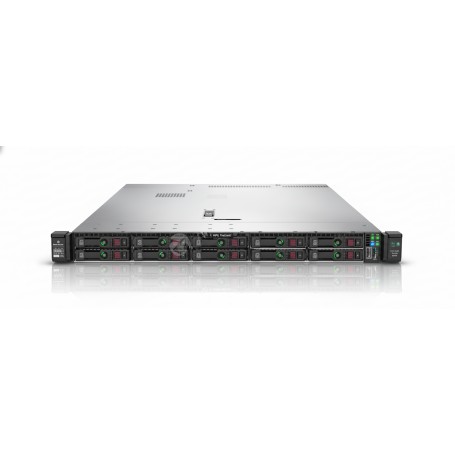

HPE 874456-S01 ProLiant DL360 Gen10 Server

New

HPE 874456-S01 ProLiant  DL360 Gen10 Server
×




  • New

Detailed Specifications

HPE 874456-S01

ProLiant DL360 Gen10 1U Rack Server (1× Xeon Gold 6136, 32 GB RAM)

The HPE 874456‑S01 ProLiant DL360 Gen10 is a compact, enterprise-grade 1U server designed for performance and density. Outfitted with a Xeon Gold 6136 CPU, 32 GB of ECC memory,  and robust RAID and I/O features, it’s optimized for virtualization, database services, and mission-critical operations in constrained rack environments.

Features

Configurable around a single Intel Xeon Gold 6136 (12 cores, 3.0 GHz base, 3.7 GHz Turbo Boost), this server delivers strong multi-threaded compute in a compact form With 24 DIMM slots supporting up to 192 GB of DDR4‑2666 RDIMM, its memory capability can scale to support large in-memory workloads .

Advanced Options

Storage is driven by the integrated Smart Array P408i‑a RAID controller (2 GB cache), managing eight internal 2.5″ bays for SAS/SATA/NVMe drives. Networking is agile, featuring 4×1 GbE integrated and additional connectivity via FlexibleLOM or PCIe slots. iLO 5 provides secure management and automation through HPE OneView.

Product Key Features

    •  Intel Xeon Gold 6136 – 12 cores @ 3.0 GHz (up to 3.7 GHz Turbo)

    •  32 GB DDR4‑2666 MHz ECC RDIMM, expandable to 192 GB (up to 24 slots)

    •  HPE Smart Array P408i‑a RAID controller with 2 GB FBWC and 8×2.5″ hot-swap bays

    • Embedded 4×1 GbE LOM + FlexibleLOM/PCIe slot, remote management via iLO 5

    •  Dual 800 W Platinum Flex Slot hot-plug PSUs for redundant power

    •  Compact 1U chassis, ideal for dense virtualization and enterprise workloads

Reliability & Performance

Designed for high availability, the DL360 includes dual hot-plug power supplies with flexibility for 1+1 redundancy, hot-swap fans, and drives—all housed in a compact 1U chassis Built to enterprise standards (AES, FIPS, ASHRAE A3/A4, RoHS), it supports intelligent thermal and power efficiency. The server scales to dual CPUs and full memory capacity, delivering future-proof investment protection.

Key Features (Bullet List)

  • Intel Xeon Gold 6136 (12 cores/24 threads; 3.0 GHz / 3.7 GHz Turbo)

  • 32 GB DDR4‑2666 ECC RDIMM (expandable to 192 GB)

  • HPE Smart Array P408i‑a RAID (2 GB FBWC)

  • 8× 2.5″ hot-swap bays for SAS/SATA/NVMe

  • Integrated 4×1 GbE LOM; FlexibleLOM/PCIe expansion

  • Integrated iLO 5; dual 800 W Platinum hot-plug PSUs

SpecificationDetails
Model Number 874456‑S01
Chassis ProLiant DL360 Gen10, 1U rack
CPU Installed 1× Intel Xeon Gold 6136 (12 cores, 24 threads) @ 3.0 GHz (3.7 GHz Turbo)
Max CPUs Supported 2 sockets
L3 Cache 24.75 MB
Memory Installed 32 GB DDR4‑2666 ECC RDIMM (2×16 GB)
Max Memory Capacity Up to 192 GB (24 DIMM slots)
Storage Controller HPE Smart Array P408i‑a with 2 GB FBWC
Drive Bays 8× hot-swap 2.5″ SFF (supports SAS/SATA/NVMe)
Embedded Networking 4× 1 GbE LOM, plus FlexibleLOM/PCIe expansion
Management Interface iLO 5 integrated
Power Supply 2× 800 W Platinum Flex Slot hot-plug (redundant)
Expansion Slots 2× PCIe 3.0 + FlexibleLOM
Fans 5× hot-plug redundant fans
Dimensions (H×W×D) 1.7″ × 17.1″ × 27.8″ (43.5 cm × 70.7 cm)
Weight 28.74 lb (13.04 kg) min; 35.86 lb (16.3 kg) max
Compliance AES, FIPS 140‑2, IPv6, PCI DSS, TLS 1.2, ASHRAE A3/A4, WEEE, RoHS
