Detailed Specifications

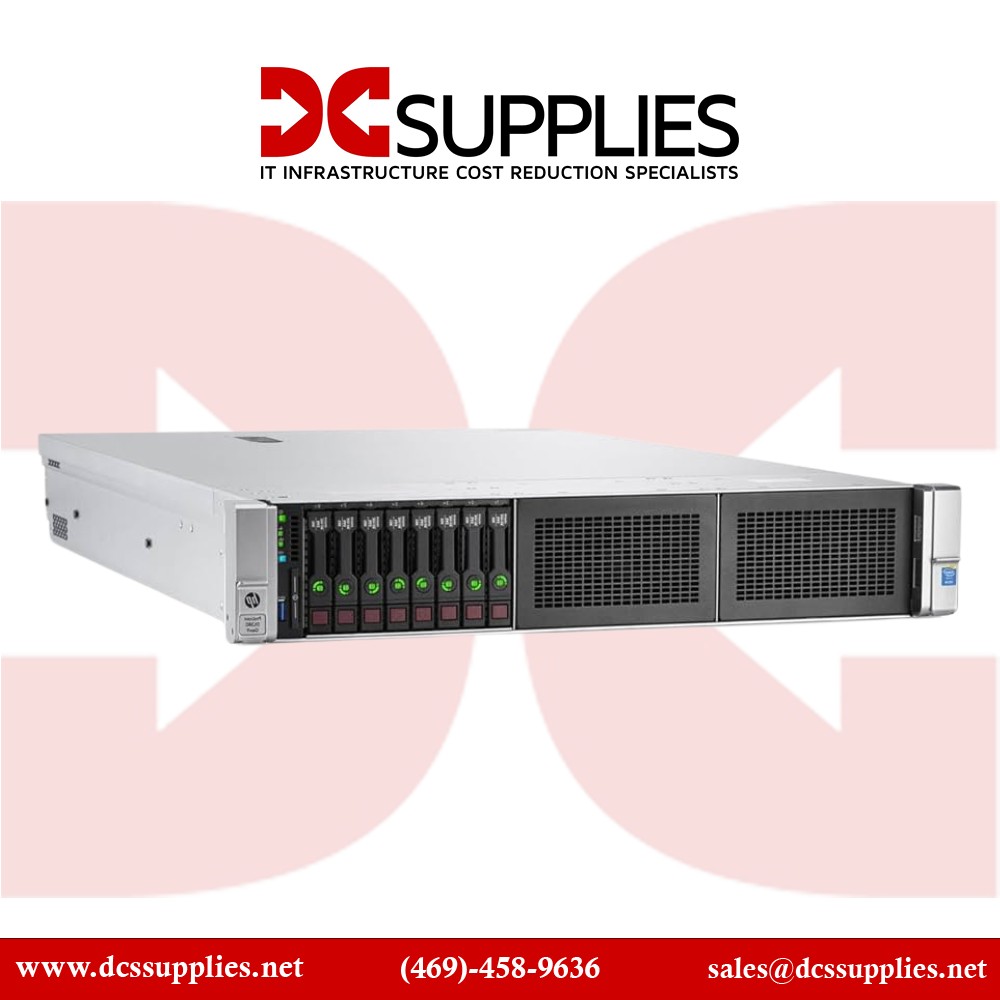

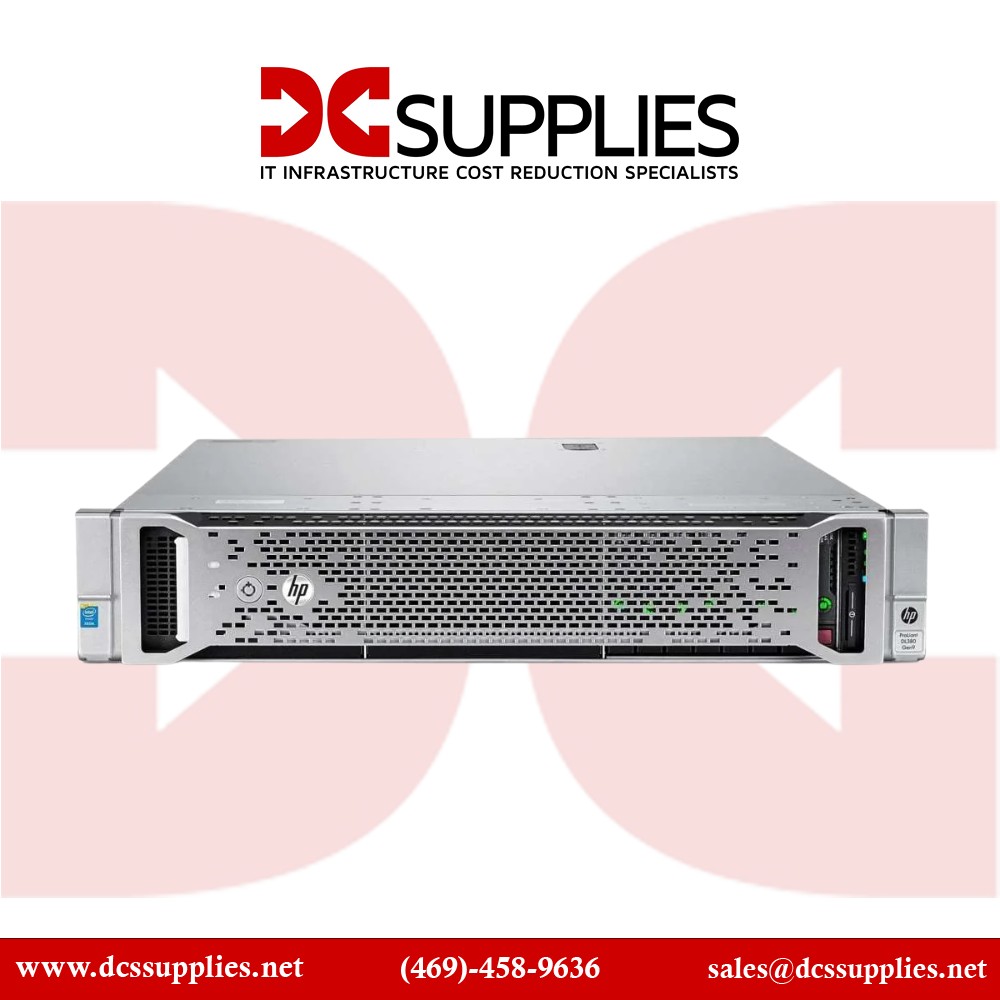

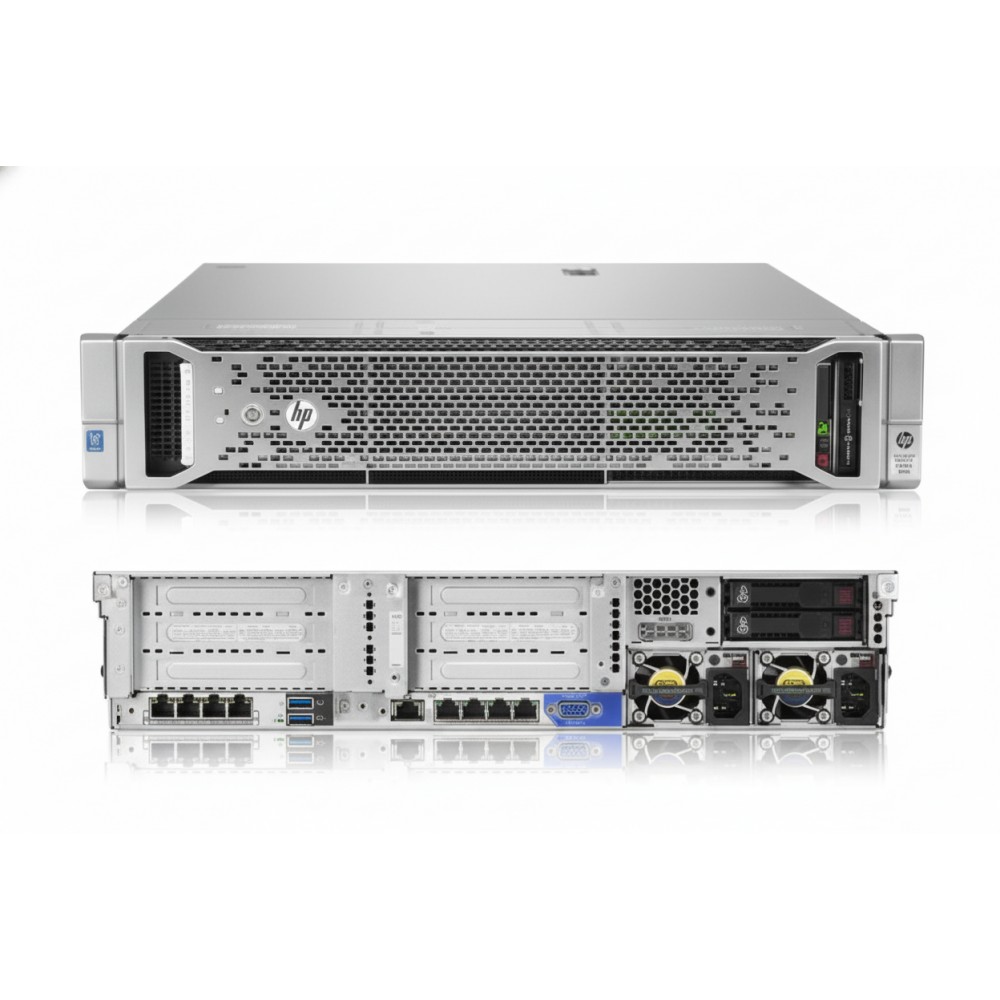

ProLiant DL380 Gen9 Dual Xeon E5-2660 v4·64 GB·8-SFF 2U Rack Server
The HPE 852432-B21 ProLiant DL380 Gen9 is a performance-tier 2U rack server designed for enterprise environments requiring compute power, calability, and availability. Ideal for virtualization, databases, enterprise apps, and mid-sized data center usage.
Features
it incorporates dual Xeon processors, ample memory, and flexible storage options to meet demanding workloads. Equipped with eight hot-swap 2.5″ drive bays, the P440ar RAID controller, and flexible networking capabilities,
Advanced Options
this server supports a variety of storage and connectivity configurations. With six PCIe Gen3 expansion slots, it can integrate additional NICs, HBAs, or accelerators. Its chassis supports 24 DIMM slots, allowing future memory upgrades up to 768 GB (register) or 1.5 TB (LRDIMM)
Product Key Features
Dual Intel Xeon E5-2660 v4 CPUs (14 cores each, 2.0 GHz base, up to 3.2 GHz Turbo)
64 GB DDR4-2133 ECC Registered memory (4×16 GB), expandable to 768 GB
8× hot-swap 2.5″ SFF drive bays, Smart Array P440ar controller with 2 GB cache
2× 800 W Flex-Slot Platinum hot-plug power supplies for redundancy
4× 1 GbE + 2× 10 GbE FlexibleLOM networking, plus HPE iLO 4
Enterprise-grade reliability, serviceability, and near-continuous availability
Reliability & Performance
Enterprise reliability features include redundant 800 W Platinum power supplies, hot-swap fans, and ECC memory. The integrated HPE iLO 4 enables secure remote management, proactive monitoring, and simplified system administration. With support for HPE OneView and firmware provisioning, deployment and maintenance become streamlined operations .
Key Features (Bullet List)
Dual Intel Xeon E5-2660 v4 CPUs (14 cores, 2.0 GHz base / 3.2 GHz turbo)
64 GB DDR4-2133 ECC RDIMM (4×16 GB), expandable up to 768 GB/1.5 TB
8× hot-swap 2.5″ SFF bays with Smart Array P440ar RAID (2 GB cache)
4× embedded 1 GbE + 2× 10 GbE LOM, plus optional flexible LOMs
2× 800 W Platinum hot-plug PSUs, hot-swap fans
HPE iLO 4 remote management and firmware provisioning
Specifications :
| Spec | Details |
|---|
| Model Number | 852432-B21 |
| Form Factor | 2U Rackmount |
| Processors | 2× Intel Xeon E5-2660 v4 (14 cores/28 threads each) |
| CPU Speed | 2.0 GHz base, up to 3.2 GHz Turbo |
| Cache | 35 MB L3 per CPU (70 MB total) |
| Memory Installed | 64 GB (4×16 GB DDR4-2133 ECC RDIMM) |
| Max Memory | 768 GB Registered or 1.5 TB LRDIMM |
| Drive Bays | 8× hot-swap 2.5″ SFF |
| Storage Controller | Smart Array P440ar, 2 GB cache, SAS/SATA, RAID 0/1/5/6/10/50/60 |
| Network Interfaces | 4× 1 GbE + 2× 10 GbE LOM |
| Expansion Slots | 6× PCIe 3.0 slots |
| Power Supplies | 2× 800 W Flex-Slot Platinum, hot-plug |
| Hot-swap Fans | Yes, six fans |
| Management | HPE iLO 4, OneView, Intelligent Provisioning |
| Dimensions (HxWxD) | 8.73 cm × 44.55 cm × 67.94 cm / 3.44″ × 17.54″ × 26.7″ |
| Weight | ~14.76 kg / 32.5 lb |
| Optical Drive | DVD-RW SATA |
