Detailed Specifications

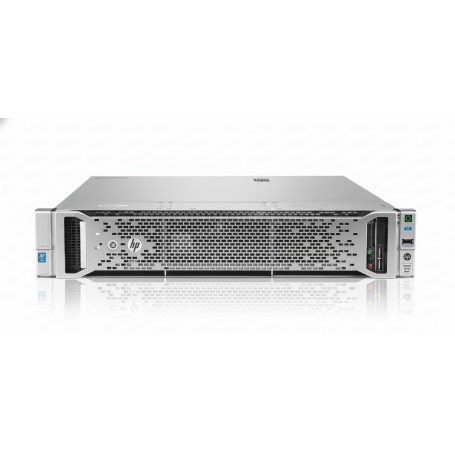

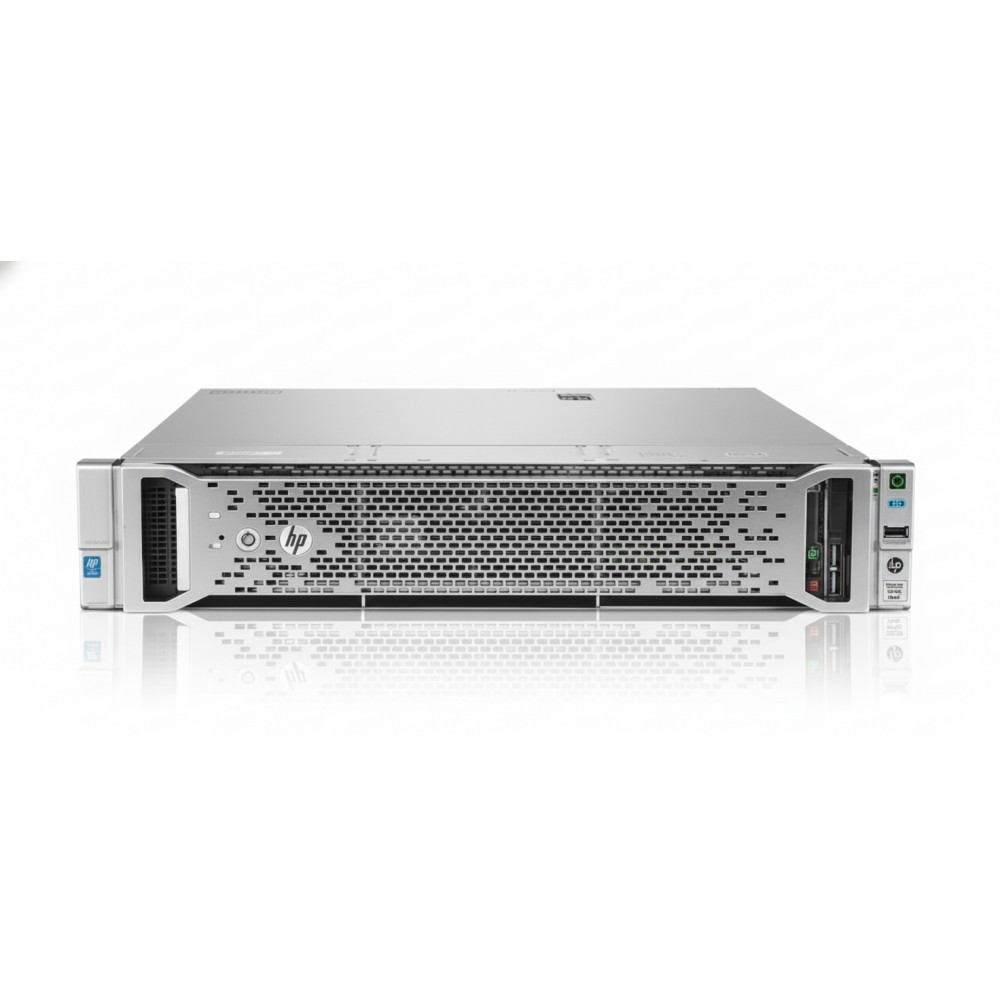

ProLiant DL380 Gen9 Rack Server-Intel Xeon E5-2640 v4,16 GB
The HPE ProLiant DL380 Gen9 (867450-S01) is a feature-rich 2U rack-mount server engineered for enterprise deployment. Powered by a 10-core Xeon E5-2640 v4 and 16 GB of ECC memory, it delivers solid performance for virtualization, databases, and general server workloads.
Features
This configuration includes 8 small form-factor drive bays for SAS/SATA storage, offering flexibility for data-intense workloads. The integrated P440ar RAID controller provides multiple storage protection options via hardware-based RAID and battery-backed cache.
Advanced Options
The embedded quad-port 1 GbE NIC allows seamless network integration. With HPE iLO 4, you get enterprise-grade remote management and system monitoring.
Product Key Features
Intel Xeon E5-2640 v4 (10-core, 2.4 GHz, 25 MB cache)
16 GB DDR4-2133 ECC Registered memory
HPE Smart Array P440ar 2 GB RAID controller with battery-backed cache
8 SFF hot-plug drive bays (SAS/SATA)
500 W Flex Slot Platinum power supply
Integrated HPE iLO 4 & embedded 4-port 1 GbE NIC
Reliability & Performance
Designed for data center reliability, the DL380 Gen9 supports redundant power and cooling with hot-swappable components. The Xeon E5-2640 v4 delivers robust multi-threaded performance, while ECC memory minimizes the risk of data errors. HPE's Smart Array controller adds storage resilience and performance optimization. All backed by HPE's standard 3-year warranty for professional support.
Key Features (Bullet List)
Intel Xeon E5-2640 v4 processor (10 cores, 2.4 GHz)
16 GB DDR4-2133 ECC Registered RAM
HPE Smart Array P440ar 2 GB cache RAID controller
8× SFF hot-plug drive bays (SAS/SATA)
500 W Flex Slot Platinum power supply
Integrated HPE iLO 4 management
Embedded quad-port 1 GbE NIC
2U rack-mount chassis
| Specification | Details |
|---|
| Model Number | 867450-S01 |
| Processor | Intel Xeon E5-2640 v4 (10-core, 2.4 GHz) |
| Cache | 25 MB L3 |
| Memory | 16 GB DDR4-2133 ECC Registered (1×16 GB) |
| Memory Slots | 24 DIMM slots (max 3 TB) |
| Drive Bays | 8× SFF hot-plug (SAS/SATA) |
| RAID Controller | HPE Smart Array P440ar w/ 2 GB BBWC |
| Network | 4×1 GbE embedded NIC |
| Power Supply | 500 W Flex Slot Platinum |
| Remote Management | HPE iLO 4 |
| Form Factor | 2U Rack-Mounted |
| Dimensions | 29.5″ × 17.6″ × 3.44″ (L×W×H) |
| Weight | ~51.5 lb fully configured |
