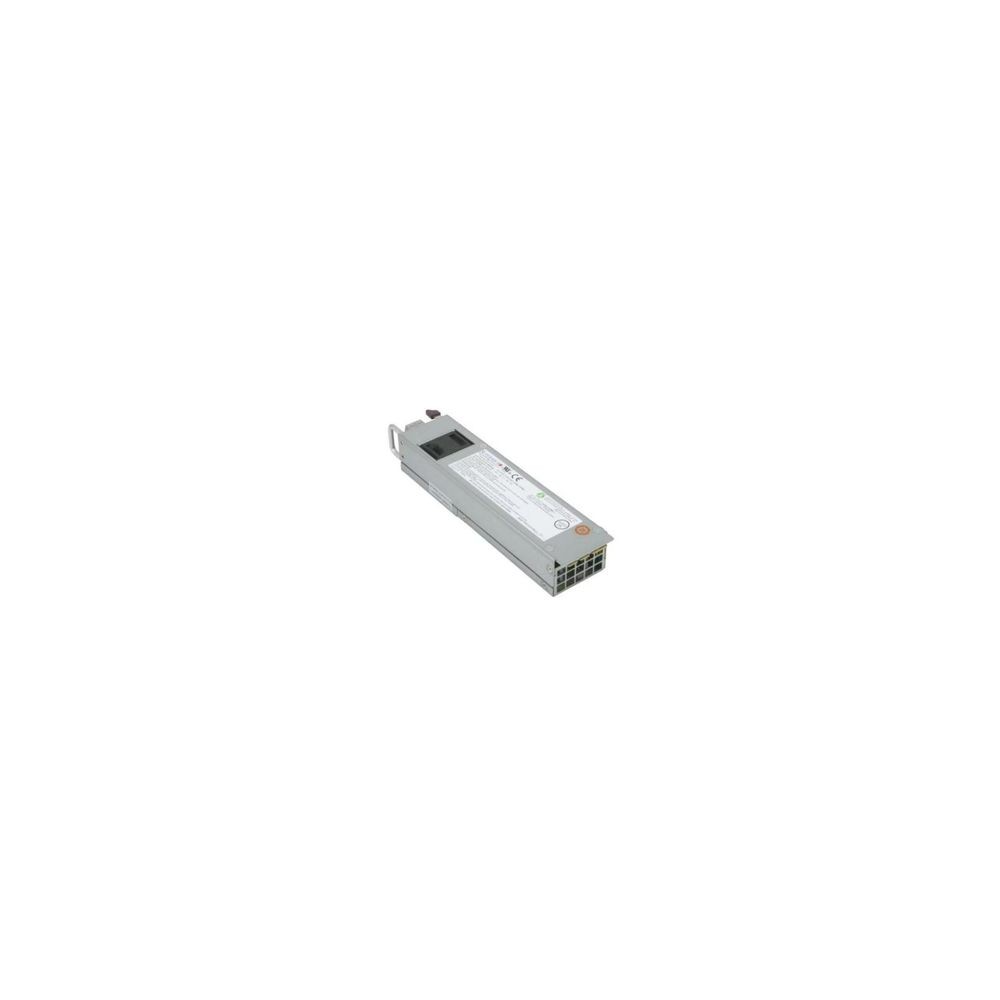

SUPERMICRO COMPUTER PWS-601D-1R Server Power Supplies View larger

SUPERMICRO COMPUTER PWS-601D-1R Server Power Supplies

PWS-601D-1R

New

Supermicro 600W 1U - 48V DC Input Power Supply (PWS-601D-1R) - Output Type Gold Finger - Energy Efficiency 92% Peak - MTBF 200000 hours - 1 year warranty
×




Detailed Specifications

Primary Information
Power / Device TypePower Supply
Power Device / Form Factor1U
Power / Voltage Required-44Vdc to -65Vdc
Power / Provided (W)600 Watt
Output Connector(s)Gold Finger
Efficiency92%
MTBF>200000 hours
For Use WithCSE-515M-R601
ModelPWS-601D-1R
Width54.5 Mm
Depth220 Mm
Height40 Mm
Service & Support Type1 year warranty
Features48V DC Input Support; Designed for Supermicro 1U Server; Compatible DC-48V Option for PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, and PWS-608P-1R Platforms; Supermicro Certified
Min Operating Temperature0 Celsius
Max Operating Temperature50 Celsius
Humidity Range Operatingto 85% (non-condensing)

Green Product Information
Proposition 65 WarningY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code39121004
