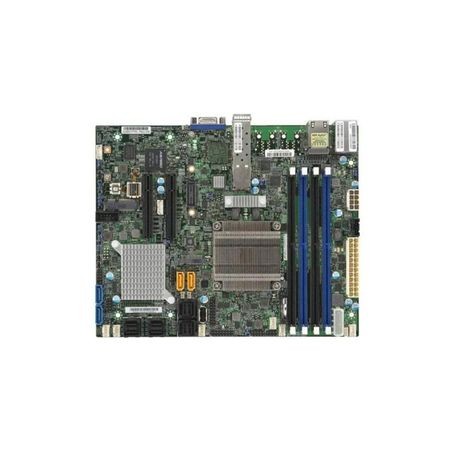

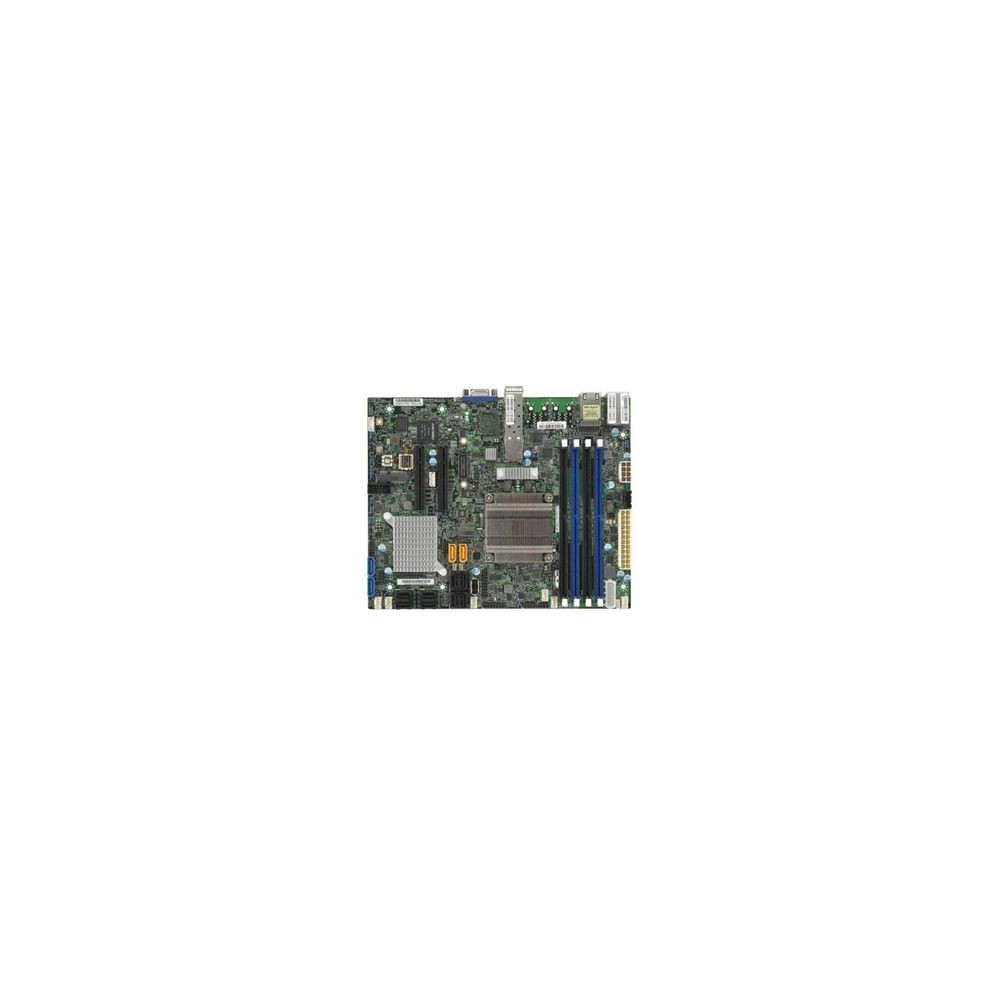

SUPERMICRO COMPUTER MBD-X10SDV-7TP4F-O Server Motherboards View larger

SUPERMICRO COMPUTER MBD-X10SDV-7TP4F-O Server Motherboards

MBD-X10SDV-7TP4F-O

New

Mother Board-Intel, MBD-X10SDV-7TP4F-SINGLE, Single
×




Detailed Specifications

Dimensions&Miscellaneous
ModelMBD-X10SDV-7TP4F
Width9.0 Inch
Depth7.25 Inch

Primary Information
Mainboard Form FactorFlexATX
Mainboard / Chipset TypeSystem on Chip
Compatible ProcessorsIntel Xeon Processor D-1537.
Networking TypeGigabit Ethernet
Features2 SuperDOM, 1 COM, TPM 2.0 header,GPIO and SMbus headers; 12V DC Input and ATX Power Source; 16 SAS2/SATA3 (6Gbps) ports via Broadcom 2116

Processor
Processor / Socket TypeFCBGA1667

Memory
RAM / TechnologyDDR4
RAM / Max Supported SizeUp to 128GB Registered ECC RDIMM, DDR4-2133MHz; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots GB

Storage
Controller Interface TypeSATA III

Expansion
Expansion Slots Total (Free)2 PCI-E 3.0 x8; M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support; 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
Interfaces & Connections5 USB 2.0 ports (4 headers, 1 Type A); 2 USB 3.0 ports (2 rear); 2 10G SFP+ LAN ports; 2 1GbE LAN ports; 1 RJ45 Dedicated IPMI LAN port; 1 VGA port; 1 COM Port (1 header); 4 SATA3 (6Gbps) port

Special Feature
COOTAIWAN
TAA complianceYes

UNSPSC Code
UNSPSC Code43201513
