SUPERMICRO COMPUTER SYS-6028TP-HC0R Server Barebones View larger

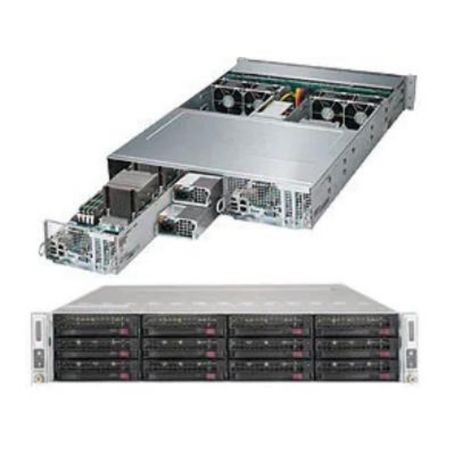

SUPERMICRO COMPUTER SYS-6028TP-HC0R Server Barebones

SYS-6028TP-HC0R

New

CSE-827HQ+-R2K04B -Server-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-3x 3.5 Hot-swap SAS/SATA HDD trays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty3
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)2000 Watt
Power / Voltage Required200 240Vdc
Interfaces & Connections3x SAS3 (12Gbps) ports, 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port, 2x USB 3.0 ports total (2x rear), 1x VGA port, 1x Fast UART 16550 port / 1 Header (internal), 1x SATADOM support on the motherboard.
Expansion Bays Total (Free)3x 3.5" Hot-swap SAS/SATA HDD trays
Expansion Slots Total (Free)1x PCI-E 3.0 x16 Low-profile slot, 1x "0 slot" (x16).
ModelCSE-827HQ+-R2K04B
Width17.25 Inch
Depth30.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
